STARTING AND CHARGING SYSTEM (X22SE 2.2L)
6D3–1
ENGINE
STARTING AND CHARGING SYSTEM (X22SE 2.2L)
CONTENTS
Service Precaution......................................... 6D3 - 1
Starting System ............................................. 6D3 - 2
General Description ....................................... 6D3 - 2
Diagnosis ....................................................... 6D3 - 2
Starter ........................................................... 6D3 - 3
Removal ..................................................... 6D3 - 3
Installation .................................................. 6D3 - 3

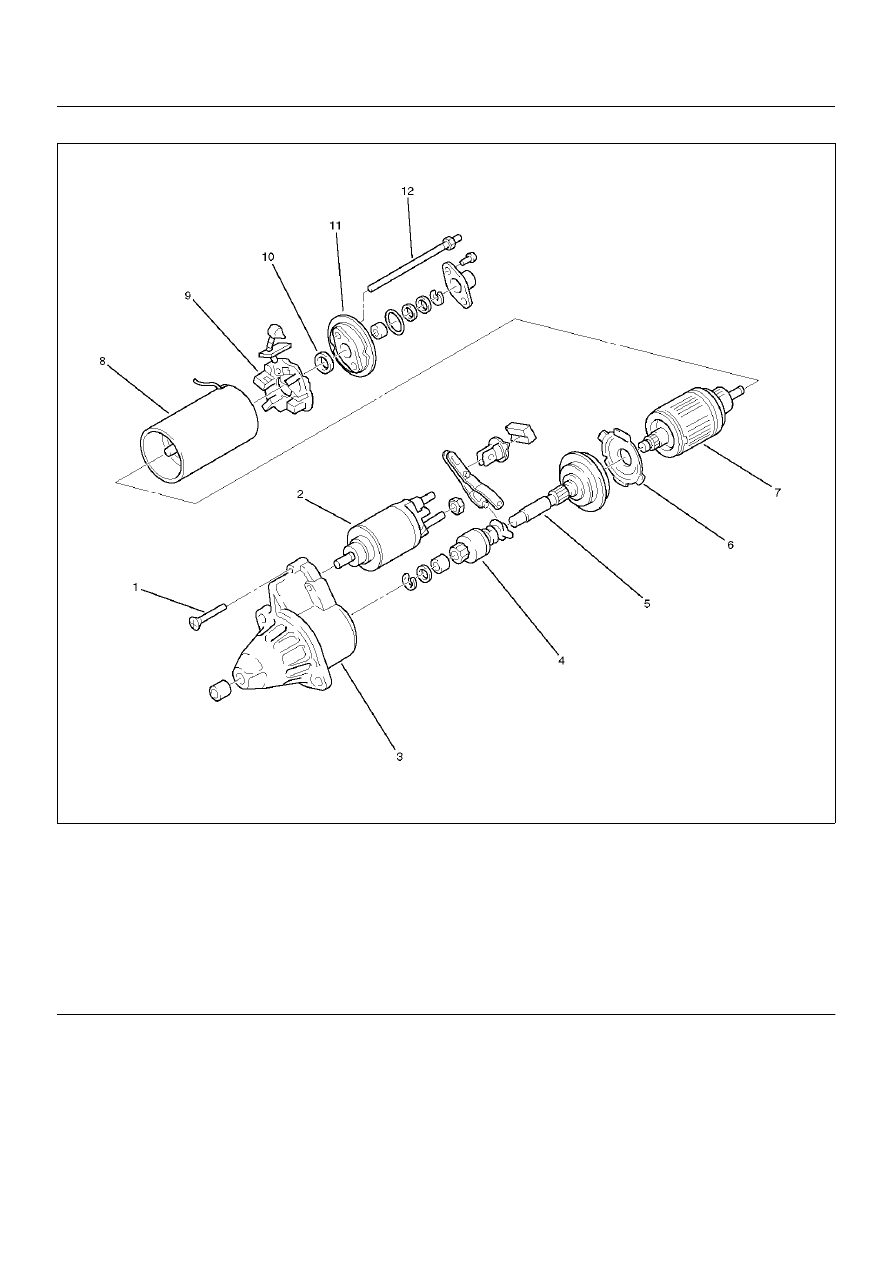

Disassembled View .................................... 6D3 - 4
Inspection and Repair................................. 6D3 - 5
Characteristic Test...................................... 6D3 - 6
Charging System........................................... 6D3 - 7
General Description ....................................... 6D3 - 7
General On–Vehicle Inspection ..................... 6D3 - 7
Generator ...................................................... 6D3 - 9
Removal...................................................... 6D3 - 9
Inspection ................................................... 6D3 - 9
Installation................................................... 6D3 - 10
Disassembly ............................................... 6D3 - 10
Inspection and Repair................................. 6D3 - 12
Reassembly ................................................ 6D3 - 14
Main Data and Specifications ........................ 6D3 - 15
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts
and systems.
