8D–214

WIRING SYSTEM

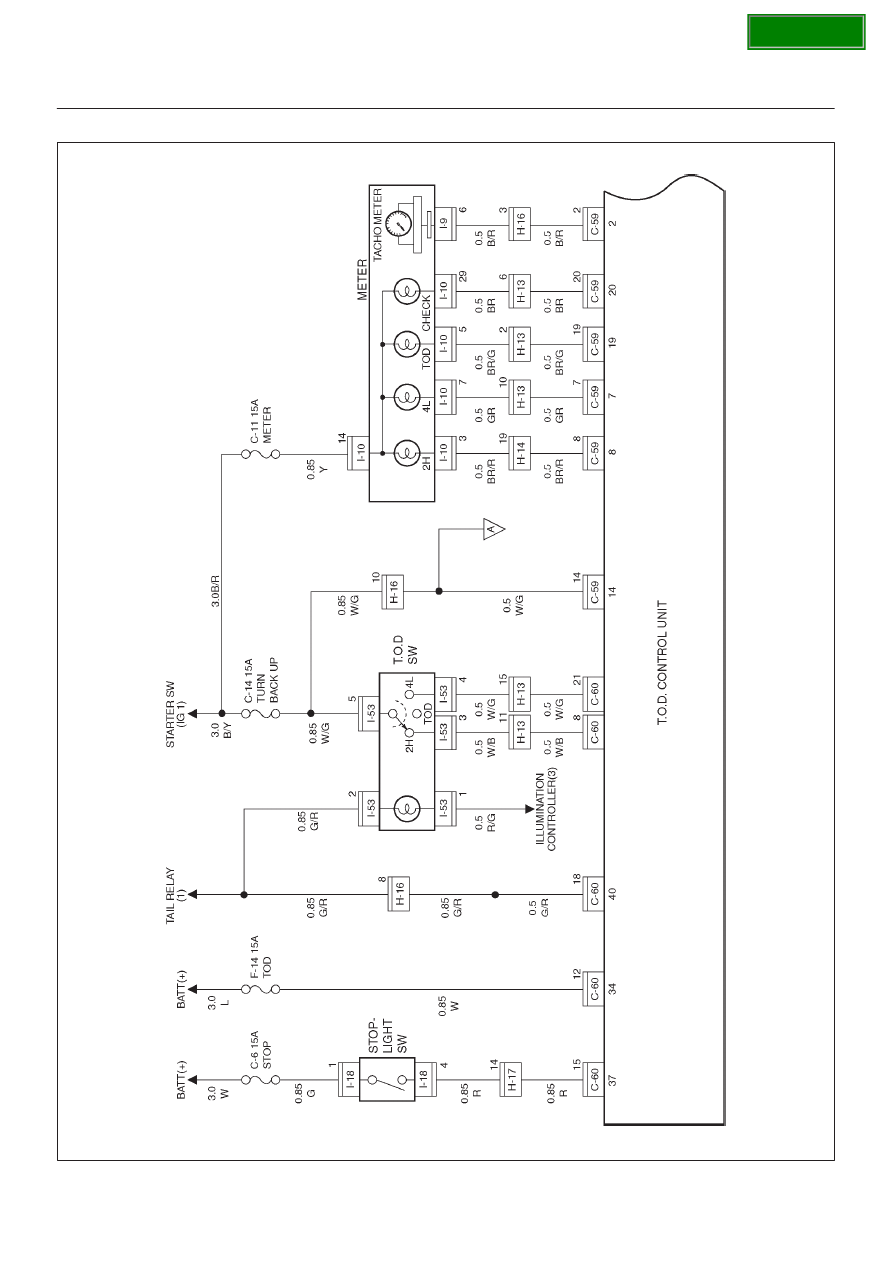

Circuit Diagram–1

D08R100160

SECTION

8D–215

WIRING SYSTEM

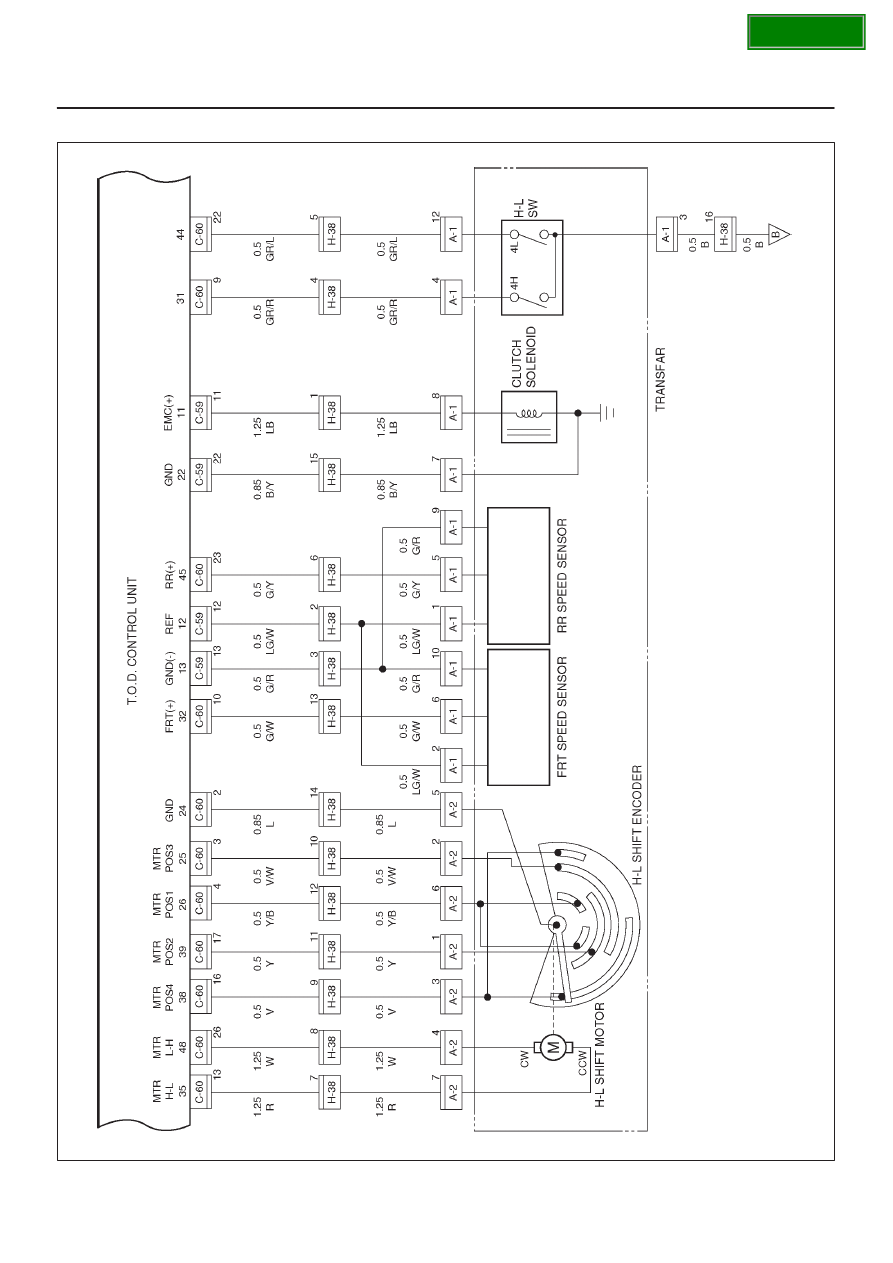

Circuit Diagram–2

D08R100161

SECTION

8D–216

WIRING SYSTEM

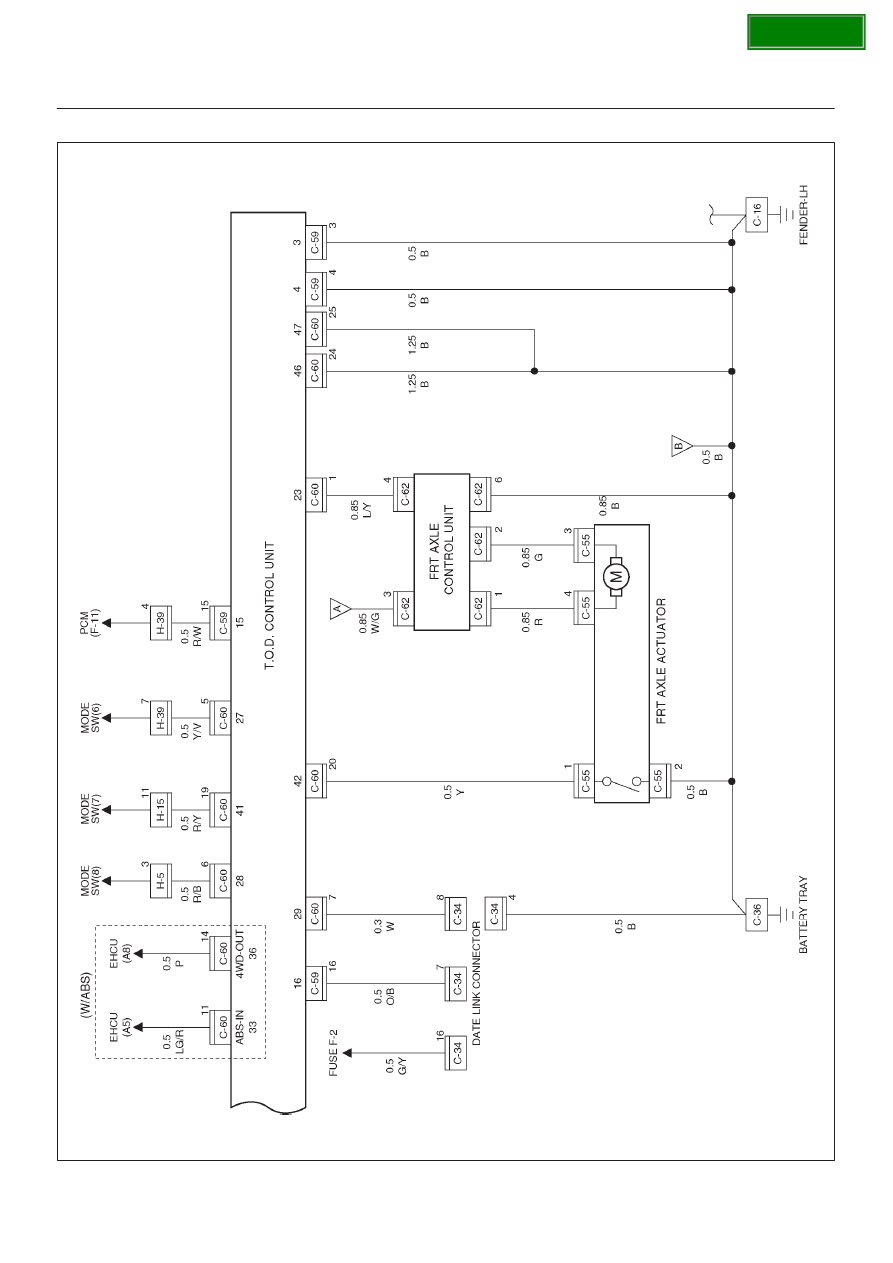

Circuit Diagram–3

D08R100162

SECTION

8D–217

WIRING SYSTEM

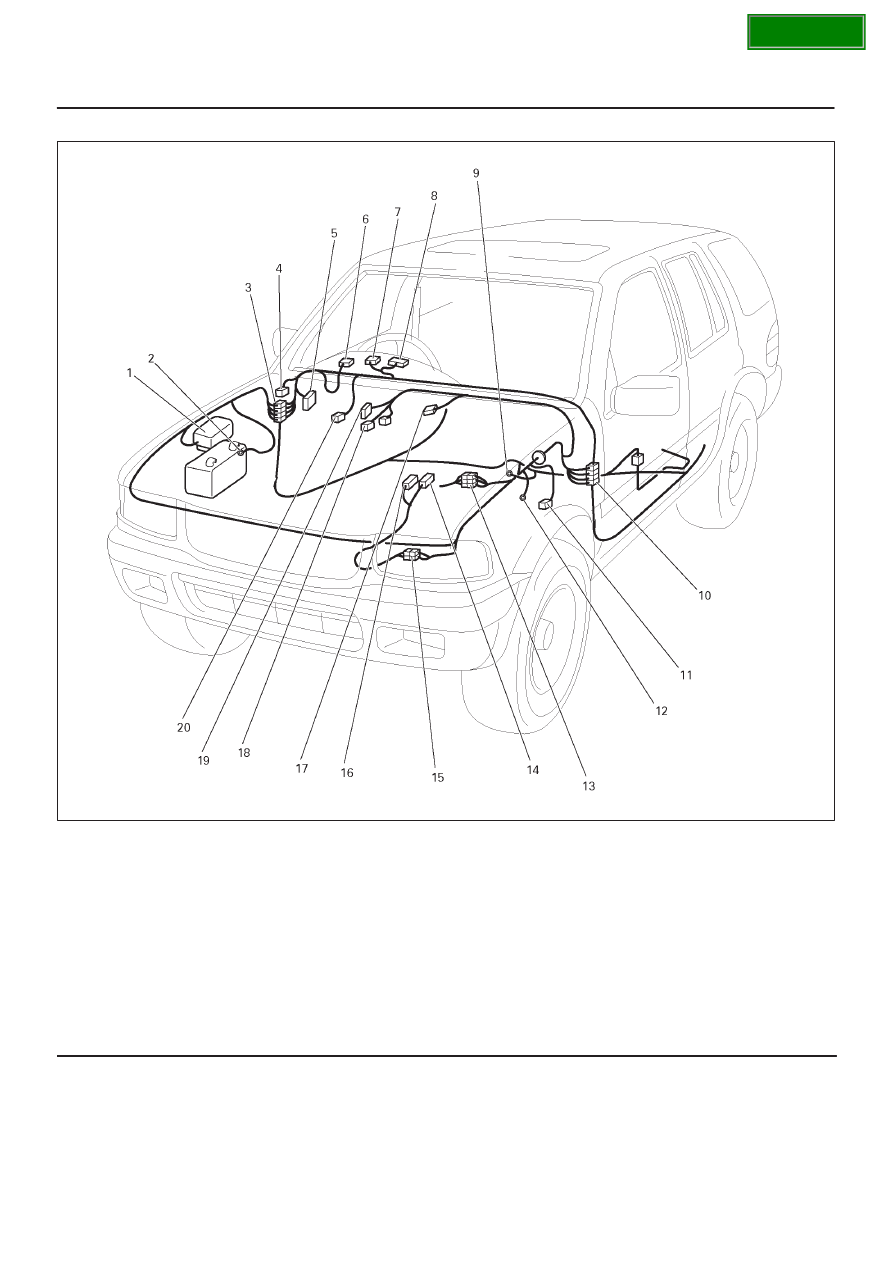

Parts Location

D08R100208

Legend

(1) Relay & Fuse Box (Engine Room)
(2) C–36
(3) H–13, H–14, H–15
(4) C–34
(5) Relay & Fuse Box (Instrument Panel)
(6) I–53
(7) I–9
(8) I–10
(9) B–8

(10) H–16, H–17

(11) C–55

(12) C–16
(13) H–5, H–39
(14) A–1
(15) H–38
(16) A–2
(17) C–62
(18) C–59
(19) C–60
(20) I–18

SECTION
