8D–170

WIRING SYSTEM

Diagnosis

Mirrors On Both Sides Do Not Operate

Step

Action

Value(s)

Yes

No

1

Is the fuse C–18 normal?

—

Go to Step 2

Replace the

fuse

2

Is B–8 grounded securely?

—

Go to Step 3

Ground it

securely

3

Disconnect the mirror control switch connector I–12.

Is the battery voltage applied between the harness side
connector I–12 terminal 2 and the ground?

Approx. 12V

Go to Step 5

Go to Step 4

4

Repair an open circuit between the fuse C–18 and
connector I–12 terminal 2.

Is the action complete?

—

Go to Step 3

—

5

Is there continuity between the harness side connector
I–12 terminal 1 and the ground?

—

Go to Step 7

Go to Step 6

6

Repair an open circuit between connector I–12
terminal 1 and the ground.

Is the action complete?

—

Verify repair

—

7

Repair or replace the mirror control switch.

Is the action complete?

—

Verify repair

—

Mirrors On the Left (or Right) Side Does Not Operate

Step

Action

Value(s)

Yes

No

1

1. Remove the mirror control switch.
2. Move the mirror select switch to the left side mirror

(or right side mirror).

Is there continuity between the switch side connector
terminal 1, 4 and 7 (or 1, 5 and 8)?

—

Go to Step 2

Replace the

mirror control

switch

2

Repair an open circuit between connector I–12
terminal 4 and connector D–12 terminal 8 (or connector
I–12 terminal 5 and connector D–3 terminal 8)?

Is the action complete?

—

Verify repair

—

Mirrors On Both Sides Operate Only In The Vertical (Or Horizontal) Direction

Step

Action

Value(s)

Yes

No

1

Repair or replace the mirror control switch.

Is the action complete?

—

Verify repair

–

SECTION

8D–171

WIRING SYSTEM

Mirror On the Left (or Right) Side Operates Only In The Vertical (Or Horizontal) Direction

Step

Action

Value(s)

Yes

No

1

Does the mirror operate vertically?

—

Go to Step 2

Go to Step 3

2

1. Remove the mirror–LH (or ? RH).
2. Connect the battery positive terminal to the mirror

side connector terminal 7, and battery negative
terminal to mirror side terminal 8. Then connect the
battery positive terminal to mirror side terminal 8,
and negative terminal to mirror side terminal 7.

Does the mirror operate horizontally?

—

Go to Step 4

Replace the

mirror

3

1. Remove the mirror–LH (or ? RH).
2. Connect the battery positive terminal to the mirror

side connector terminal 4, and battery negative
terminal to mirror side terminal 8. Then connect the
battery positive terminal to mirror side terminal 8,
and negative terminal to mirror side terminal 4.

Does the mirror operate vertically?

—

Go to Step 4

Replace the

mirror

4

Repair an open circuit between connector I–12
terminal 7 or 8 and mirror connector terminal 7, or
connector I–12 terminal 6 and mirror connector
terminal 4.

Is the action complete?

—

Verify repair

—

SECTION

8D–172

WIRING SYSTEM

Keyless Entry

General Description

This circuit consists of the keyless entry control unit, the
front door lock, & power window switch (RH), the starter
switch, the dome light, the door switch and the tail gate
switch and possible to lock/unlock each door by operation
of transmitter. Basic function of system is as follows.

1. Lock/unlock function

When the Keyless entry control unit receives the
signal from the transmitter, the control unit sends the
locker unlock signal to the front door lock and power
window switch (RH).
Function code (lock or unlock) and proper ID code for
each vehicle are added to the signal. But, when
starter switch is on or any of the doors opens,
lock/unlock function is not unable to work.

2. Answer back function

When receiving the signal from the transmitter, the
keyless entry control unit responds by using the dome
light. In case of being locked, the keyless entry control
unit turns on the dome light at two times (about 0.5
second at each time). In case of being unlocked, it
turns on the dome light at one time (about 3 seconds).

3. Autolock function

After unlock function is done, in case of effecting one
of following conditions within about 30 seconds, the
keyless entry control unit automatically sends the
lock signal to lock each door.

(1) The doors are closed.
(2) Starter key is not inserted
(3) The lock operation is not done by transmitter.

SECTION

8D–173

WIRING SYSTEM

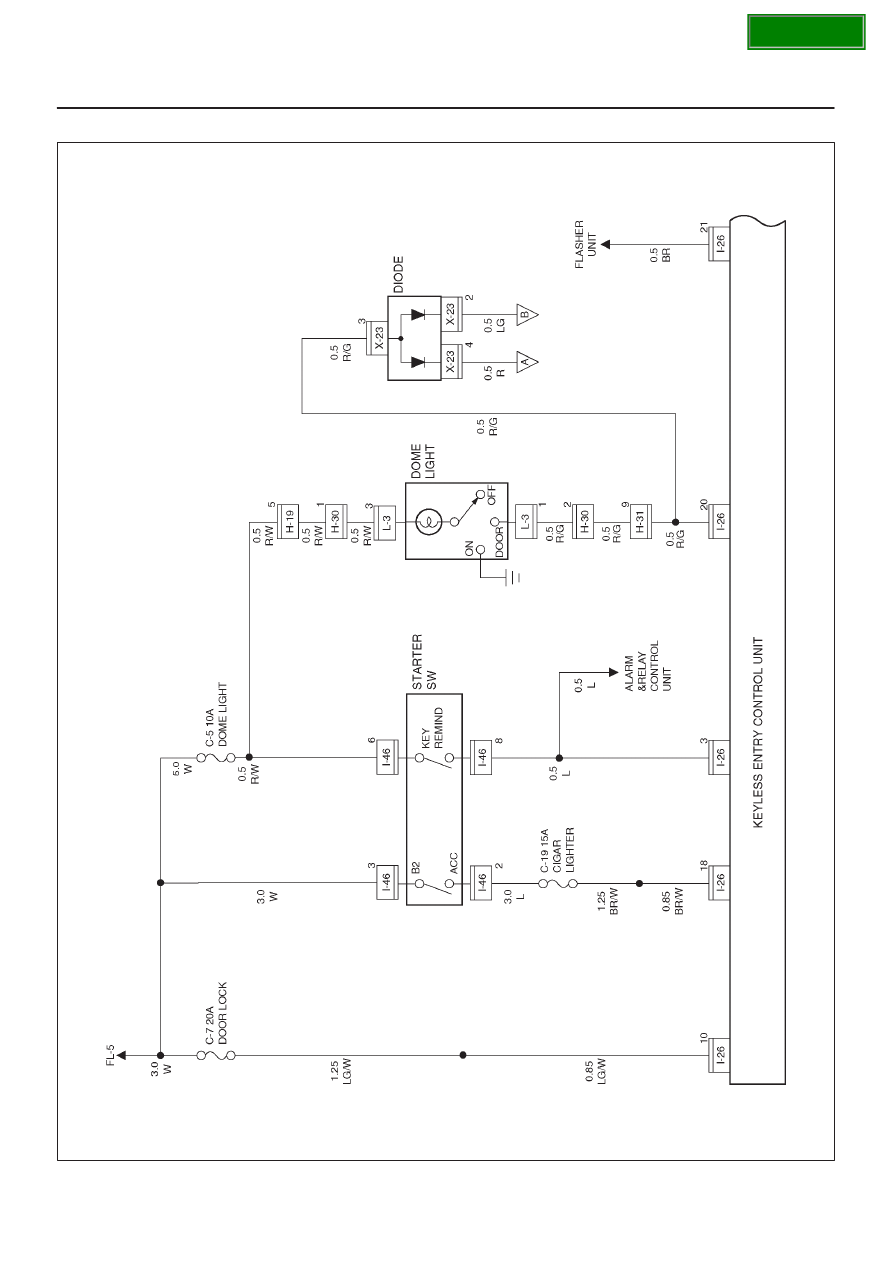

Circuit Diagram–1

D08R100147
