8D–130

WIRING SYSTEM

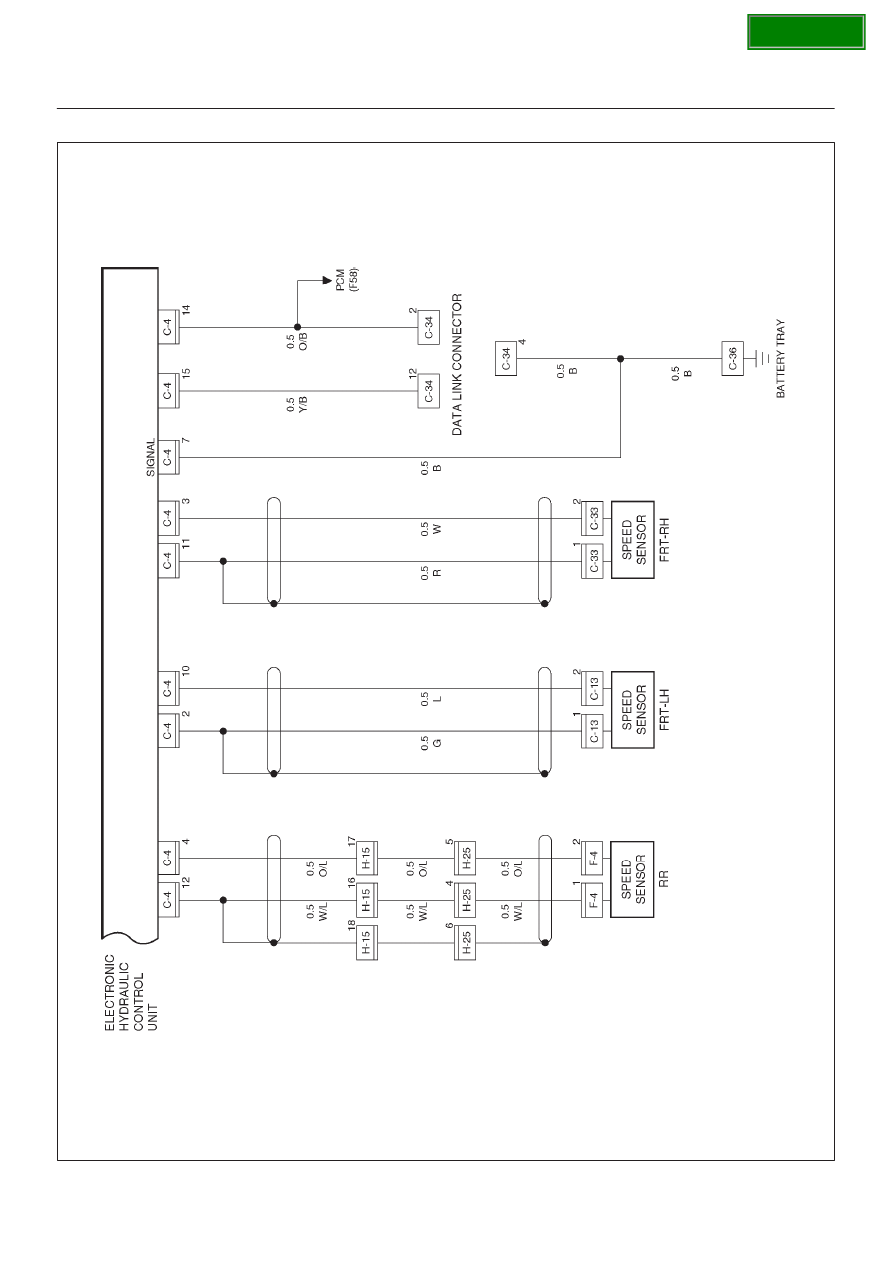

Circuit Diagram–2

D08R100127

SECTION

8D–131

WIRING SYSTEM

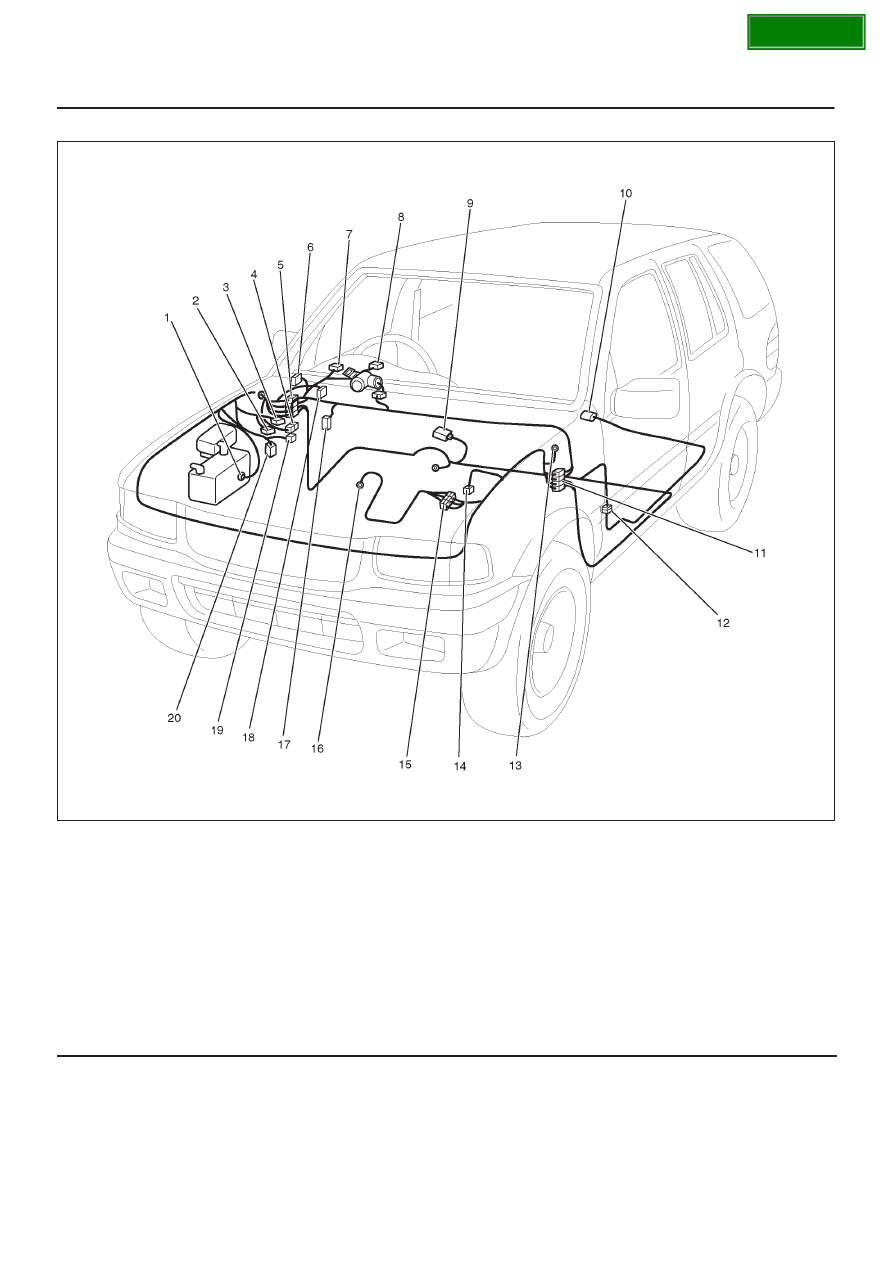

Parts Location

D08RY00828

Legend

(1) C–36
(2) C–5
(3) C–4
(4) H–60
(5) H–14, H–19
(6) Relay & Fuse Box
(7) I–9
(8) I–10
(9) B–19

(10) F–4

(11) H–15, H–16, H–17

(12) H–25
(13) C–16
(14) C–13
(15) H–5
(16) E–30
(17) I–18
(18) C–34
(19) C–6
(20) C–33

SECTION

8D–132

WIRING SYSTEM

A/T Shift Lock

General Description

With the starter switch in the “ON” position and the shift
lever in “P” position, the shift lever cannot be shifted from
“P” to another position unless the brake pedal is
depressed. This is because, unless the brake pedal is
depressed, the solenoid pin underneath the shift lever
retracts and the link lever then locks the shift lever cam.

SECTION

8D–133

WIRING SYSTEM

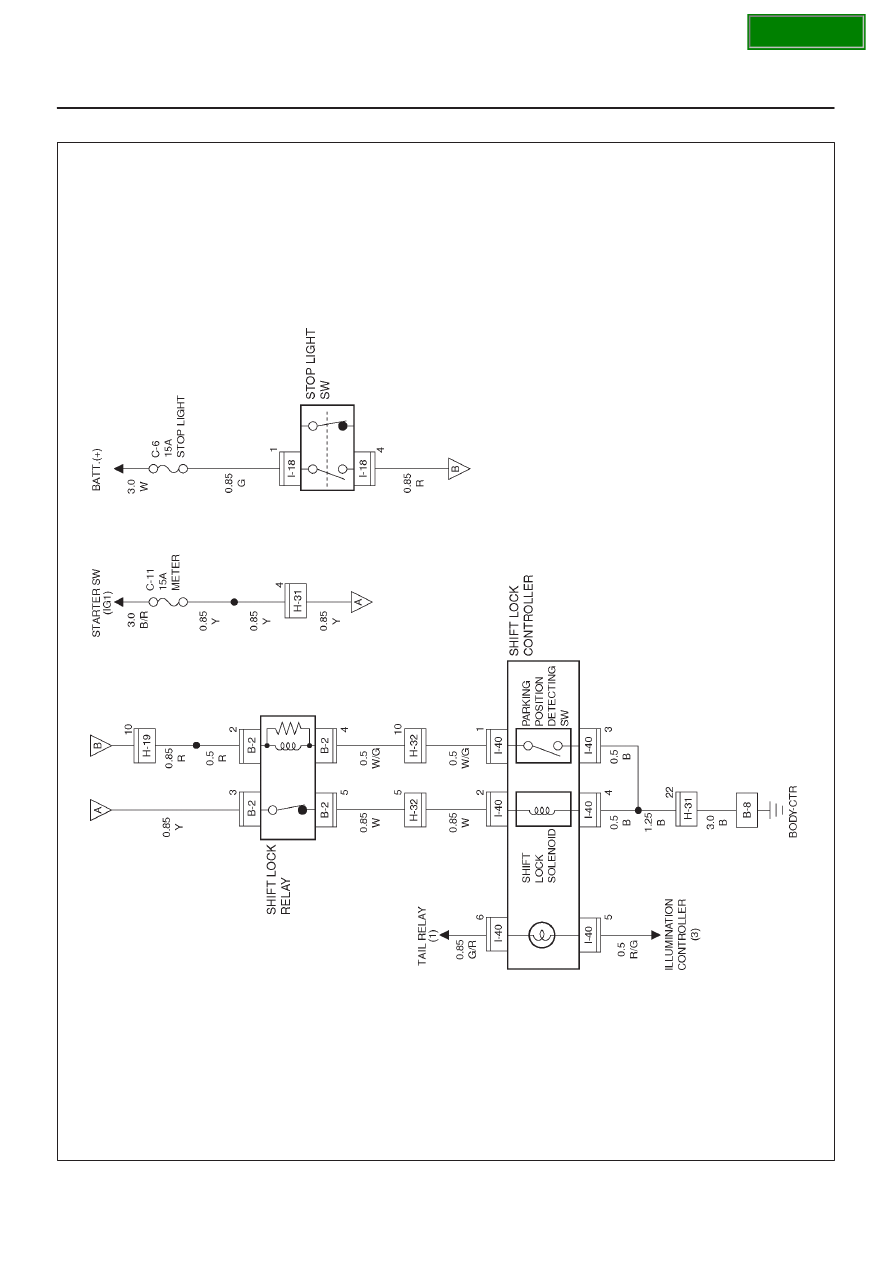

Circuit Diagram–1

D08R100128
