Opel Frontera UE. Manual - part 1655
8D–50
WIRING SYSTEM

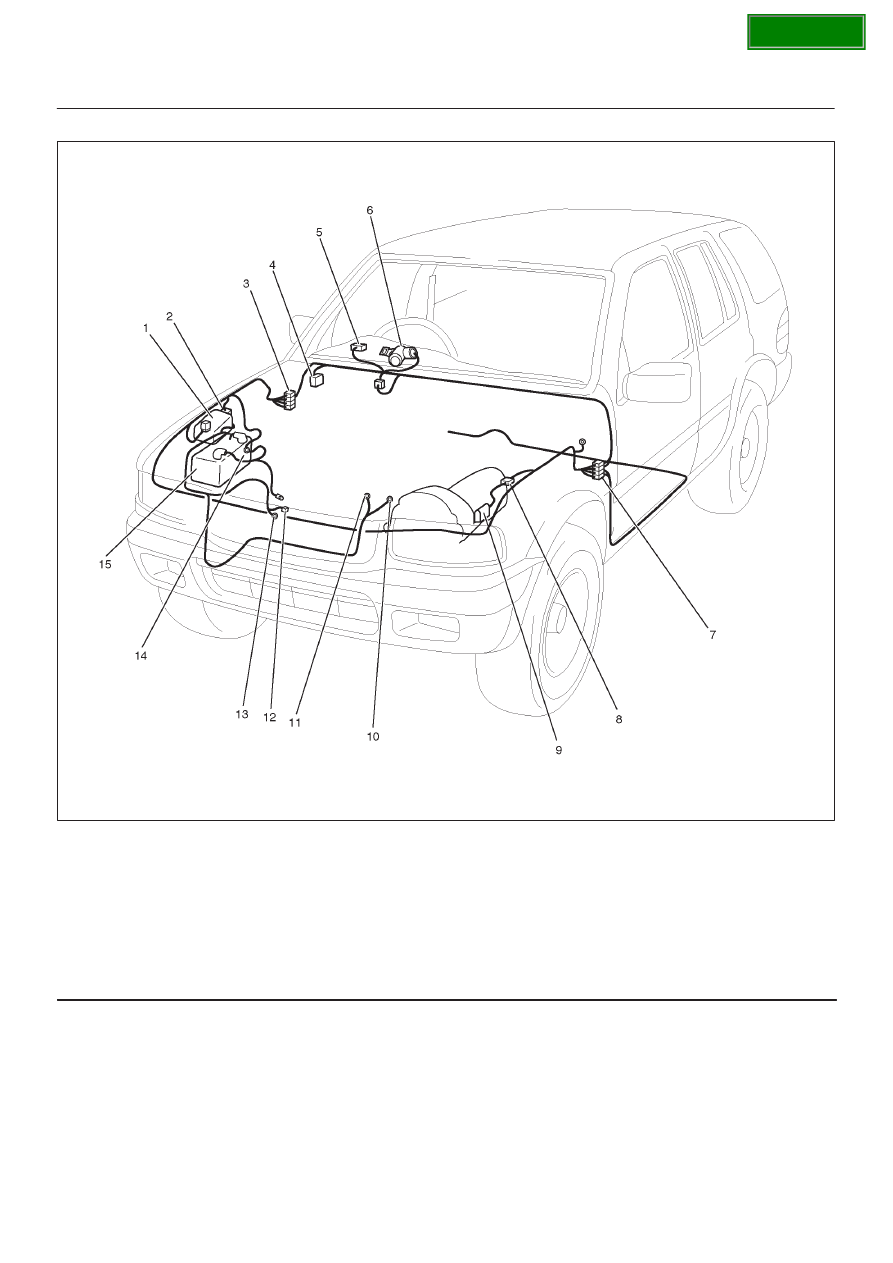

Parts Location
D08R100187
Legend
(1) Relay & Fuse Box (X–10, FL–1)(2) H–2(3) H–13(4) Relay & Fuse Box (C–3, C–11)(5) I–10 (METER)(6) Starter Switch(7) H–16
(8) H–39(9) E–53 (Mode Switch)
(10) P–4
(11) P–3
(12) P–8(13) P–9(14) C–36
SECTION
