8D–30

WIRING SYSTEM

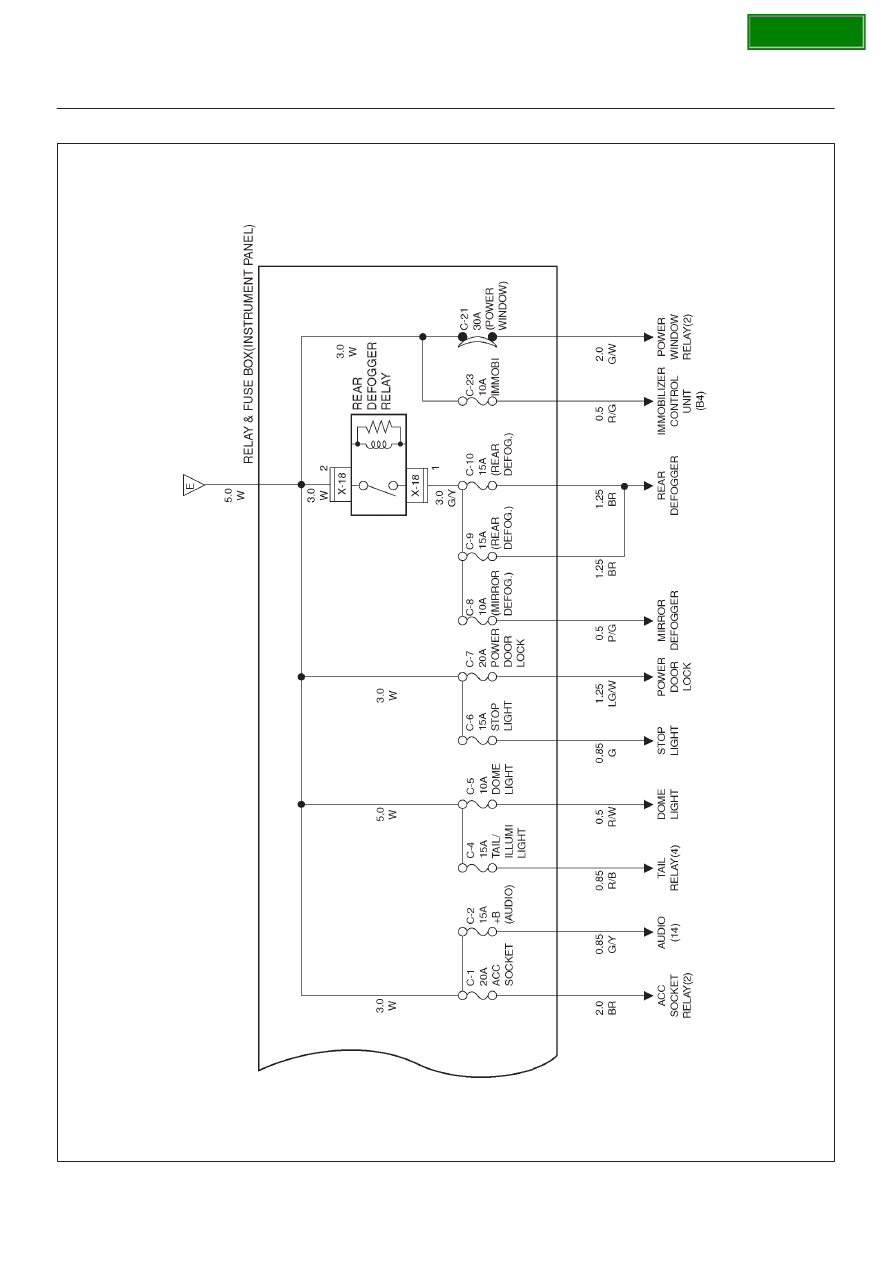

Fuse Block Circuit–4

D08R100220

SECTION

8D–31

WIRING SYSTEM

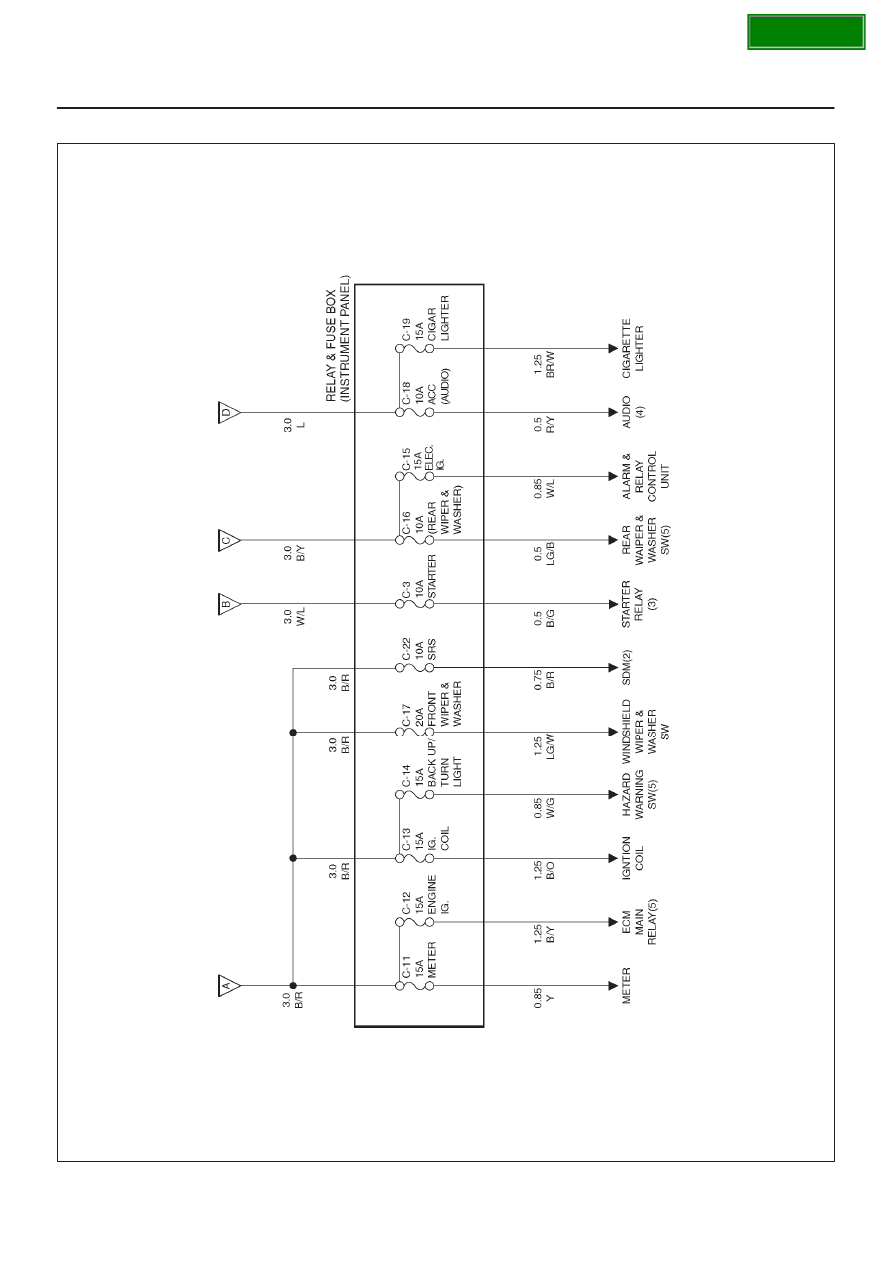

Fuse Block Circuit–5

D08R100219

SECTION

8D–32

WIRING SYSTEM

Reference Table of Fuse, Fusible Link and Circuit Breaker

Fuse (Relay and Fuse Box · Engine Room)

Fuse No.

Capacity

Indication on label

Parts (Load)

F-1

15A

HAZARD

FRT Turn signal light, RR Turn signal light, Side turn
signal light, Flasher unit

F-2

10A

HORN

Alarm & relay control unit, Horn

F-4

20A

BLOWER

Blower motor, Blower resistor, Power transistor

F-5

10A

A/C

Thermo switch, Blower unit, Intake actuator, In car
sensor, Resistor, A/C thermostat relay, Electronic
thermostat,  Automatic A/C control unit, A/C compressor
relay, Magnetic clutch, Condenser fan relay, Max high
relay

F-8

10A

H/L LIGHT - LH

Headlight - LH, High beam indicator light

F-9

10A

H/L LIGHT - RH

Headlight - RH

F-10

15A

FOG LIGHT

Fog light

F-11

10A

O

2

SENSOR

Oxygen sensor

F-12

20A

FUEL PUMP

Fuel pump

F-13

15A

ECM

Engine control module, Meter

F-14

15A

TOD

TOD control unit

FL-1

100A

MAIN

Starter

FL-2

60A

IGN.1

FL-3

30A

ECM

Fuel injector

FL-4

50A

ABS

EHCU

FL-5

50A

IGN.2

FL-6

30A

COND. FAN

Condenser fan

FL-8

30A

ACTIVE RIDE

Interrigent suspension control unit
Interrigent suspension actuator
Interrigent suspension G-sensor

SECTION

8D–33

WIRING SYSTEM

Fuse (Relay & Fuse Box · Instrument Panel)

Fuse No.

Capacity

Indication on label

Parts (Load)

C-1

20A

ACC. SOCKET

Acc socket

C-2

15A

(AUDIO)

Audio

C-3

10A

STARTER

Starter relay

C-4

15A

TAIL/ILLUMI. LIGHT

Tail relay, Tail light, Clearance light, License plate light,
Illumination controller, Illumination light, Fog light relay,
Fog light SW

C-5

10A

DOME LIGHT

Dome light, Courtesy light - LH, Courtesy light - RH,
Luggage room light, Alarm & relay control unit, Digital
clock, Map light, Automatic A/C control unit

C-6

15A

STOP LIGHT

Stop light switch, Stop light - LH, Stop light - RH, High
mounted stop light, A/T shift lock relay

C-7

20A

(POWER DOOR

LOCK)

FRT door lock & Power window SW, Door lock actuator,
Keyless entry control unit

C-8

10A

(MIRROR DEFOG)

Mirror defogger

C-9

15A

(REAR DEFOG)

Rear defogger

C-10

15A

(REAR DEFOG)

Rear defogger

C-11

15A

EHCU

Indicator and warning lights (meter), Meter gauge,
Generator, Vehicle speed sensor, Shift lock control unit,
Fuel tank unit

C-12

15A

ENGINE IG.

PCM main relay, VSV; purge solenoid, MAF sensor VSV;
intake air

C-13

15A

IG. COIL

Ignition coil, Ion sensing module, Condenser

C-14

15A

BACKUP/TURN

LIGHT

Mode SW, Backup light, FRT axle actuator, TOD clutch
solenoid, TOD speed sensor, TOD H-L shift motor,
Indicator control unit, TOD control unit

C-15

15A

ELEC. IG.

Alarm & relay control unit, Power window relay, 4WD
control unit, Heater relay

C-16

15A

REAR WIPER &

WASHER

Rear wiper motor, Rear washer motor, Alarm & relay &
control unit, Rear defogger & mirror defogger relay

C-17

20A

(FRONT WIPER &

WASHER

Windshield wiper motor, Windshield washer motor,
Alarm & relay control unit

C-18

10A

(AUDIO) ACC

Audio, Power door mirror

C-19

15A

CIGAR LIGHTER

ACC socket relay cigarette lighter

C-22

10A

SRS

SRS warning light, SDM

PCM: Power train module, VSV: Vacuum switching valve
