6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS
D
It improvises idle quality during compressor clutch
engagement.
D
It improvises wide open throttle (WOT) performance.
D
It provides A/C compressor protection from operation
with incorrect refrigerant pressures.
The A/C electrical system consists of the following
components:
D
The A/C control head.
D
The A/C refrigerant pressure switches.
D
The A/C compressor clutch.
D
The A/C compressor clutch relay.
D
The PCM.
A/C Request Signal
This signal tells the PCM when the A/C mode is selected
at the A/C control head. The PCM uses this to adjust the
idle speed before turning on the A/C clutch. The A/C
compressor will be inoperative if this signal is not
available to the PCM.
Refer to
A/C Clutch Circuit Diagnosis section for A/C
wiring diagrams and diagnosis for A/C electrical system.
General Description (Evaporative
(EVAP) Emission System)

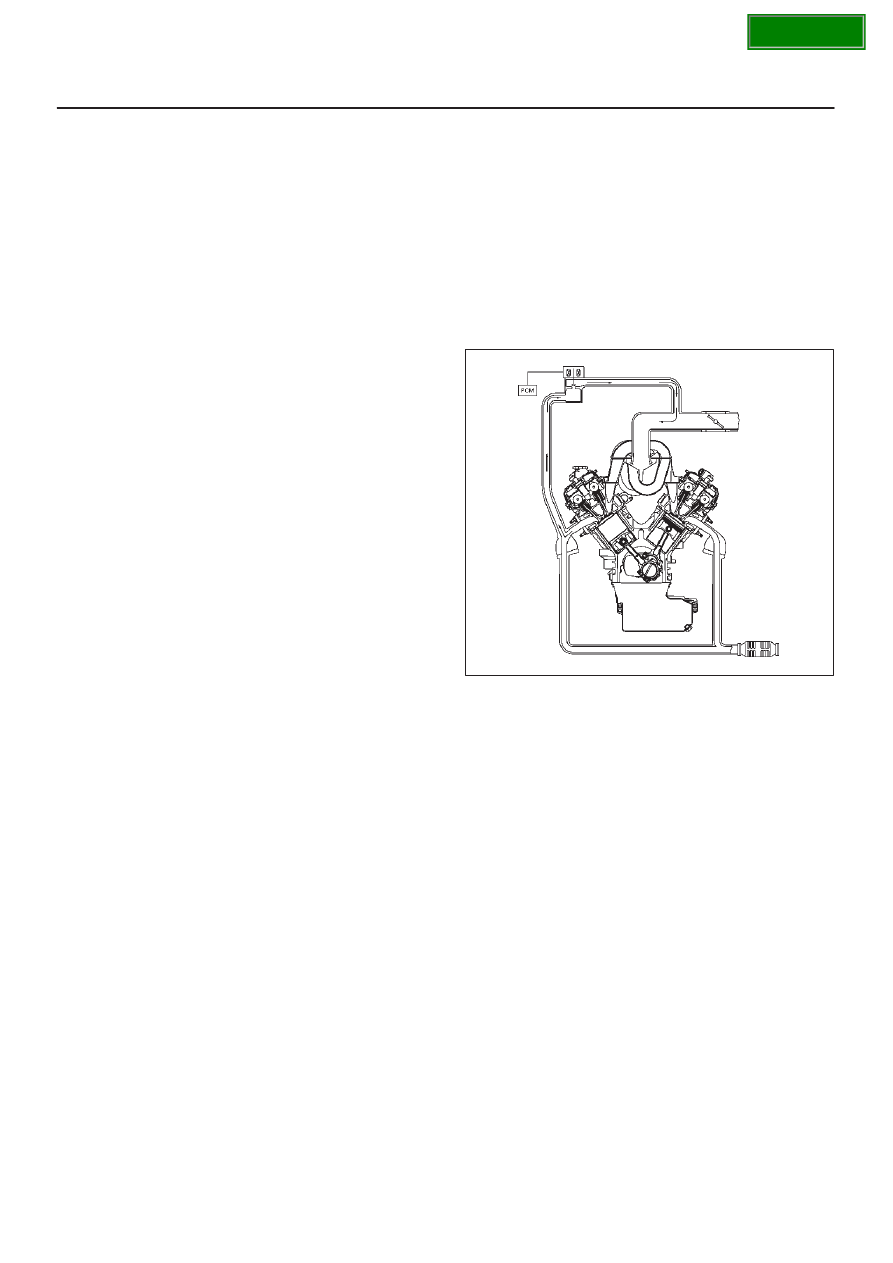

EVAP Emission Control System Purpose
The basic evaporative emission (EVAP) control system
used on all vehicles is the charcoal canister storage
method. Gasoline vapors from the fuel tank flow into the
canister through the inlet labeled “TANK.” These vapors
are absorbed into the activated carbon (charcoal) storage
device (canister) in order to hold the vapors when the
vehicle is not operating. The canister is purged by PCM
control when the engine coolant temperature is over 60
°
C
(140
°
F), the IAT reading is over 10
°
C (50
°
F), and the
engine has been running. Air is drawn into the canister
through the air inlet grid. The air mixes with the vapor and
the mixture is drawn into the intake manifold.
EVAP Emission Control System Operation
The EVAP canister purge is controlled by a solenoid valve
that allows the manifold vacuum to purge the canister.
The powertrain control module (PCM) supplies a ground
to energize the solenoid valve (purge on). The EVAP
purge solenoid control is pulse-width modulated (PWM)
(turned on and off several times a second). The duty
cycle (pulse width) is determined by engine operating
conditions including load, throttle positron, coolant
temperature and ambient temperature. The duty cycle is
calculated by the PCM. The output is commanded when
the appropriate conditions have been met. These
conditions are:
D
The engine is fully warmed up.
D
The engine has been running for a specified time.
D
The IAT reading is above 10
°
C (50
°
F).
Poor idle, stalling and poor derivability can be caused by:
D
A malfunctioning purge solenoid.
D
A damaged canister.
D
Hoses that are split, cracked, or not connected
properly.
General Description (Exhaust Gas
Recirculation (EGR) System)
EGR Purpose
The exhaust gas recirculation (EGR) system is use to
reduce emission levels of oxides of nitrogen (NOx). NOx
emission levels are caused by a high combustion
temperature. The EGR system lowers the NOx emission
levels by decreasing the combustion temperature.

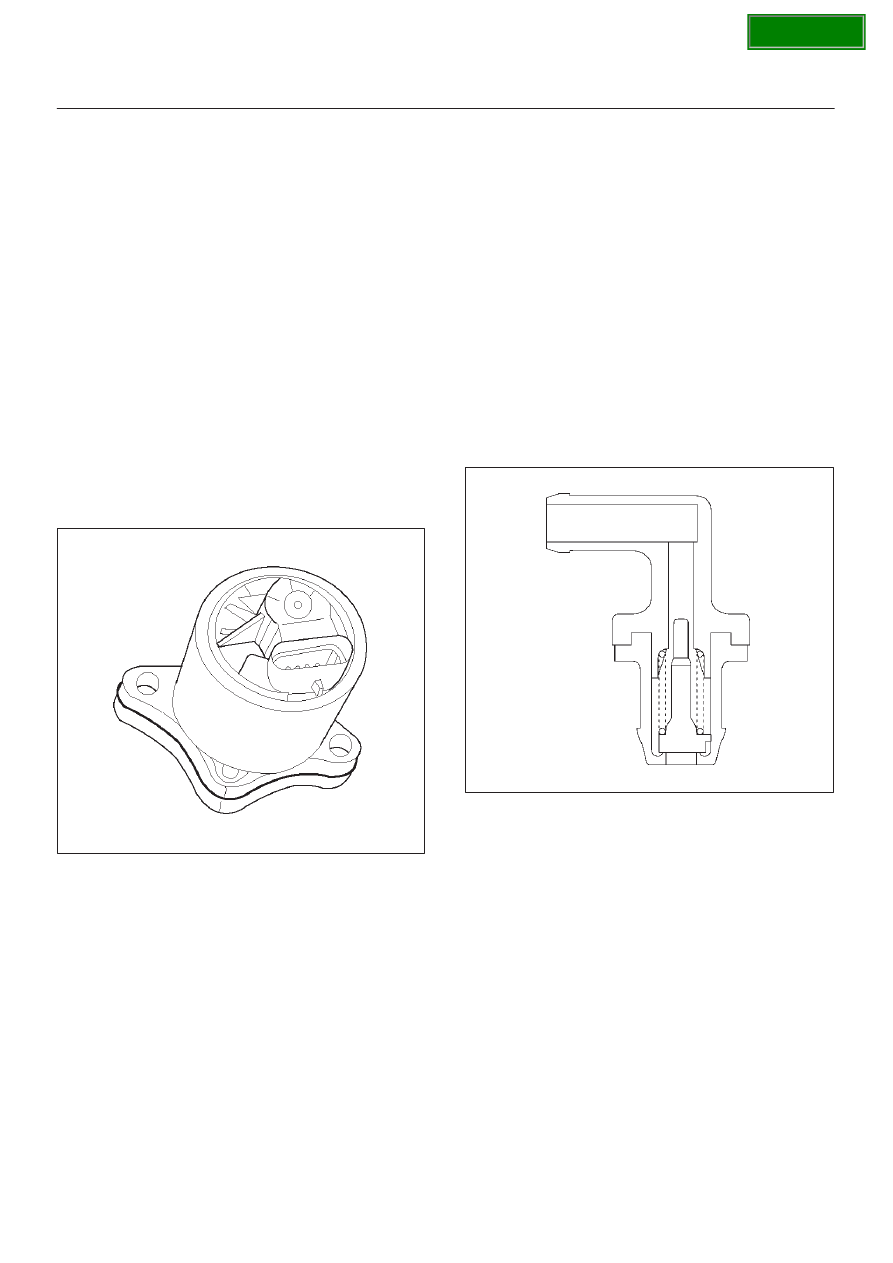

057RW002
Linear EGR Valve
The main element of the system is the linear EGR valve.
The EGR valve feeds small amounts of exhaust gas back
into the combustion chamber. The fuel/air mixture will be
diluted and combustion temperatures reduced.
Linear EGR Control
The PCM monitors the EGR actual positron and adjusts
the pintle position accordingly. The uses information from
the following sensors to control the pintle position:
D
Engine coolant temperature (ECT) sensor.
D
Throttle position (TP) sensor.
D
Mass air flow (MAF) sensor.
Linear EGR Valve Operation and Results
of Incorrect Operation
The linear EGR valve is designed to accurately supply
EGR to the engine independent of intake manifold
vacuum. The valve controls EGR flow from the exhaust
to the intake manifold through an orifice with a PCM
controlled pintle. During operation, the PCM controls
pintle position by monitoring the pintle position feedback
signal. The feedback signal can be monitored with a Tech
2 as “Actual EGR Pos.” “Actual EGR Pos.” should always
be near the commanded EGR position (”Desired EGR
Pos.”). If a problem with the EGR system will not allow the
PCM to control the pintle position properly, DTC P1406
