6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

Not Run Since Code Cleared
This option will display up to DTCs that have not run since
the DTCs were last cleared.  Since any displayed DTCs
have not run, their condition (passing or failing) is
unknown.

Test Failed Since Code Cleared
This selection will display all active and history DTCs that
have reported a test failure since the last time DTCs were
cleared.  DTCs that last failed more than 40 warm-up
cycles before this option is selected will not be displayed.

Miscellaneous Test

This test consists of eight menus-Lights, Relays, EVAP,
Fuel System, Instruments, EGR Control, Variable Intake
Manifold Solenoid, and Injector Balance Tests.
In these tests, Tech 2 sends operating signals to the
systems to confirm their operations thereby to judge the
normality of electric circuits.
To judge intermittent trouble,

1. Confirm DTC freeze frame data, and match the

freeze frame data as test conditions with the data list
displayed by Miscellaneous Test.

2. Confirm DTC setting conditions, and match the

setting conditions as test conditions with the data list
displayed by Miscellaneous Test.

3. Refer to the latest Service Bulletin.

Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.

Lamps Test

This test is conducted check MIL, Up Shift Lamp, Low
Fuel Lamp, Reduced Power Lamp and Cruise Control
Lamp for its working.
Tech2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.

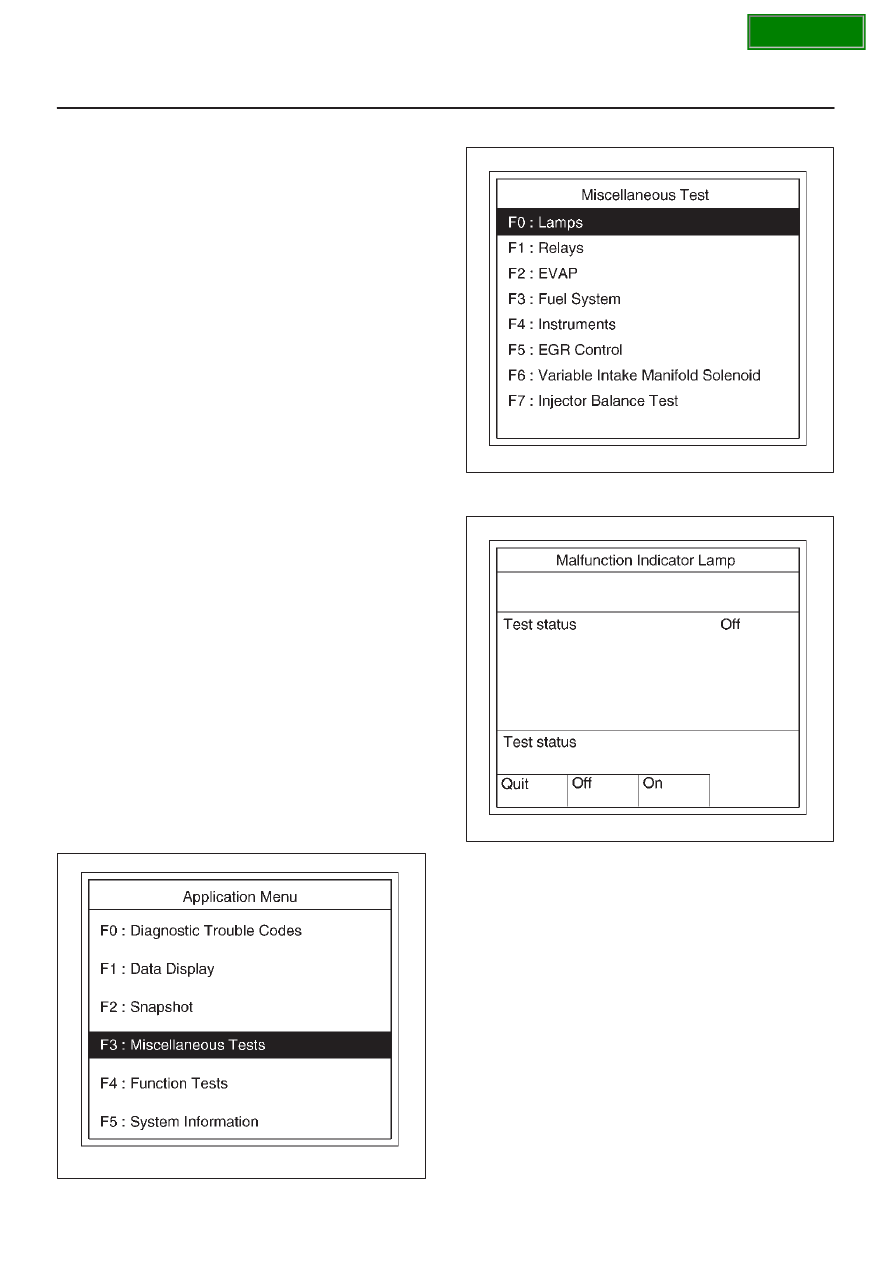

3. Select F3: Miscellaneous Test in the Application

Menu.

060R100078

4. Select F0:Lamps Test in the Miscellaneous Test.

060RY00080

5. Select F0:Malfunction Indicator Lamp.

060RY00091

6. Push”On” soft key.
7. Make sure Lamp illuminates.
8. If lamp illuminates, the Lamp is operating correctly.

SECTION

6E–44

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

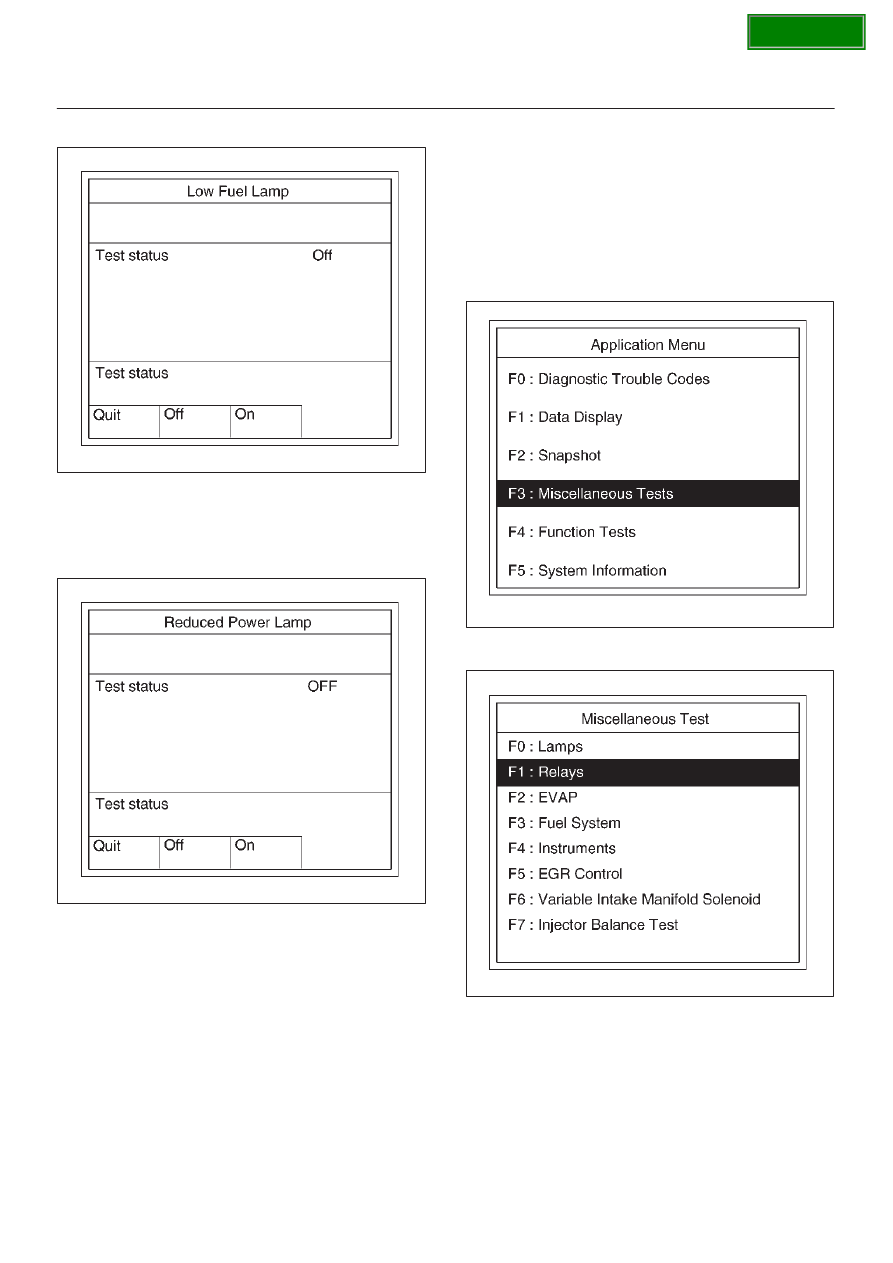

9. Select F2:Low Fuel Lamp

060RY00092

10. Push ”On” soft key.

11. Make sure Lamp illuminates.

12. If Lamp illuminates, the Lamp is operating correctly.
13. Select F3:Reduced Power Lamp

060RY00077

14. Push ”On” soft key.
15. Make sure Lamp illuminates.
16. If Lamp illuminates, the Lamp is operating correctly.

Relays Test

This test is conducted to check Fuel Pump Relay and A/C
Clutch for proper operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Ignition SW is “On”.
3. Select F3: Miscellaneous Test in the Application

Menu.

060R100078

4. Select F1:Relay Test in the Miscellaneous Test.

060RY00081

SECTION

6E–45

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

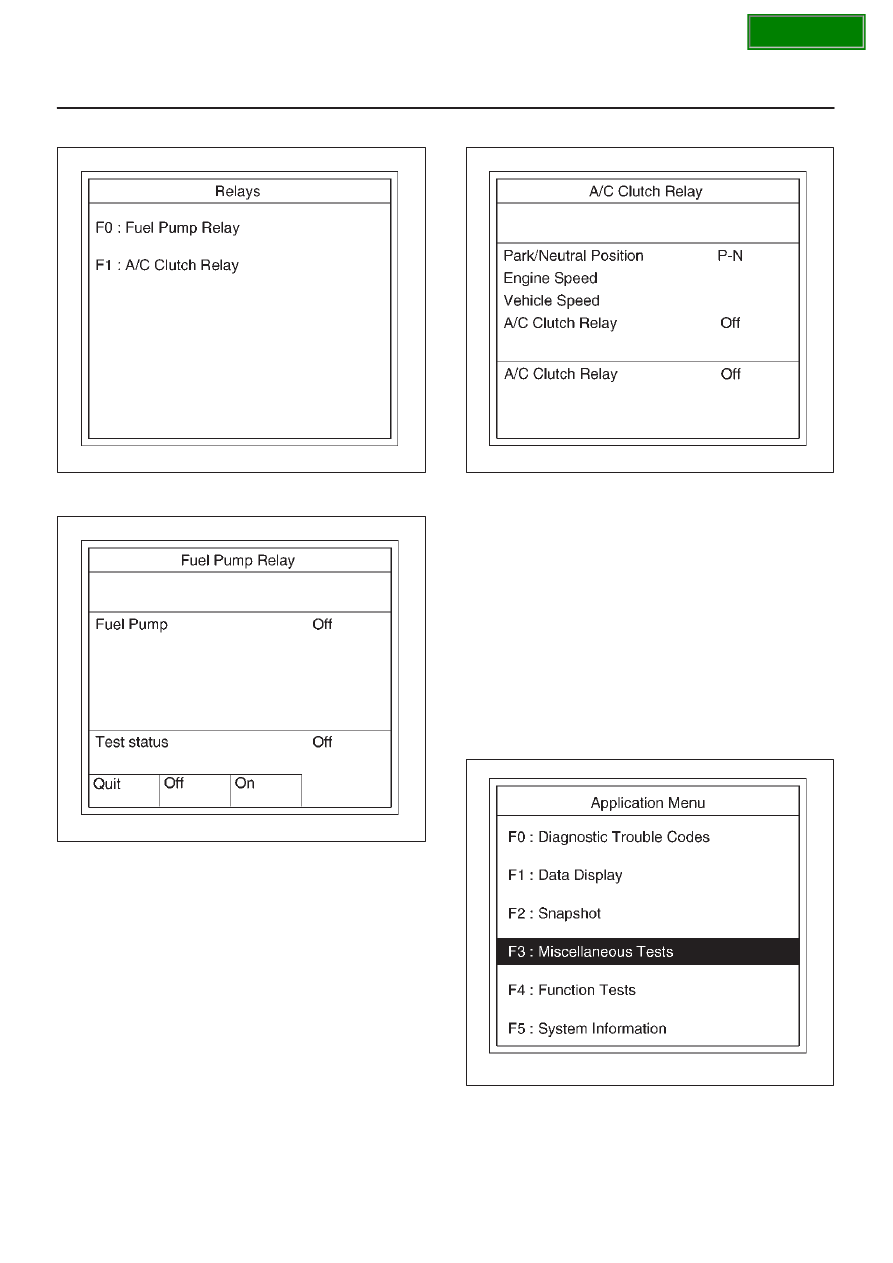

5. Select  F0:Fuel Pump Relay.

060RX021

6. Push “On” soft key.

060RY00093

7. Control Fuel Pump Relay and check data list.
8. If the data list changes, the Fuel Pump Relay is

normal.

9. Select F1:A/C Clutch Relay.

10. Run the Engine at idle.

11. Turn on Air Conditioning.

060RY00094

12. Turn “On” and “Off” A/C Switch.
13. Contol A/C Clutch Relay and check data list.
14. If the data list changes, the Fuel Pump Relay is

normal.

EVAP Test

This test is conducted to check EVAP system for its power
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.
3. Select F3: Miscellaneous Test in the Application

Menu.

060R100078

SECTION

6E–46

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

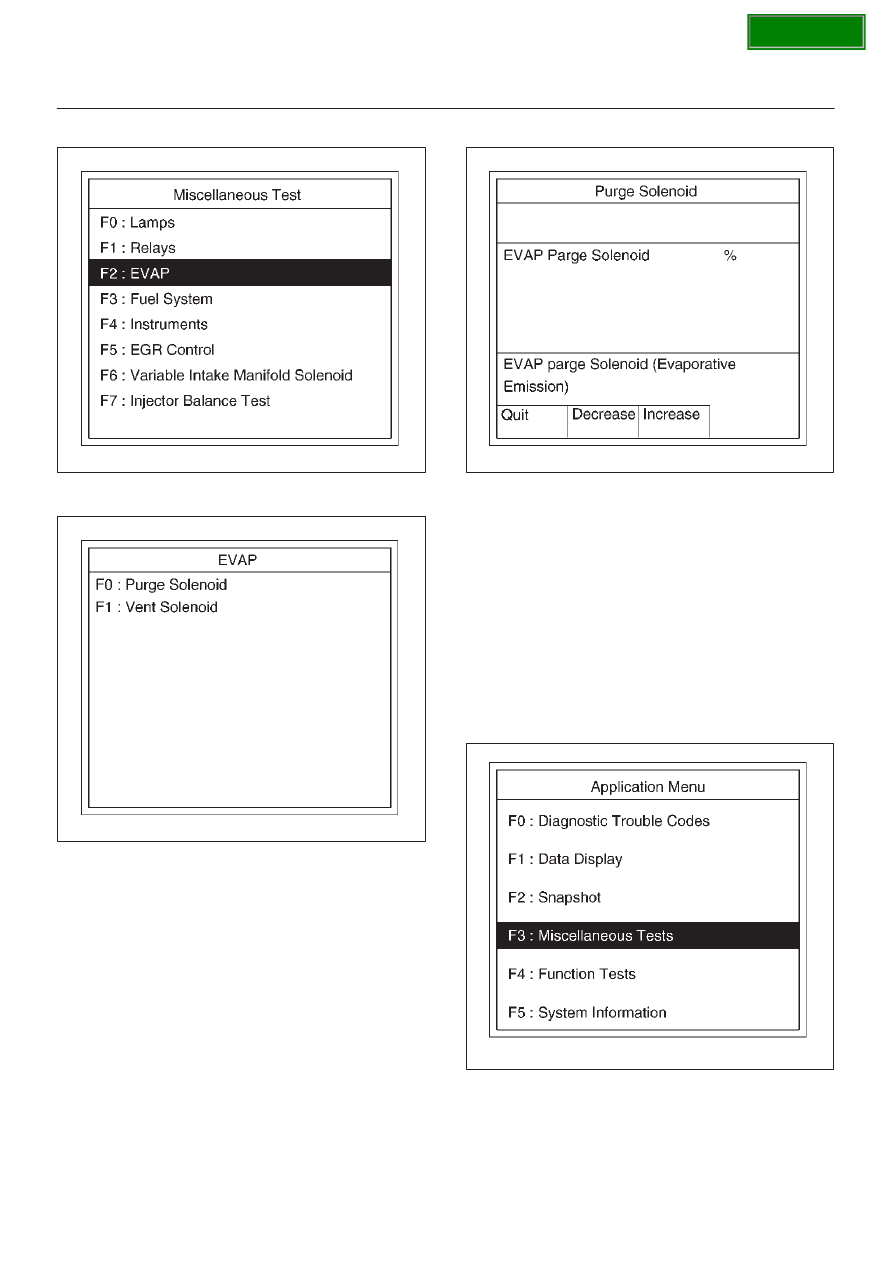

4. Select F2: EVAP Test in the Miscellaneous Test.

060RY00082

5. Select F0: Purge Solenoid.

060RX025

6. Push “Decrease” or “Increase” soft key.

060RY00095

7. Control EVAP Purge Solenoid and check a data list.
8. If the data list changes, the Purge Solenoid is normal.
9. Turn engine off, turn ignition SW “On”.

Fuel System Test

This test is conducted check Fuel system for proper
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Ignition SW is “On”.
3. Select F3: Miscellaneous Test in the Application

Menu.

060R100078
