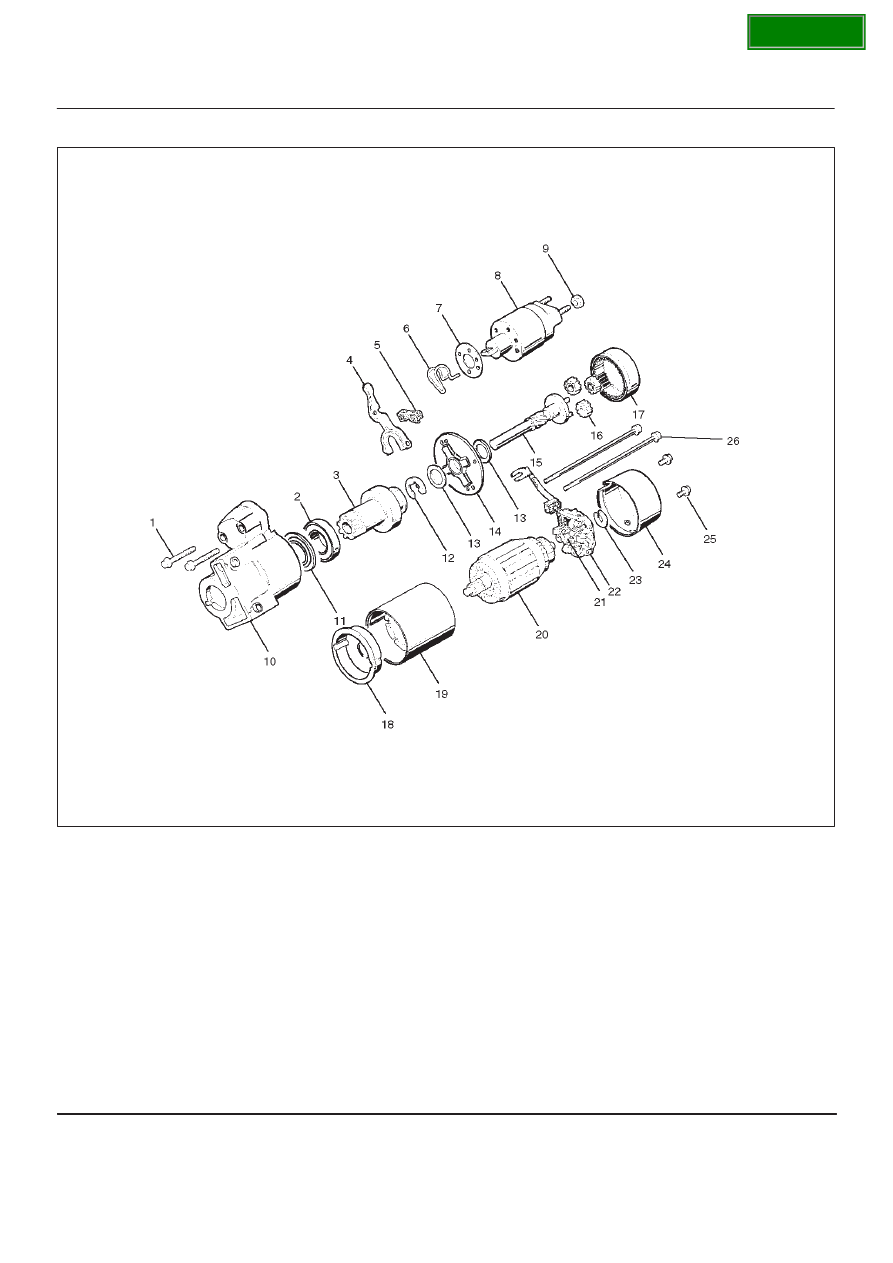

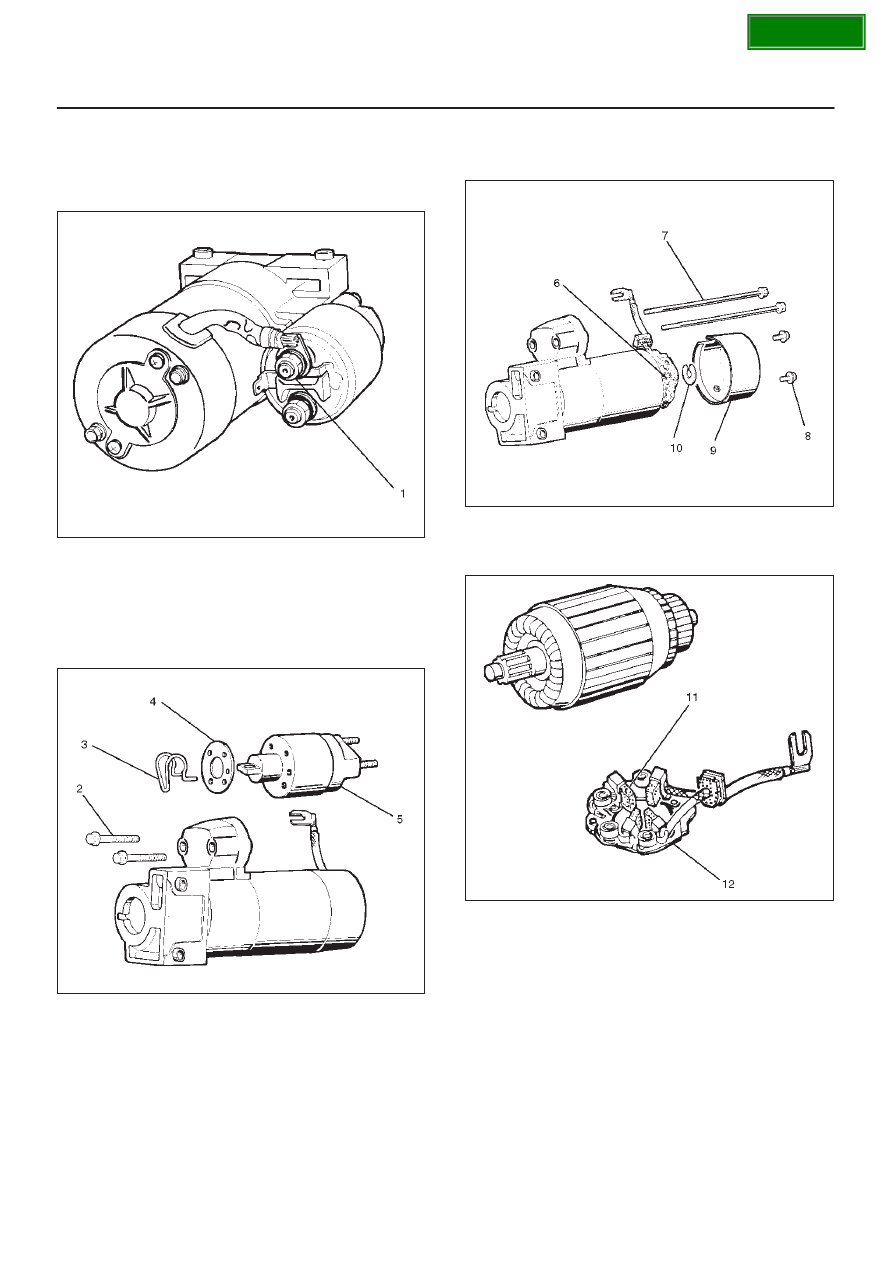

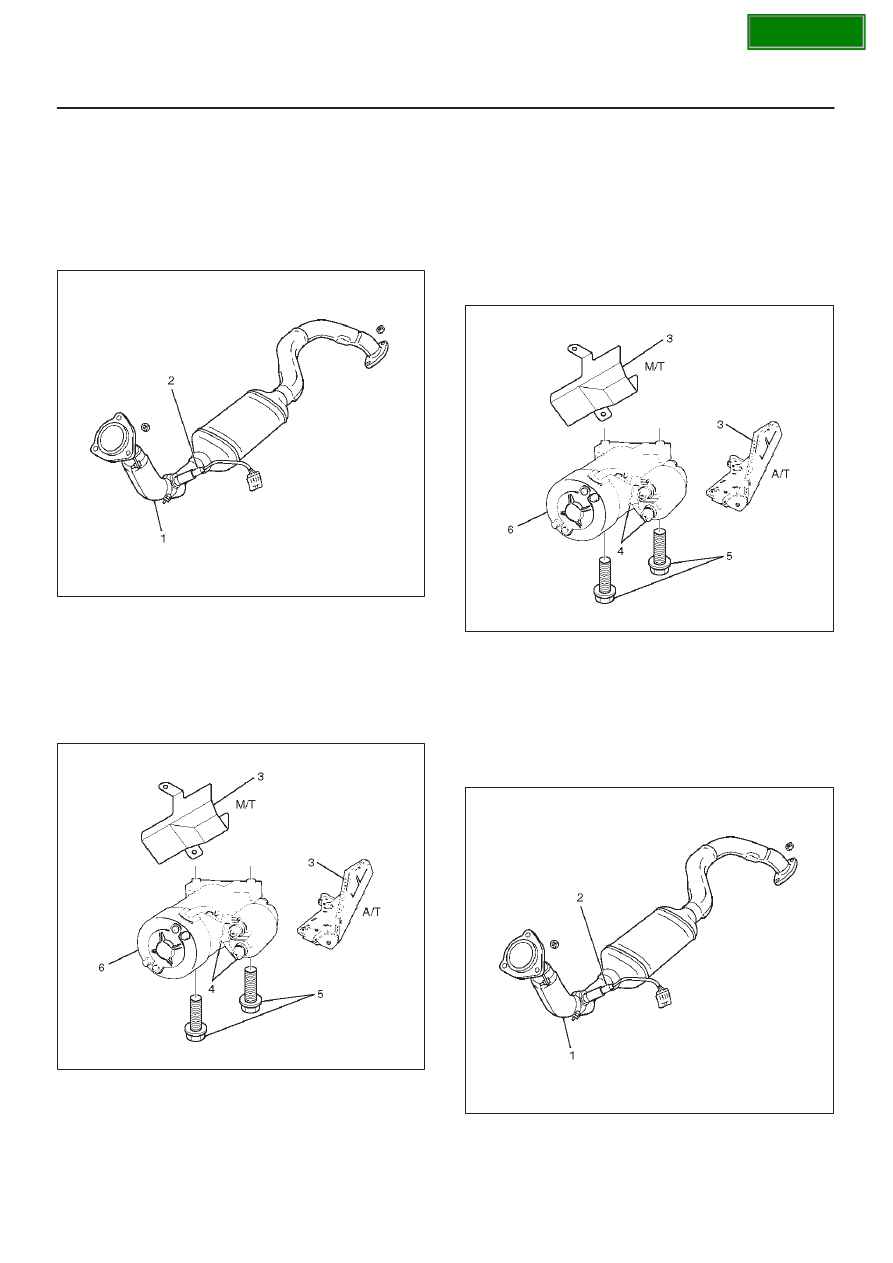

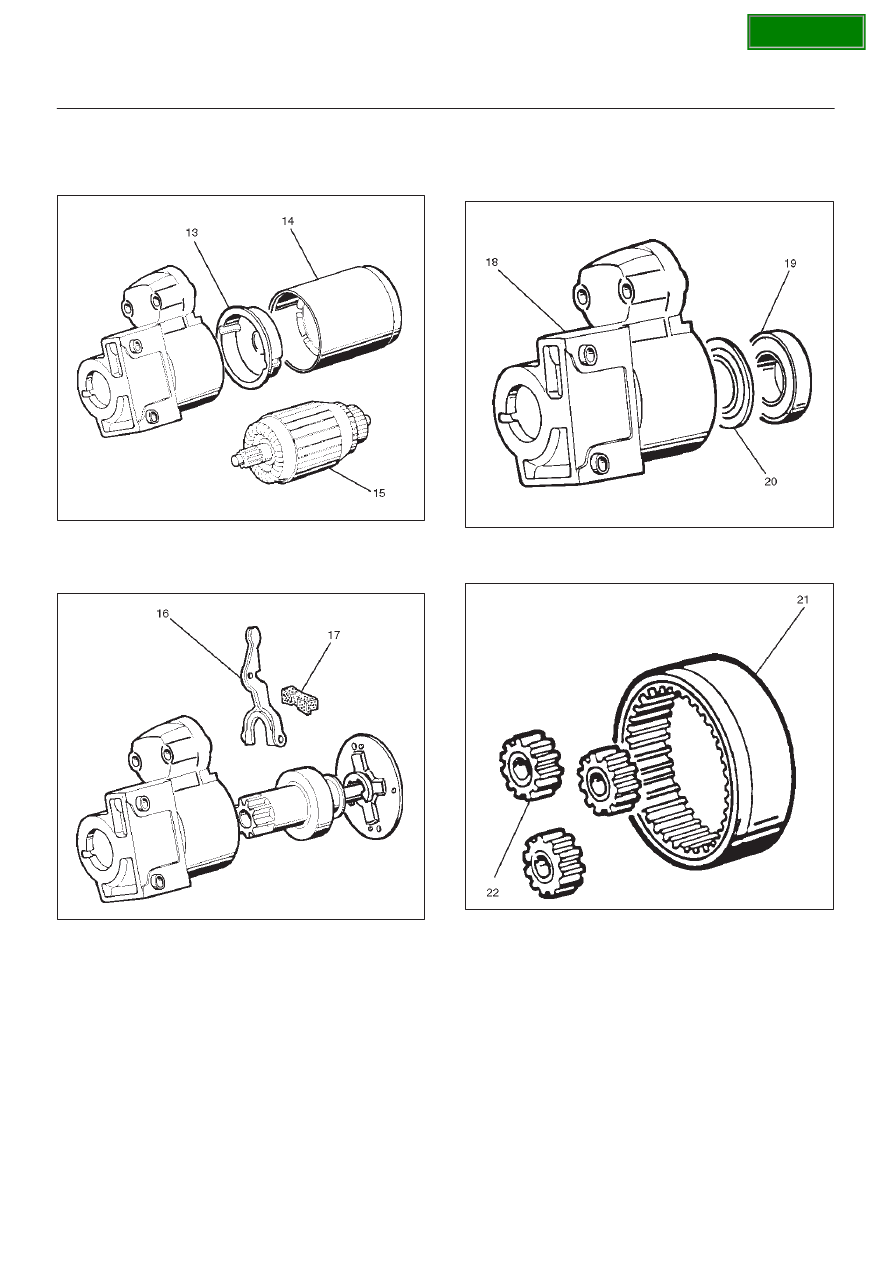

6D3–5 STARTING AND CHARGING SYSTEM (6VD1 3.2L) Starter Removal 1. Battery ground cable. 2 ) sensor connector (1). 3. Remove exhaust front left pipe(2). 150RX015 4. Remove heat protector(3). “B” and “S”(4). 6. Remove starter assembly mounting bolts on inside and outside(5). 7. Remove starter assembly toward the bottom of engine(6). 065RW027 Installation 1. Install starter assembly(6). 2. Install mounting bolts and tighten bolts to specified torque(5). Torque: 40 N·m (4.1 kg·m/30 lb ft) 3. Reconnect the connectors to terminals “B” and “S” and tighten Terminals “B” to specified torque. Torque: 9 N·m (0.9 kg·m/78 lb in) 4. Install heat protector(3). 065RW027 5. Install exhaust front left pipe and tighten bolts and nuts to specified torque(2). Stud Nuts 6. Connect O 2 sensor connector (2). 150RX015 7. Reconnect the battery ground cable. |
