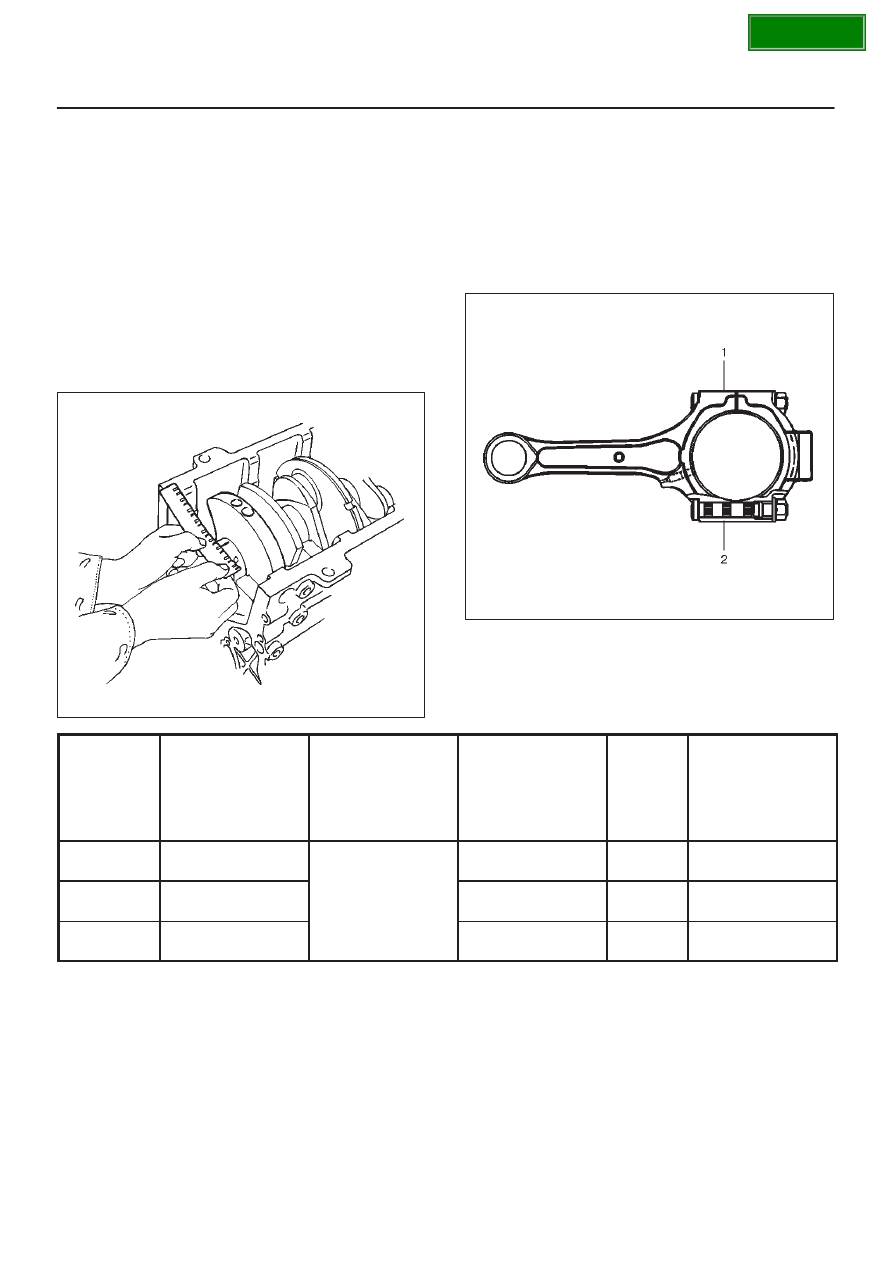

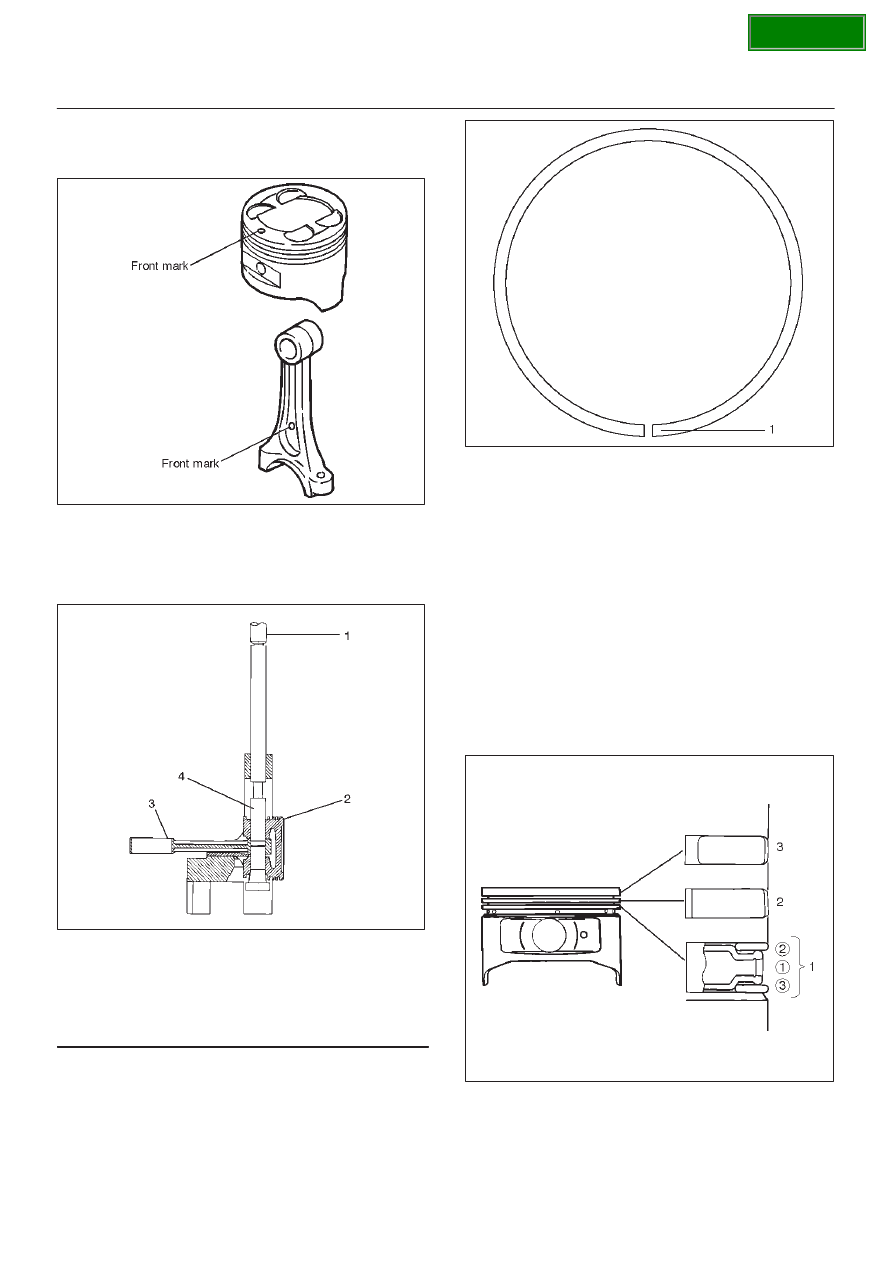

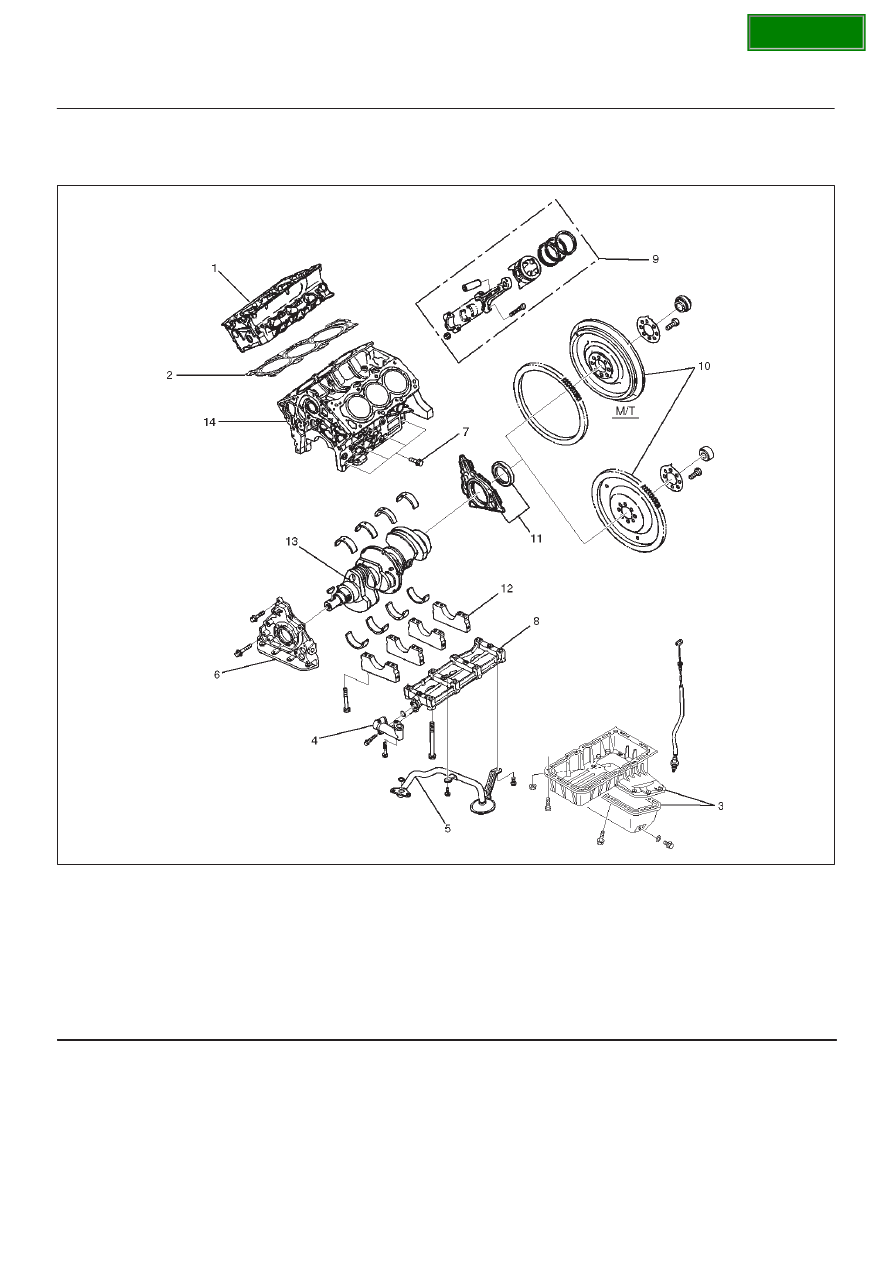

6A–85 ENGINE MECHANICAL (6VD1 3.2L) 4. Reinstall the rod caps (12) to their original positions. Torque: 54 N·m (5.5 kg·m/40 lb ft) NOTE: Do not allow the crankshaft to rotate. 5. Remove the rod caps. 6. Measure the width of the plastigage and determine the oil clearance. If the oil clearance Standard : 0.019 mm–0.043 mm (0.0007 in–0.0017 in) Limit : 0.08 mm (0.003 in) 015RS008 7. Clean the plastigage from the bearings and the crankshaft pins. Con–rod Bearing Selection Select and install the new connecting rod bearings, NOTE: Take care not to confuse the alignment mark (2) 015RS034 Connecting Rod Bearing Grade Mark On Connecting Rod Big end Bore Diameter Crankshaft Pin Diameter Connecting Rod Bearing Thickness (Reference) Color of Size Mark Oil Clearance (Reference) A 56.994-57.000 (2.2439-2.2441) 1.512-1.516 (0.0595-0.0597) Yellow 0.025-0.054 (0.0010-0.0021) B 56.988-56.994 (2.2436-2.2439) 53.922-53.937 (2.1229-2.1235) 1.508-1.512 (0.0594-0.0595) Green 0.027-0.056 (0.0011-0.0022) C 56.982-56.988 (2.2434-2.2436) 1.504-1.508 (0.0592-0.0594) Pink 0.029-0.058 (0.0011-0.0023) Reassembly 1. Install connecting rod 3. Install piston pin D Apply a thin coat of engine oil to the piston pin. Try to NOTE: When changing piston / connecting rod |
