Opel Frontera UE. Manual - part 136

POWER-ASSISTED BRAKE SYSTEM

5C–29

Main Data and Specifications

General Specifications

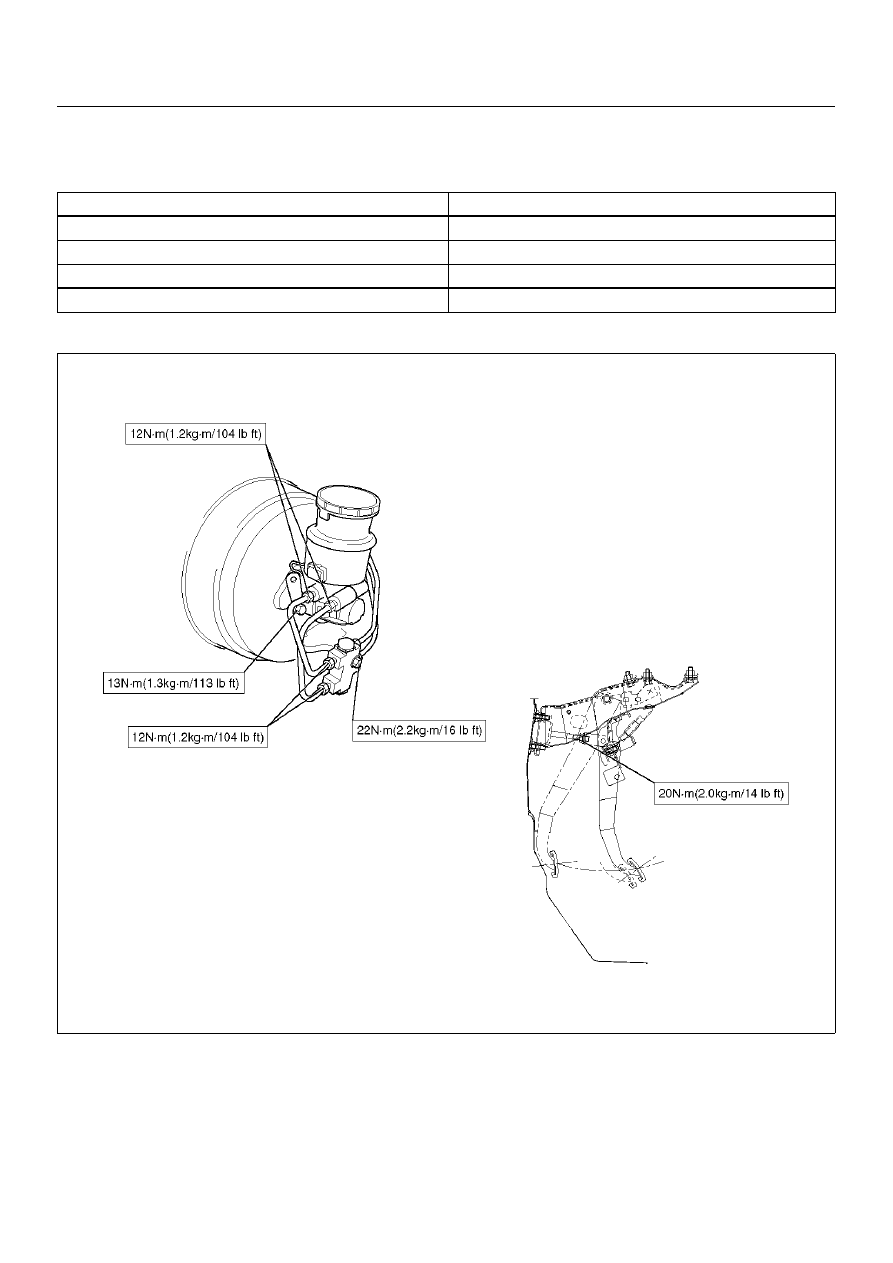

Torque Specifications

E05RX008

Vacuum booster diaphragm diameter (Front)

205 mm (8.07 in)

Vacuum booster diaphragm diameter (Rear)

230 mm (9.06 in)

Push rod stroke

More than 32.0 mm (1.26 in)

Plunger diameter

10.25 mm (0.40 in)

Push rod diameter

27.4 mm (1.08 in)

5C–30

POWER-ASSISTED BRAKE SYSTEM

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5-8840-2300-0

(J-39216)

Push Rod Gauge

5-8840-0279-0

(J-23738-A)

Vacuum Pump

5-8840-2305-0

(J-39241)

Push Rod Support

POWER-ASSISTED BRAKE SYSTEM

5C–31

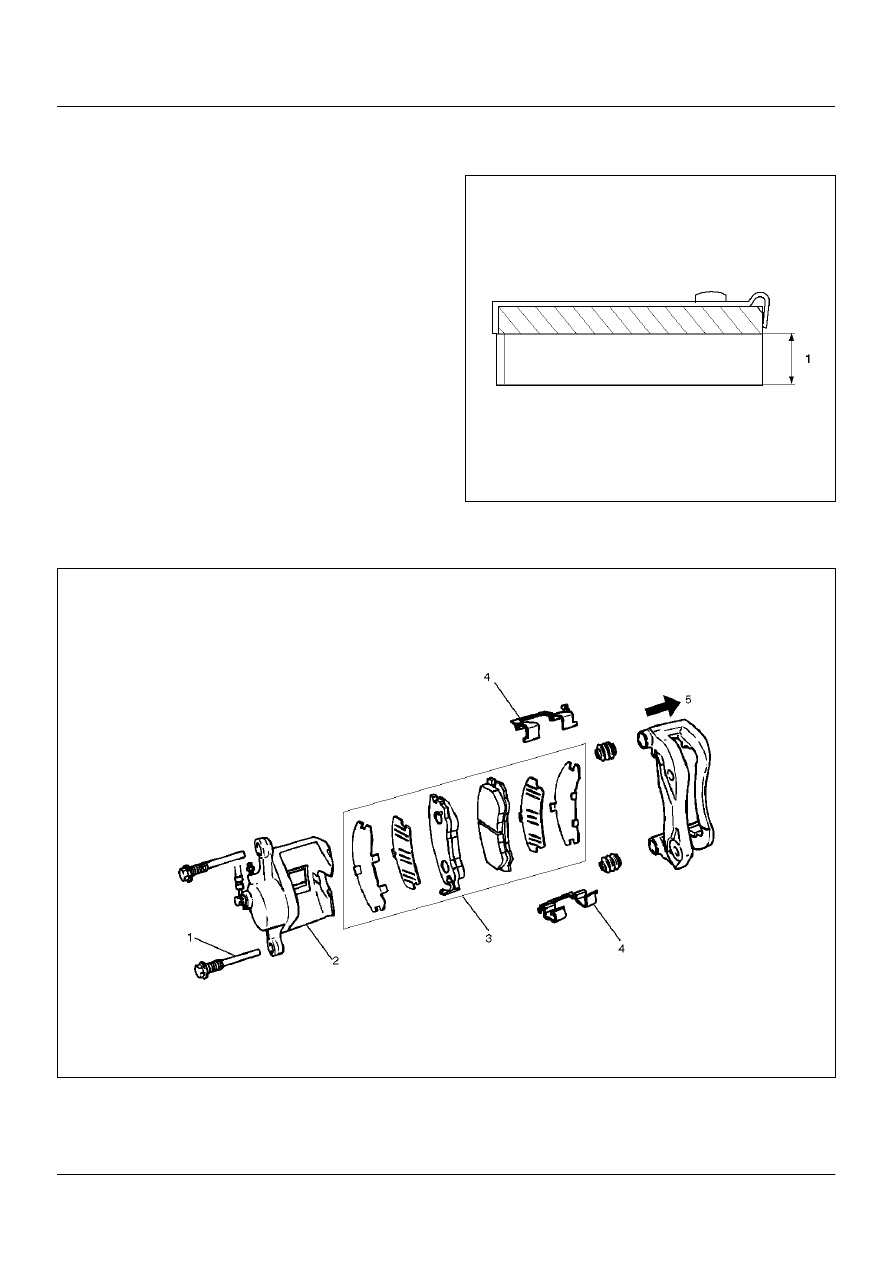

Front Disc Brake Pads

Front Disc Brake Pads Inspection

Check the outer pad by looking at each caliper from
above. Check the thickness on the inner pad by looking
down through the inspection hole in  the top of the
caliper. Whenever the pad is worn to about the
thickness of the pad base, the pad should be removed
for further measurements. The pad should be replaced
anytime the pad thickness (1) is worn to within 1.00 mm
(0.039 in) of the pad itself.
The disc pads have a wear indicator that makes a noise
when the pad  wears to where the replacement is
required.

Minimum limit (1): 1.0 mm (0.039 in)

302RS002

Front Disc Brake Pads and Associated Parts

302RW003

Legend

EndOFCallout

(1) Lock Bolt
(2) Caliper Assembly
(3) Pad Assembly

(4) Clip
(5) Outer Side

5C–32

POWER-ASSISTED BRAKE SYSTEM

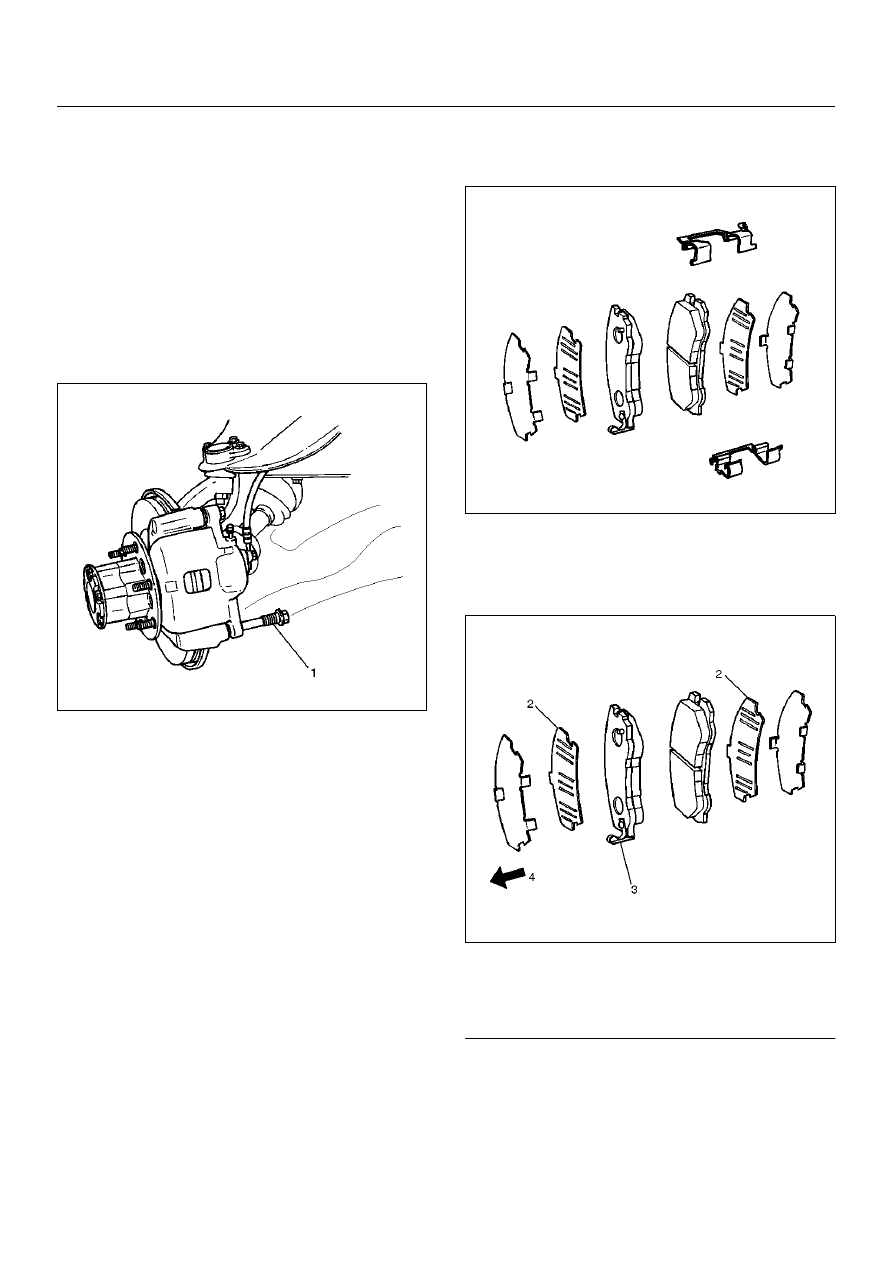

Removal

NOTE:  If a squealing noise occurs from the front brake
while driving, check the pad wear indicator plate. If the
indicator plate contacts the rotor, the disc pad assembly
should be replaced.

• Draw out two–thirds of the brake fluid from the

reservoir.

• Raise the vehicle and support it with suitable safety

stands.

1. Remove wheel and tire assembly, refer to “Wheels

and Tires System" in Section 3E.

2. Remove lock bolt (1).

302RW004

3. Rotate caliper assembly and support the caliper

assembly so that the brake hose is not stretched or
damaged.

4. Remove pad assembly with shim.

5. Remove Clip.

Installation

1. Install clip.

302RS005

2. Apply special grease (approximately 0.2g) to both

contacting  surfaces of the inner shims (2). Wipe off
extruded grease after installing. Install pad
assembly with shim.

302RW005

Legend

EndOFCallout

(2) Inner Shim
(3) Wear Indicator
(4) Inner Side
