DRIVE LINE CONTROL SYSTEM (TOD)

4B2–24

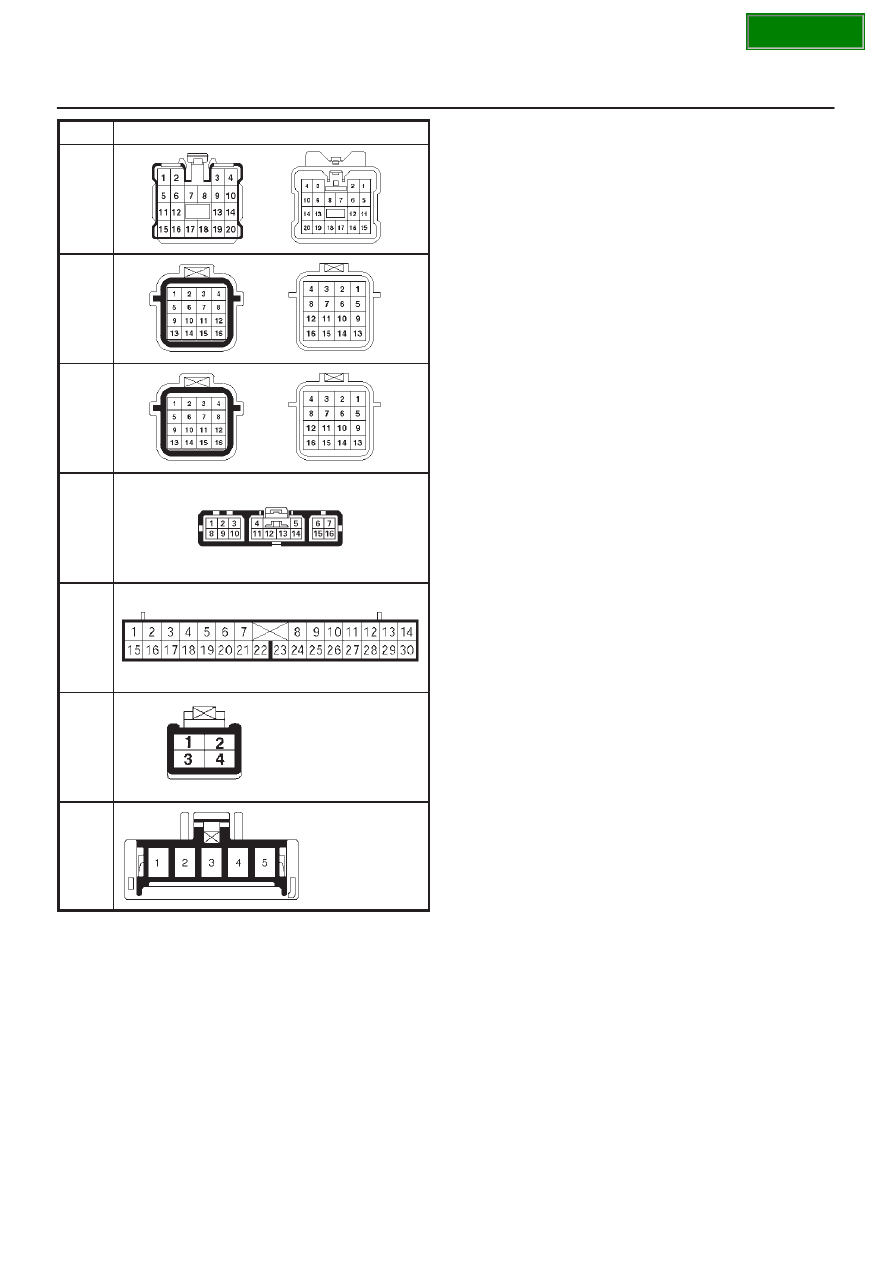

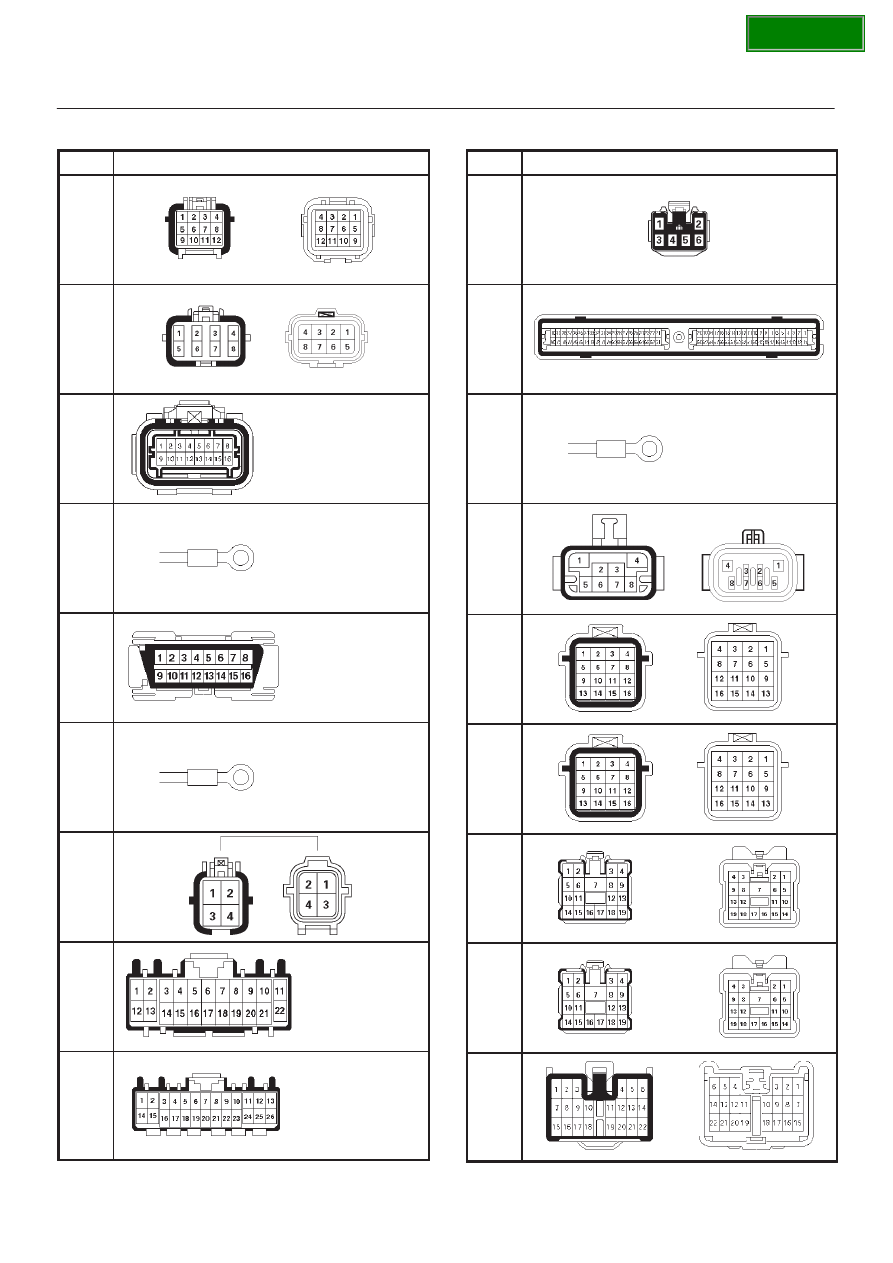

Connector List

No.

Connector face

A-1

A-2

C-4

C-16

C-34

C-36

C-55

C-59

C-60

No.

Connector face

C-62

E-21

E-30

E-53

H-5

H-6

H-13

H-14

H-16

SECTION

4B2–25

DRIVE LINE CONTROL SYSTEM (TOD)

No.

Connector face

H-17

H-38

H-39

I-9

I-10

I-18

I-53

SECTION

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–26

Checking Failed Pin

Connector Pin Assignment

D

TOD control unit pin assignment

D04RY00011

No.

NAME

CONTENTS

1

N.C

Not used

2

ENG REV

Engine Speed

3

N.C

Not used

4

N.C

Not used

5

N.C

Not used

6

N.C

Not used

7

IND.A

Display Front

8

IND. C

Display Rear

9

N.C

Not used

10

N.C

Not used

11

EMC

Clutch Solenoid

12

REF

Speed Reference

13

COM (–)

Speed GND

14

VIG

Ignition

15

TPS

TPS (PWM)

16

TECH 2

TECH–2

17

N. C

Not used

18

N. C

Not used

19

IND. B

Display Auto

20

CHK TOD

Check TOD

21

N.C

Not used

22

PWR GND

Power Ground

23

ADC (+)

Axle Disconnect Output

24

COM GND

Shift Motor Position GND

25

MTR POS3

Shift Motot Position 3

SECTION

4B2–27

DRIVE LINE CONTROL SYSTEM (TOD)

No.

CONTENTS

NAME

26

MTR POS1

Shift Motor Position 1

27

POSC

AT Position C

28

POSA

AT Position A

29

DIAG

Diagnostic Input

30

TOD SW A

TOD Switch A (2H)

31

4H SW

4H Switch Input

32

FT. SIG

Front Speed Signal

33

ABS IN

ABS In

34

VB

Power Bat

35

MTR H-L

Power Shift Motor H-L

36

4WD OUT

4WD Signal Output

37

BRAKE SW

Brake Switch Input

38

MTR POS4

Shift Motor Position 4

39

MTR POS2

Shift Motor Position 2

40

LIGHTING SW

Lighting Switch Input

41

POSB

AT Position B

42

AXLE SW

Axle Switch Input

43

TOD SWB

TOD Switch B (4L)

44

4L SW

4L Switch Input

45

RR. SIG

Rear Speed Signal

46

GND. 1

ECU Ground 1

47

GND. 2

ECU Ground 2

48

MTR L-H

Power Shift Motor L-H
