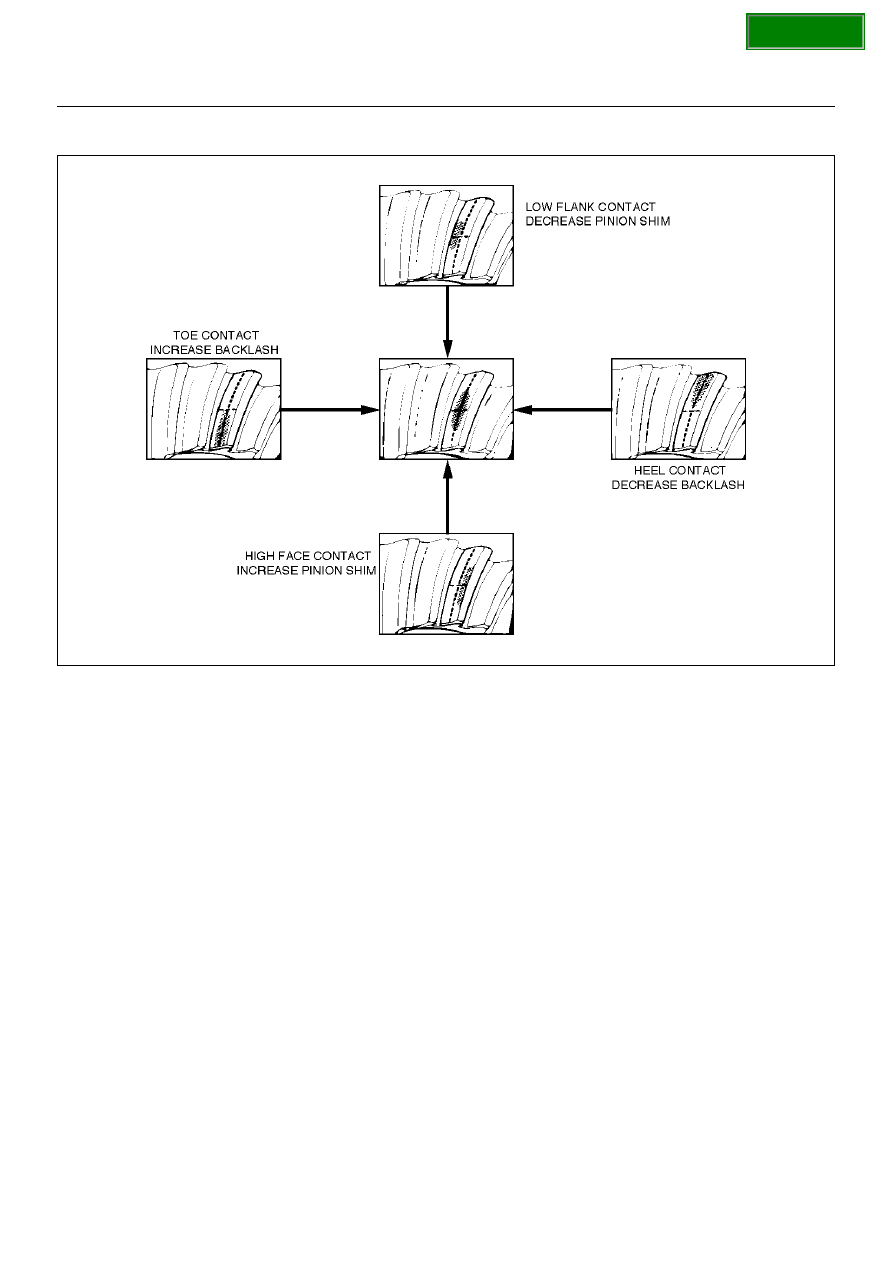

5. Observe the pattern on the ring gear teeth and

compare this with figure.

425RS039

Adjustments Affecting Tooth Contact

Two adjustments can be made which will affect tooth
contact pattern: backlash, and the position of the drive
pinion in the case.  The effects of bearing preloads are
not readily apparent on head loaded tooth contact
pattern tests; however,  these adjustments shuld be
within specifications before proceeding with backlash
and drive pinion adjustments.
The position of the drive pinion is adjusted by increasing
or decreasing the distance between the pinion head and
the centerline of the ring gear.
Decreasing the distance will move the pinion closer to
the centerline of the ring gear. Increasing the distance
will move the pinion farther away from the centerline of
the ring gear.
Backlash is adjusted by means of the side bearing
adjusting shims which move the entire case and ring
gear assembly closer to, or farther from, the drive
pinion. (The adjusting shims are also used to set side
bearing preload.)
If the thickness of the right shim is increased (along with
decreasing the left shim thickness), backlash will
increase.
The backlash will decrease if the left shim thickness is
increased (along with a decrease in right shim
thickness).

SECTION

DIFFERENTIAL (REAR)

4A2–27

Differential Case Assembly

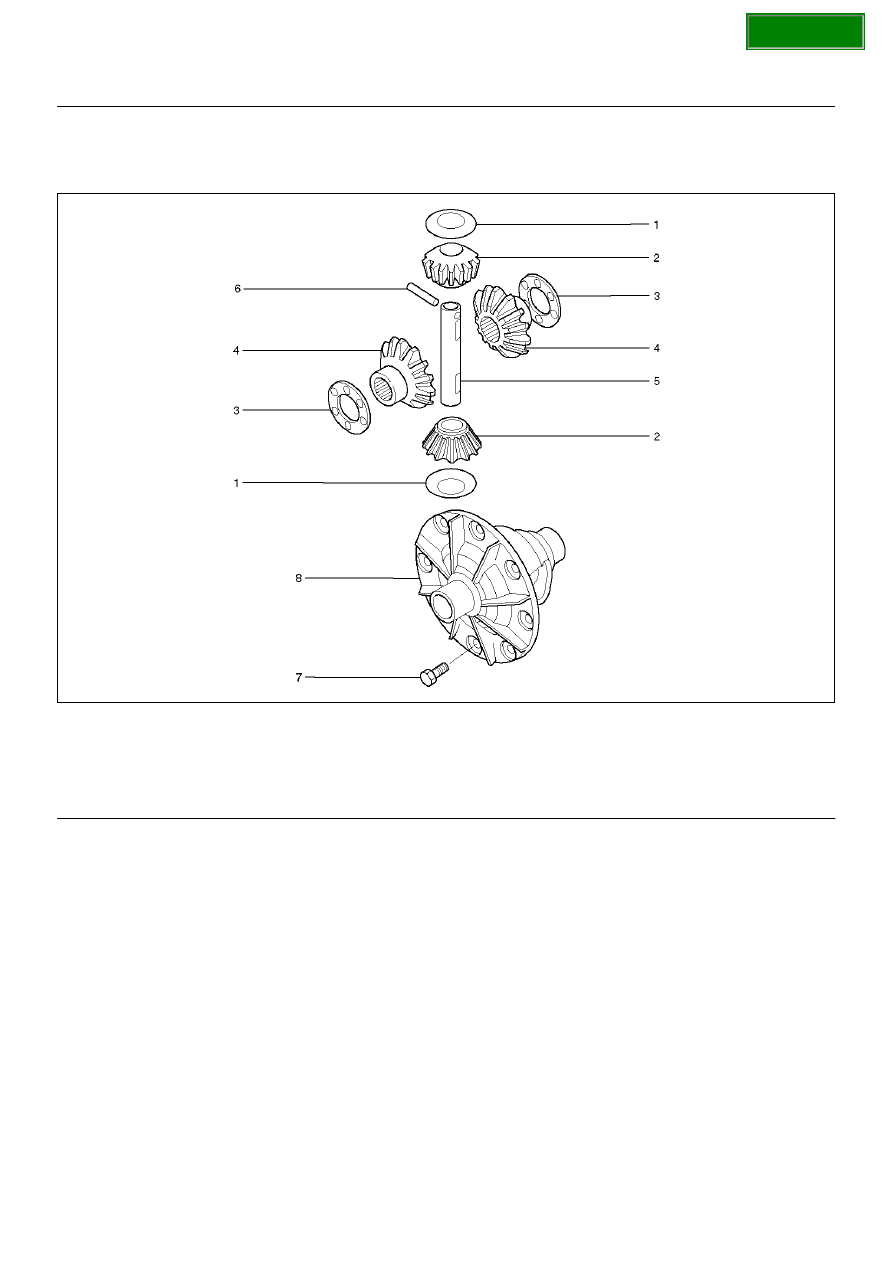

Disassembled View

425RW014

Legend

EndOFCallout

(1) Thrust Washer (for Pinion Gear)
(2) Pinion Mate Gear
(3) Thrust Washer(for Side Gear)
(4) Side Gear

(5) Differential Shaft
(6) Lock Pin
(7) Bolt
(8) Differential Case

SECTION

4A2–28

DIFFERENTIAL (REAR)

Disassembly

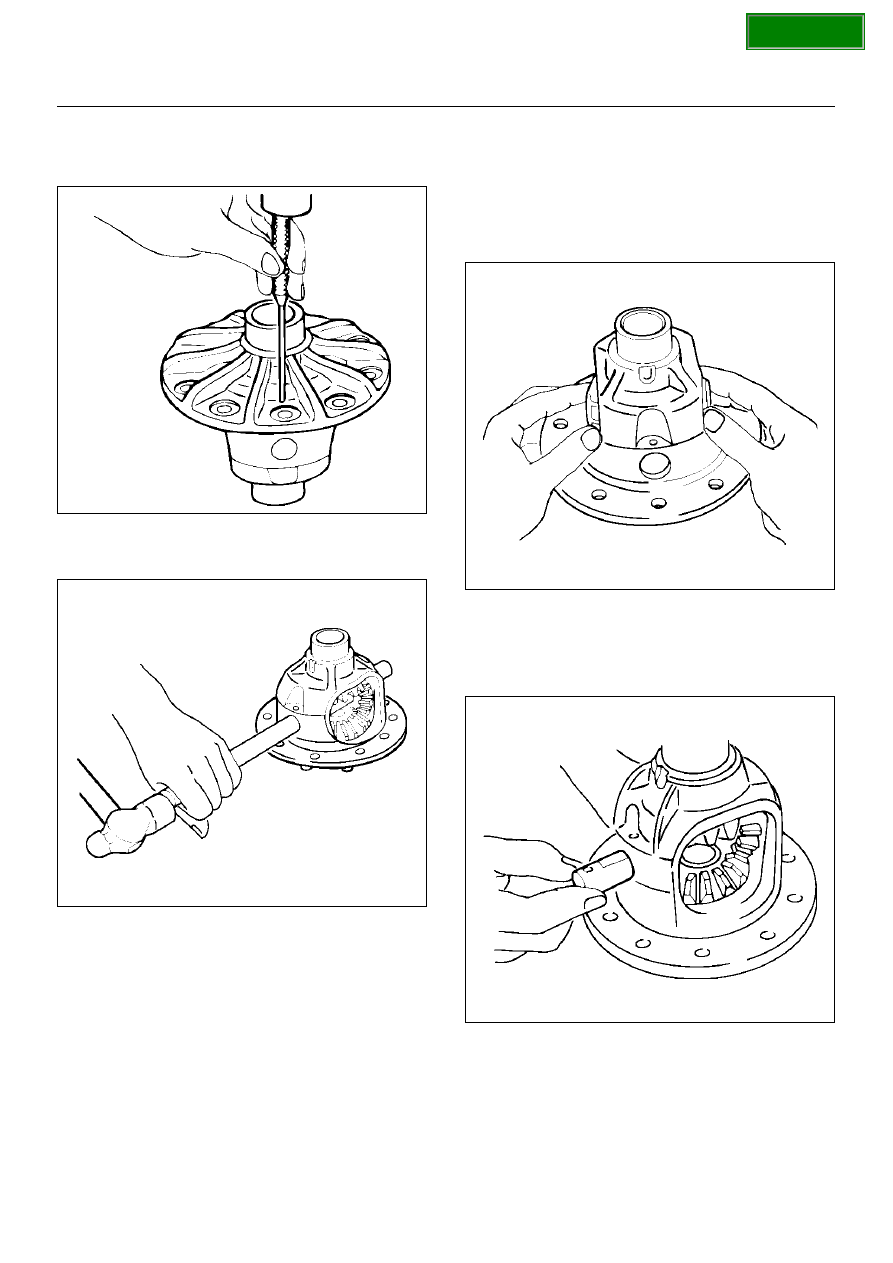

1. Remove lock pin using a small drift.

425RS098

2. Remove the differential shaft by using a soft metal

rod and a hammer.

425RS043

3. Remove pinion mate gear and thrust washer.

4. Remove side gear and thrust washer.

Inspection and Repair

Make necessary correction or parts replacement if
wear, damage, corrosion or any other abnormal
condition are found through inspection.
Check the following parts.

• Ring gear, pinion gear

• Bearing

• Side gear, pinion mate gear, differential shaft

• Differential case, carrier

• Thrust washer

• Oil seal

Reassembly

1. Install side gear with thrust washer.

2. Install the pinion mate gear with thrust washer by

engaging it with the side gears while turning both
pinion mate gears simultaneously in the same
direction.

425RS048

3. Install differential shaft.

1. Be sure to install the differential shaft so that it is

in alignment with the lock pin hole in the
differential case.

425RS049

4. Install lock pin.

After lock pin installation, stake the case to secure
the lock pin.

SECTION

DIFFERENTIAL (REAR)

4A2–29

Limited Slip Differential Assembly

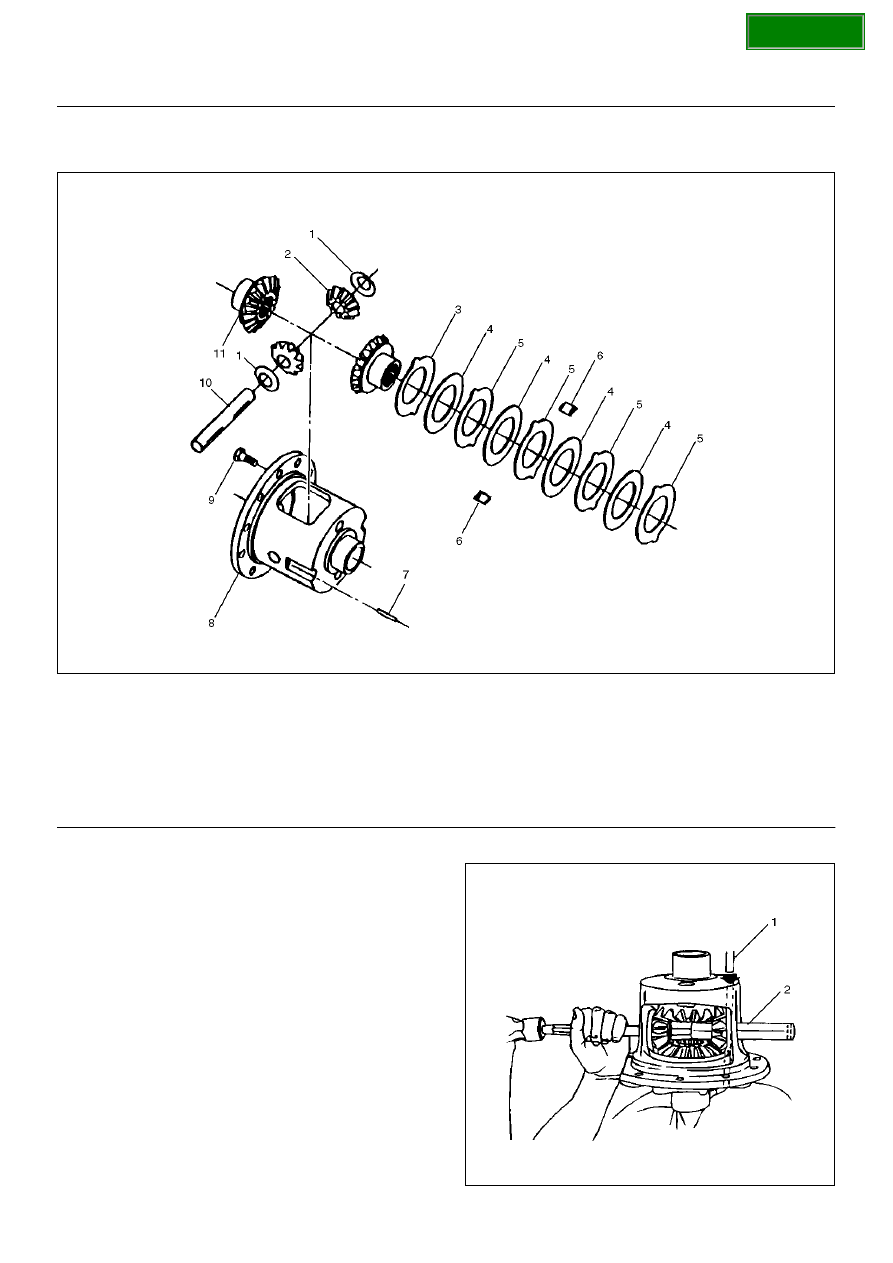

Disassembled View

425RW004

Legend

EndOFCallout

Disassembly

1. Place the holder 5–8840–2583–0 into a vise.

Position the differential on the holder with the ring
gear side down.

2. Remove Lock pin (1) from differential shaft using a

punch.

3. Remove Differential shaft (2) using hammer and

punch.
Place shop towel behind case to prevent differential
shaft from dropping out of case.

425RW005

(1) Thrust Washer–Differential Pinion Mate Gear
(2) Pinion Mate Gear
(3) Dished Spacer
(4) Disc
(5) Plate
(6) Differential Plate Retainer

(7) Lock Pin
(8) Differential Case
(9) Ring Gear Bolts

(10) Differential Shaft
(11) Differential Side Gear
