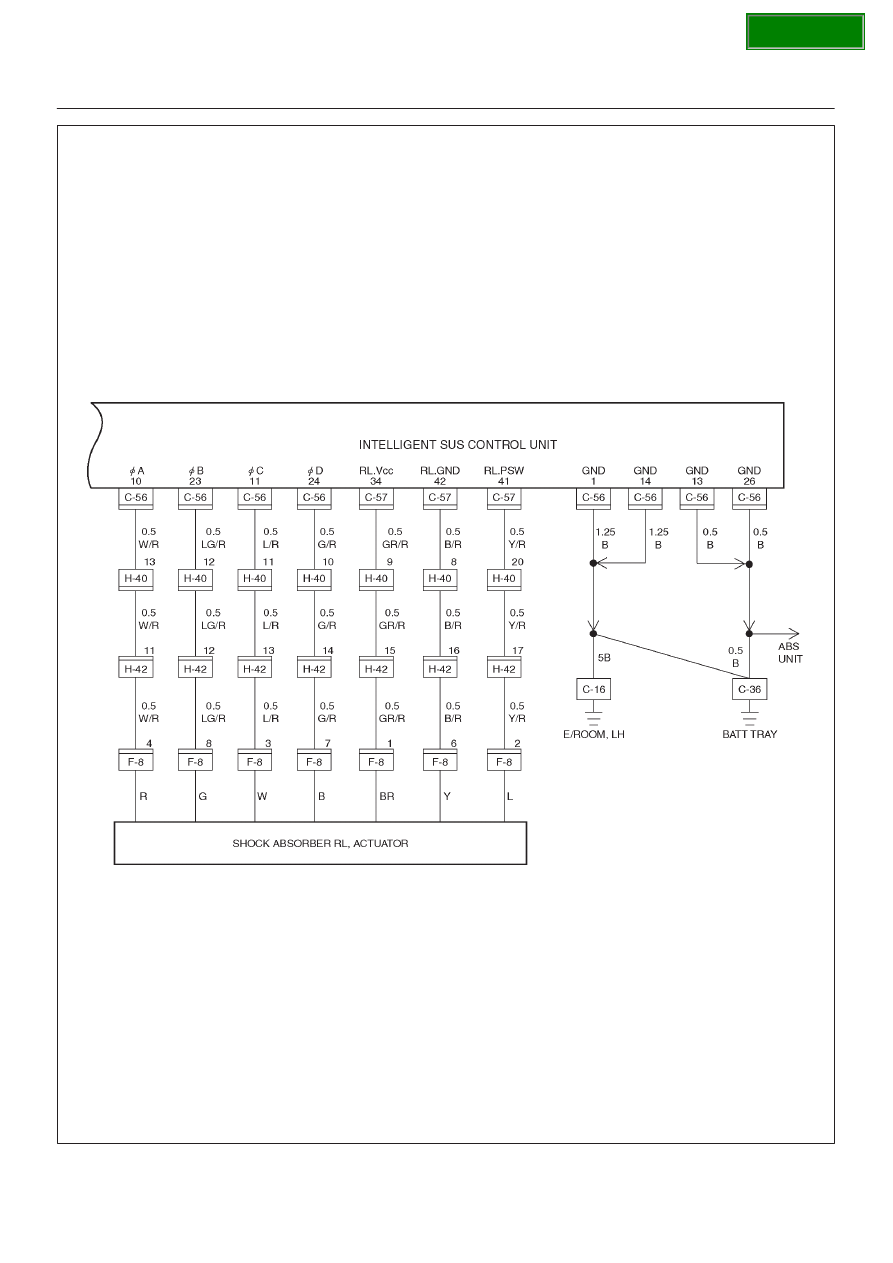

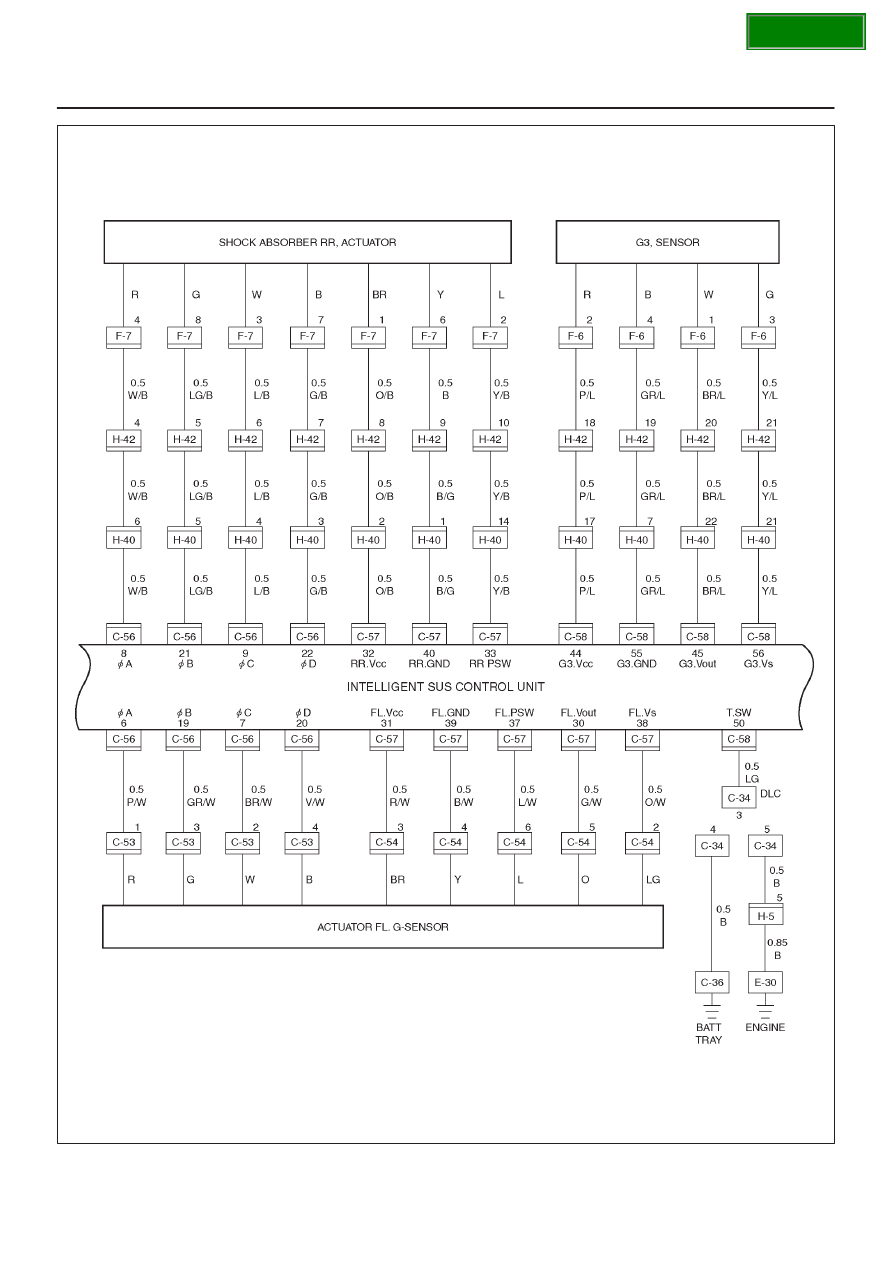

INTELLIGENT SUSPENSION

3F–11

826R100024

SECTION

3F–12

INTELLIGENT SUSPENSION

826R100025

SECTION

INTELLIGENT SUSPENSION

3F–13

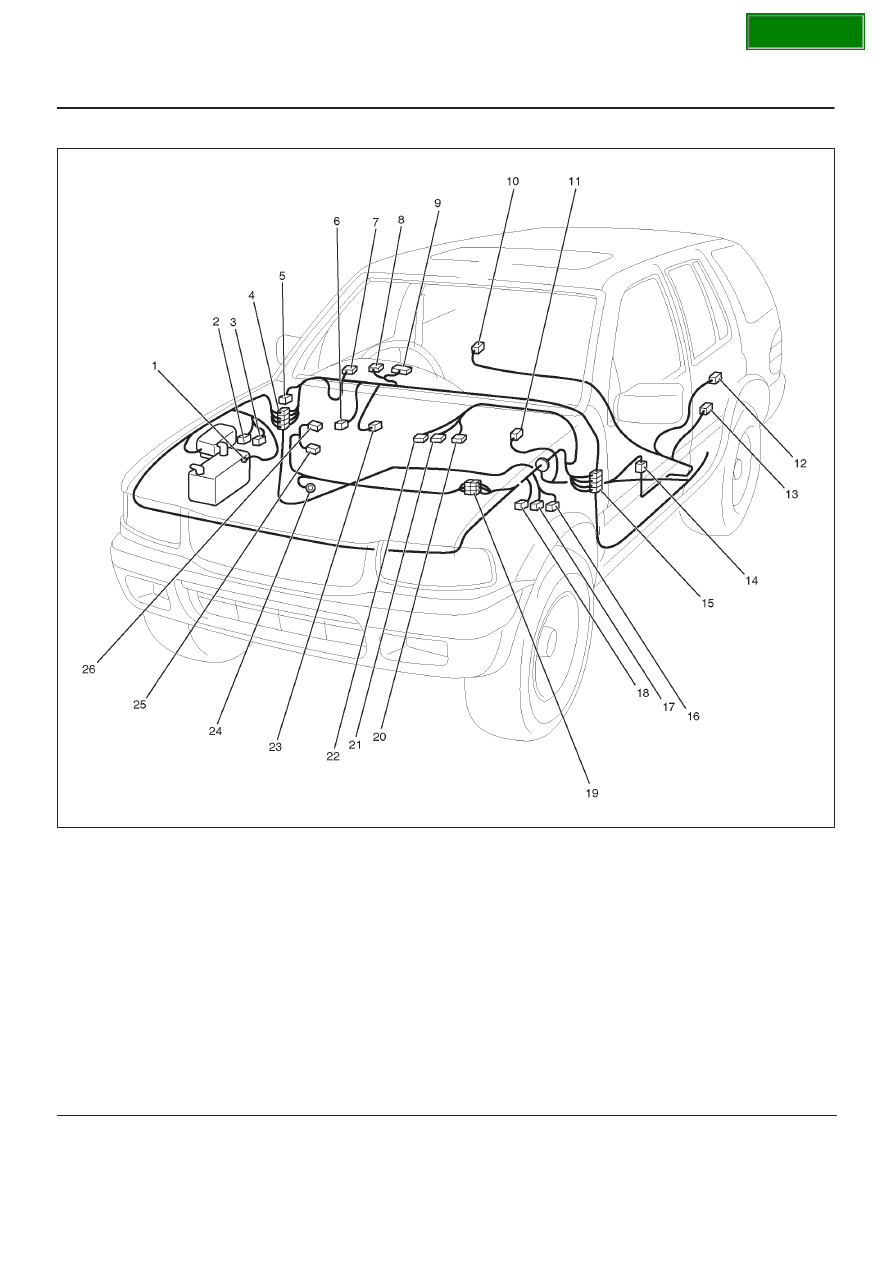

Parts Location

826R100028

Legend

(1) C–36
(2) C–51
(3) C–52
(4) H–13, H–14
(5) C–34
(6) I–55
(7) I–2
(8) I–9
(9) I–10

(10) F–8

(11) B–36

(12) F–7
(13) F–6

(14) H–42
(15) H–15, H–16, H–17, H–40
(16) C–54
(17) C–53
(18) C–16
(19) H–5, H–6
(20) C–58
(21) C–57
(22) C–56
(23) I–18
(24) E–30
(25) E–22
(26) E–21

SECTION

3F–14

INTELLIGENT SUSPENSION

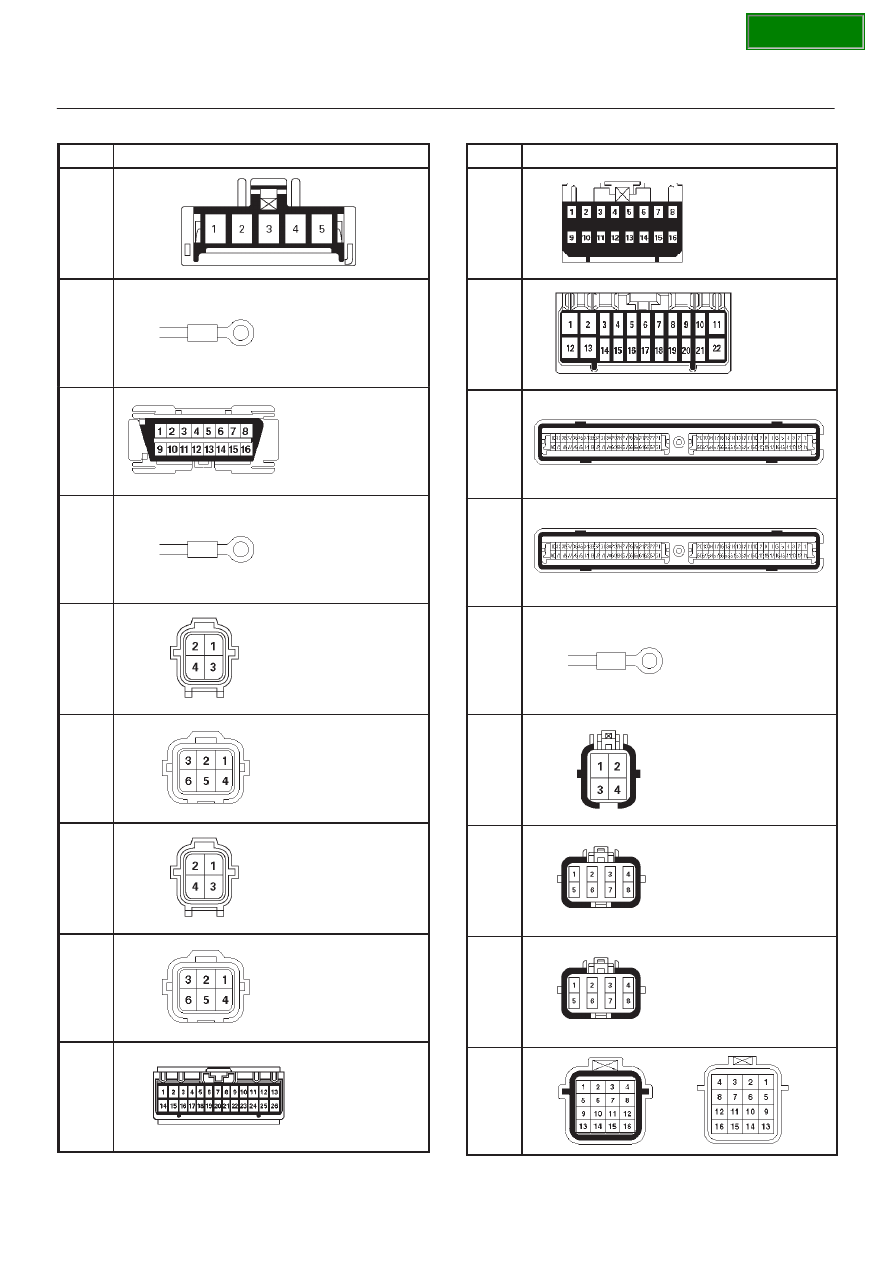

Connector List

No.

Connector face

B-36

C-16

C-34

C-36

C-51

C-52

C-53

C-54

C-56

No.

Connector face

C-57

C-58

E-21

E-22

E-30

F-6

F-7

F-8

H-5
