RESTRAINT CONTROL SYSTEM

DTC 51 Deployment Event Commanded

WARNING:  DURING SERVICE PROCEDURES. BE
VERY CAREFUL WHEN HANDLING A SENSING AND
DIAGNOSTIC MODULE (SDM). NEVER STRIKE OR
JAR THE SDM.   NEVER POWER UP THE SRS WHEN
THE SDM IS NOT RIGIDLY ATTACHED TO THE
VEHICLE. ALL SDM AND MOUNTING BRACKET
FASTENERS MUST BE  CAREFULLY TORQUED
AND THE ARROW MUST BE POINTING TOWARD

THE FRONT OF THE VEHICLE TO ENSURE PROPER
OPERATION OF THE SUPPLEMENTAL RESTRAINT
SYSTEM (SRS).  THE SDM COULD BE ACTIVATED
WHEN POWERED WHILE NOT RIGIDLY  ATTACHED
TO THE VEHICLE WHICH COULD CAUSE
DEPLOYMENT AND RESULT IN PERSONAL INJURY.

Step

Action

Yes

No

1

Was the “SRS Diagnostic System Check" performed?

Go to Step 2

Go to the “SRS

Diagnostic System

Check."

2

Ignition switch “OFF."
Have air bag assemblies deployed?

Replace

components

and perform

inspections as

directed in

“repairs and

inspections

required after

an accident" in

this section.

Clear

diagnostic

trouble codes.

Repeat the

“SRS

Diagnostic

System Check."

Go to Step 3

3

Inspect front of vehicle and undercarriage for signs of impact.
Were signs of impact found?

Replace

components

and perform

inspections as

directed in

“repairs and

inspections

required after

an accident" in

this section.

Clear

diagnostic

trouble codes.

Repeat the

“SRS

Diagnostic

System Check."

Ignition switch

“OFF."

Replace SDM.

Reconnect all

SRS system

components,

ensure all

components

are properly

mounted.

Repeat the

“SRS

Diagnostic

System Check."

RESTRAINT CONTROL SYSTEM

9J1–49

DTC 53  Deployment Commanded With Deployment Loop Fault Or Energy
Reserves Out Of Range

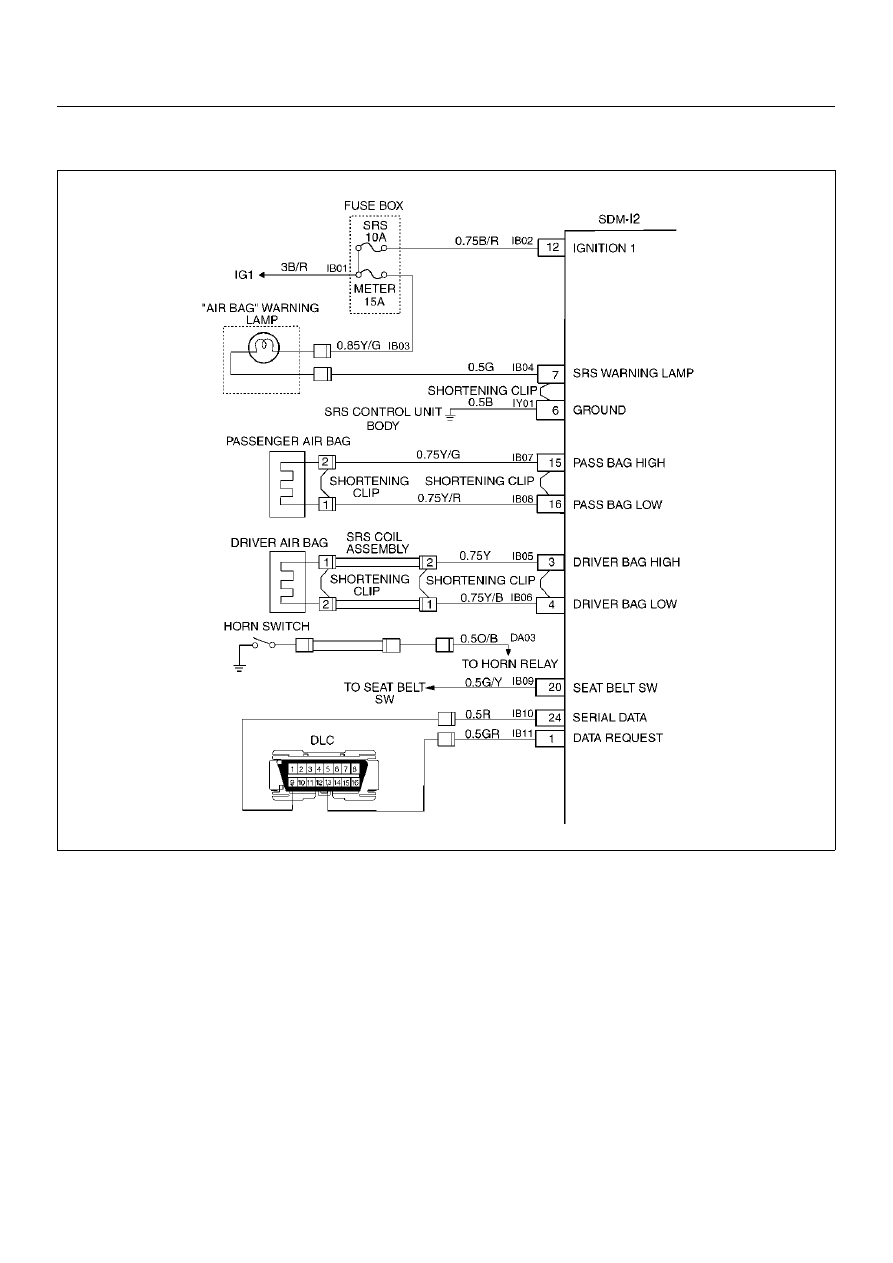

D09RX002

Circuit Description:

The Sensing and Diagnostic Module (SDM) contains a
sensing drive which converts vehicle velocity changes
to an electrical  signal.  The electrical signal generated
is processed by the SDM and then compared to a value
stored in memory.  When the generated signal exceeds
the stored value, the SDM will cause  current to flow
through the air bag assembly deploying the air bags.
Diagnostic Trouble Code (DTC) 53 is set  accompanying
with DTC 51 when a deployment occurs while an air bag
assembly circuit fault  is present that could possible
result in a no deployment situation in one or both air bag
assemblies.

DTC Will Set When:

The SDM detects a frontal crash, up to 30 degrees off

the centerline of the vehicle, of  sufficient force to
warrant deployment of the air bags and an inflator circuit
fault is  present.

Action Taken:

SDM turns “ON" the “AIR BAG" warning lamp records
“Crash Data", and sets a diagnostic trouble  code.

DTC Will Clear When:

The SDM is replaced.  If DTC 53 is set, one or more
DTCs will be set in addition to DTC 53.   Malfunction(s)
setting DTC(s) (other than DTC 71) must be repaired so
that DTC(s) will  not be set when a new SDM is
installed.

9J1–50

RESTRAINT CONTROL SYSTEM

DTC Chart Test Description:

Number(s) below refer to step number(s) on the
diagnostic chart:
2. If air bag assembly has not deployed, Diagnostic

Trouble Code (DTC) 53 may have falsely set.

3. If DTC 53 has set with no signs of frontal impact, the

diagnostic trouble code has  falsely set.

RESTRAINT CONTROL SYSTEM

9J1–51

DTC 53 Deployment Commanded With Deployment Loop Fault Or Energy Reserves Out Of
Range

WARNING:  DURING SERVICE PROCEDURES. BE
VERY CAREFUL WHEN HANDLING A SENSING AND
DIAGNOSTIC MODULE (SDM). NEVER STRIKE OR
JAR THE SDM.  NEVER POWER UP THE SRS WHEN
THE SDM IS NOT RIGIDLY ATTACHED TO THE
VEHICLE. ALL SDM AND MOUNTING BRACKET
FASTENERS MUST BE CAREFULLY TORQUED AND
THE ARROW MUST BE POINTING TOWARD THE

FRONT OF THE VEHICLE TO ENSURE PROPER
OPERATION OF THE SRS. THE SDM COULD BE
ACTIVATED WHEN POWERED WHILE NOT RIGIDLY
ATTACHED TO THE VEHICLE WHICH COULD
CAUSE DEPLOYMENT AND RESULT IN PERSONAL
INJURY.

Step

Action

Yes

No

1

Was the “SRS Diagnostic System Check" performed?

Go to Step 2

Go to the “SRS

Diagnostic System

Check."

2

Ignition switch “OFF."
Have air bag assemblies deployed?

Replace

components

and perform

inspections as

directed in

“repairs and

inspections

required after

an accident" in

this section.

Clear

diagnostic

trouble codes.

Repeat the

“SRS

Diagnostic

System Check."

Go to Step 3

3

Inspect front of vehicle and undercarriage for signs of impact.
Were signs of impact found?

Replace

components

and perform

inspections as

directed in

“repairs and

inspections

required after

an accident" in

this section.

Clear

diagnostic

trouble codes.

Repeat the

“SRS

Diagnostic

System Check."

Ignition switch

“OFF."

Replace SDM.

Reconnect all

SRS system

components,

ensure all

components

are properly

mounted.

Repeat the

“SRS

Diagnostic

System Check."
