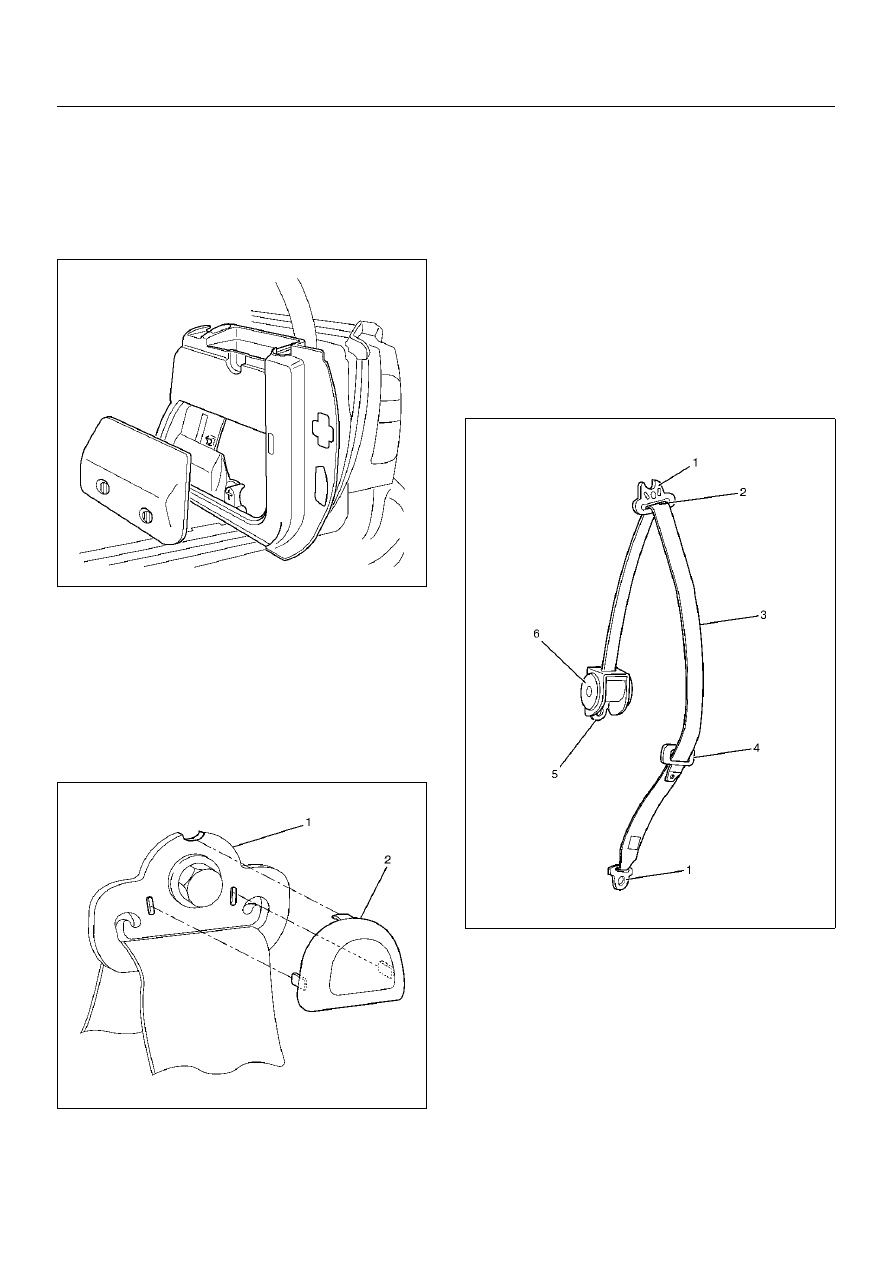

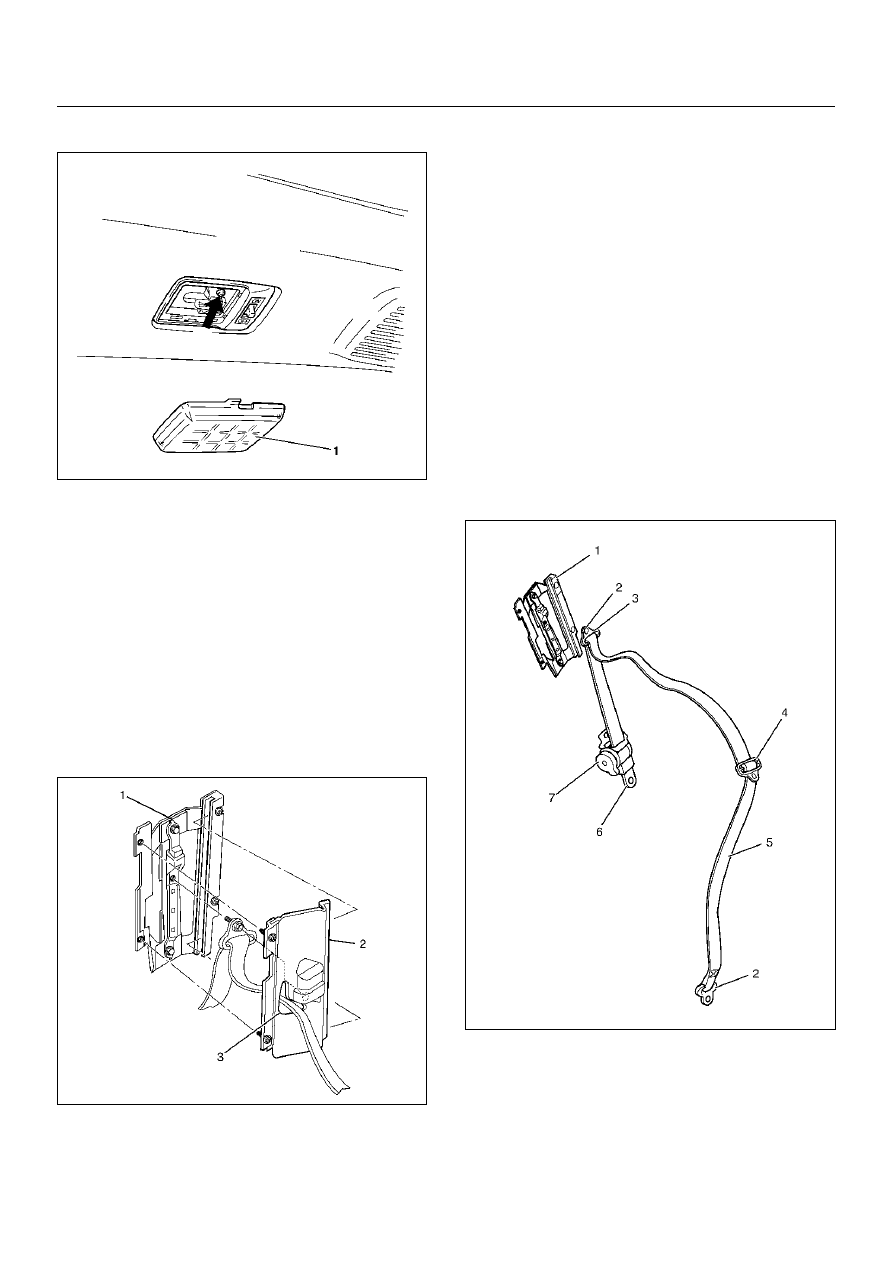

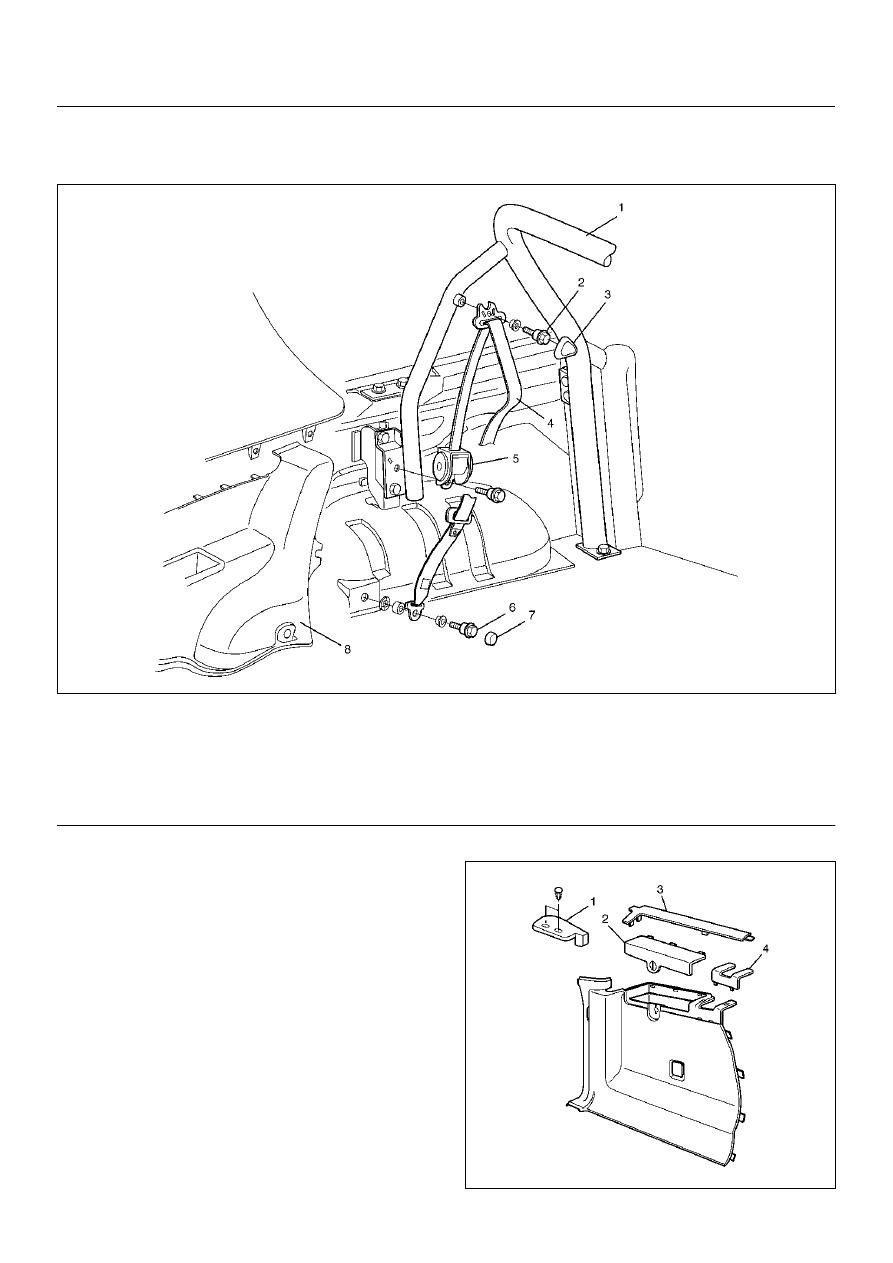

9A–8 SEAT BELT SYSTEM • Disconnect the luggage room light connector. 825RW100 5. Remove the rear roof trim cover. • Pry the trim cover clips free from the body panel. 6. Remove the rear sill plate. 7. Remove the rear seat belt lower anchor bolt cap and the lower anchor bolt. 8. Remove the upper and lower quarter trim cover. • Refer to Interior Trim Panel (LWB) in Exterior/ Interior Trim section. 9. Remove the slider plate trim assembly (2). • Remove the two fixing screws from the adjustable shoulder anchor (1). • Pull out the seat belt through the hole (3) on the slider plate trim. 755RW069 10. Remove the seat belt upper anchor bolt. 11. Remove the retractor. 12. Remove the rear seat belt assembly. 13. Remove the adjustable shoulder anchor assembly. • Remove the two fixing bolts. Inspection If any of the following abnormalities is found, replace on • Deform and malfunction of adjustable shoulder anchor (1). • No smooth move of upper/lower anchors (2) in the circumferential direction. • Damaged and/or deformed through ring (3). • Damaged and/or deformed tongue (4). • Damaged and/or frayed of webbing (5). • Deformed retractor bracket (6). • Seat belt not rewound up (7). • Resistance or abnormal sound when seat belt is wound out and rewound (7). • Retractor (7) abnormality. 755RY00021 |
