SUNROOF/CONVERTIBLE TOP

Removal

1. Disconnect the battery ground cable.

2. Remove the sunshade assembly.

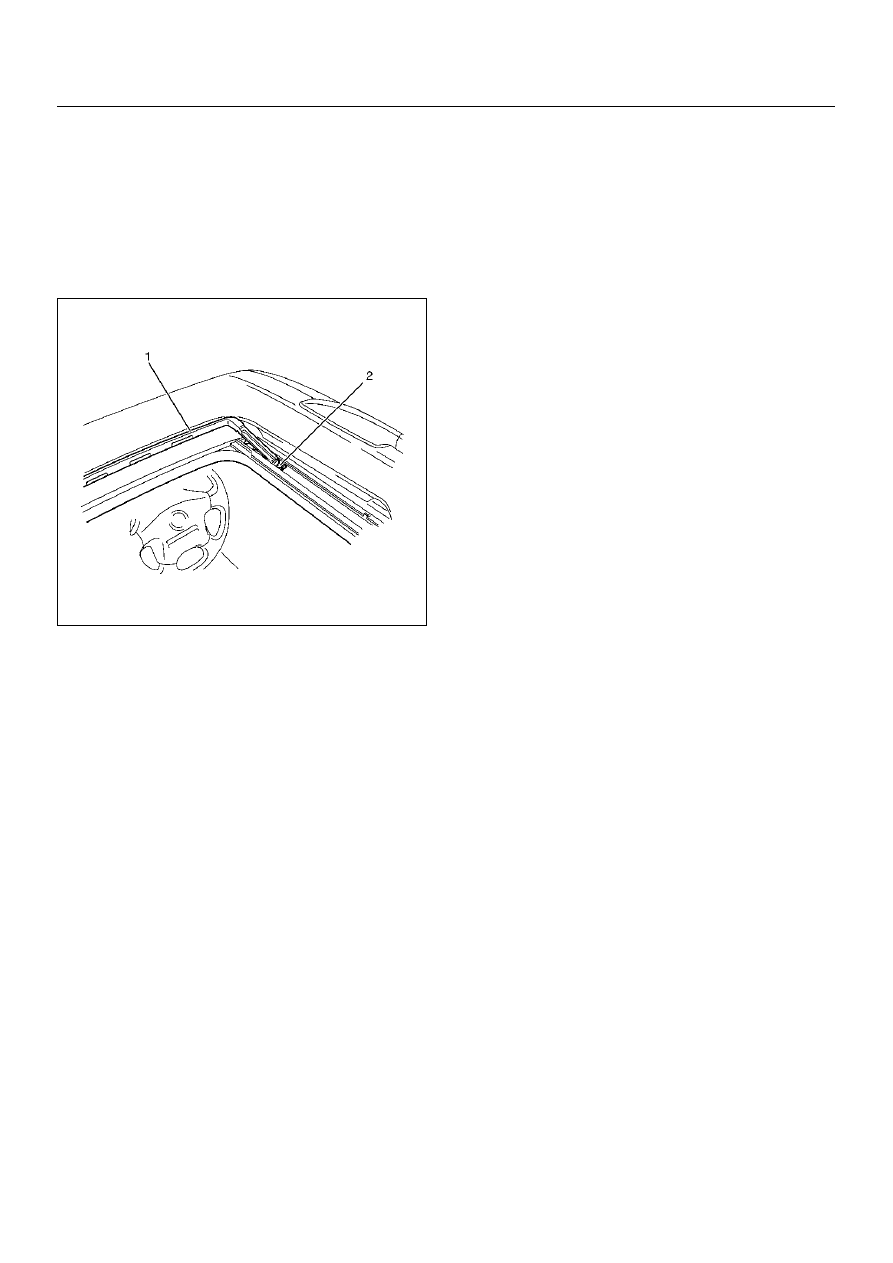

• Turn the knobs (1) 90 degrees and pull it out at

angle. Then pull the sunroof handle (2) to
disengage the lock.

665RW025

3. Remove the sunroof glass assembly.

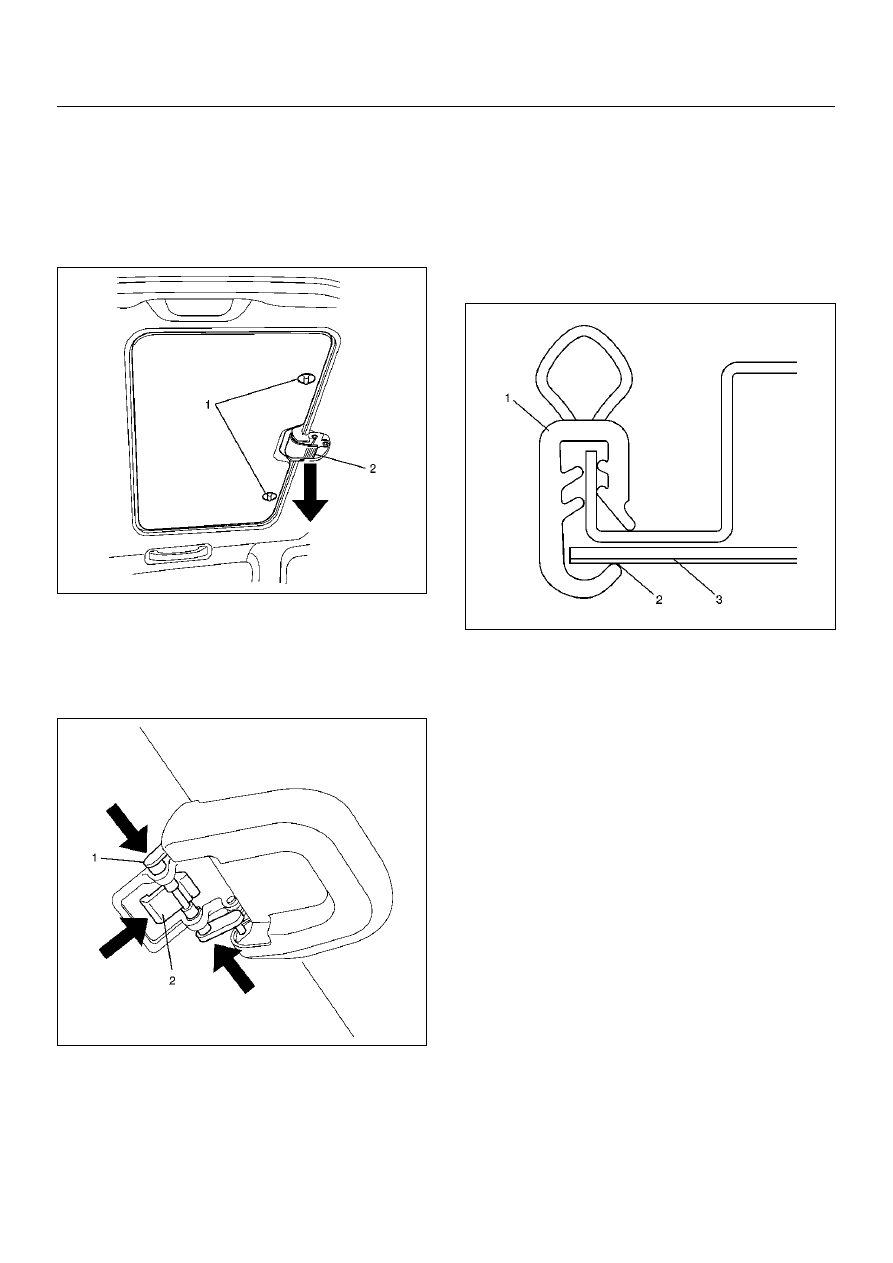

• Push the safety lever (2) behind the handle and

push in on the hinge pins (1) from the left and
right to disengage them. Raise the rear end of the
sunroof glass assembly at an angle pull it free.

665RW026

4. Remove the sunroof handle cover and sunroof

handle plate.

• Remove the screw form the cover and the three

fixing nuts form the plate.

5. Remove the weather strip.

Installation

To install, follow the removal steps in the reverse order,
nothing the following points.

1. When attaching the sunroof weather strip (1), make

sure that the lip (2) securely overlaps the headlining
(3).

• Assemble with the positioning marks centered

toward the rear of the vehicle.

666RW007

2. Tighten the sunroof handle plate fixing nuts to the

specified torque.

Torque: 8 N·m (0.8 kg·m/69 Ib in)

SUNROOF/CONVERTIBLE TOP

8I–5

Sunroof Deflector (LWB)

Removal

1. Open the sunroof.

• Let a 5 mm drill go through two blind rivets (2) to

disengage riveted portions.

2. Remove the sunroof deflector (1).

665RW027

Installation

To install, follow the removal steps in the reverse order.

8I–6

SUNROOF/CONVERTIBLE TOP

Sunroof Deflector (SWB)

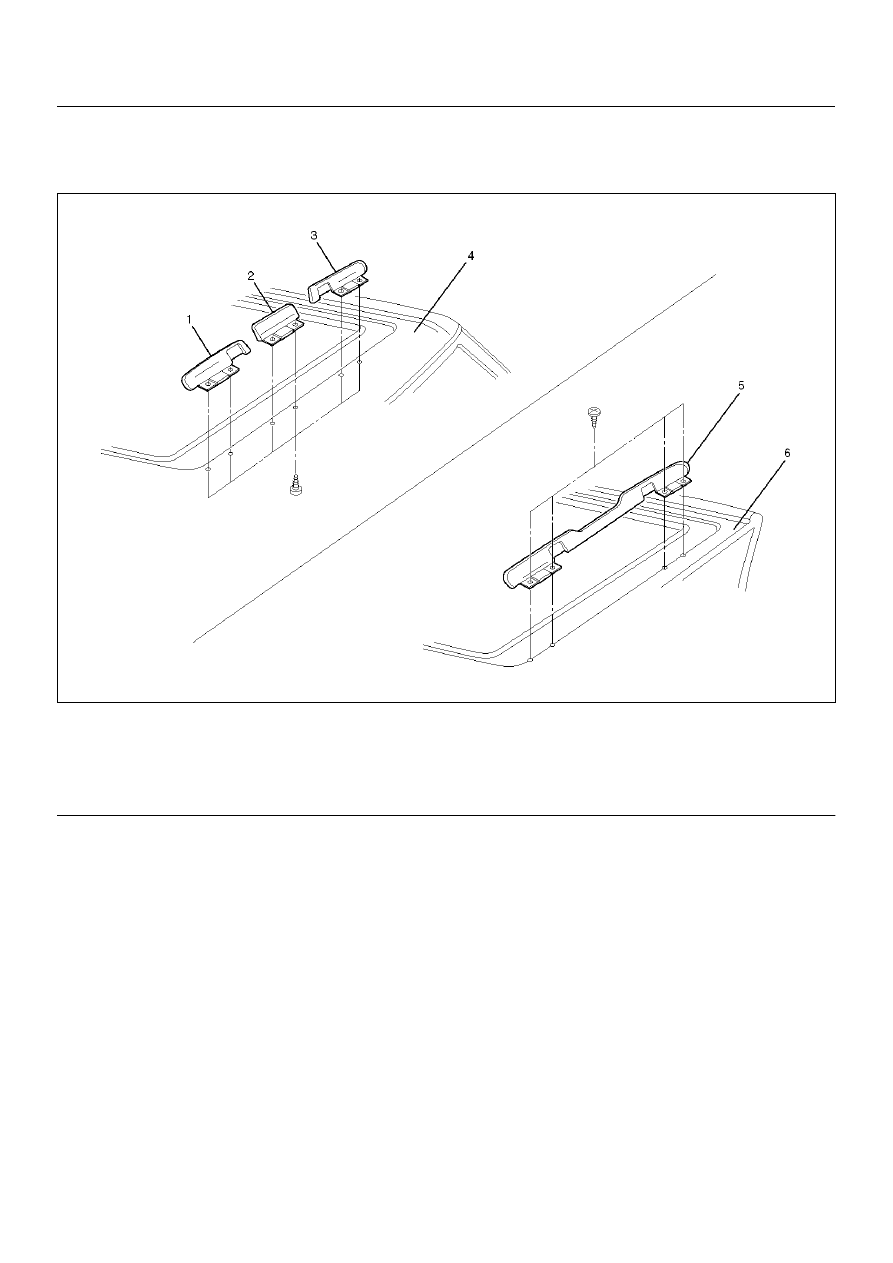

Parts Location

665RX001

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the sunroof glass.

• Refer to Sunroof Glass (SWB) in this section.

3. Remove the headlining (Front roof side).

• Refer to Headlining (SWB) in Exterior/Interior

Trim section.

4. Remove the sunroof deflector.

• Remove the fixing screws.

Installation

To install, follow the removal steps in the reverse order.

(1) Side Deflector Assembly (RH)
(2) Center Deflector Assembly
(3) Side Deflector Assembly (LH)

(4) Roof Panel (Front side)
(5) Rear Sunroof Deflector Assembly
(6) Roof Panel (Resin Top side)

SUNROOF/CONVERTIBLE TOP

8I–7

Sunshade (LWB)

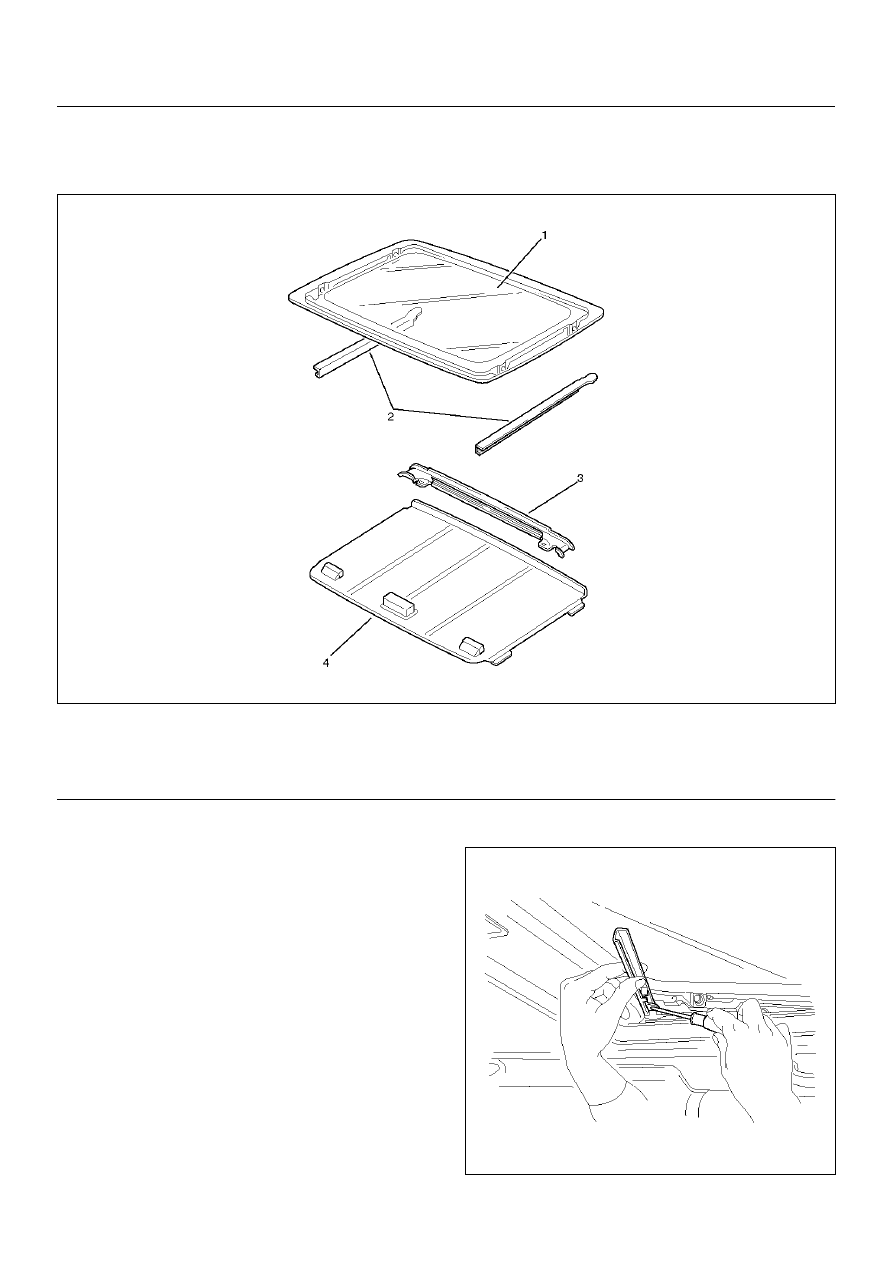

Disassembled View

665RW012

Legend

EndOFCallout

Removal

1. Tilt the sunroof.

2. Disconnect the battery ground cable.

3. Remove the sunroof glass.

• Refer to Sunroof Glass (LWB) in this section.

4. Pull the sight shield upward using screwdriver.

665RW006

(1) Sunroof Glass
(2) Sight Shield

(3) Sunshade Stopper
(4) Sunshade
