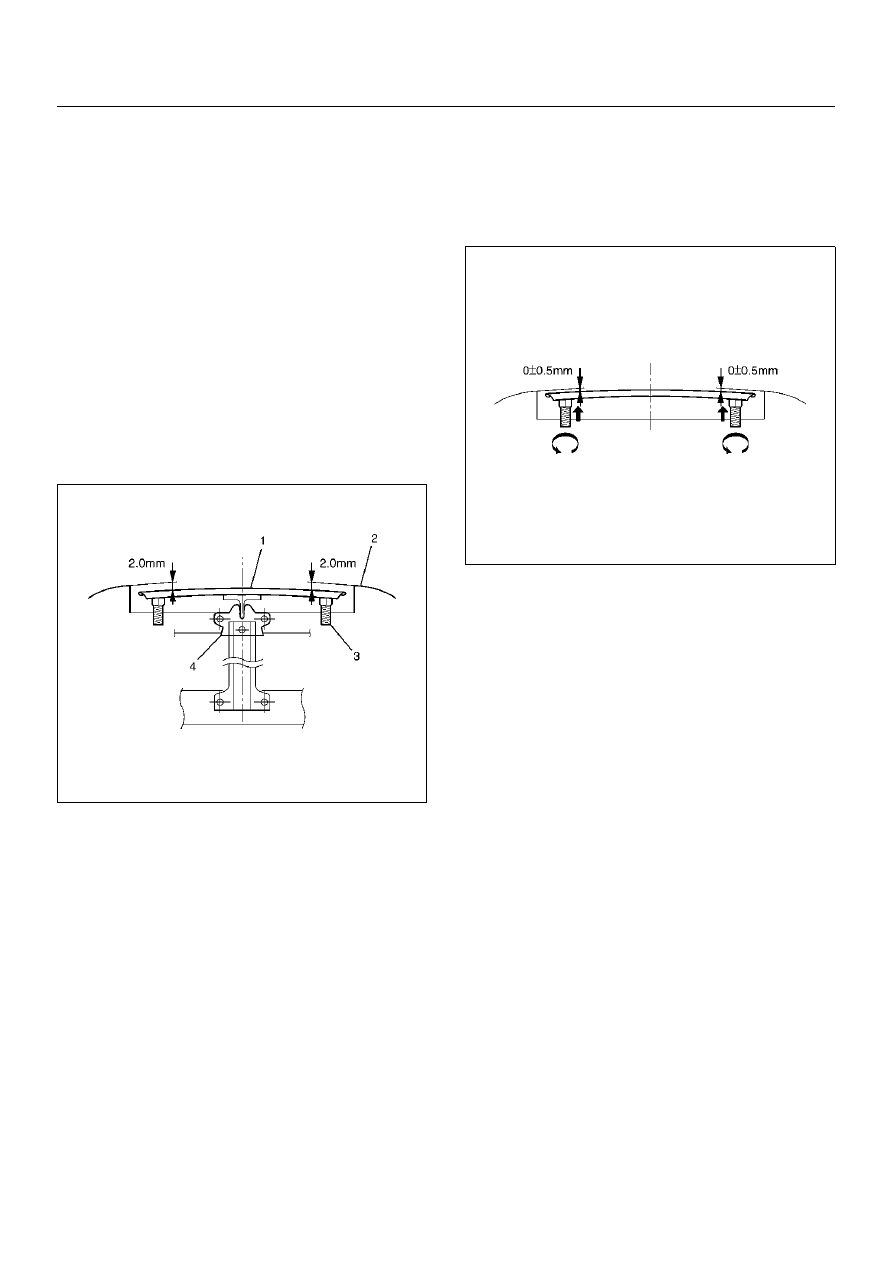

BODY STRUCTURE 8F–15 5. Remove the control cable. • Remove the cable fixing clips from the engine hood lock. Installation To install, follow the removal steps in the reverse order 1. Set the position of installing the engine hood lock assembly (4). • Install the buffers (3) to the body. • Adjust the buffers as the position of the engine hood (1) is 2mm to the fender panel (2). 2. Fix the engine hood lock assembly. • Tighten the hood lock assembly fixing bolts under condition 1 to the specified torque. Torque : 10 N·m (1.0 kg·m/87 lb in) 610RY00021 3. Adjust the appearance quality. (Engine hood and fender panel) • By buffers, adjust the difference of the height of engine hood is 0 ± 0.5mm to the fender. (Turn the buffers approx. one revolution and move the 610RY00022 4. Reroute the control cable to its original position, and check and see if the lock assembly and control lever |
