8D–251

WIRING SYSTEM

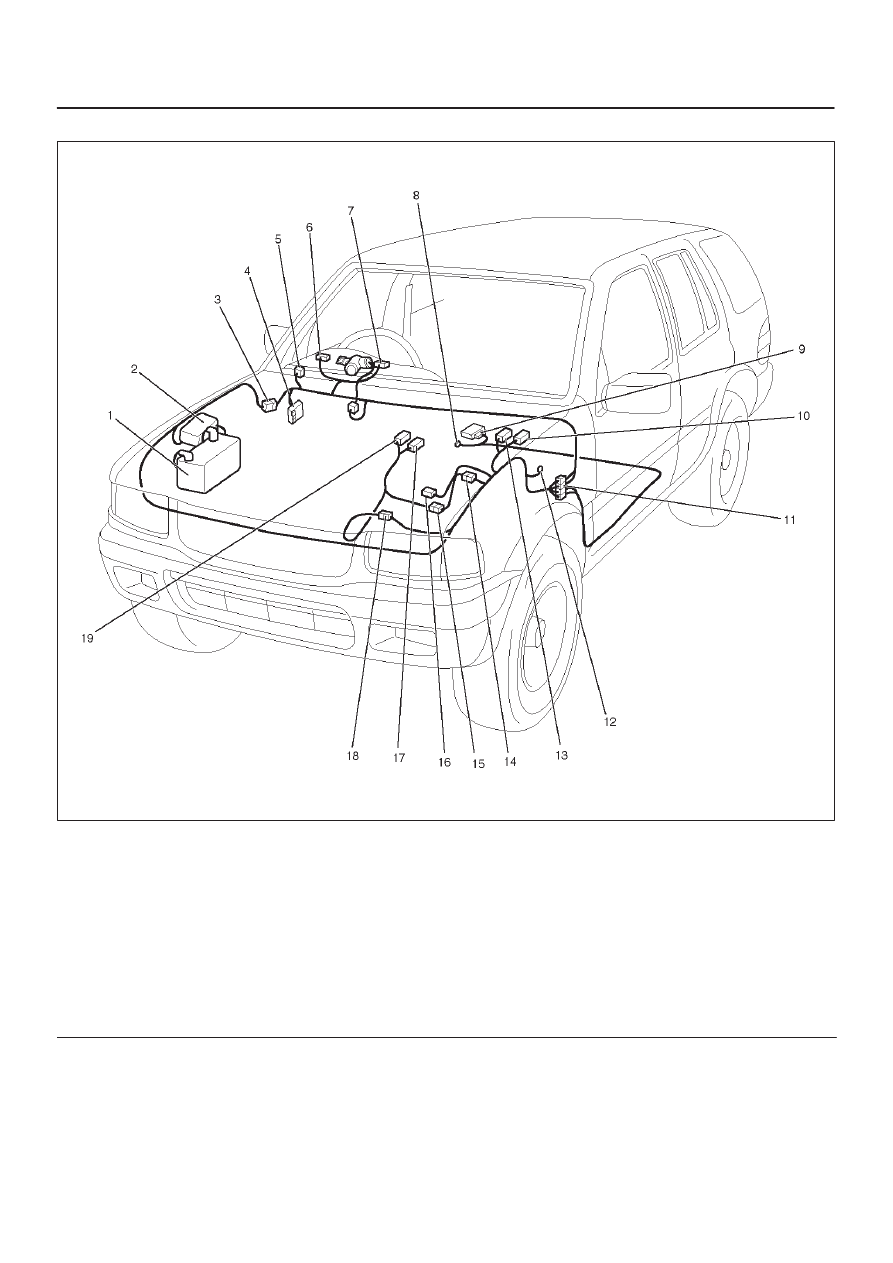

Parts Location

D08RX290

Legend

(1) Battery
(2) Relay & Fuse Box (Engine Room)
(3) H–32
(4) Relay & Fuse Box (Instrument Panel)
(5) I–19
(6) I–1
(7) I–2
(8) B–8
(9) B–19

(10) C–32

(11) H–15

(12) C–16
(13) C–31
(14) H–18
(15) H–9 (X22SE)
(16) C–15
(17) M–21
(18) H–9 (6VD1), H–10
(19) M–11, M–12

8D–252

WIRING SYSTEM

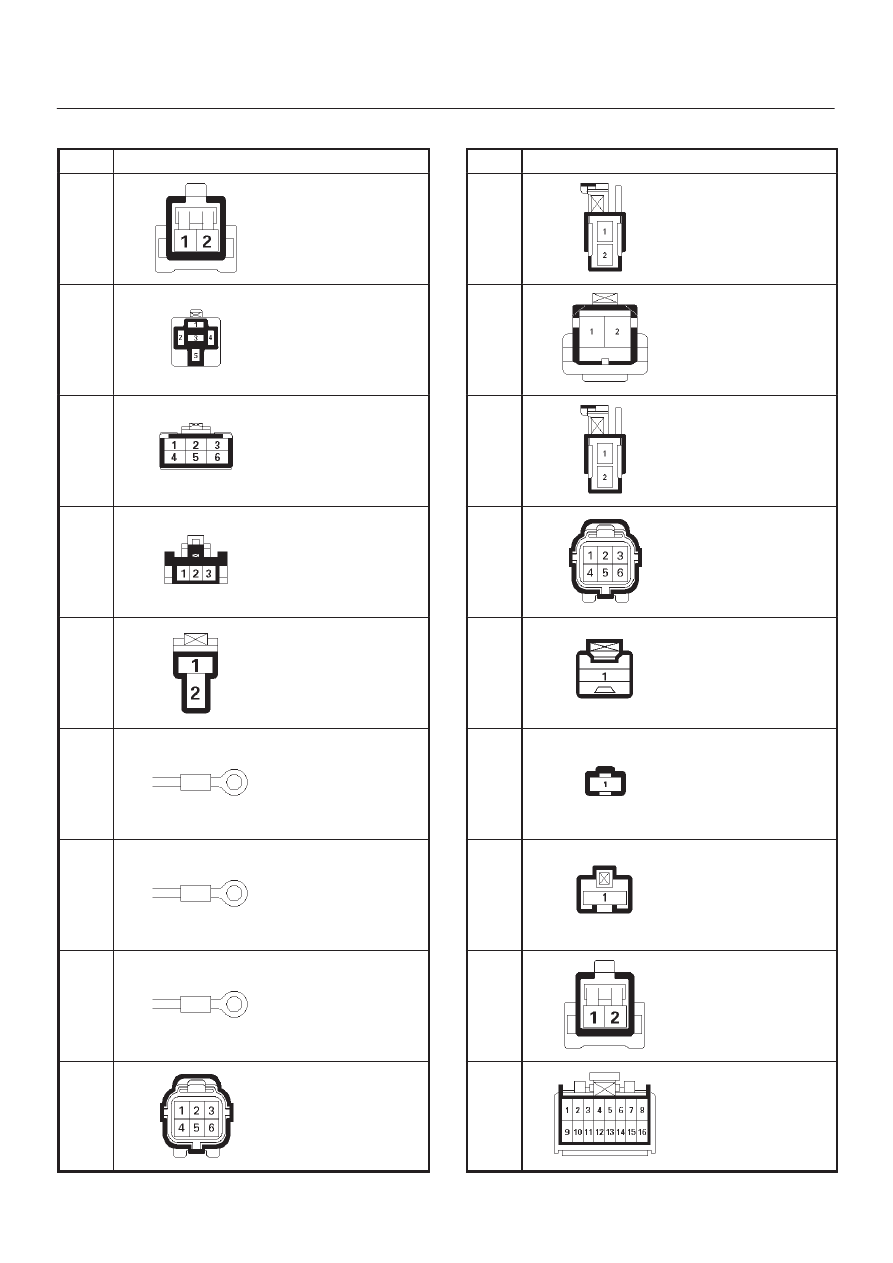

Harness Connector Faces

No.

Connector face

B-1

B-2

B-3

B-4

B-5

B-6

B-7

B-8

B-9

No.

Connector face

B-10

B-11

B-12

B-13

B-14

B-15

B-16

B-17

B-18

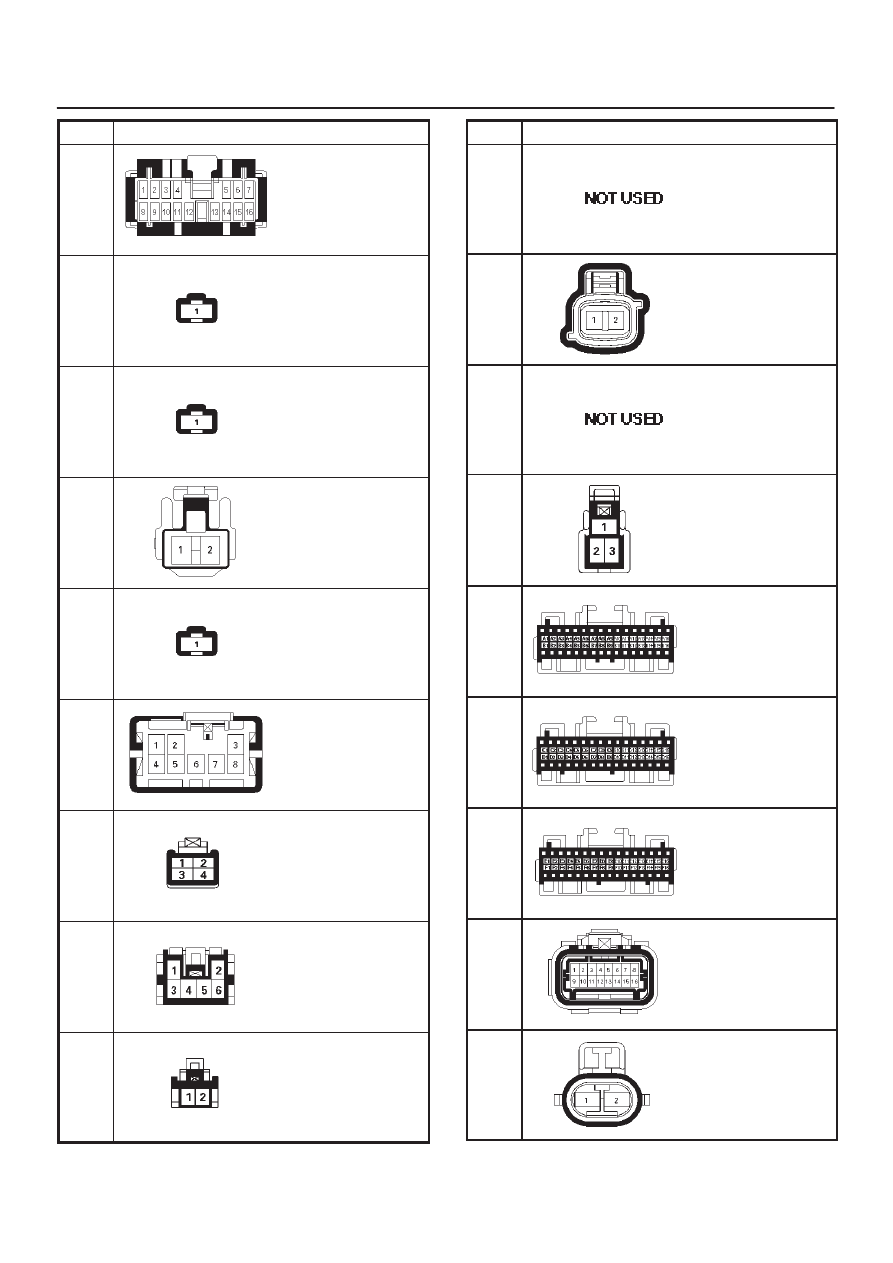

8D–253

WIRING SYSTEM

No.

Connector face

B-19

B-20

B-21

B-22

B-23

B-24

B-25

B-26

B-27

No.

Connector face

B-28

∼

B-29

B-30

B-31

∼

B-34

B-35

C-1

C-2

C-3

C-4

C-5

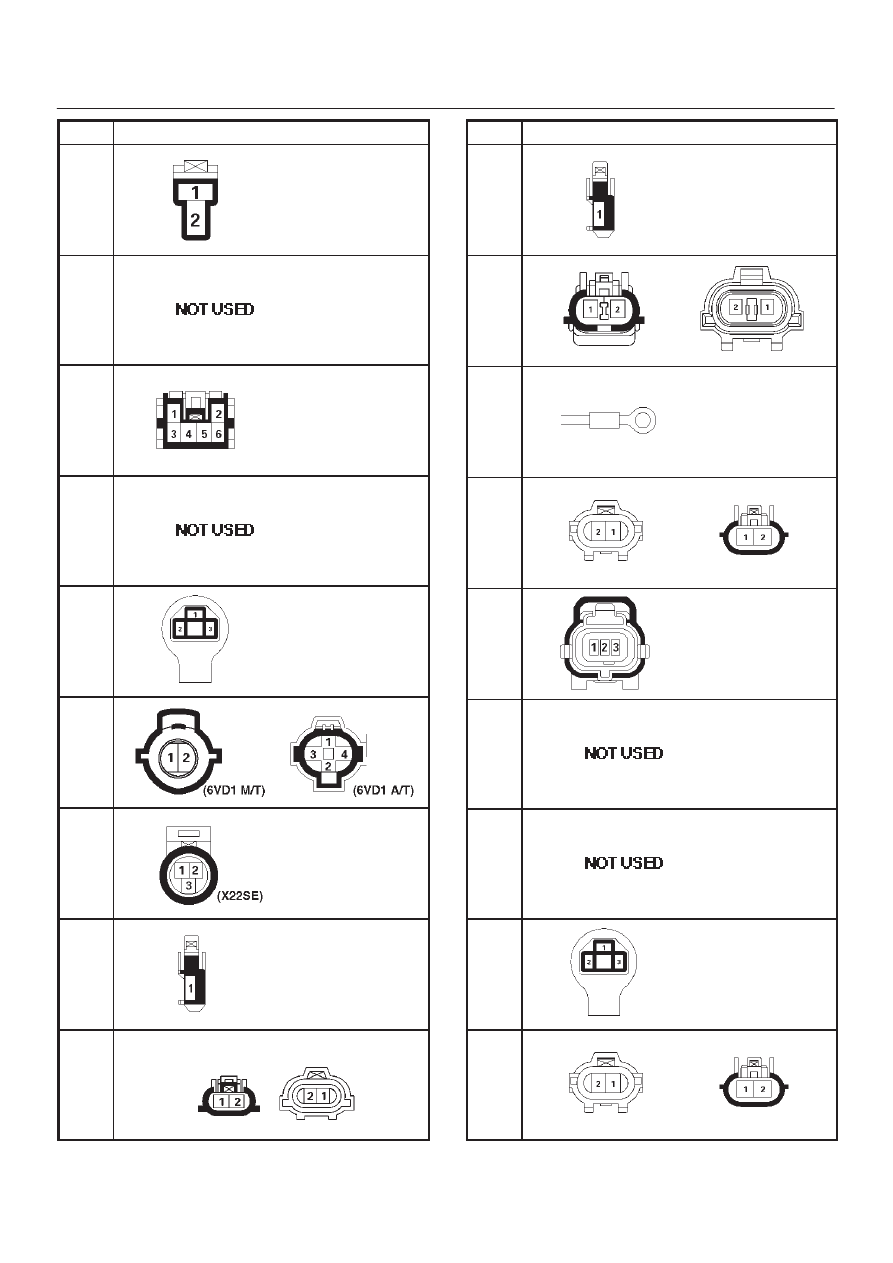

8D–254

WIRING SYSTEM

No.

Connector face

C-6

C-7

C-8

C-9

C-10

C-11

C-11

C-12

C-13

No.

Connector face

C-14

C-15

C-16

C-17

C-18

C-19

C-20

C-21

C-22
