8D–215

WIRING SYSTEM

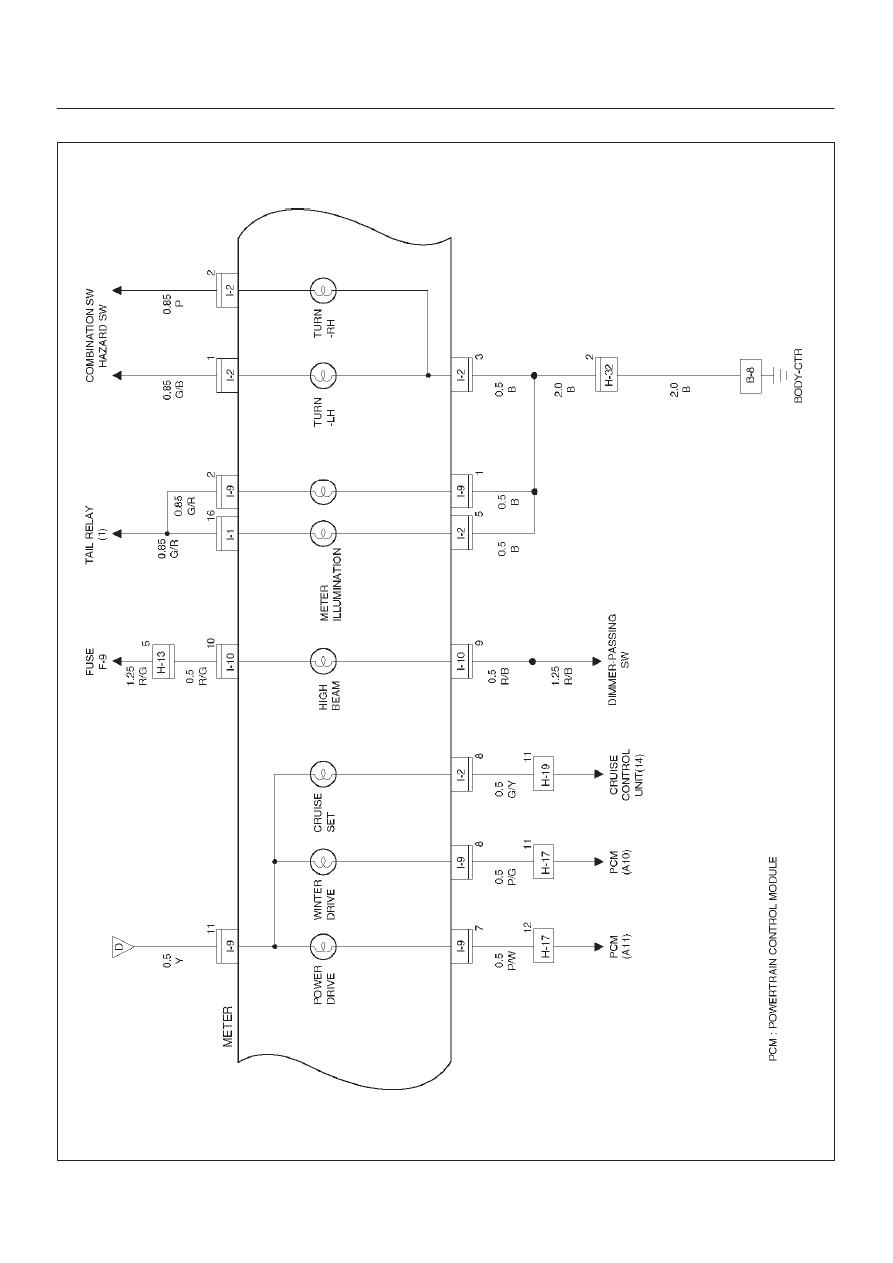

Circuit Diagram – 3

D08RX260

8D–216

WIRING SYSTEM

Circuit Diagram – 4

D08RX261

8D–217

WIRING SYSTEM

Circuit Diagram – 5

D08RX262

8D–218

WIRING SYSTEM

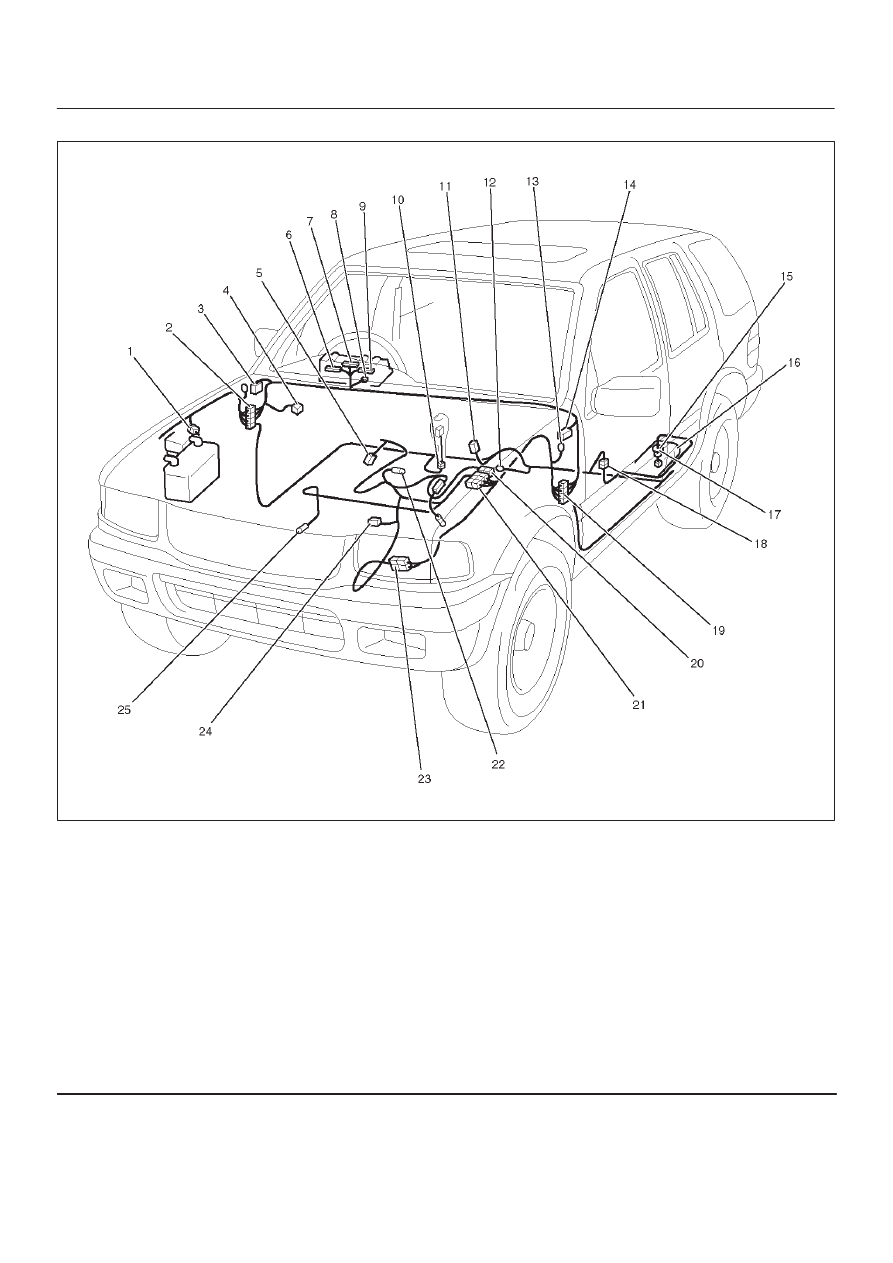

Parts Location

D08RX265

Legend

(1) H–2
(2) H–13, H–14, H–19, H–32
(3) Relay & Fuse Box (Instrument Panel)
(4) C–6
(5) E–19
(6) I–9
(7) I–2
(8) I–10
(9) I–1

(10) B–22

(11) B–23

(12) B–8

(13) C–16
(14) Alarm & Relay Control Unit
(15) Fuel Tank Unit
(16) Fuel Tank
(17) F–1
(18) H–25
(19) H–15, H–16, H–17, H–31
(20) H–9 (X22SE)
(21) H–5, H–6
(22) M–10
(23) H–9 (6VD1)
(24) E–1 (6VD1)
(25) E–1 (X22SE)
