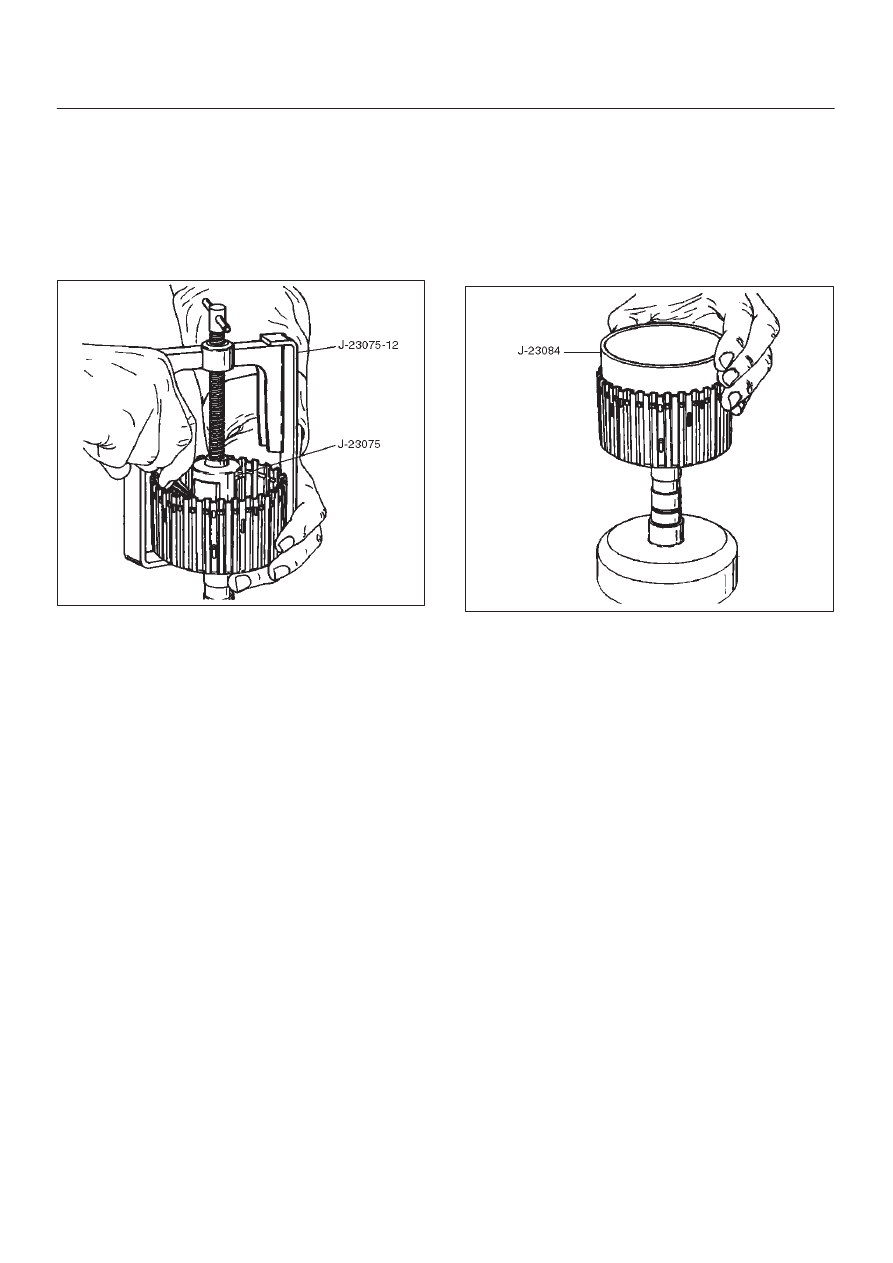

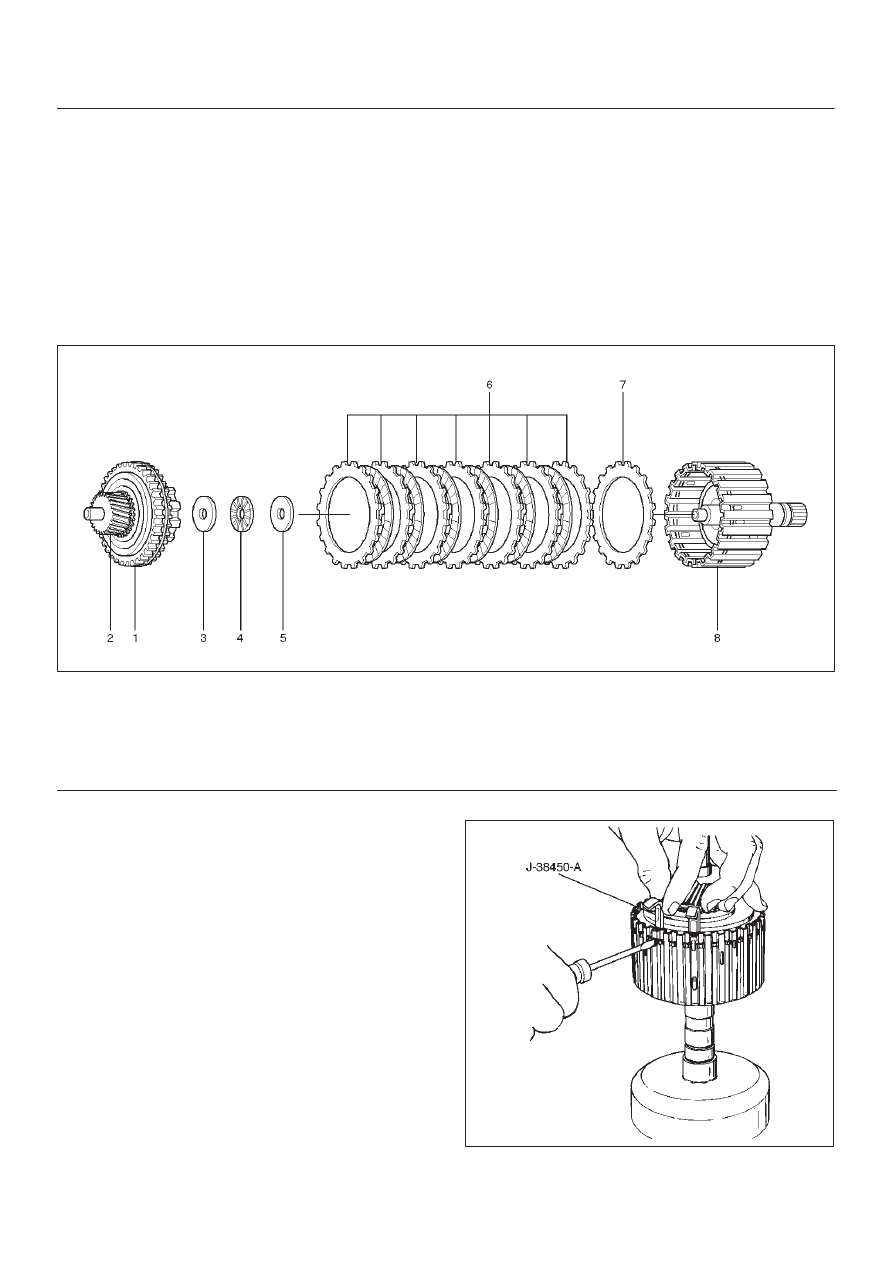

7A–72 AUTOMATIC TRANSMISSION (4L30–E) 3. Install 3/4 accumulator control valve (7), 3/4 accumulator valve (6), plug (5), and retainer (4). 4. Install force motor solenoid (3). D Place solenoid terminals pointing towards mating D Install retainer (2) and bolt. Torque: 10 N • m (87 lb in) 5. Install converter clutch solenoid assembly with two O-rings (1) to valve body. D Install bolt. Torque: 10 N • m (87 lb in) Third Clutch and Sprag Unit Disassembled View 248RW001 Legend (1) Retaining Ring (5) Thrust Washer Disassembly 1. Place the third clutch drum and intermediate shaft assembly upright, using the overdrive internal gear as 2. Locate the ends of the retaining ring. Depress one end of the ring using a small screwdriver instead of 3. Remove a screwdriver and repeat this step for the other end of retaining ring. 4. Install the remaining four blades approximately (five) notches apart using a screwdriver to depress the 5. Pull up on input sun gear and sprag unit assembly (1 and 2) to release the retaining ring from third clutch 6. Remove the tool blades. 248RX001 |
