DIFFERENTIAL (REAR)

4A2–33

Main Data And Specifications

General Specifications

Rear axle

Type

Salisbury, Semi–floating

Rear axle Size

226mm (8.9 in)

Gear type

Hypoid

Gear ratio  (to 1)

4.100 (6VD1 with A/T)

4.300 (6VD1 with M/T)

4.777 (X22SE with M/T)

Differential type

Two pinion

Lubricant Grade

GL–5: (Standard differential)

GL–5, LSD: (Limited slip differential)

Locking Differential Lubricant

80W90 GL–5

(USE Limited Slip Differential Gear Lubricant or Friction

Modifier Organic Additive)

Capacity

1.77 liter (1.87 US qt)

4A2–34

DIFFERENTIAL (REAR)

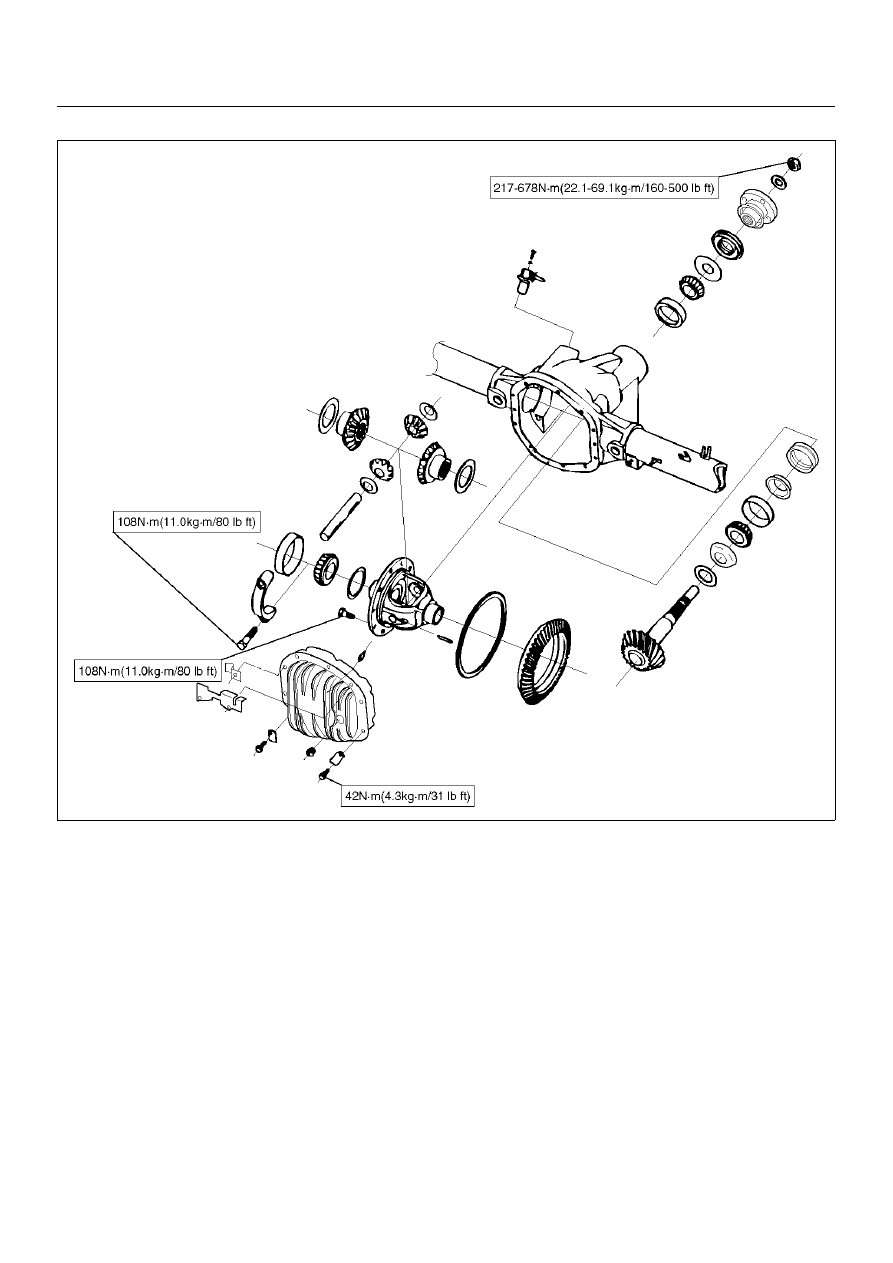

Torque Specifications

E04RX010

DIFFERENTIAL (REAR)

4A2–35

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–0133–0

(J–8614–01)

Pinion flange holder

5–8840–2165–0

(J–37263)

Installer; Pinion oil seal

5–8840–2587–0

(J–42379)

Remover; Bearing

5–8840–2585–0

(J–39830)

Adapter; Side bearing

plug

5–8840–0008–0

(J–8611–01)

Installer; Outer bearing

outer race

5–8840–0007–0

(J–8592)

Grip

5–8840–2569–0

(J–42836)

Installer; Inner bearing

outer race

5–8840–2575–0

(J–42824)

Pilot;Outer

5–8840–0127–0

(J–21777–43)

Nut & Stud

5–8840–2573–0

(J–42827)
Pilot;Inner

ILLUSTRATION

TOOL NO.

TOOL NAME

4A2–36

DIFFERENTIAL (REAR)

5–8840–2578–0

(J–39837–2)

Gauge plate

5–8840–0126–0

(J–8001)

Dial indicator

5–8840–2579–0

(J–39837–1)

Disc (2 required)

5–8840–0128–0

(J–23597–1)

Arbor

5–8840–2574–0

(J–42828)

Installer; Pinion bearing

5–8840–2580–0

(J–21784)

Installer; Side bearing

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2323–0

(J–39602)

Remover; Outer bearing

5–8840–2581–0

(J–24385–B)

Spreader

5–8840–2586–0

(J–39858)

Clutch pack unloading

tool kit

5–8840–2582–0

(J–39834)

Limited–slip differential

(LSD) service adapter

5–8840–2583–0

(J–39824)

Holder

5–8840–2584–0

(J–39836)

Side bearing preload

master bearings

ILLUSTRATION

TOOL NO.

TOOL NAME
