1A–60

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Receiver / Drier

Receiver / Drier and Associated
Parts

875RX001

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Discharge and recover refrigerant.

• Refer to Refrigerant Recovery in this section.

3. Remove radiator grille.

4. Disconnect pressure switch connector.

5. Disconnect refrigerant line.

• When removing the line connected part, the

connecting part should immediately be plugged
or capped to prevent foreign matter from being
mixed into the line.

6. Remove bracket bolt.

7. Remove receiver/drier.

• Loosen the bolt, then, using care not to touch or

bend the refrigerant line, carefully pull out the
receiver/drier.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. If installing a new receiver/drier, be sure to add 30cc

(1.0 fl.oz.) of new compressor oil to a new one.

2. Put the receiver/drier in the bracket and connect

with the refrigerant line.  Check that no excessive
force is imposed on the line.  Fasten the bracket bolt
to the receiver/drier.

3. Tighten the refrigerant line to the specified torque.

Torque: 6 N•m (52 lb in)

4. O-rings cannot be reused. Always replace with new

ones.

5. Be sure to apply new compressor oil to the O-rings

when connecting the refrigerant line.

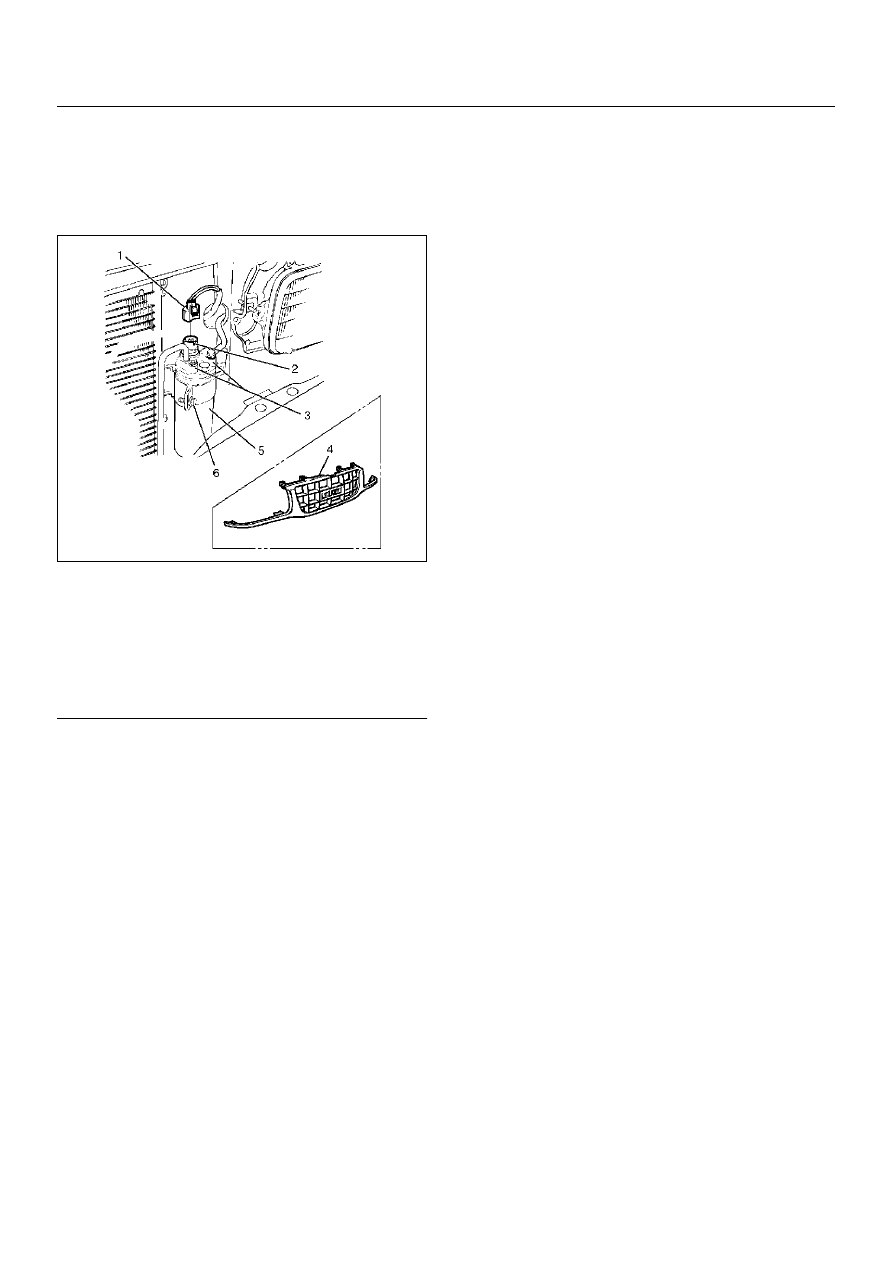

Legend

(1) Pressure Switch Connector
(2) Pressure Switch
(3) Refrigerant Line
(4) Radiator Grille
(5) Receiver / Drier
(6) Bracket Bolt

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–61

Pressure Switch

Pressure Switch and Associated
Parts

875RX001

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Discharge and recover refrigerant.

• Refer to “Refrigerant Recovery in this section.

3. Remove radiator grille.

4. Disconnect pressure switch connector.

5. Disconnect pressure switch.

• When removing the switch connected part, the

connecting part should immediately be plugged
or capped to prevent foreign matter from being
mixed into the line.

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. O-ring cannot be reused. Always replace with a new

one.

2. Be sure to apply new compressor oil to the O-ring

when connecting pressure switch.

3. Tighten the pressure switch to the specified torque.

Torque: 13 N•m (113 lb in)

Legend

(1) Pressure Switch Connector
(2) Pressure Switch
(3) Refrigerant Line
(4) Radiator Grille
(5) Receiver / Drier
(6) Bracket Bolt

1A–62

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Evaporator Assembly

Evaporator Assembly and Associated Parts

874RX010

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Discharge and recover refrigerant.

• Refer to Refrigerant Recovery in this section.

3. Remove glove box.

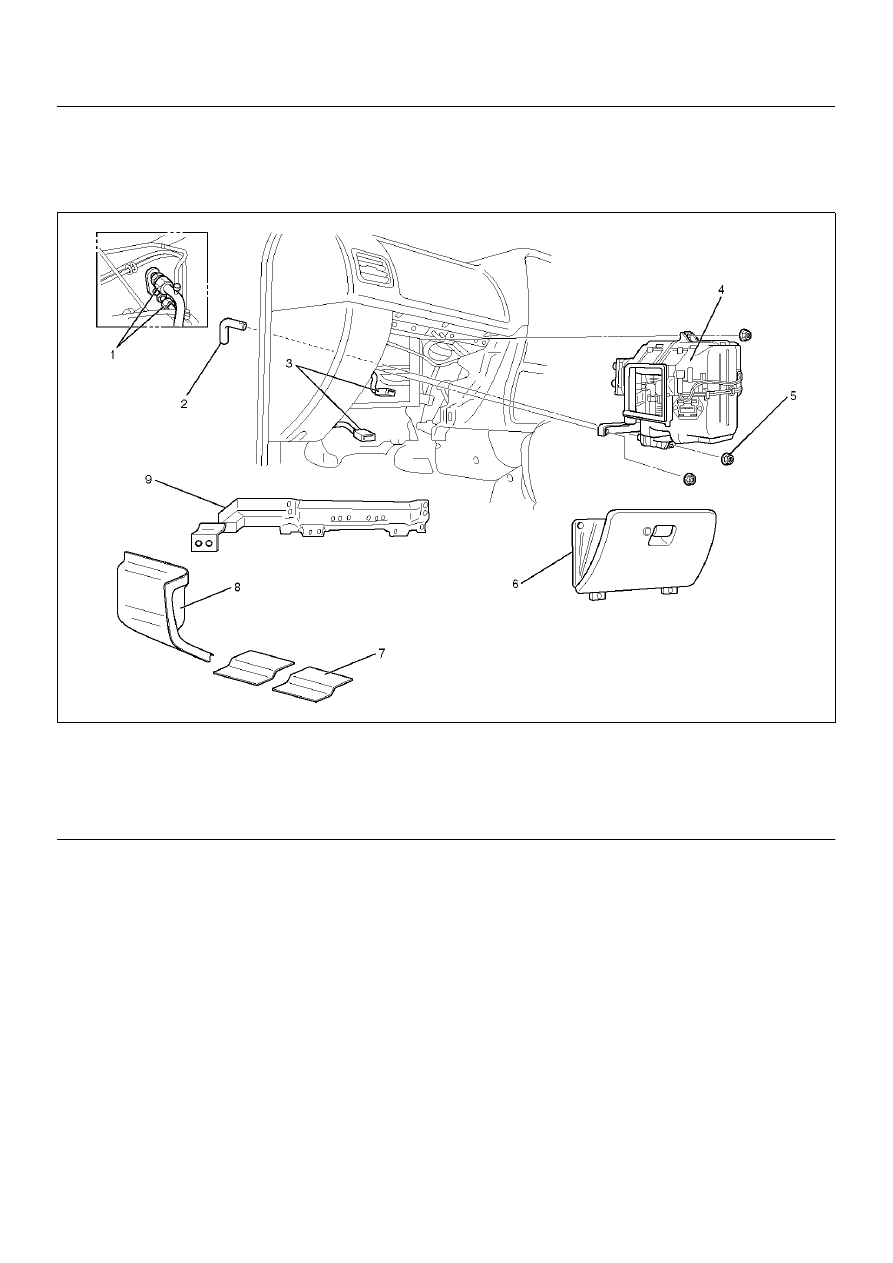

Legend

(1) Refrigerant Line
(2) Drain Hose
(3) Resistor and Electronic Thermostat Connector
(4) Evaporator Assembly

(5) Bolt: Evaporator Fix
(6) Glove Box
(7) Sill Plate
(8) Pad: Dash Side Trim
(9) Reinforcement: Inst Panel Lower

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–63

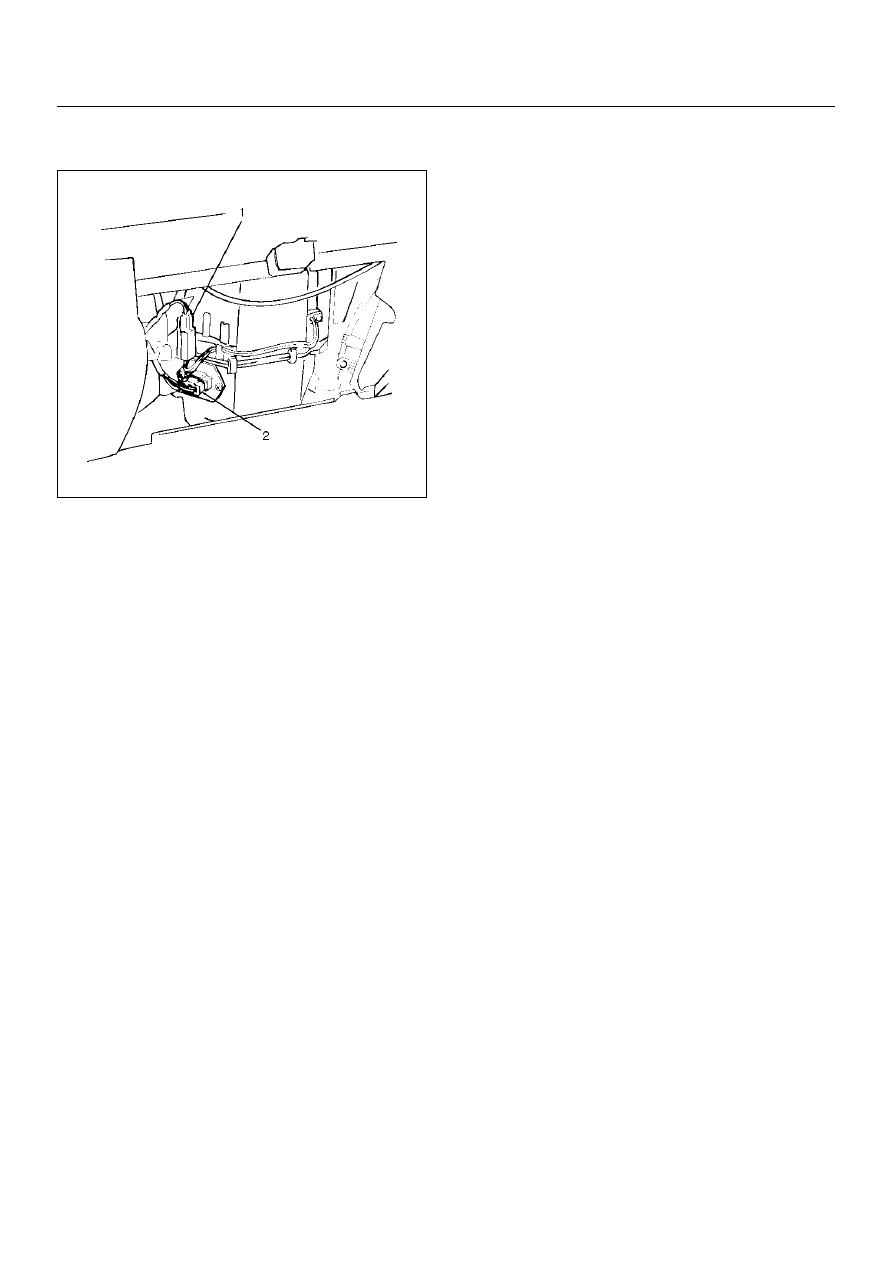

4. Disconnect resistor (2) and electronic thermostat

connector (1).

840RW019

5. Disconnect drain hose.

6. Disconnect refrigerant line.

• Use a back-up wrench when disconnecting and

reconnecting the refrigerant lines.

• When removing the refrigerant line connected

part, the connecting part should immediately be
plugged or capped to prevent foreign matter from
being mixed into the line.

7. Remove evaporator assembly.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. To install a new evaporator assembly, add 50cc

(1.7 fl.oz.) of new compressor oil to the new core.

2. Tighten the refrigerant outlet line to the specified

torque.

Torque: 25 N•m (18 lb ft)

3. Tighten the refrigerant inlet line to the specified

torque.

Torque: 15 N•m (11 lb ft)

4. O-rings cannot be reused. Always replace with new

ones.

5. Be sure to apply new compressor oil to the O-rings

when connecting lines.
