Opel Frontera UE. Manual - part 8
1A–4
HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

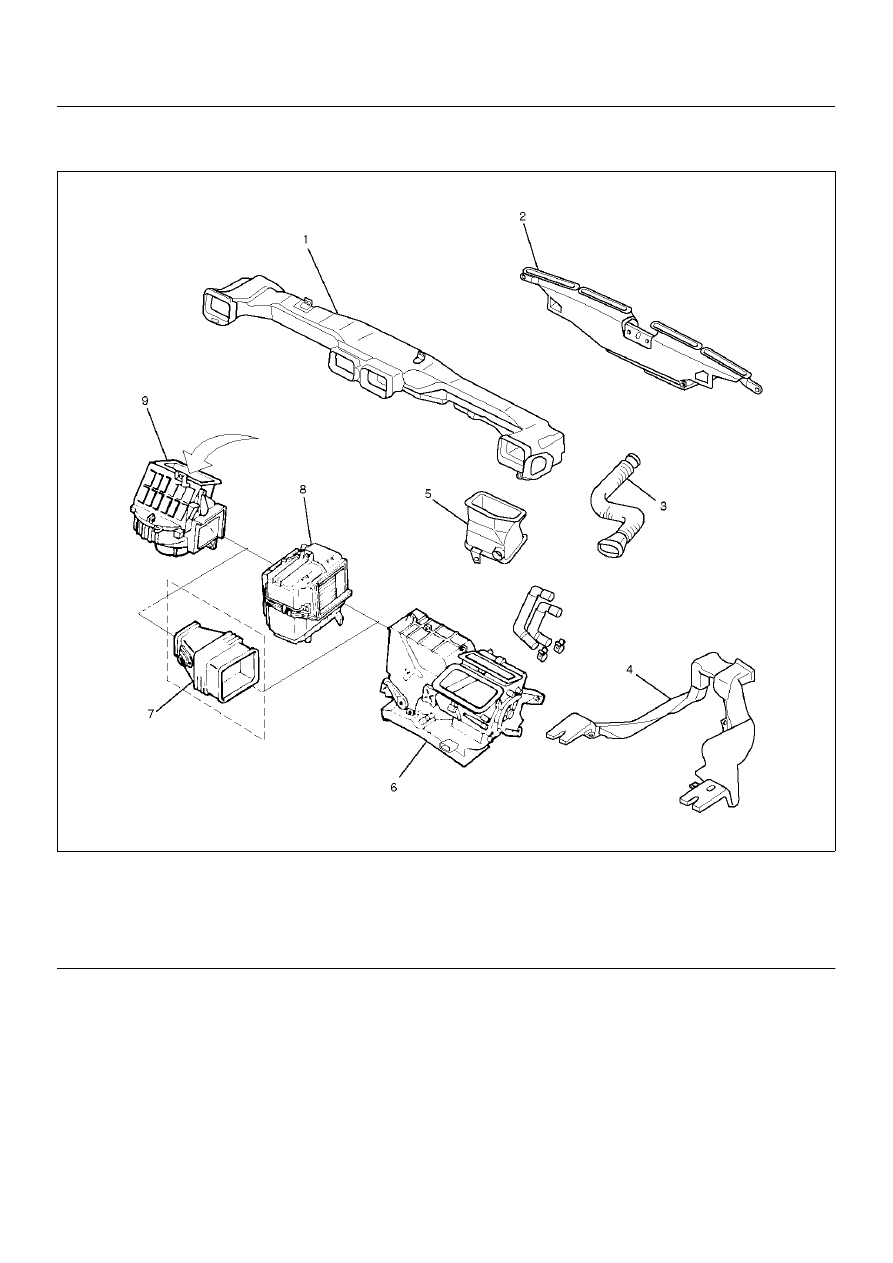

Heater and Ventilation Associated Parts
840RX007
EndOFCallout
Legend
(1) Ventilation Duct(2) Defroster Nozzle(3) Lap Vent Duct(4) Rear Heater Duct
(5) Ventiration Lower Duct(6) Heater Unit(7) Duct (W/O A/C)(8) Evaporator Assembly (With A/C)(9) Blower Assembly
