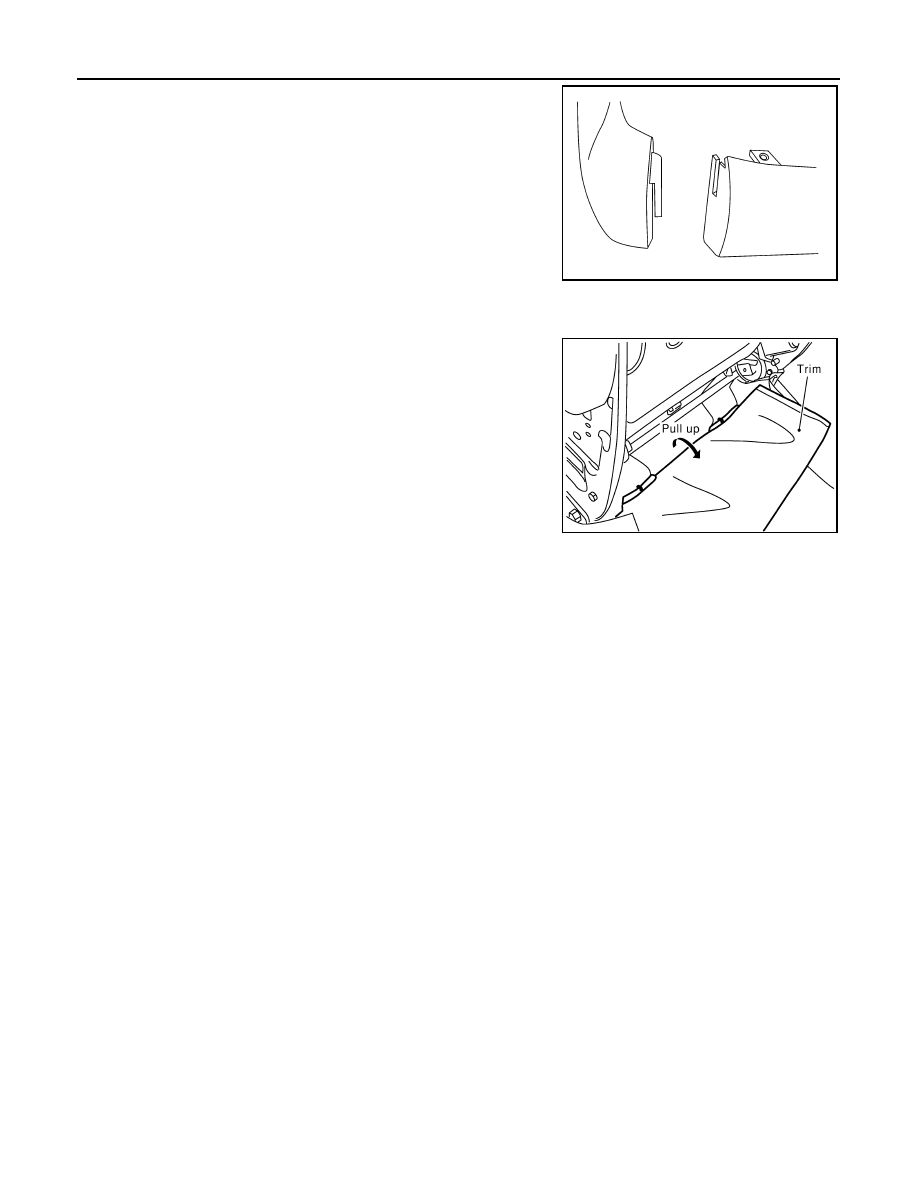

FRONT SEAT

3.

Remove the seat cushion outer finisher.

4.

Remove the power seat switch screws.

5.

Remove four bolts and the seat cushion assembly.
• On the fold flat passenger seat it is necessary to unclip the

rear flap j-clip from the seat pan.

6.

Remove the retainer on the seat cushion frame, then remove the harness connector for the seat cushion
heater (if equipped).

DISASSEMBLY

CAUTION:

• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-

ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect
the Occupant Classification System calibration.

1.

Remove the seat cushion assembly.

2.

On the drivers seat only, remove the hog rings to separate the trim cover from the pad and seat cushion
heater unit.

ASSEMBLY

Assembly is in the reverse order of disassembly.

INSTALLATION

Installation is in the reverse order of removal.

LIIA0285E

SIIA0503E

REAR SEAT

SE-41

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REAR SEAT

Disassembly and Assembly

INFOID:0000000005274472

Jump Seat (King Cab)

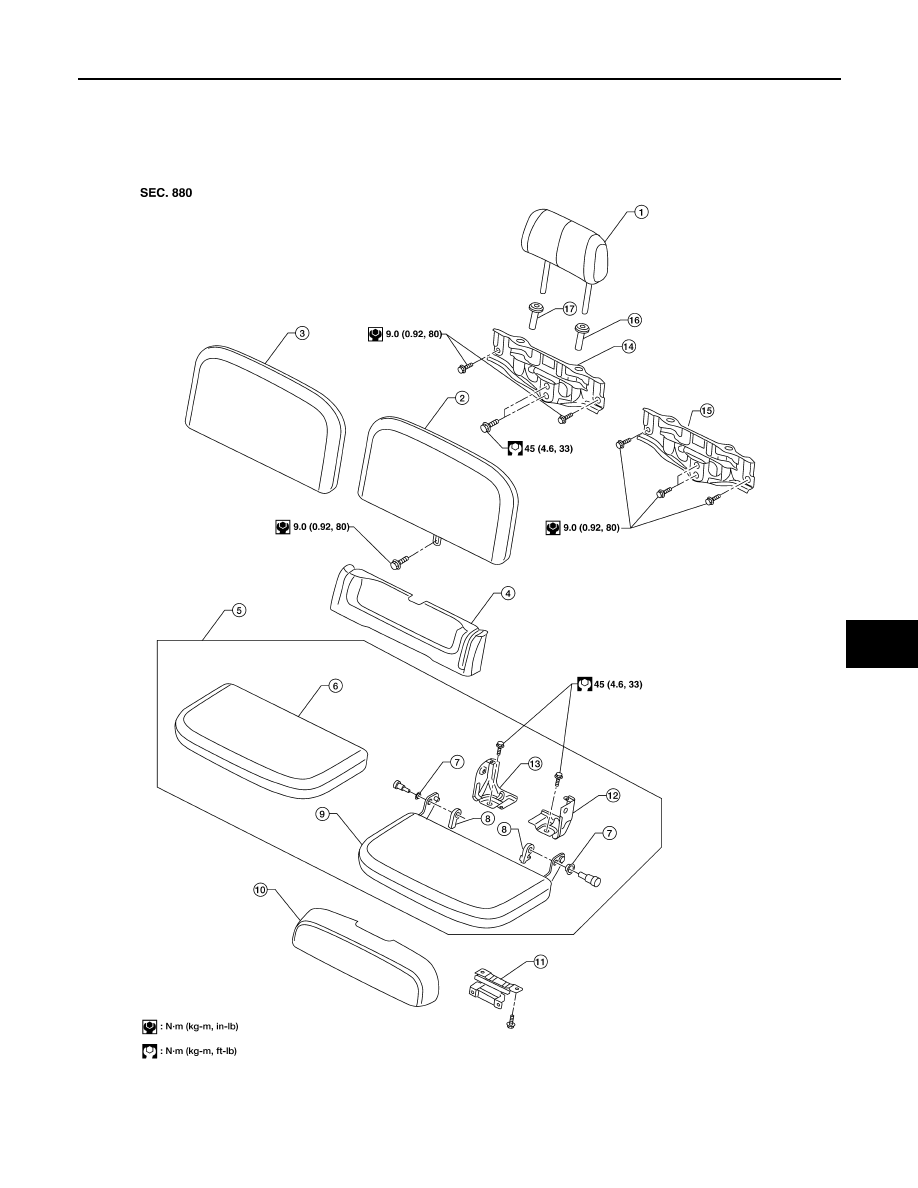

LIIA1957E

1.

Headrest

2.

Seatback pad and frame

3.

Seatback trim cover

4.

Seat base trim panel

5.

Seat cushion assembly

6.

Seat cushion trim cover

7.

Bushing

8.

Spacer

9.

Seat cushion pad and frame

SE-42

< DISASSEMBLY AND ASSEMBLY >

REAR SEAT

Bench Seat LH (Crew Cab)

10. Child seat extension (Passenger side

only)

11.

Child seat extension hinge

12. Inboard jump seat pivot riser

13. Outboard jump seat pivot riser

14.

RH headrest plate

15. LH headrest plate

16. Inboard headrest locking guide

17.

Outboard headrest guide

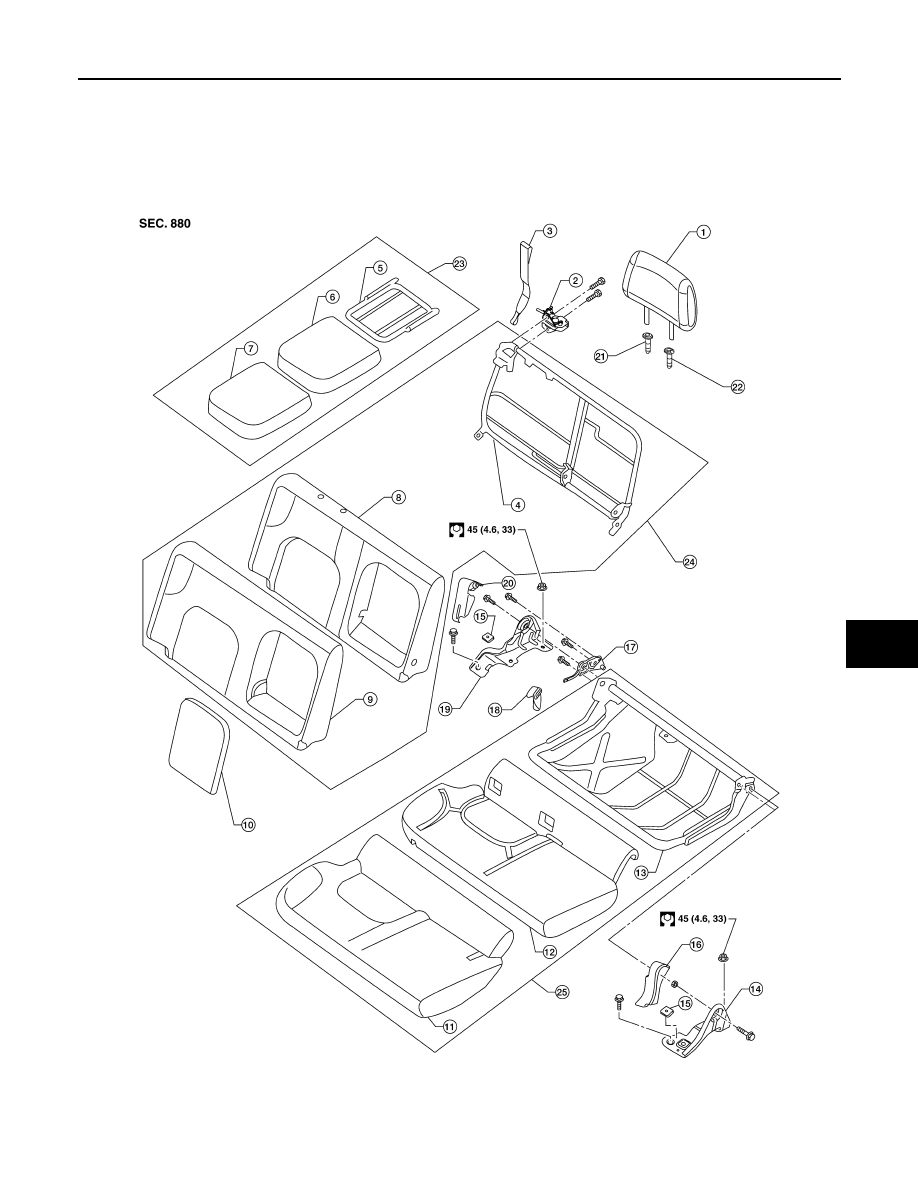

WIIA1059E

1.

Headrest

2.

Inboard headrest guide

3.

Seatback pad

4.

Seatback trim cover

5.

Inboard pivot cover

6.

Seat cushion bumper RH/LH

REAR SEAT

SE-43

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Bench Seat RH (Crew Cab)

7.

Inboard seat cushion pivot riser

8.

Seat cushion trim cover

9.

Seat cushion pad

10. Seat cushion pan

11.

Seat cushion hinge release handle

12. Seat cushion hinge cover

13. Outboard seat cushion pivot riser

14.

Seat cushion hinge assembly

15. Seatback frame

16. Seatback latch assembly

17.

Seatback latch release strap

18. Outboard headrest locking guide

19. Seat cushion assembly

20.

Seatback assembly

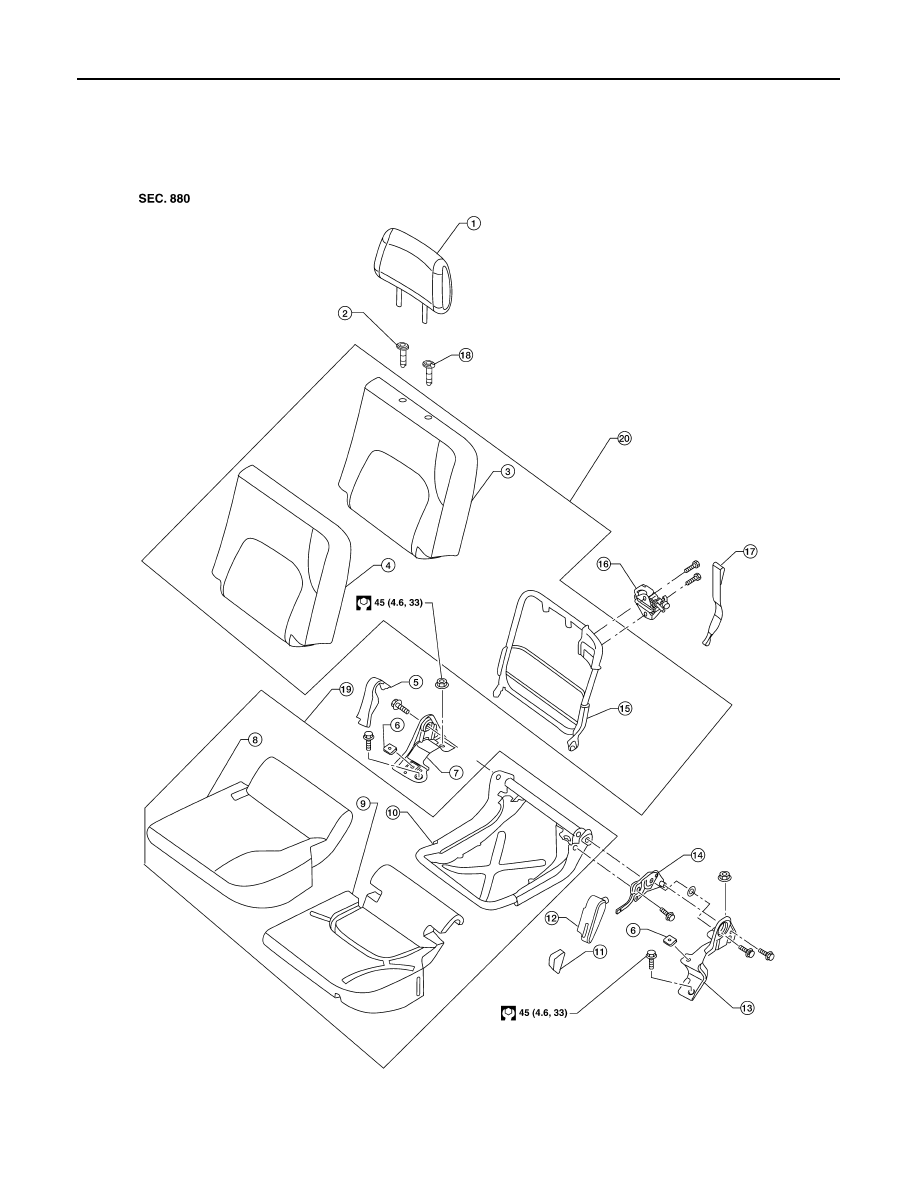

WIIA1060E
