Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005589336

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

PREPARATION

PB-3

< PREPARATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PREPARATION

PREPARATION

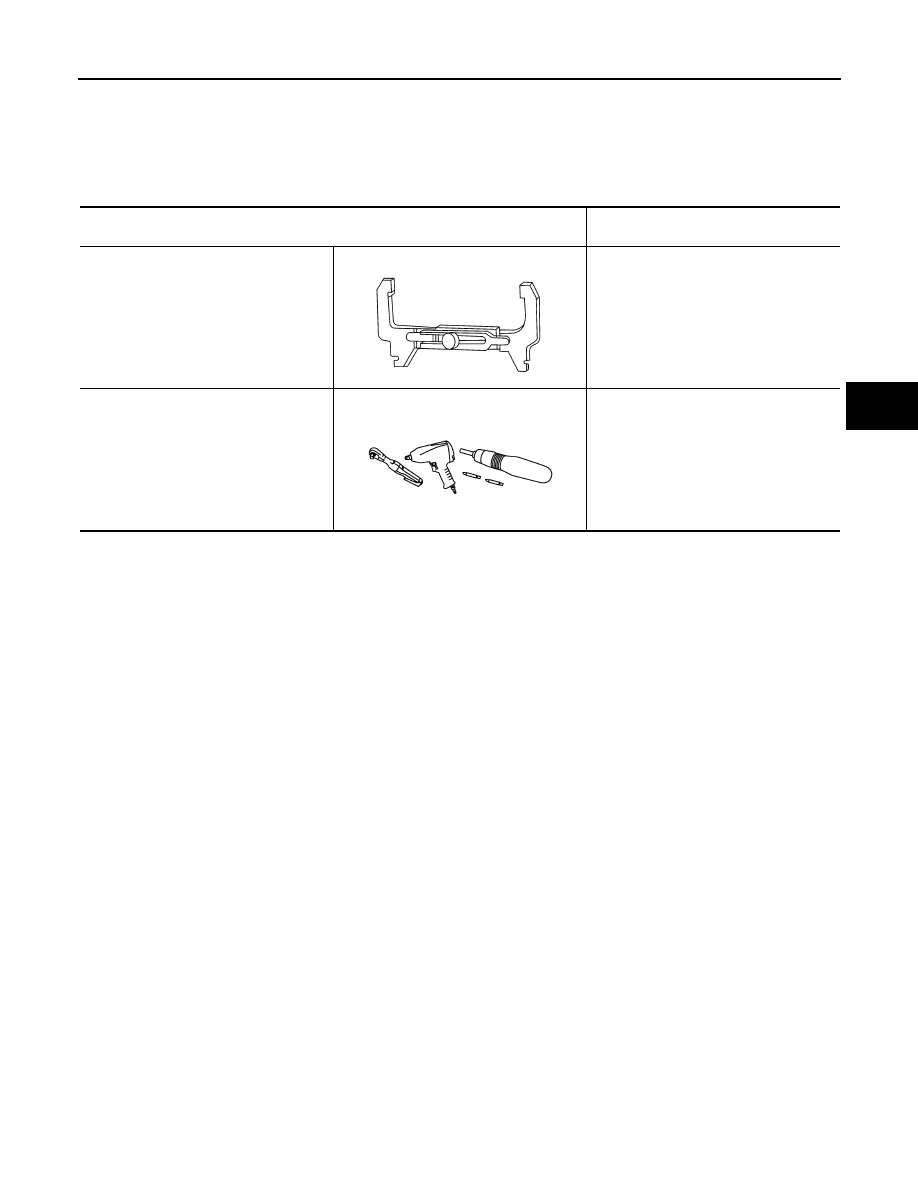

Commercial Service Tool

INFOID:0000000005276038

(Kent-Moore No.)
Tool name

Description

(J-21177-A)
Brake drum clearance gauge

Measuring rear rotor drum to parking
brake shoe clearance

Power tool

Loosening bolts and nuts

WFIA0167E

PIIB1407E

PB-4

< ON-VEHICLE REPAIR >

PARKING BRAKE SYSTEM

ON-VEHICLE REPAIR

PARKING BRAKE SYSTEM

On-Vehicle Service

INFOID:0000000005598070

LEVER STROKE

• When parking brake lever is operated with the specified force, make sure the stroke is within the specified

number of notches. Check by listening and counting the ratchet clicks.

INSPECTION

• Make sure the components are attached properly, checking for looseness or backlash.
• Check parking brake lever assembly for bends, damage and cracks, and replace if necessary.
• Check cable for wear and damage, and replace if necessary.
• Check parking brake warning lamp switch for malfunction, and replace if necessary. Refer to

MWI-41, "Wir-

ing Diagram"

.

ADJUSTMENT

1.

Remove rear half of the center console. Refer to

IP-19, "Disassembly and Assembly"

.

2.

Rotate adjusting nut and loosen cable until tension is sufficiently
released.

3.

Remove the rear wheels and tires. Refer to

WT-46, "Rotation"

.

4.

Using wheel nuts, secure the disc to the hub to prevent it from tilting.

5.

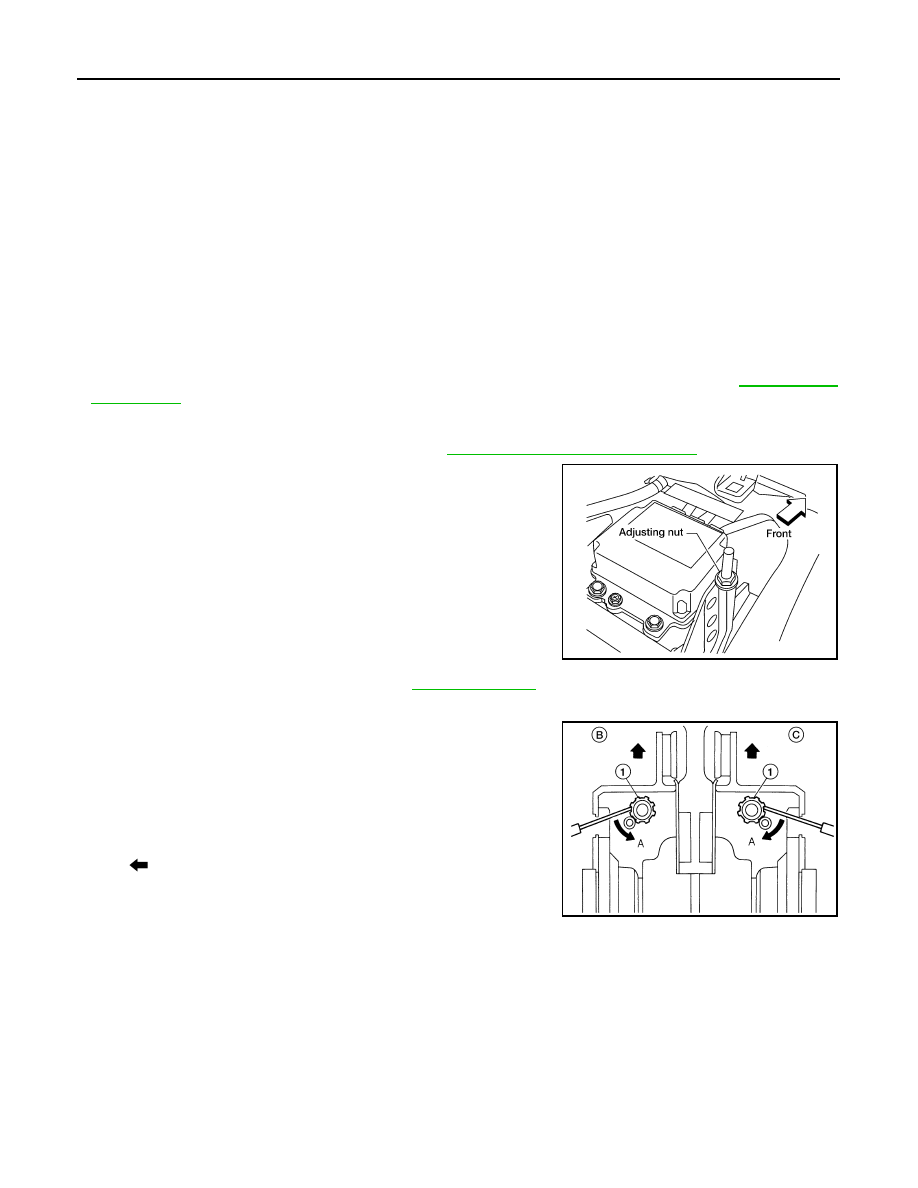

Remove the adjuster hole plug installed on the disc rotor. Turn
the adjuster in direction (A) using a suitable tool as shown, until
disc rotor is locked. Turn the adjuster in the opposite direction by
5 or 6 notches after locking.

6.

Rotate disc rotor to make sure there is no drag.

7.

Adjust cable as follows:

a.

Rotate the adjusting nut to adjust the parking brake lever operat-
ing force to 294N (29.9Kg, 66.0 lb-ft) just before a full lever stroke 229.0mm (9.0in).

CAUTION:

Do not reuse the adjusting nut after removing it.

b.

When replacing brake cable, operate parking brake lever 10 or more times with a full stroke of 229.0mm
(9.0 in).

c.

Release the parking brake lever and rotate the disc rotor to make sure there is no drag.

d.

Rotate adjusting nut to adjust lever stroke to specification.

e.

With parking brake lever completely disengaged, make sure there is no drag on the parking brake.

Lever stroke

: 6

−

 8 notches [under force of 196 N (20.0 kg-f, 44.1 lb-f)]

LFIA0247E

B: Left

C: Right

: Front

Lever stroke

: 6

−

 8 notches [under force of

196 N (20.0 kg-f, 44.1 lb-f)]

ALFIA0173GB

PARKING BRAKE CONTROL

PB-5

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

REMOVAL AND INSTALLATION

PARKING BRAKE CONTROL

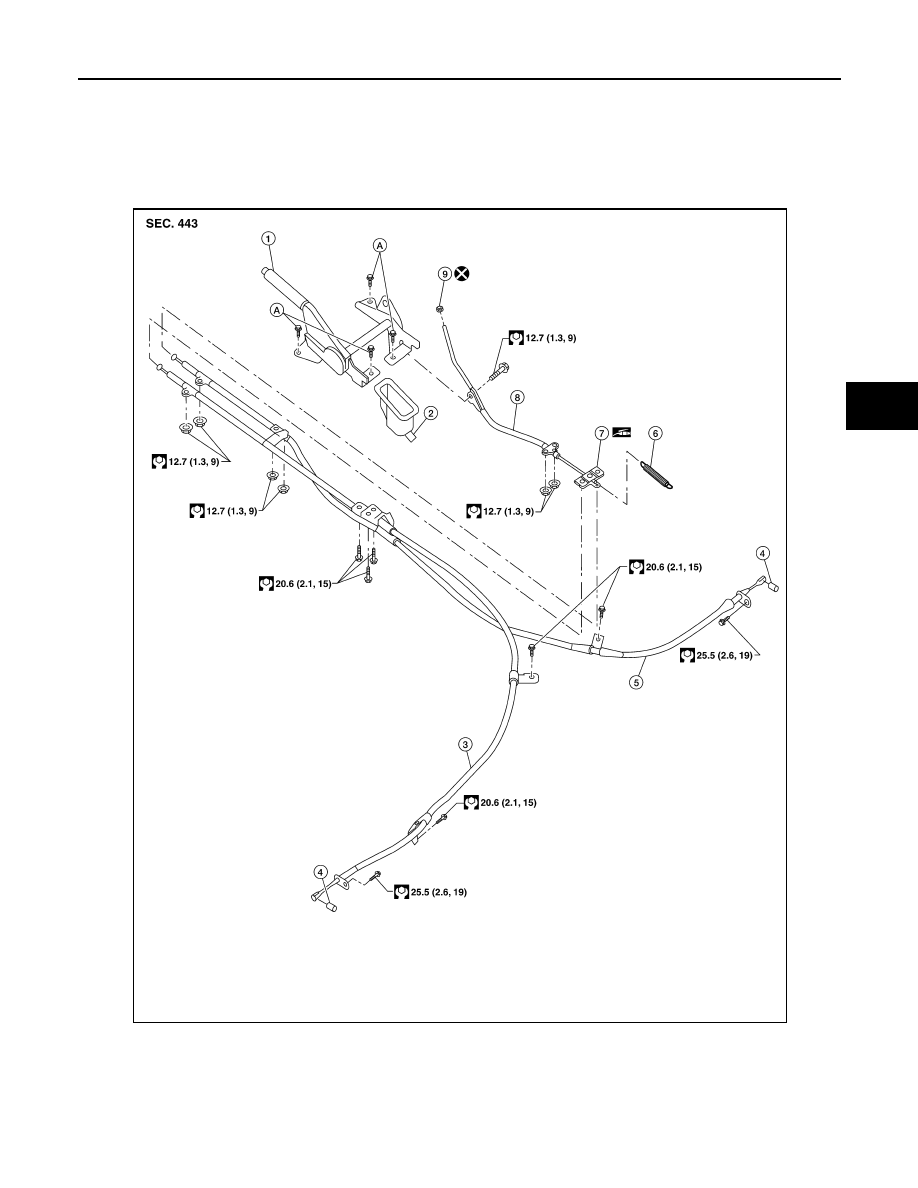

Component

INFOID:0000000005598071

1.

Control lever assembly

2.

Front cable grommet

3.

Left rear cable

4.

Pin

5.

Right rear cable

6.

Return spring

7.

Equalizer

8.

Front cable

9.

Adjusting nut

A.

Refer to installation for tighting

AWFIA0487GB
