Nissan Frontier D40. Manual - part 795





INT-12

< PREPARATION >

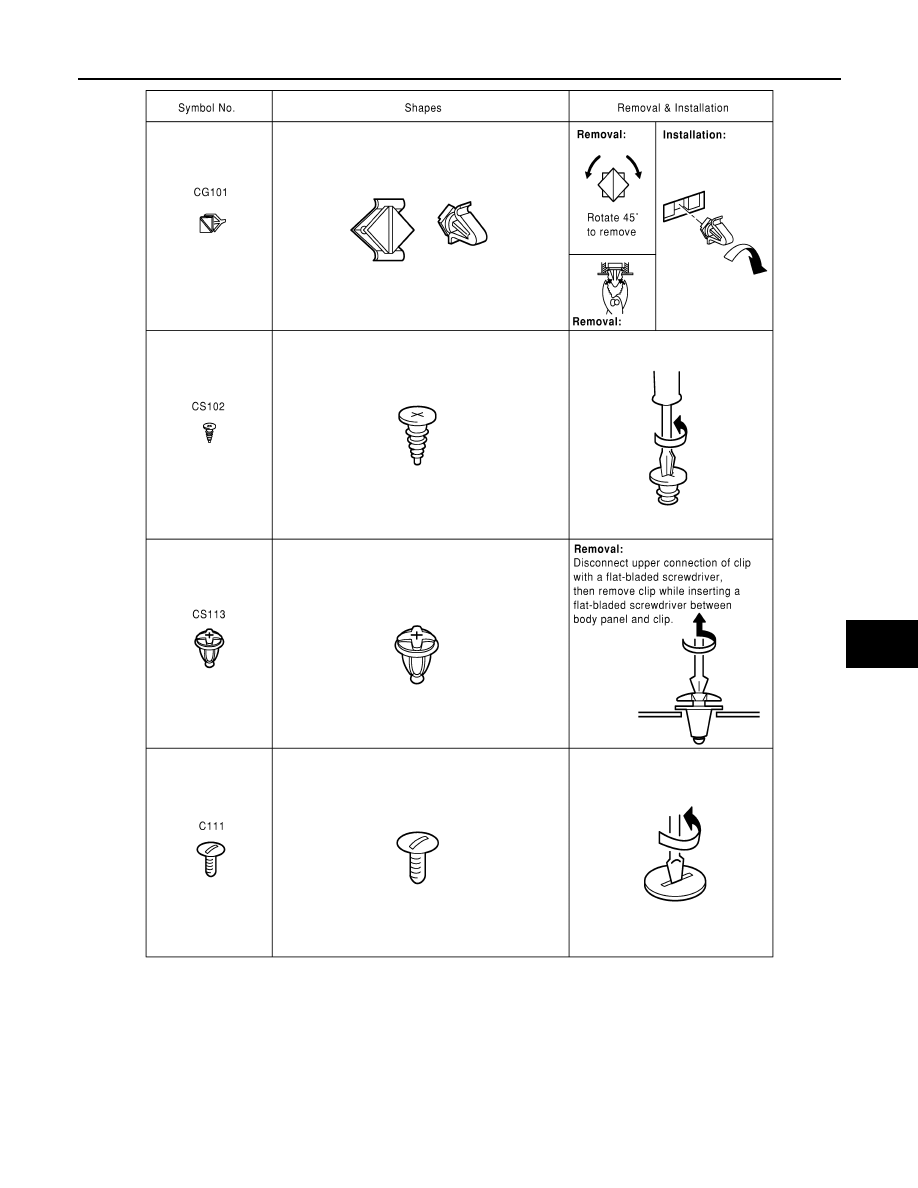

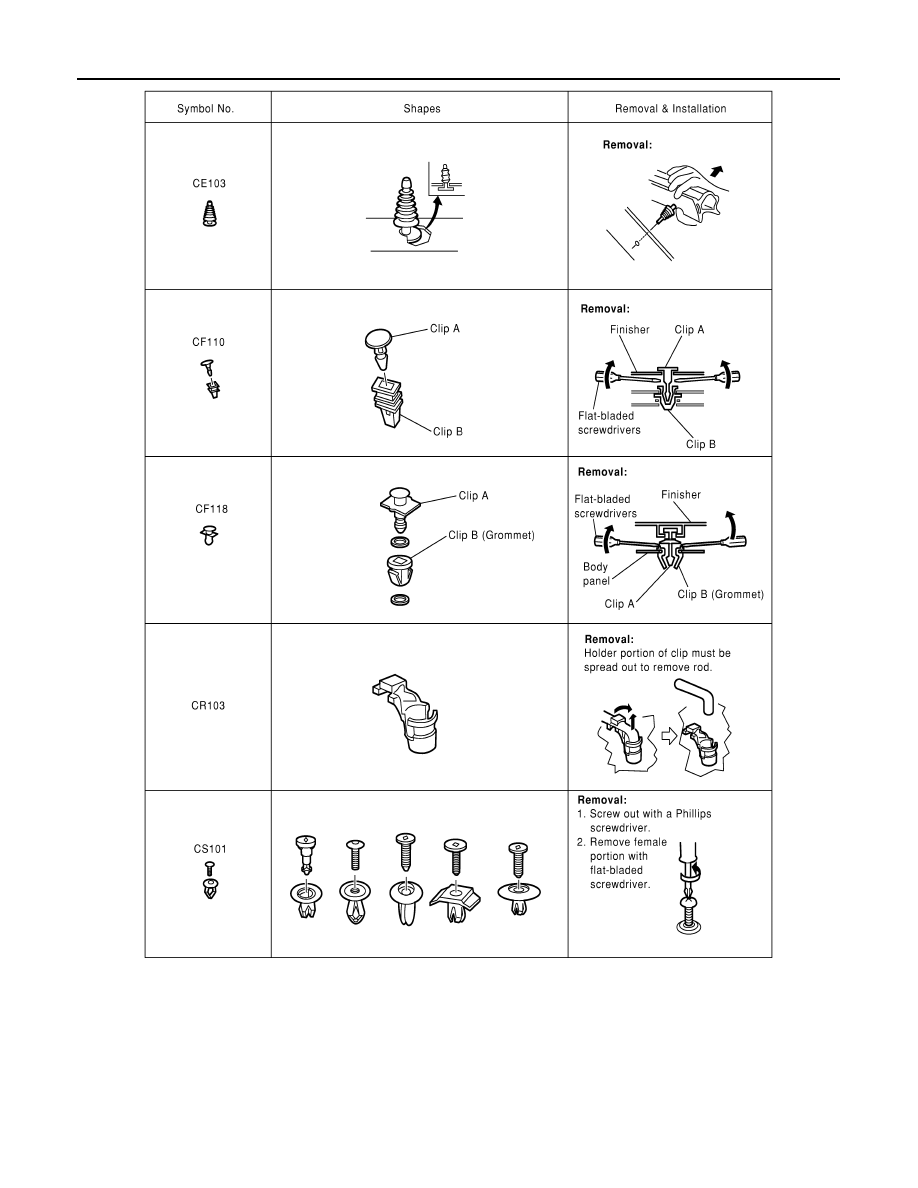

PREPARATION

SIIA0316E

PREPARATION

INT-13

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

SIIA0317E

INT-14

< ON-VEHICLE REPAIR >

DOOR FINISHER

ON-VEHICLE REPAIR

DOOR FINISHER

Removal and Installation

INFOID:0000000005274448

FRONT DOOR

Removal

1.

Remove window crank handle or power window switch assembly, (if equipped).
• Disconnect harness connectors.

2.

Remove pull handle escutcheon.

3.

Remove pull handle cover, then remove door finisher screw.

4.

Lift armrest upward to release clips and remove armrest.
• Remove screws behind armrest.

5.

Release clips and remove door finisher.

6.

Remove pull handle/lock lever assembly.

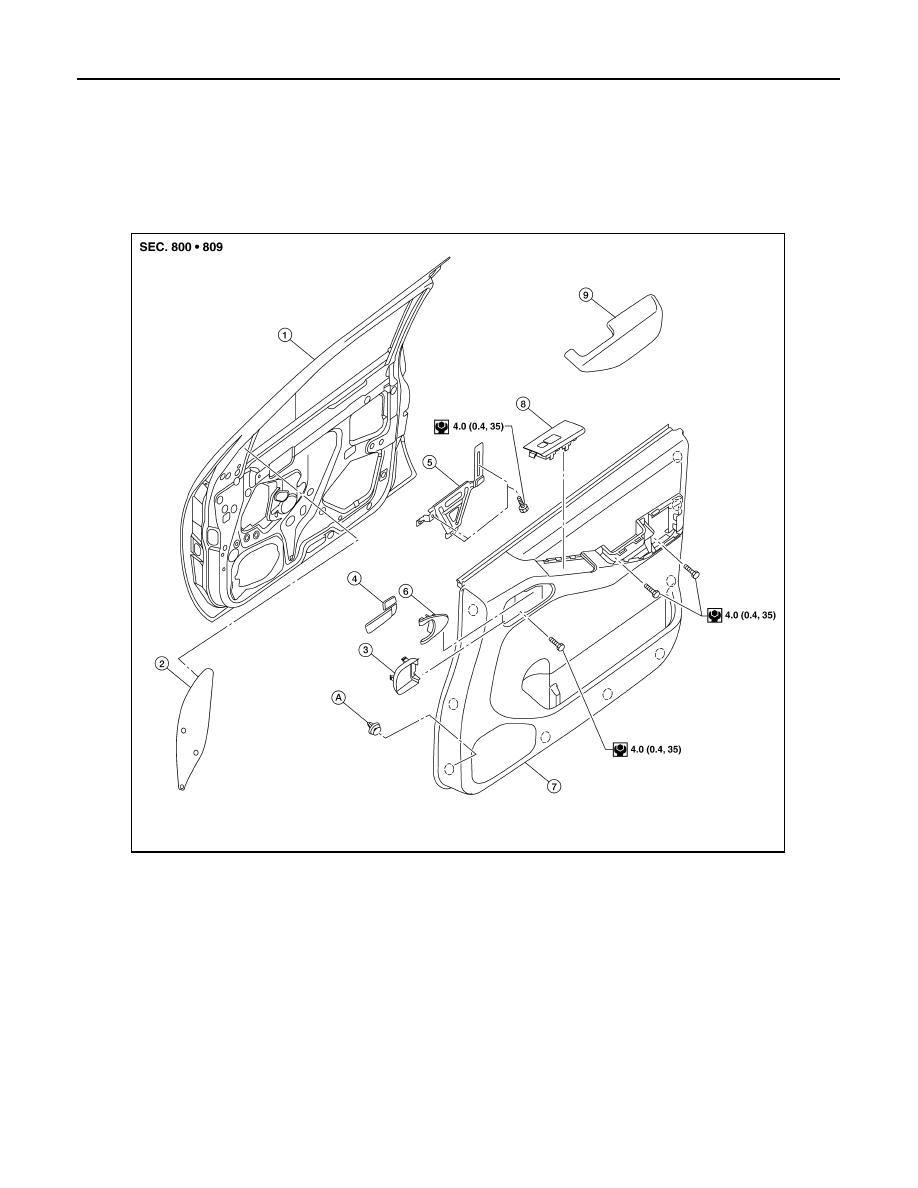

1.

Front door

2.

Mirror bolt cover

3.

Pull handle escutcheon

4.

Pull handle/lock lever assembly

5.

Front door handle bracket

6.

Pull handle cover

7.

Front door finisher (RH shown)

8.

Power window/lock switch assembly 9.

Armrest

A.

Clip C101

AWJIA0162GB

DOOR FINISHER

INT-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

• Disconnect lock lever cable and pull handle cable from lever assembly. Refer to

DLK-135, "Removal

and Installation"

.

Installation

Installation is in the reverse order of removal.

REAR DOOR - CREW CAB

Removal

1.

Remove window crank handle or power window switch assembly, (if equipped).
• Disconnect harness connector.

2.

Remove pull handle cover.
• Remove screw behind pull handle cover.

3.

Remove pull handle escutcheon.

4.

Lift upward to release clips and remove armrest.
• Remove screws behind armrest.

5.

Release the clips and remove rear door finisher.
• Disconnect the rear tweeter connector, then remove the rear tweeter screws and remove the rear

tweeter.

6.

Remove pull handle/lock lever assembly.
• Disconnect lock lever cable and pull handle cable from lever assembly. Refer to

DLK-135, "Removal

and Installation"

.

Installation

Installation is in the reverse order of removal.

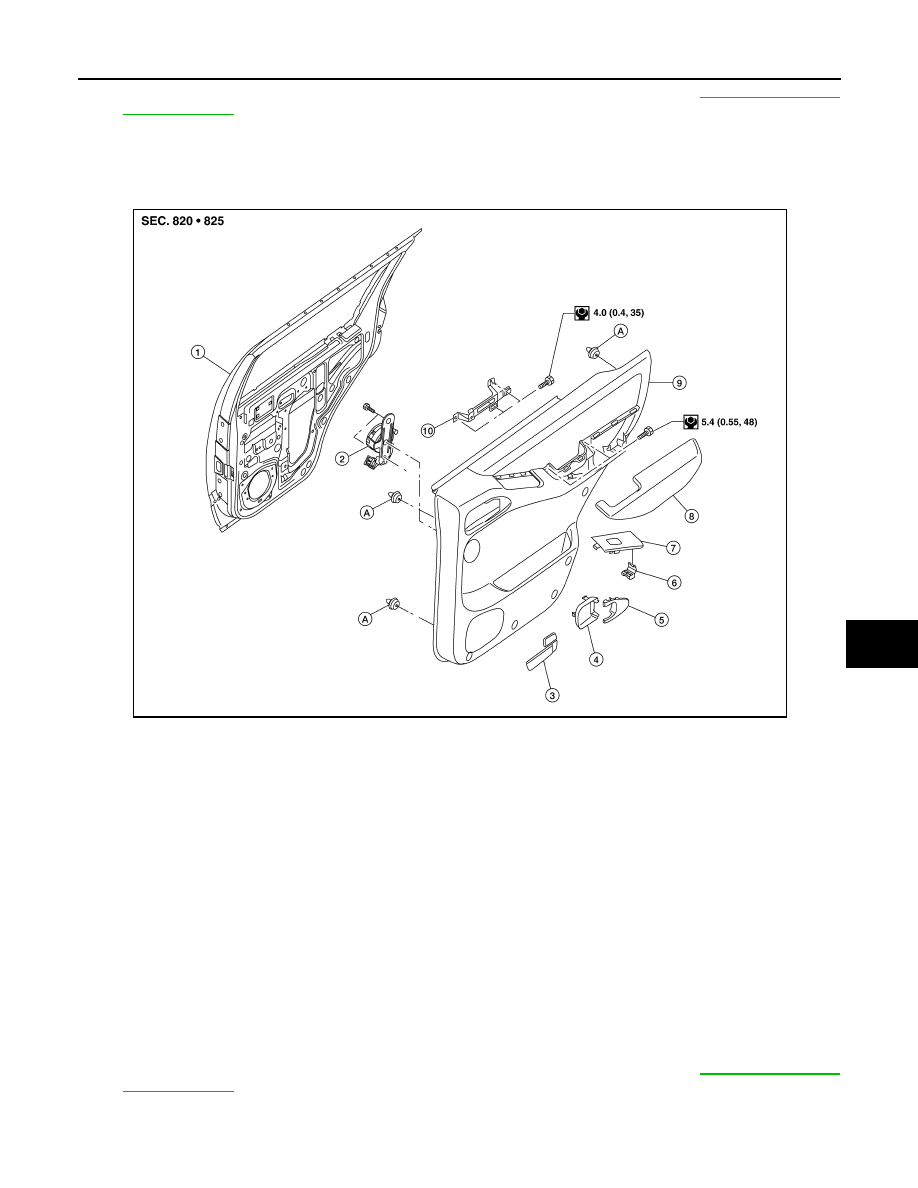

1.

Rear door

2.

Rear tweeter

3.

Pull handle/lock lever assembly

4.

Pull handle escutcheon

5.

Pull handle cover

6.

Metal clip

7.

Power window switch assembly

8.

Armrest

9.

Rear door finisher (RH shown)

10. Rear door handle bracket

A.

Clip C101

AWJIA0050GB
