FENDER PROTECTOR

EXT-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

5.

Remove front fender protector.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation of Rear Fender Protector

INFOID:0000000005274682

REMOVAL

1.

Remove screws.

2.

Remove pushpin.

3.

Remove fuel filler pipe shield or rear fender shield.

INSTALLATION

Installation is in the reverse order of removal.

EXT-24

< ON-VEHICLE REPAIR >

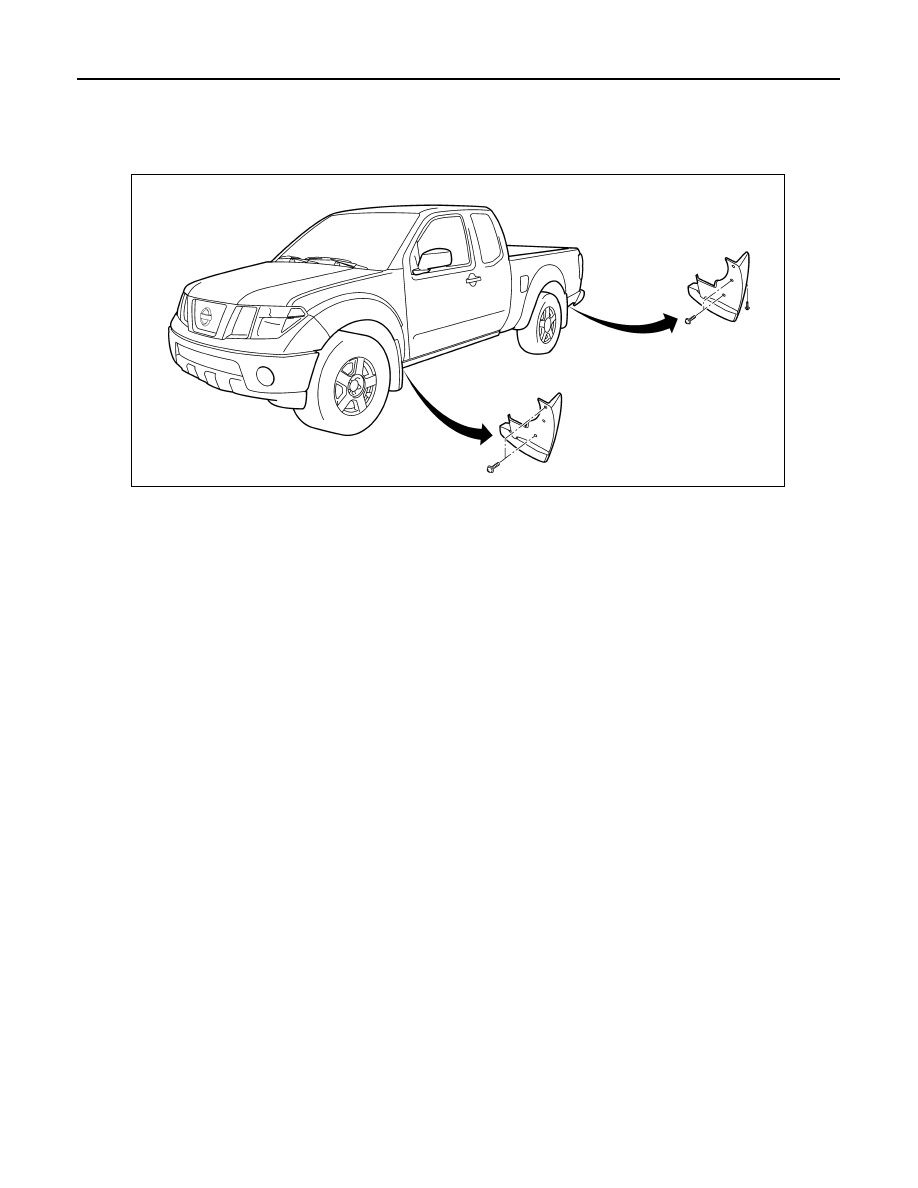

MUDGUARD

MUDGUARD

Removal and Installation

INFOID:0000000005274683

NOTE:
King Cab shown Crew Cab similar.

LIIA1947E

RUNNING BOARDS

EXT-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

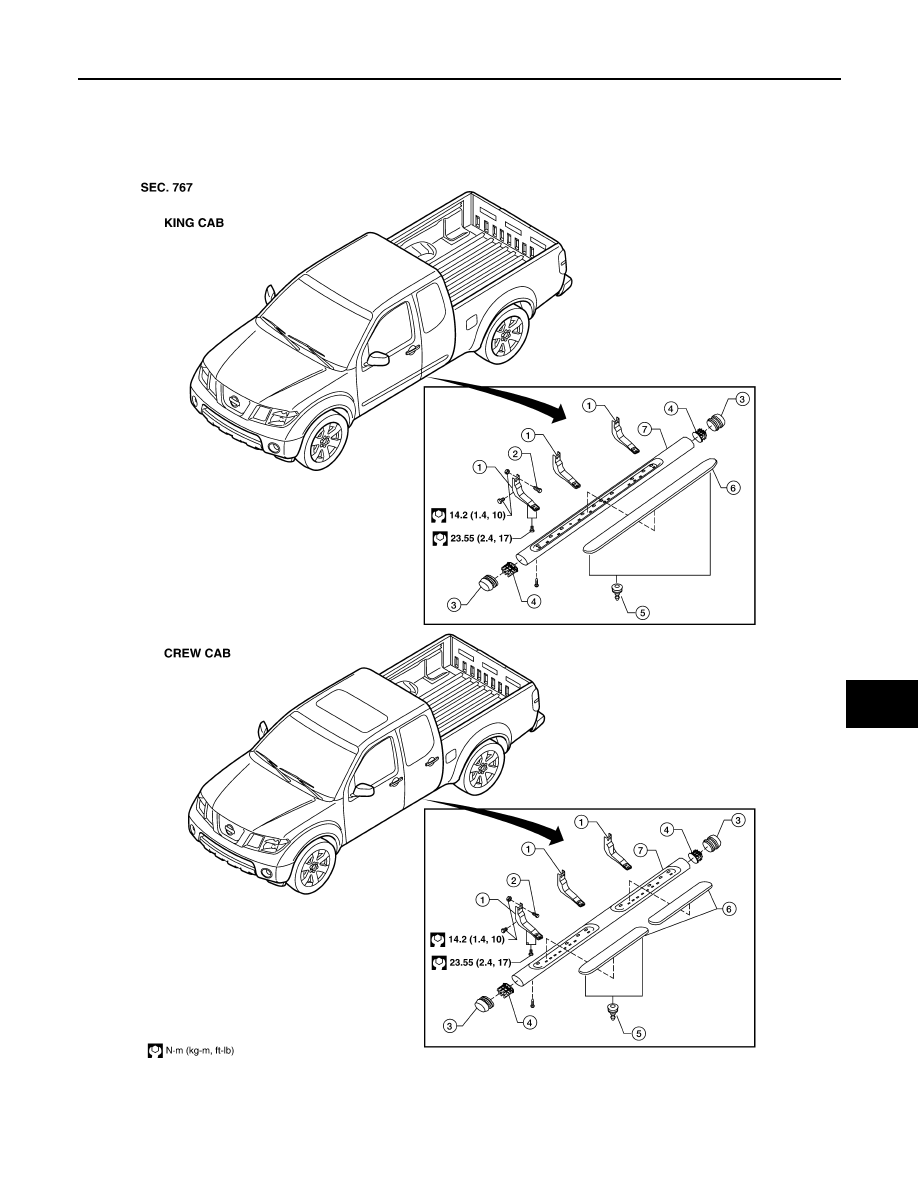

RUNNING BOARDS

Removal and Installation

INFOID:0000000005274684

1.

Running board bracket

2.

Weld stud

3.

End cap

4.

End cap reinforcement

5.

Clip

6.

Step pad

7.

Running board

WIIA0569E

EXT-26

< ON-VEHICLE REPAIR >

RUNNING BOARDS

REMOVAL

1.

Remove bolts and remove running board from running board brackets.

2.

Remove screw and remove end cap and reinforcement.

3.

Release clips and remove step pad from running board.

4.

Remove nuts and bolts and remove running board brackets.

INSTALLATION

Installation is in the reverse order of removal.
