SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-265

< SERVICE DATA AND SPECIFICATIONS (SDS)

[REAR FINAL DRIVE: M226 ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Item

Runout limit

Companion flange face

 0.10 (0.0039) or less

Companion flange inner side

 0.13 (0.0051) or less

DLN-266

< BASIC INSPECTION >

[REAR FINAL DRIVE: M226 (ELD) ]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

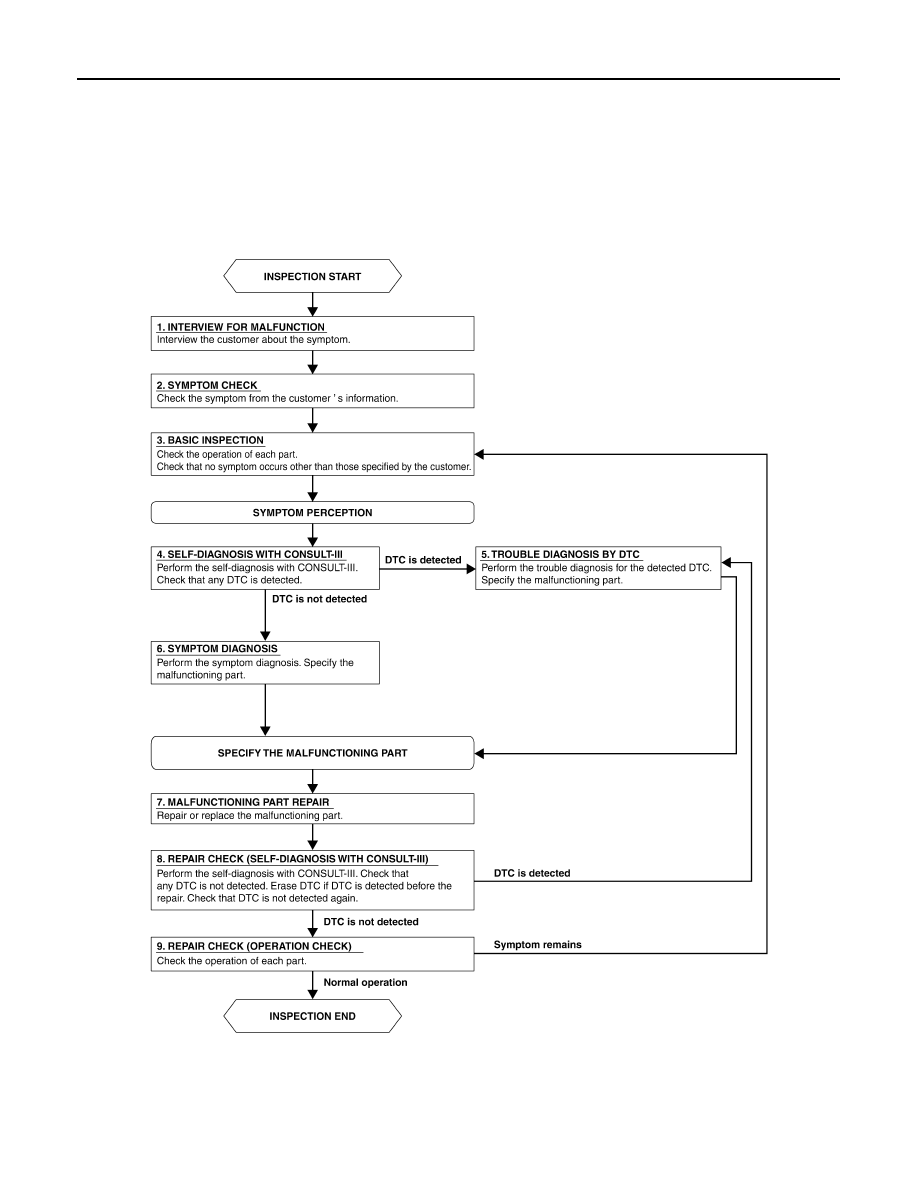

Work Flow

INFOID:0000000005275579

OVERALL SEQUENCE

DETAILED FLOW

ALEIA0041GB

DIAGNOSIS AND REPAIR WORKFLOW

DLN-267

< BASIC INSPECTION >

[REAR FINAL DRIVE: M226 (ELD) ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

1.

INTERVIEW FOR MALFUNCTION

Interview the customer about the symptom.

>> GO TO 2

2.

SYMPTOM CHECK

Verify the symptom from the customer's information.

>> GO TO 3

3.

BASIC INSPECTION

Check the operation of each part. Check that no symptoms occur other than those specified by the customer.

>> GO TO 4

4.

SELF-DIAGNOSIS WITH CONSULT-III

Perform the self diagnosis with CONSULT-III. Check that any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5

NO

>> GO TO 6

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 7

6.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 7

7.

MALFUNCTIONING PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 8

8.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)

Perform the self diagnosis with CONSULT-III. Verfied that no DTCs are detected. Erase all DTCs detected
prior to the repair. Verify that DTC is not detected again.

Is any DTC detected?

YES

>> GO TO 5

NO

>> GO TO 9

9.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.
Does it operate normally?

YES

>> Inspection End.

NO

>> GO TO 3

DLN-268

< FUNCTION DIAGNOSIS >

[REAR FINAL DRIVE: M226 (ELD) ]

DIFFERENTIAL LOCK SYSTEM

FUNCTION DIAGNOSIS

DIFFERENTIAL LOCK SYSTEM

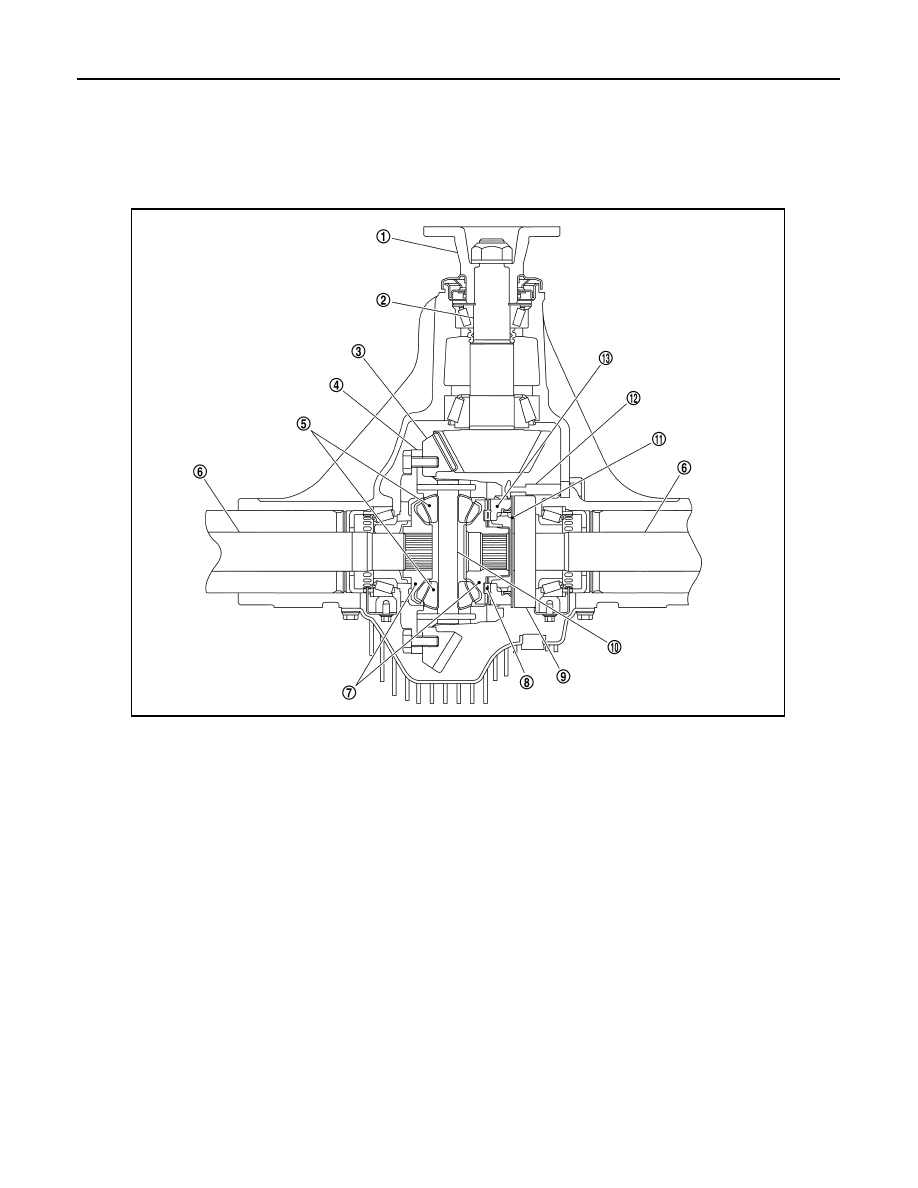

Cross-Sectional View

INFOID:0000000005275580

1.

Companion flange

2.

Drive pinion

3.

Drive gear

4.

Differential case

5.

Pinion mate gear

6.

Axle shaft

7.

Side gear

8.

Spring

9.

Differential lock solenoid

10. Pinion mate shaft

11.

Pressure plate

12. Differential lock position switch

13. Cam ring

PDIA1062E
