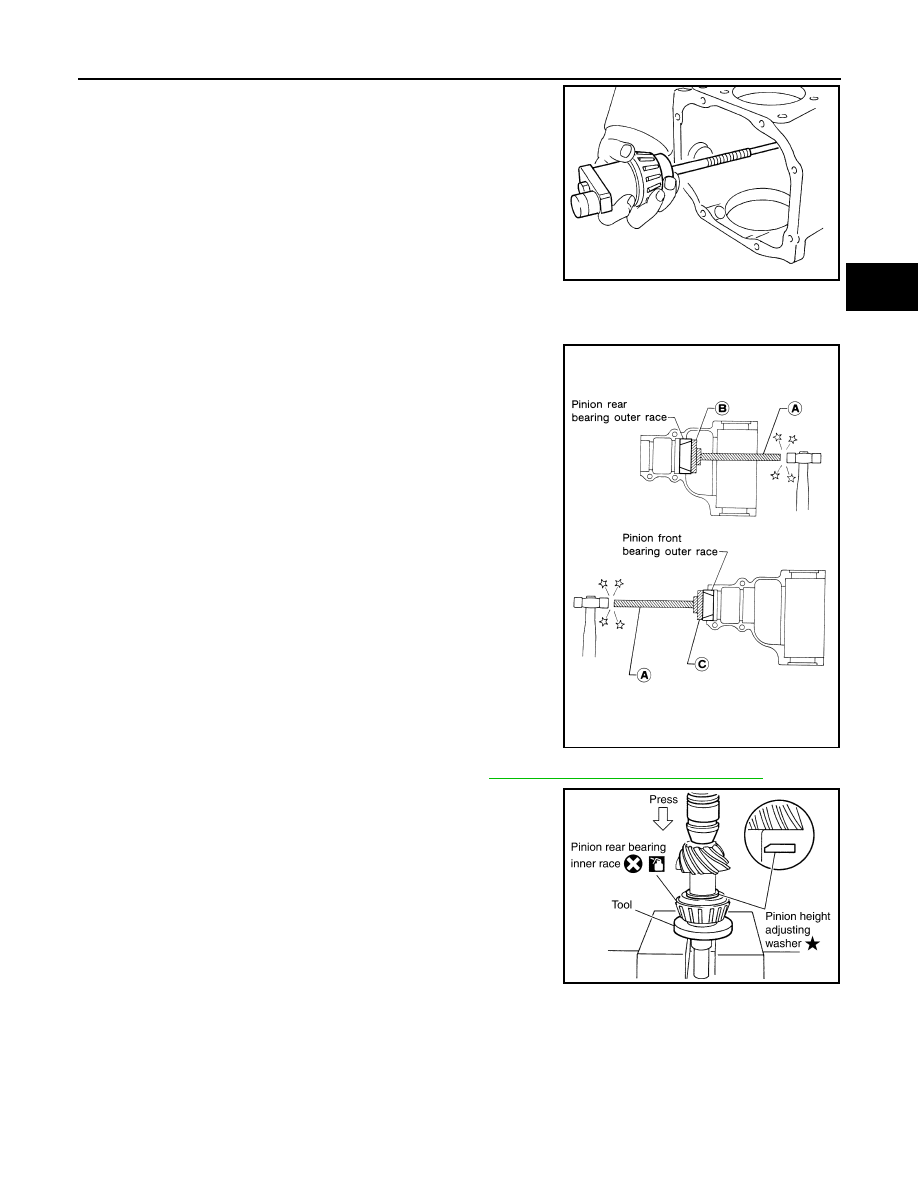

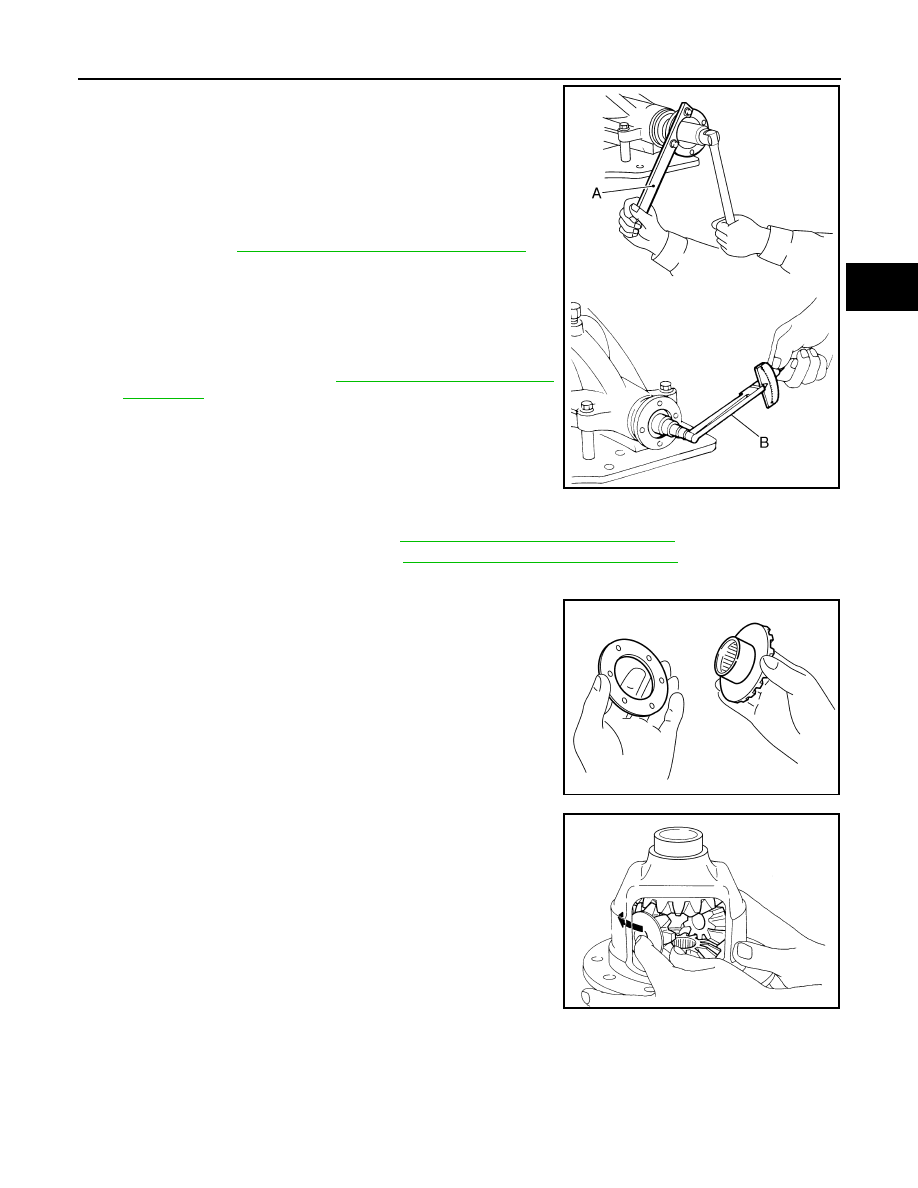

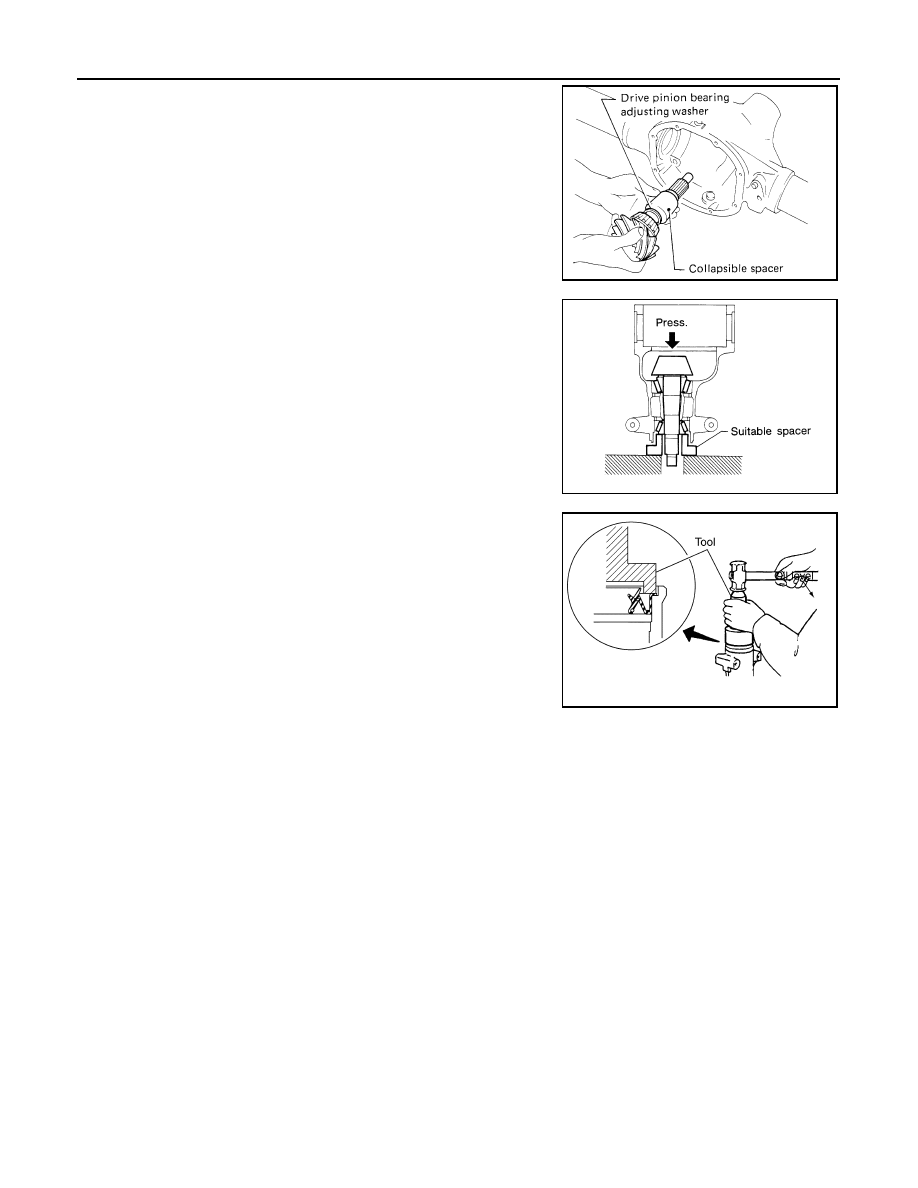

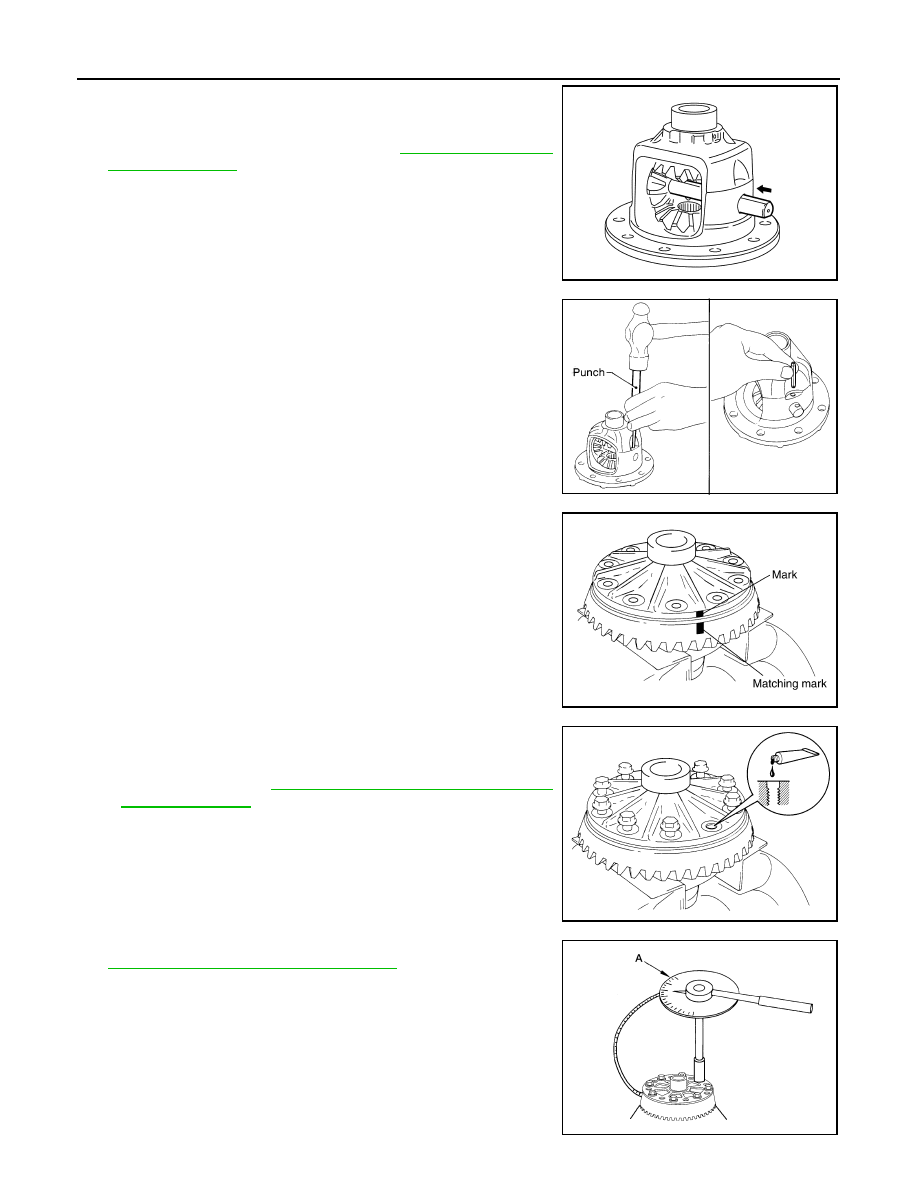

REAR FINAL DRIVE DLN-237 < DISASSEMBLY AND ASSEMBLY > [C200] C E F G H I J K L M A B DLN N O P 13. Remove the Tool from the gear carrier and disassemble to retrieve the drive pinion bearings. ASSEMBLY Drive Pinion Assembly 1. Install the new drive pinion front and rear bearing outer races CAUTION: • First tap the drive pinion bearing outer race until it becomes flush with the gear carrier. • Do not reuse drive pinion front and rear bearing outer race. 2. Select a drive pinion height adjusting washer. Refer to DLN-224, "Disassembly and Assembly" . 3. Install the selected drive pinion height adjusting washer to the CAUTION: • Install the drive pinion height adjusting washer in the proper direction as shown. • Do not reuse drive pinion rear bearing inner race. Tool number : — (J-34309) SPD205A Tool number A: ST30611000 (J-25742-1) B: ST30621000 (J-25742-5) C: ST30613000 (J-25742-3) SPD679 Tool number : ST30901000 (J-26010-01) SDIA0048E |
