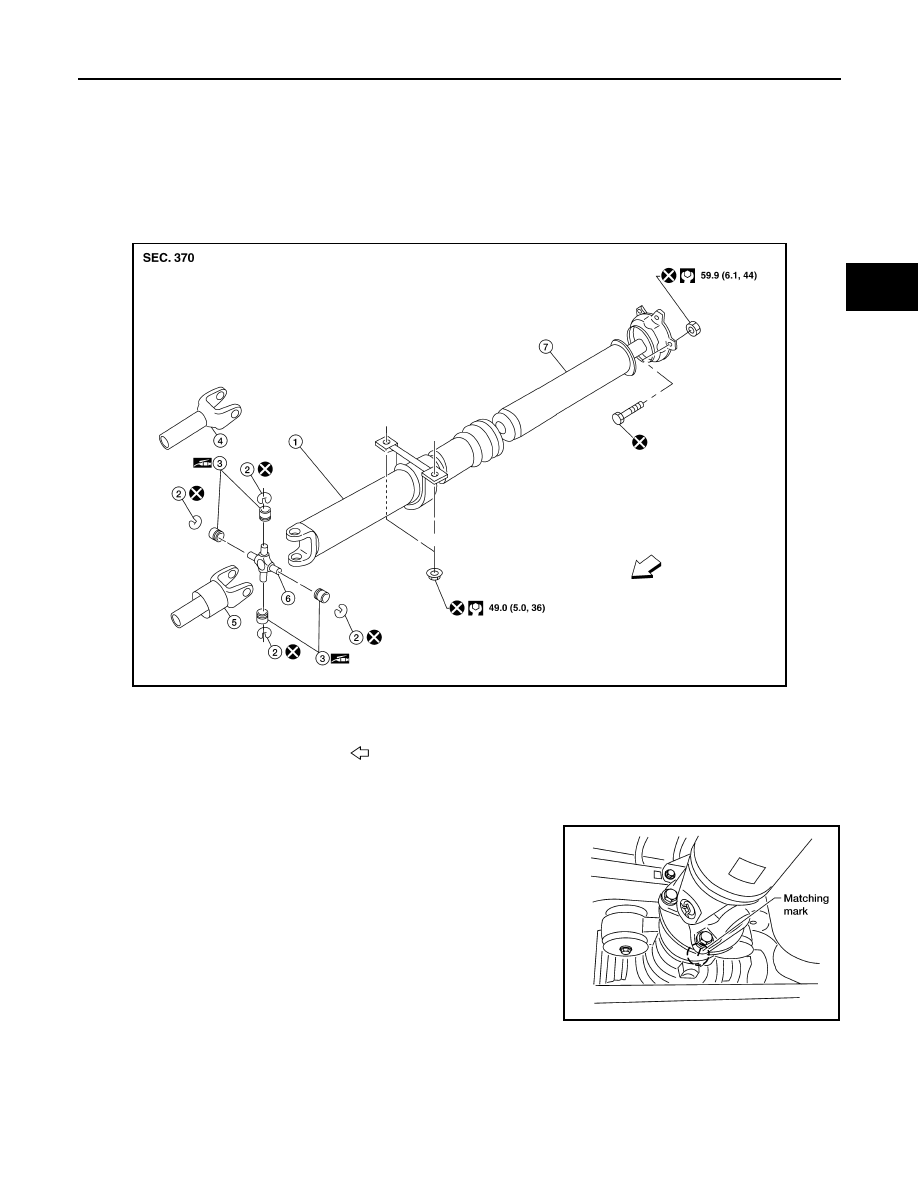

REAR PROPELLER SHAFT DLN-173 < REMOVAL AND INSTALLATION > [PROPELLER SHAFT: 3S1330-2BJ100] C E F G H I J K L M A B DLN N O P REMOVAL AND INSTALLATION REAR PROPELLER SHAFT Removal and Installation INFOID:0000000005275535 COMPONENTS Model 3S1330–2BJ100 REMOVAL 1. Put the transmission in neutral and release the parking brake. 2. Put matching marks on the rear propeller shaft flange yoke and CAUTION: For matching marks, use paint. Never damage the rear pro- 3. Remove the bolts, then remove the propeller shaft from the rear INSPECTION AWDIA0689GB 1. Propeller shaft (1st shaft) 2. Snap ring 3. Journal bearing 4. Sleeve yoke (4WD) 5. Sleeve yoke (2WD) 6. Journal 7. Propeller shaft (2nd shaft) Front WDIA0049E |
