Nissan Titan A60. Manual - part 975

PRECAUTIONS

VTL-3

< PRECAUTION >

VTL

Precaution for Procedure without Cowl Top Cover

INFOID:0000000006161787

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc.

Precaution for Work

INFOID:0000000006708609

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components.

- Water soluble dirt: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the dirty

area.

Then rub with a soft and dry cloth.

- Oily dirt: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe

the dirty area.

Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub with

a soft and dry cloth.

• Do not use organic solvent such as thinner, benzene, alcohol, or gasoline.

• For genuine leather seats, use a genuine leather seat cleaner.

PIIB3706J

VTL-4

< PREPARATION >

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000006708612

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000006161788

Tool number
(Kent-Moore No.)
Tool name

Description

—

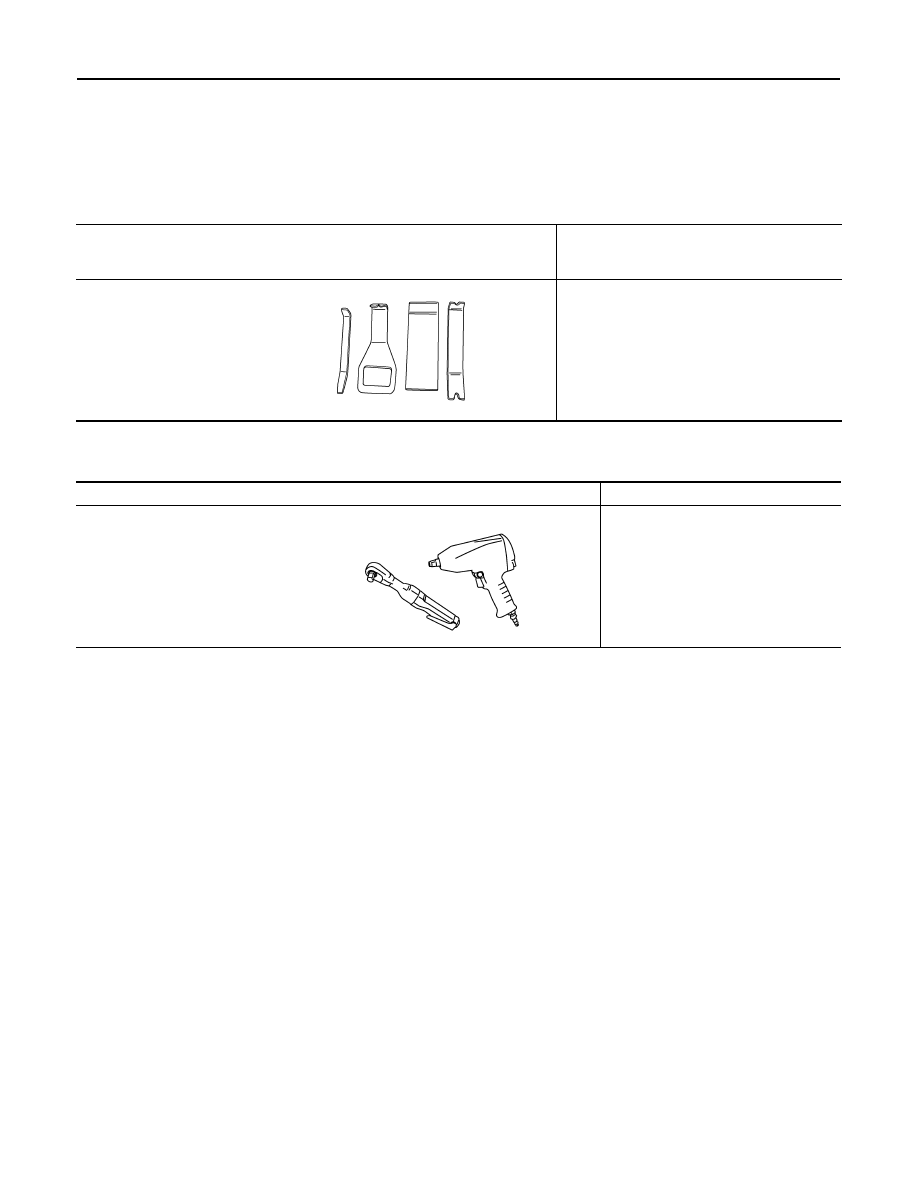

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

IN-CABIN MICROFILTER

VTL-5

< SYSTEM DESCRIPTION >

VTL

SYSTEM DESCRIPTION

IN-CABIN MICROFILTER

Description

INFOID:0000000006161789

FUNCTION

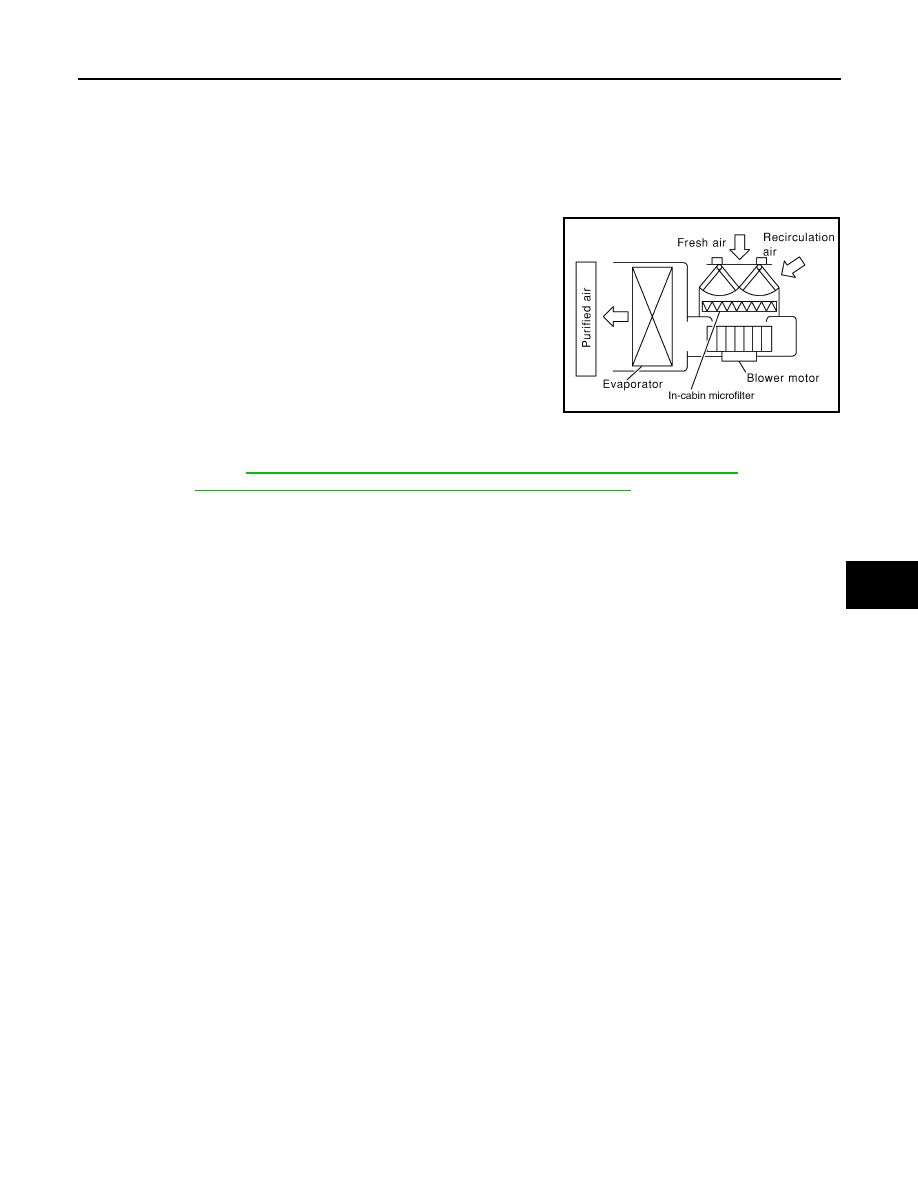

The air inside the passenger compartment is filtered by the in-cabin

microfilters when the heater or A/C controls are set on either the

recirculation or fresh mode. The two in-cabin microfilters are located

in the heater and cooling unit assembly.

REPLACEMENT TIMING

Replacement of the two in-cabin microfilters is recommended on a regular interval depending on the driving

conditions. Refer to For

MA-9, "FOR NORTH AMERICA : Introduction of Periodic Maintenance"

(United States

and Canada) or

MA-13, "FOR MEXICO : Introduction of Periodic Maintenance"

(Mexico). It may also be nec-

essary to replace the two in-cabin microfilters as part of a component replacement if the in-cabin microfilters

are damaged.

LJIA0012E

VTL-6

< PERIODIC MAINTENANCE >

IN-CABIN MICROFILTER

PERIODIC MAINTENANCE

IN-CABIN MICROFILTER

Removal and Installation

INFOID:0000000006161790

REPLACEMENT PROCEDURE

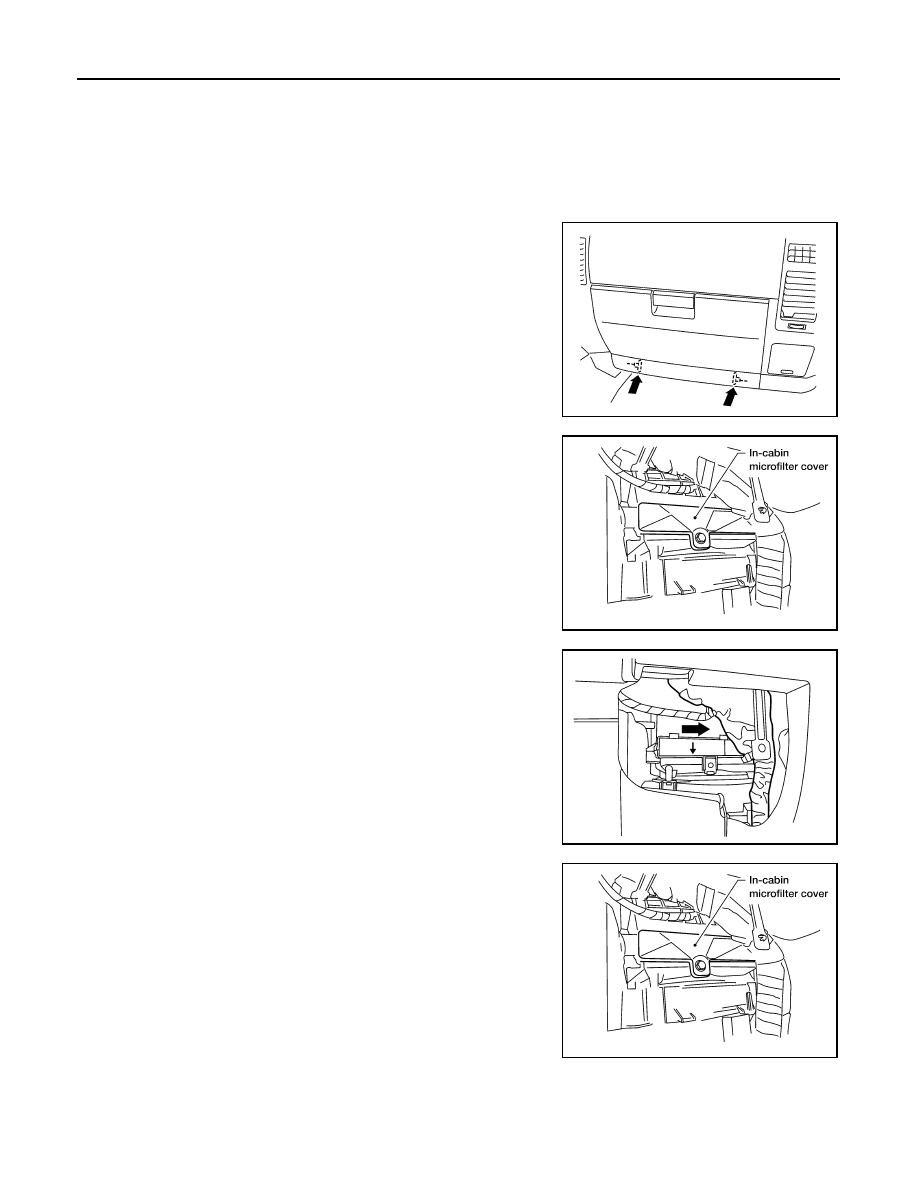

1. Remove the two lower glove box hinge pins to remove the glove

box from the instrument panel and let it hang from the cord.

2. Remove the screw and remove the in-cabin microfilter cover.
3. Remove the in-cabin microfilters from the heater and cooling

unit assembly housing.

4. Insert the first new in-cabin microfilter into the heater and cool-

ing unit assembly housing and slide it over to the right. Insert the

second new in-cabin microfilter into the heater and cooling unit

assembly housing.

NOTE:

The in-cabin microfilters are marked with air flow arrows. The

end of the microfilter with the arrow should face the rear of the

vehicle. The arrows should point downward.

5. Install the in-cabin microfilter cover.

WLIA0027E

LJIA0134E

LJIA0148E

LJIA0134E
