Nissan Titan A60. Manual - part 773

PG

FUSE, FUSIBLE LINK AND RELAY BOX

PG-73

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

FUSE, FUSIBLE LINK AND RELAY BOX

Terminal Arrangement

INFOID:0000000006179653

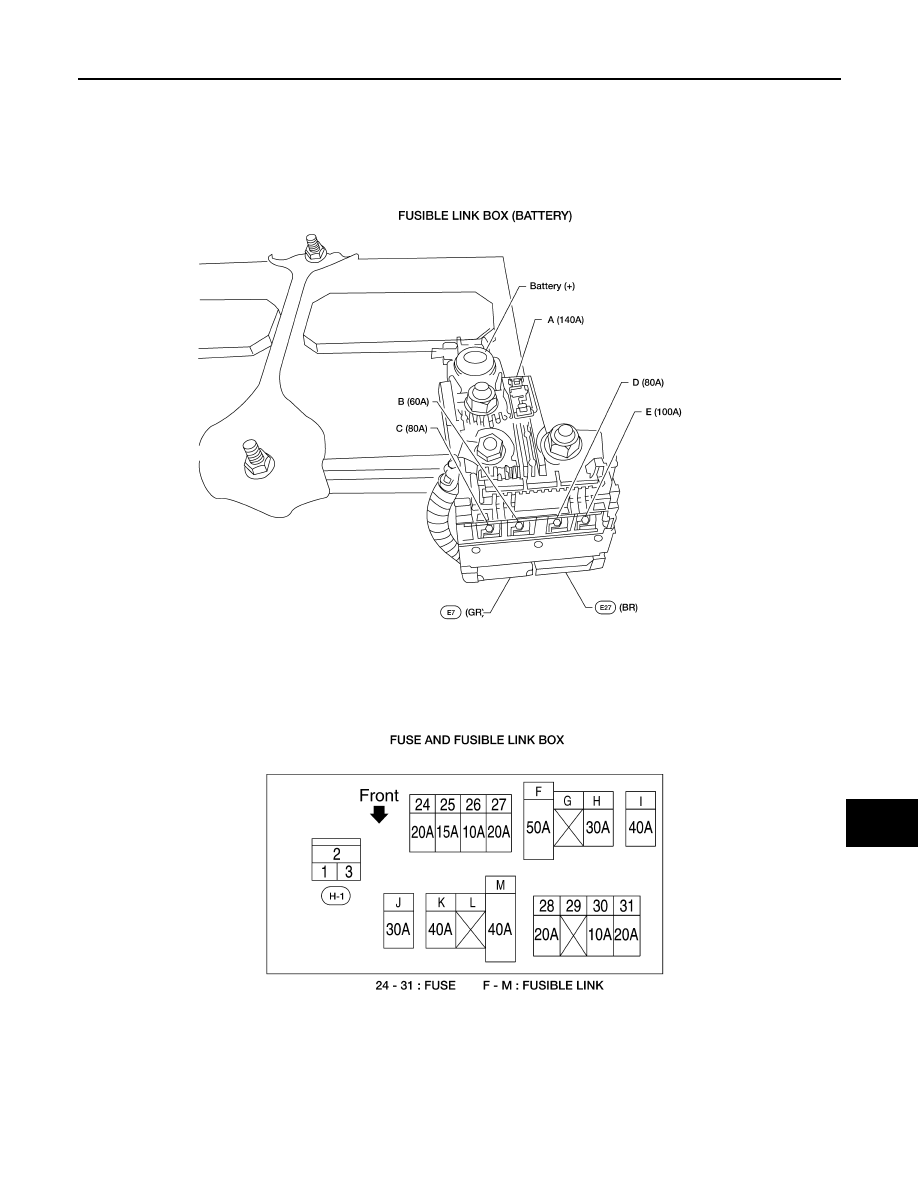

FUSE AND FUSIBLE LINK BOX

ABMIA2530GB

PG-74

< DTC/CIRCUIT DIAGNOSIS >

FUSE, FUSIBLE LINK AND RELAY BOX

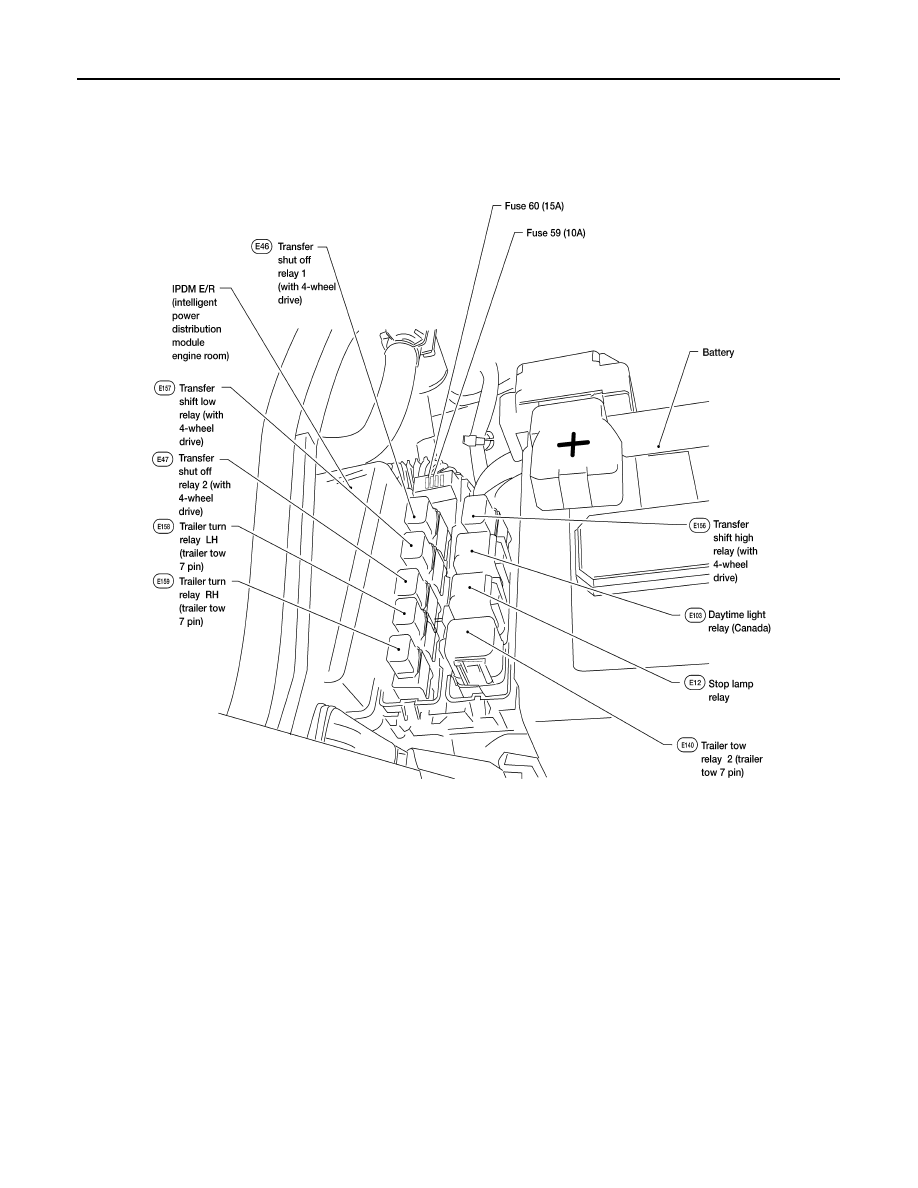

FUSE AND RELAY BOX

ABMIA1635GB

PG

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-75

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

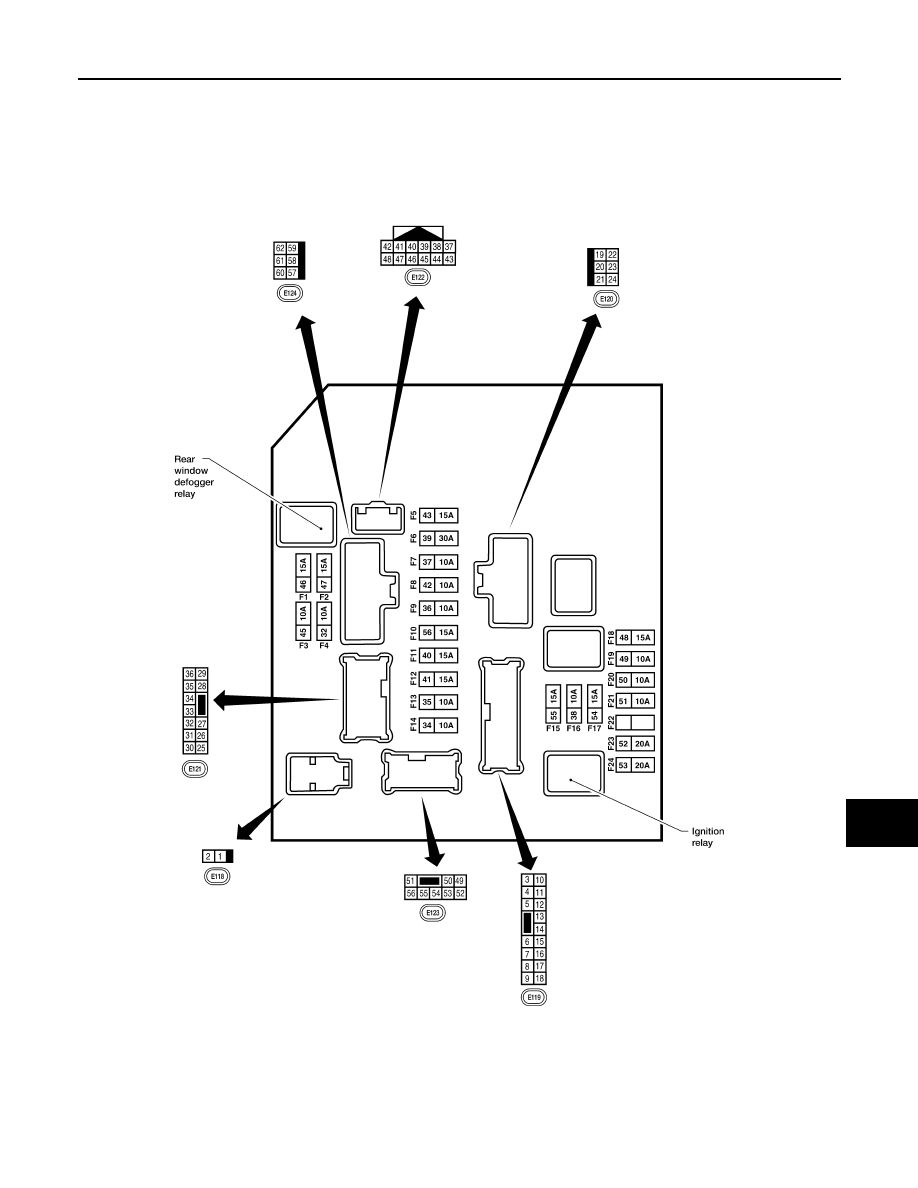

IPDM E/R Terminal Arrangement

INFOID:0000000006179655

NOTE:

Numbers preceded by an "F" represent the fuse numbers imprinted on the IPDM E/R. The other numbers

represent the fuse numbers as they appear in the wiring diagrams.

ABMIA2539GB

PG-76

< REMOVAL AND INSTALLATION >

BATTERY

REMOVAL AND INSTALLATION

BATTERY

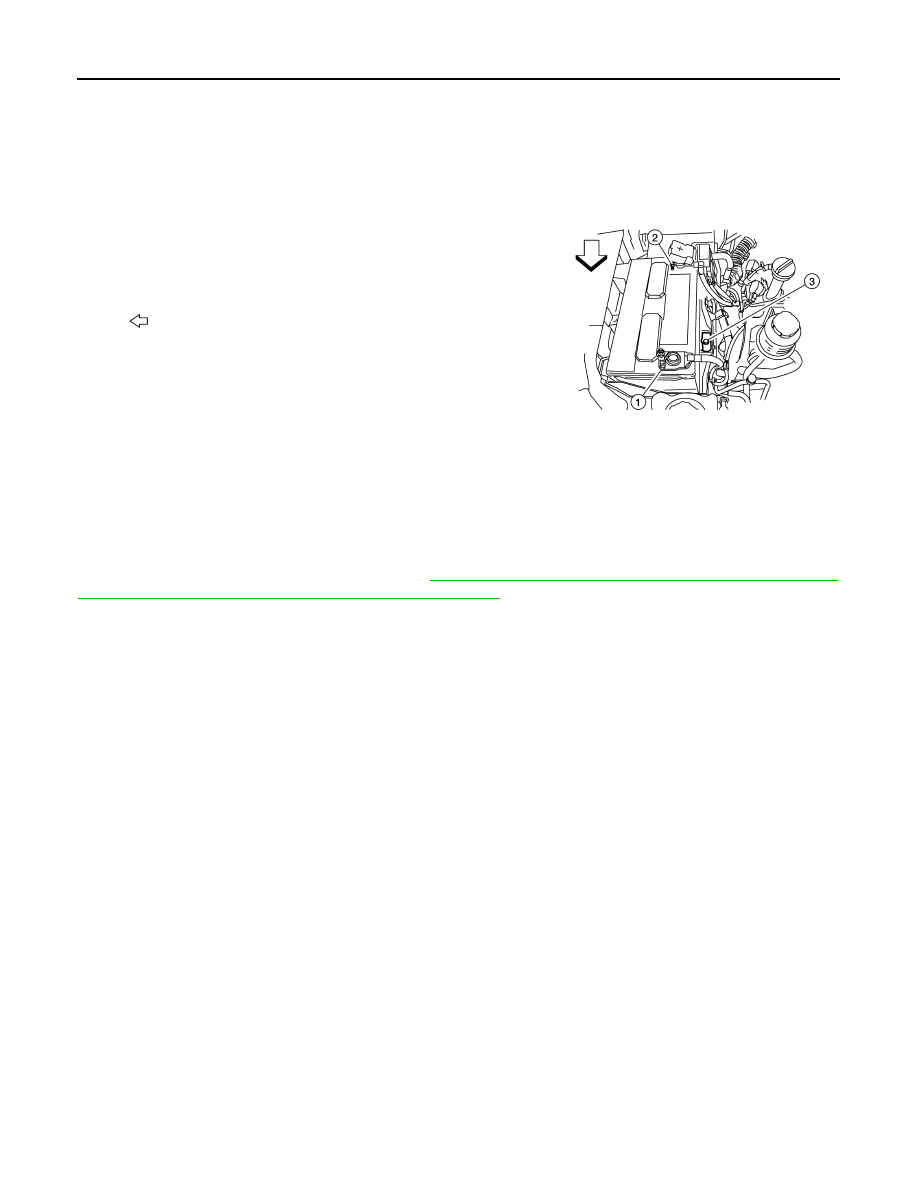

Removal and Installation

INFOID:0000000006179656

REMOVAL

1. Disconnect the negative battery terminal (1) and positive battery

terminal (2).

CAUTION:

Remove negative battery terminal first.

2. Remove the battery cover.
3. Remove the battery clamp bolt (3) and battery clamp.
4. Remove the battery.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing, install the positive battery terminal first.

Reset electronic systems as necessary. Refer to

PG-7, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

: Front

AWBIA0504ZZ

Battery clamp bolt

: 14.7 N·m (1.5 kg-m, 11 ft-lb)

Battery terminal nut

: 3.5 N·m (0.36 kg-m, 31 in-lb)
