DIAGNOSIS SYSTEM (IPDM E/R)

PCS-13

< SYSTEM DESCRIPTION >

[IPDM E/R]

CONSULT - III Function (IPDM E/R)

INFOID:0000000006158385

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with IPDM E/R.

SELF DIAGNOSTIC RESULT

Refer to

PCS-22, "DTC Index"

DATA MONITOR

Any of the following components do not operate
• Front wipers
• Tail lamps
• License plate lamps
• Parking lamps
• Front fog lamps
• Headlamps (HI, LO)

Perform auto active test.
Does the applicable system
operate?

YES

BCM signal input system

• Lamp or front wiper motor malfunc-

tion

• Lamp or front wiper motor ground

circuit

• Harness or connector between

IPDM E/R and applicable system

• IPDM E/R (integrated relay malfunc-

tion)

A/C compressor does not operate

Perform auto active test.
Does the A/C compressor op-
erate?

YES

• BCM signal input circuit
• CAN communication signal be-

tween BCM and ECM

• CAN communication signal be-

tween ECM and IPDM E/R

• Magnetic clutch malfunction
• Harness or connector between

IPDM E/R and magnetic clutch

• IPDM E/R (integrated relay malfunc-

tion)

Symptom

Inspection contents

Possible cause

Direct Diagnostic Mode

Description

Self Diagnostic Result

The IPDM E/R self diagnostic results are displayed.

Data Monitor

The IPDM E/R input/output data is displayed in real time.

Active Test

The IPDM E/R activates outputs to test components.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

Monitor Item [Unit]

Main

Signals

Description

AC COMP REQ [On/Off]

Indicates A/C compressor request signal received from ECM on CAN commu-
nication line

TAIL&CLR REQ [On/Off]

Indicates position light request signal received from BCM on CAN communica-
tion line

HL LO REQ [On/Off]

Indicates low beam request signal received from BCM on CAN communication
line

HL HI REQ [On/Off]

Indicates high beam request signal received from BCM on CAN communication
line

FR FOG REQ [On/Off]

Indicates front fog light request signal received from BCM on CAN communica-
tion line

FR WIP REQ [Stop/1LOW/Low/Hi]

Indicates front wiper request signal received from BCM on CAN communication
line

WIP AUTO STOP [STOP P/ACT P]

Indicates condition of front wiper auto stop signal

WIP PROT [Off/BLOCK]

Indicates condition of front wiper fail-safe operation

ST RLY REQ [On/Off]

Indicates starter request signal received from ECM on CAN communication line

IGN RLY [On/Off]

Indicates condition of ignition relay

PCS-14

< SYSTEM DESCRIPTION >

[IPDM E/R]

DIAGNOSIS SYSTEM (IPDM E/R)

ACTIVE TEST

RR DEF REQ [On/Off]

Indicates rear defogger request signal received from AV control unit on CAN
communication line

OIL P SW [Open/Close]

Indicates condition of oil pressure switch

DTRL REQ [Off]

Indicates daytime light request signal received from BCM on CAN communica-
tion line

THFT HRN REQ [On/Off]

Indicates theft warning horn request signal received from BCM on CAN commu-
nication line

HORN CHIRP [On/Off]

Indicates horn reminder signal received from BCM on CAN communication line

Monitor Item [Unit]

Main

Signals

Description

Test item

Description

REAR DEFOGGER

This test is able to check rear defogger operation [On/Off].

FRONT WIPER

This test is able to check wiper motor operation [Hi/Lo/Off].

MOTOR FAN

This test is able to check cooling fan operation [4/3/2/1].

EXTERNAL LAMPS

This test is able to check external lamp operation [Fog/Hi/Lo/TAIL/Off].

HORN

This test is able to check horn operation [On].

PCS

U1000 CAN COMM CIRCUIT

PCS-15

< DTC/CIRCUIT DIAGNOSIS >

[IPDM E/R]

DTC/CIRCUIT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000006158386

Refer to

LAN-4, "System Description"

DTC Logic

INFOID:0000000006158387

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

Diagnosis Procedure

INFOID:0000000006158388

PERFORM SELF DIAGNOSTIC

1. Turn ignition switch ON and wait for 2 seconds or more.

2. Check “SELF-DIAG RESULTS” of IPDM E/R.
Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to

LAN-5, "CAN Communication Control Circuit"

>> Refer to

GI-39, "Intermittent Incident"

DTC

CONSULT-III display

description

DTC Detection Condition

Possible cause

U1000

CAN COMM CIRCUIT

When IPDM E/R cannot communicate CAN
communication signal continuously for 2
seconds or more

In CAN communication system, any item (or items)
of the following listed below is malfunctioning.
• Receiving (TCM)
• Receiving (ECM)
• Receiving (BCM)
• Receiving (Combination meter)

PCS-16

< DTC/CIRCUIT DIAGNOSIS >

[IPDM E/R]

POWER SUPPLY AND GROUND CIRCUIT

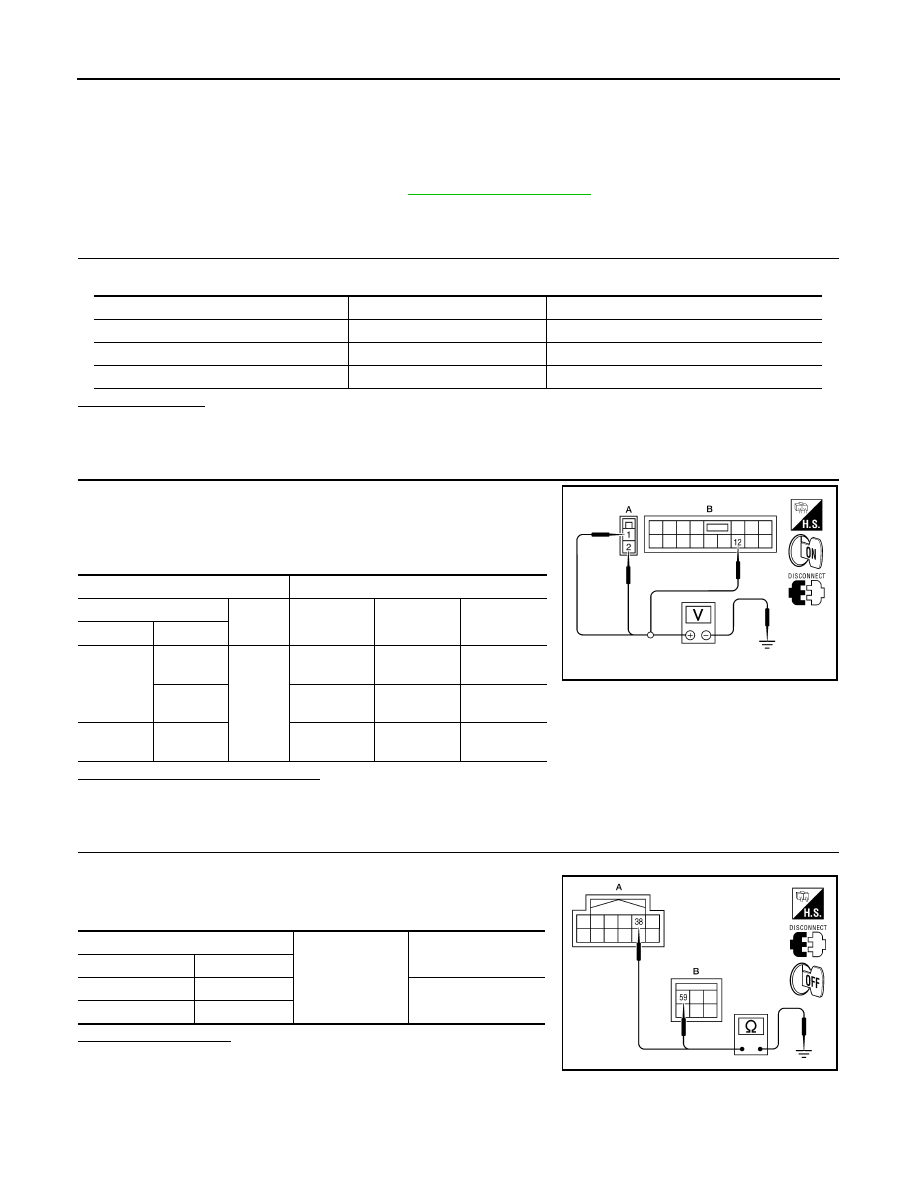

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000006158389

Regarding Wiring Diagram information, refer to

PCS-23, "Wiring Diagram"

CHECK FUSES AND FUSIBLE LINK

Check that the following IPDM E/R fuses or fusible link are not blown.

Is the fuse blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

>> GO TO 2

CHECK BATTERY POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R.

3. Check voltage between IPDM E/R harness connectors and

ground.

Is the measurement value normal?

YES

>> GO TO 3

>> Repair or replace harness.

CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between IPDM E/R harness connectors and

ground.

Does continuity exist?

YES

>> Inspection End.

>> Repair or replace harness.

Terminal No.

Signal name

Fuses and fusible link No.

Battery

A (140A), D (80A)

Battery

C (80A)

Ignition switch ON or START

59 (10A)

Terminals

Ignition switch position

(+)

(

−)

OFF

START

Connector

Terminal

E118 (A)

Ground

Battery
voltage

E119 (B)

Battery
voltage

AWMIA0023ZZ

IPDM E/R

Ground

Continuity

Connector

Terminal

E122 (A)

Yes

E124 (B)

AWMIA0024ZZ
