MWI-6

< SYSTEM DESCRIPTION >

METER SYSTEM

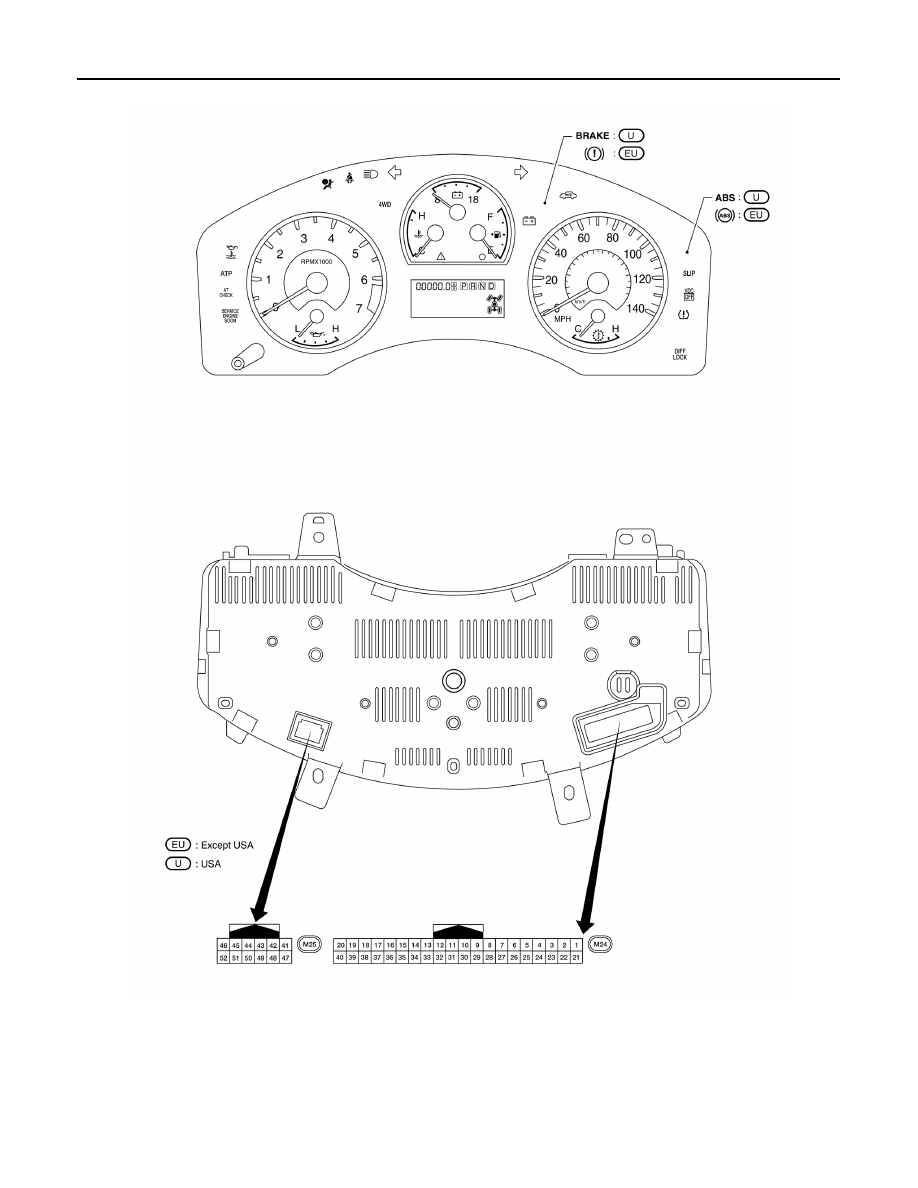

METER SYSTEM : Arrangement of Combination Meter

INFOID:0000000006164860

AWNIA2292GB

MWI

METER SYSTEM

MWI-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

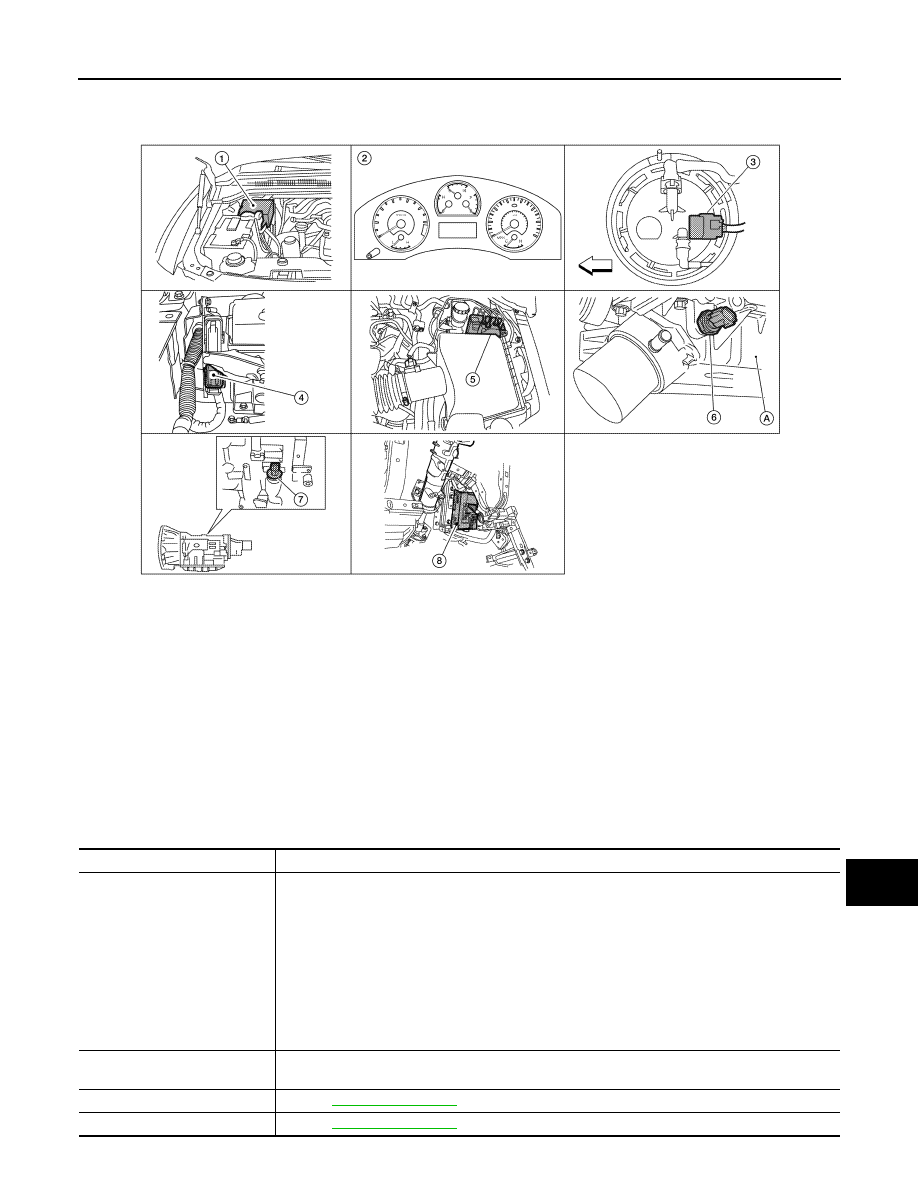

METER SYSTEM : Component Parts Location

INFOID:0000000006164861

METER SYSTEM : Component Description

INFOID:0000000006164862

1.

IPDM E/R E122, E124

2.

Combination meter M24, M25

3.

Fuel level sensor unit and fuel pump
(view with fuel tank removed)
C7 (with Flexible Fuel)
C5 (without Flexible Fuel)
⇐: Front

4.

ECM E16 (view with battery removed) 5.

ABS actuator and electric unit (control
unit)
E125

6.

Oil pressure switch F4
A: Oil pan (upper)

7.

A/T assembly
F9 (with floor shift)
F17 (with column shift)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

AWNIA0190ZZ

Unit

Description

Combination meter

Controls the following with the signals received from each unit via CAN communication and the sig-
nals from switches and sensors.

• Speedometer

• Tachometer

• Engine coolant temperature gauge

• Fuel gauge

• Engine oil pressure gauge (if equipped)

• A/T oil temperature gauge (if equipped)

• Voltage gauge (if equipped)

• Odo/trip meter

• Warning lamps

• Indicator lamps

• Information display

• Warning chime

IPDM E/R

IPDM E/R reads the ON/OFF signals of the oil pressure switch and transmits the oil pressure switch
signal to the combination meter via BCM with CAN communication line.

Fuel level sensor unit

Refer to

MWI-37, "Description"

.

Oil pressure switch

Refer to

MWI-40, "Description"

.

MWI-8

< SYSTEM DESCRIPTION >

METER SYSTEM

SPEEDOMETER

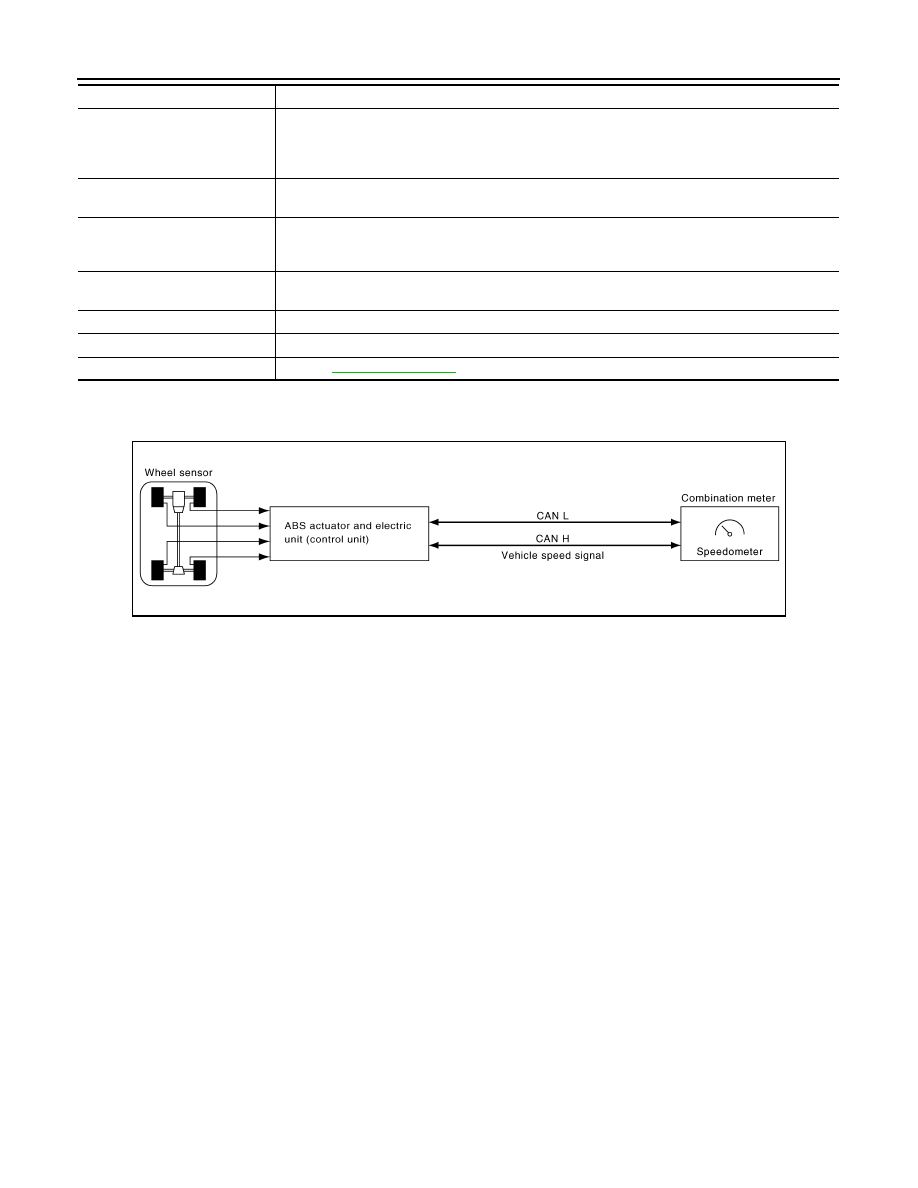

SPEEDOMETER : System Diagram

INFOID:0000000006164863

SPEEDOMETER : System Description

INFOID:0000000006164864

The ABS actuator and electric unit (control unit) provides a vehicle speed signal to the combination meter via

CAN communication lines.

ECM

Transmits the following signals to the combination meter with CAN communication line.

• Engine speed signal

• Engine coolant temperature signal

• Fuel consumption monitor signal

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter with CAN communication line.

BCM

• Transmits signals provided by various units to the combination meter with CAN communication

line.

• Transmits the security signal to the combination meter.

TCM

• Transmits shift position signal to the combination meter with CAN communication line.
• Transmits A/T oil temperature signal to the combination meter with CAN communication line.

Washer level switch

Transmits the washer level signal to the combination meter.

Brake fluid level switch

Transmits the brake fluid level switch signal to the combination meter.

Parking brake switch

Refer to

MWI-41, "Description"

.

Unit

Description

WKIA5370E

MWI

METER SYSTEM

MWI-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

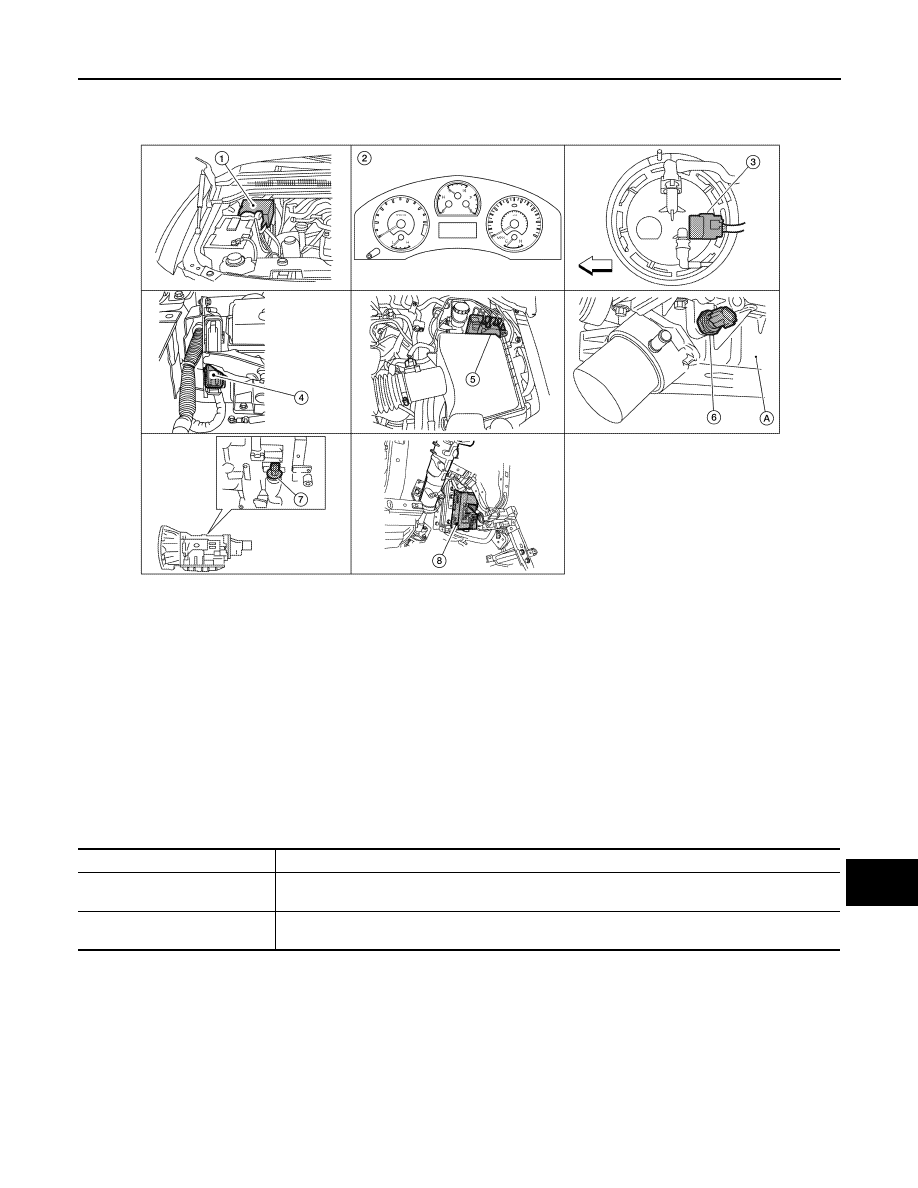

SPEEDOMETER : Component Parts Location

INFOID:0000000006164865

SPEEDOMETER : Component Description

INFOID:0000000006164866

TACHOMETER

1.

IPDM E/R E122, E124

2.

Combination meter M24, M25

3.

Fuel level sensor unit and fuel pump
(view with fuel tank removed)
C7 (with Flexible Fuel)
C5 (without Flexible Fuel)
⇐: Front

4.

ECM E16 (view with battery removed) 5.

ABS actuator and electric unit (control
unit)
E125

6.

Oil pressure switch F4
A: Oil pan (upper)

7.

A/T assembly
F9 (with floor shift)
F17 (with column shift)

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

AWNIA0190ZZ

Unit

Description

Combination meter

Indicates the vehicle speed according to the vehicle speed signal received from ABS actuator and
electric unit (control unit) via CAN communication.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter with CAN communication line.
