CLUSTER LID D

IP-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

CLUSTER LID D

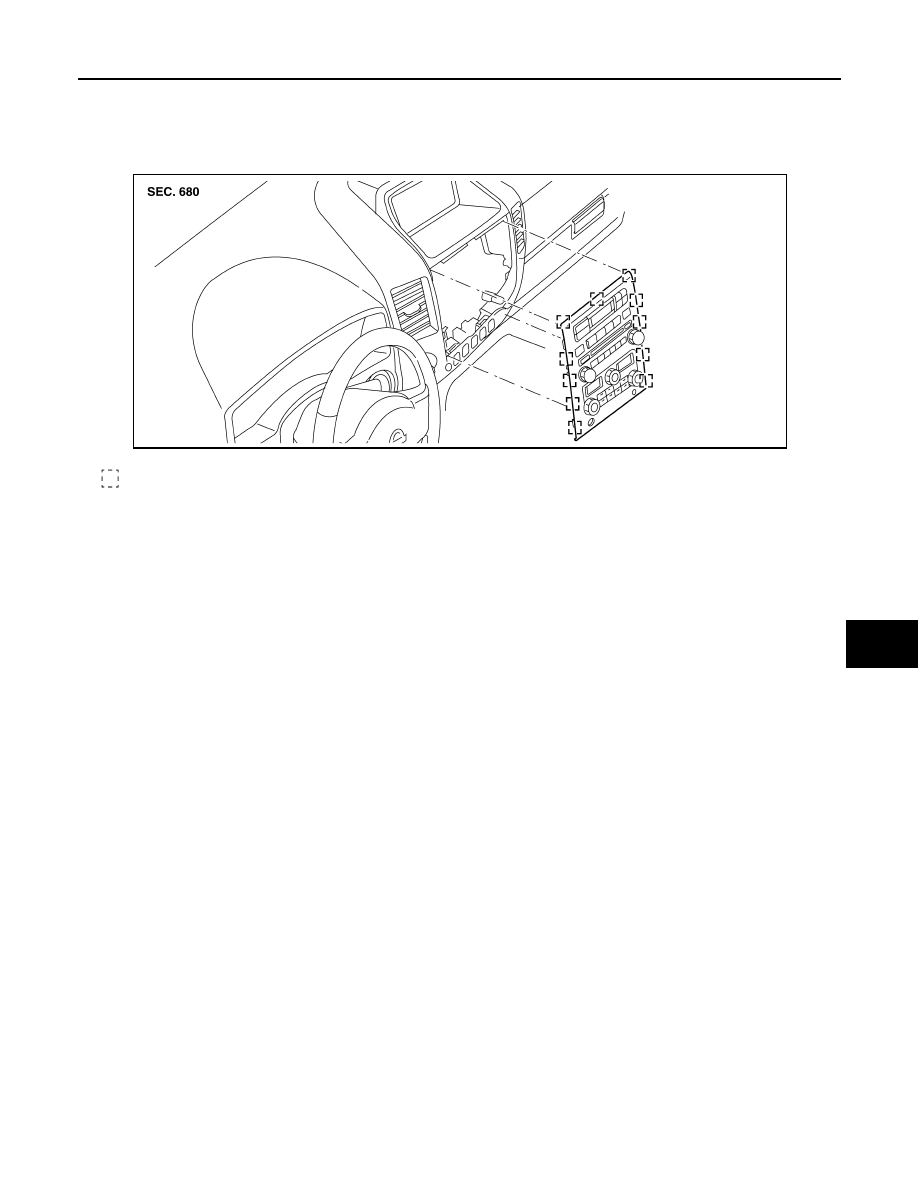

Exploded View

INFOID:0000000006161539

Removal and Installation

INFOID:0000000006161540

REMOVAL

1. Pull cluster lid D rearward in vehicle to release the clips.
2. Disconnect the electrical connector(s), then remove cluster lid D.

INSTALLATION

Installation is in the reverse order of removal.

Metal clip

ALJIA0101ZZ

IP-16

< REMOVAL AND INSTALLATION >

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

Removal and Installation

INFOID:0000000006161541

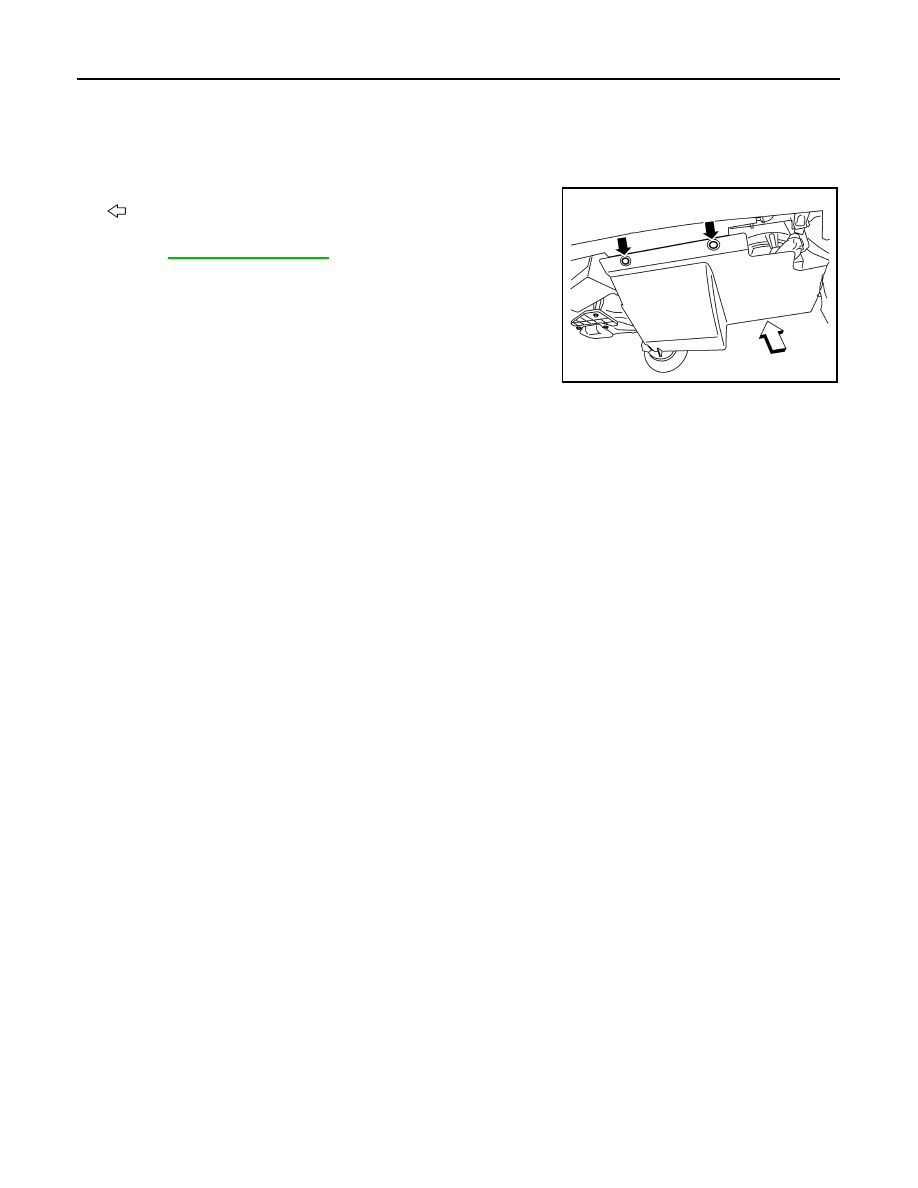

REMOVAL

1. Release the clips, then remove instrument lower cover RH.

 Vehicle front

2. Remove lower instrument panel RH and glove box screws.

Refer to

IP-20, "Exploded View"

.

3. Disconnect the electrical connector, then remove the lower

instrument panel RH and glove box.

INSTALLATION

Installation is in the reverse order of removal.

AWJIA0003ZZ

INSTRUMENT LOWER PANEL LH

IP-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

INSTRUMENT LOWER PANEL LH

Removal and Installation

INFOID:0000000006161542

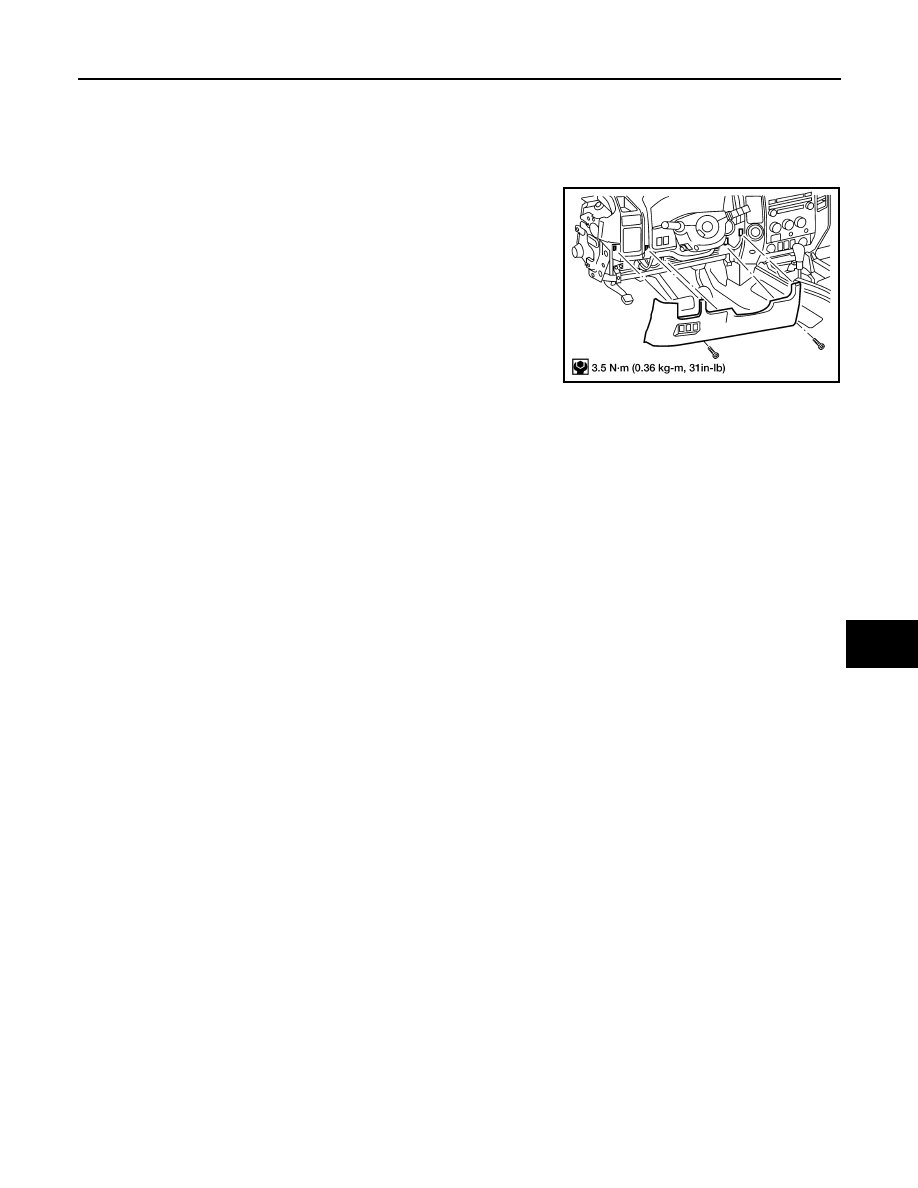

REMOVAL

1. Remove lower instrument panel LH screws.
2. Pull lower instrument panel LH rearward in vehicle to release the

clips.

3. Disconnect the electrical connector(s), then remove lower

instrument panel LH.

INSTALLATION

Installation is in the reverse order of removal.

LIIA1327E

IP-18

< REMOVAL AND INSTALLATION >

A/T FINISHER

A/T FINISHER

Removal and Installation

INFOID:0000000006161543

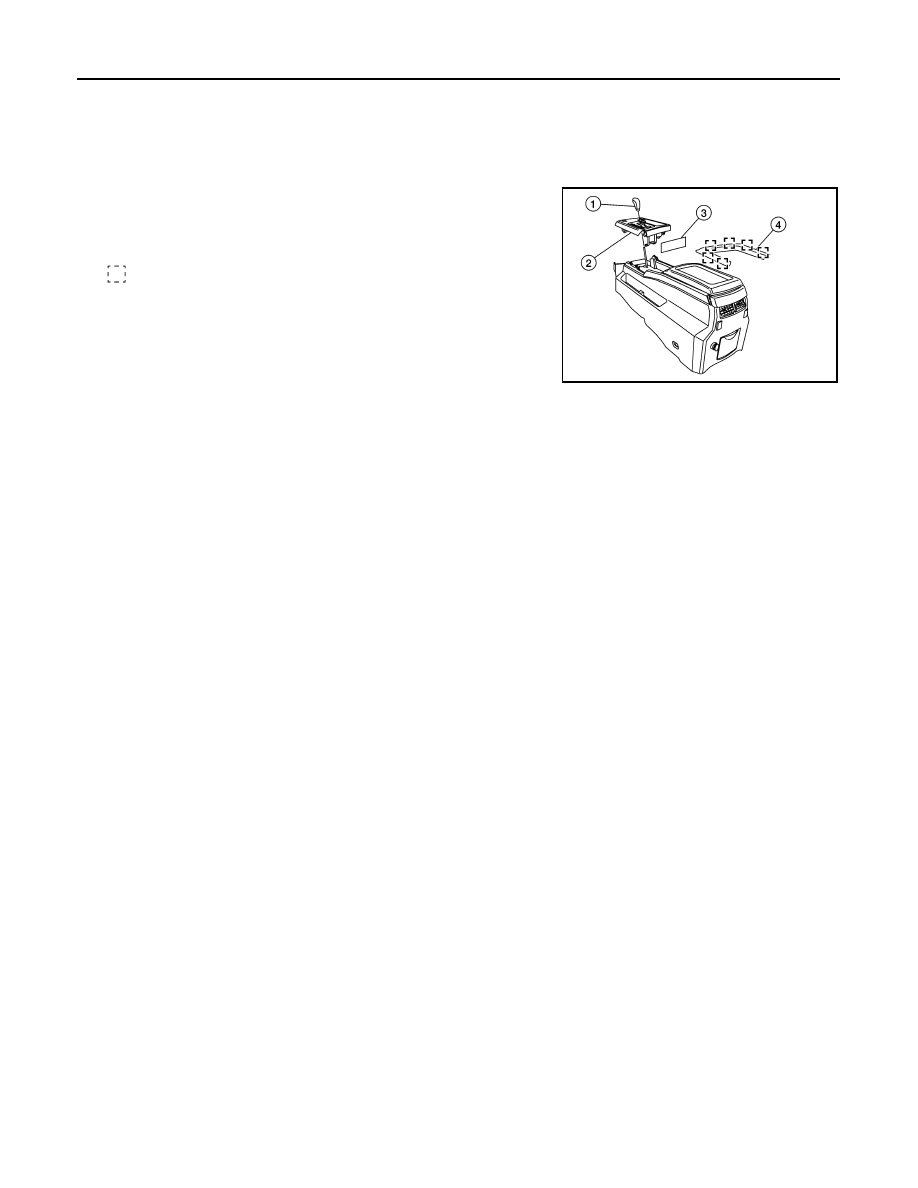

REMOVAL

1. Remove the shift selector handle (1).
2. Remove the storage compartment mask (3) and console upper

finisher (4).

3. Pull up on A/T finisher (2) to release clips, then tilt aside.

: Metal clip

4. Disconnect A/T finisher electrical connectors and remove from

front center console assembly.

INSTALLATION

Installation is in the reverse order of removal.

AWJIA0004ZZ
