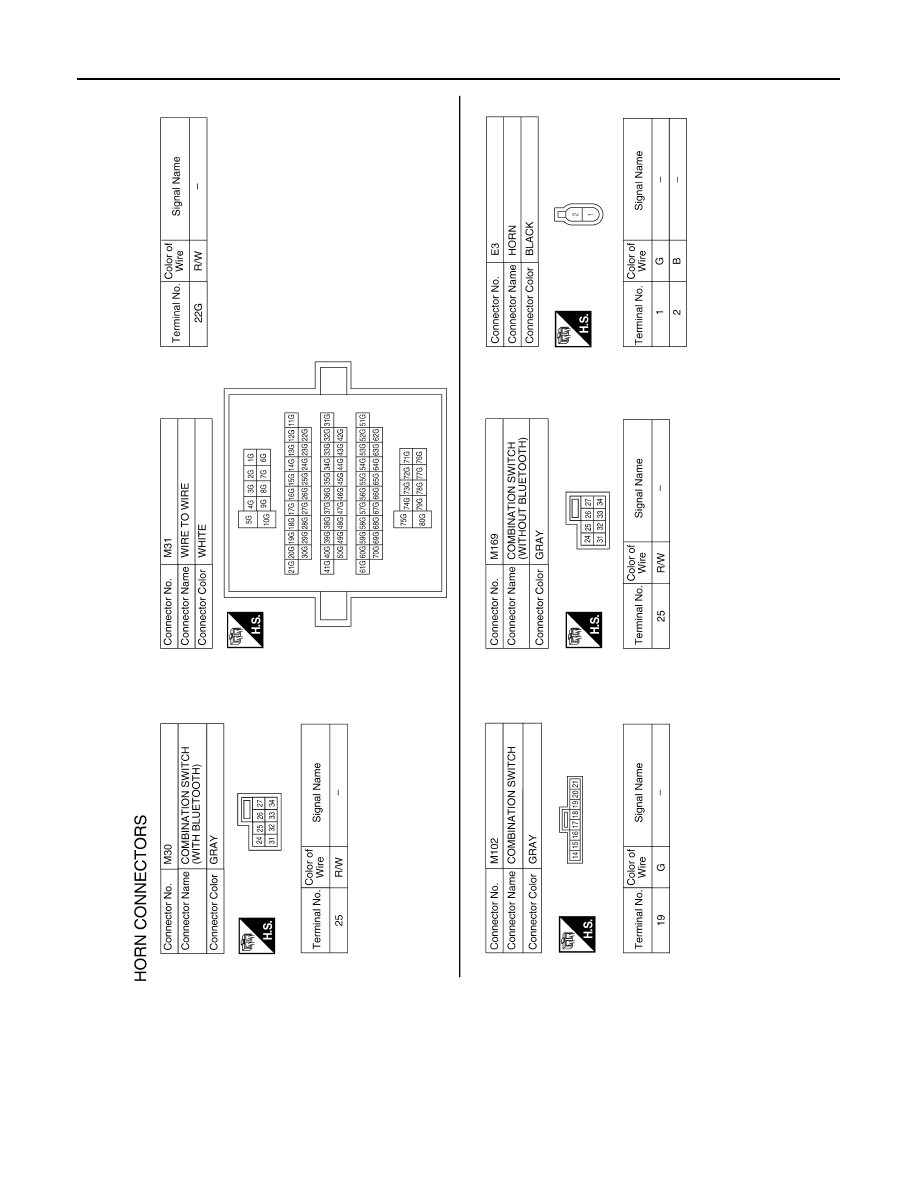

WIRING DIAGRAM

HORN

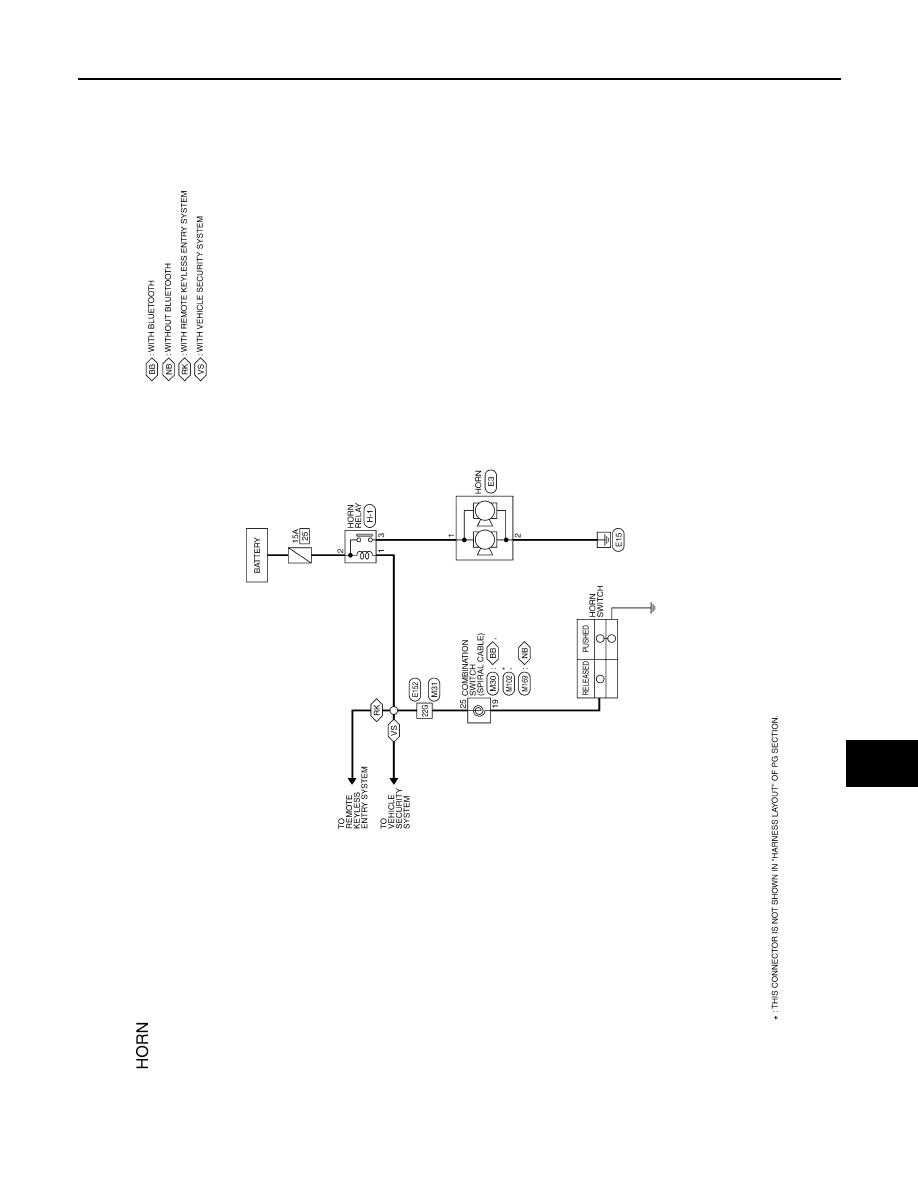

Wiring Diagram

INFOID:0000000006466723

ABLWA1171GB

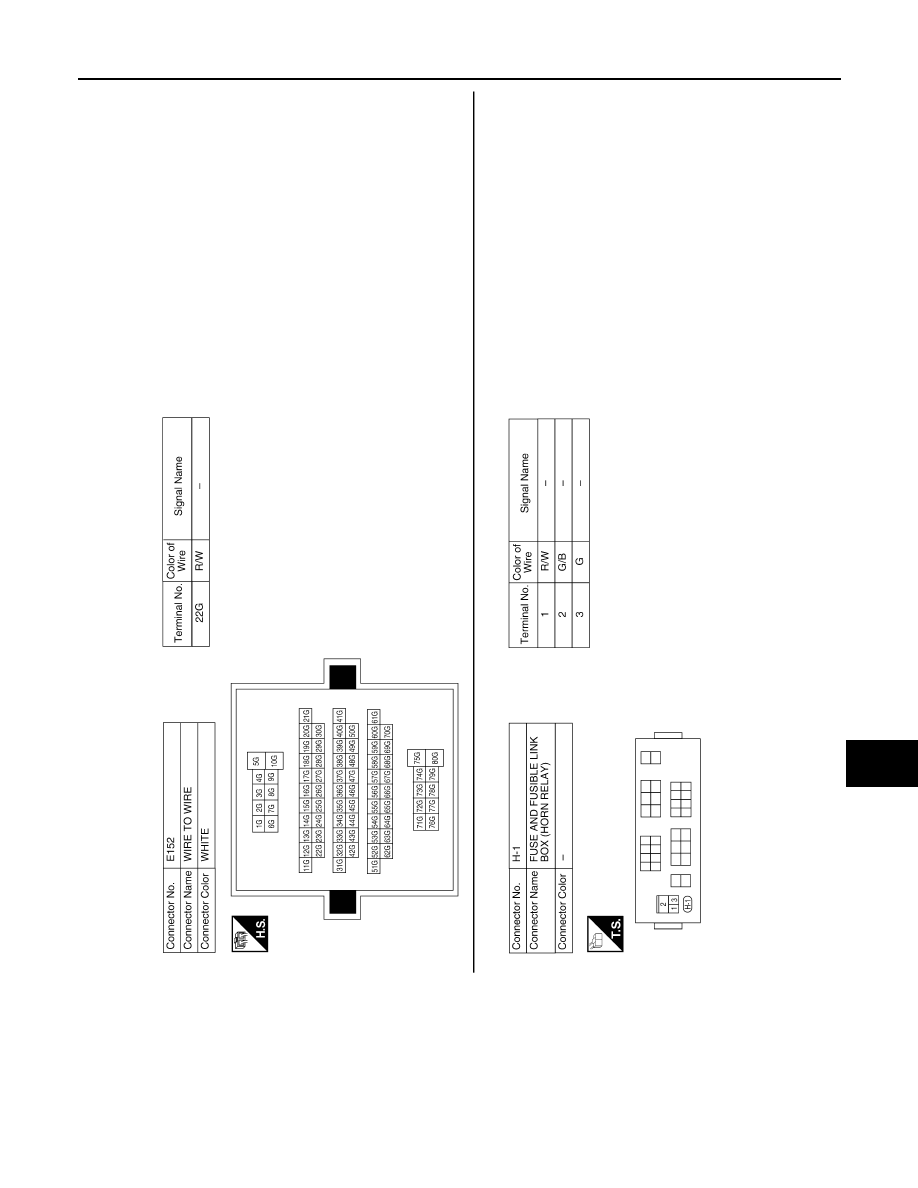

HRN-4

< WIRING DIAGRAM >

HORN

ABLIA1386GB

HORN

HRN-5

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

ABLIA1321GB

HRN-6

< UNIT REMOVAL AND INSTALLATION >

HORN

UNIT REMOVAL AND INSTALLATION

HORN

Removal and Installation

INFOID:0000000006179162

REMOVAL

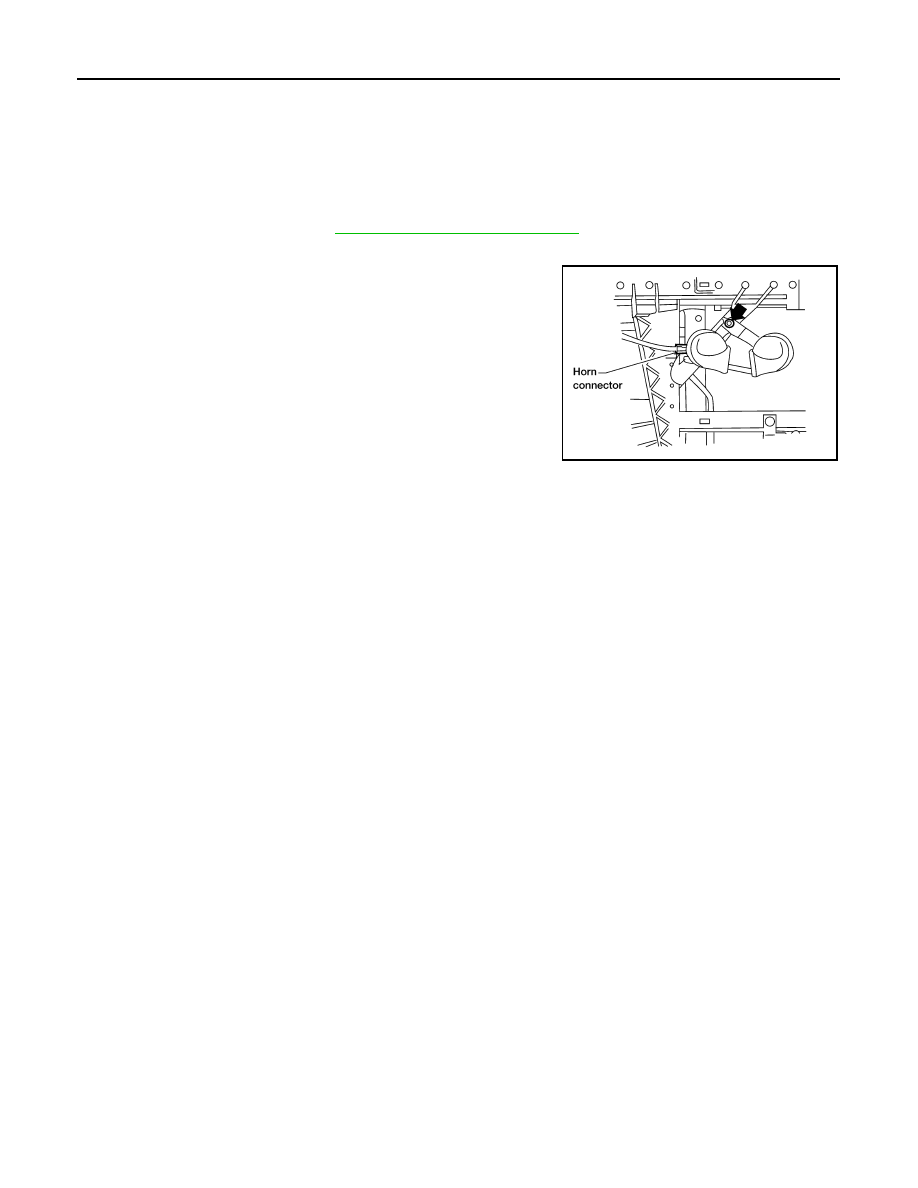

1. Remove the front grille. Refer to

EXT-19, "Removal and Installation"

.

2. Disconnect horn connector.
3. Remove horn bolt and remove horn from vehicle.

INSTALLATION

Installation is in the reverse order of removal.

LKIA0419E
