EXT-30

< REMOVAL AND INSTALLATION >

SIDE GUARD MOLDING

• To re-use existing molding, clean all traces of double sided tape from the molding and apply new double-

faced tape to the molding.

1. Clean the panel surface with isopropyl alcohol or equivalent to degrease the surface.
2. Heat the panel and molding tape surface to 30

° to 40°C (86° to 104°F).

3. Remove the backing sheet from the tape surface.

• Align the locating pin into the hole in the outer door.

• Continue aligning the pins into their corresponding holes in the outer door during installation.

4. Press ends by hand and use a roller to apply 5 kg-f (11 lbs-f) to press molding to door surface.

• Apply even pressure along molding to insure proper wet out.

CAUTION:

To secure contact, do not wash vehicle for 24 hours after installation.

BED RAILS AND TRIM

EXT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

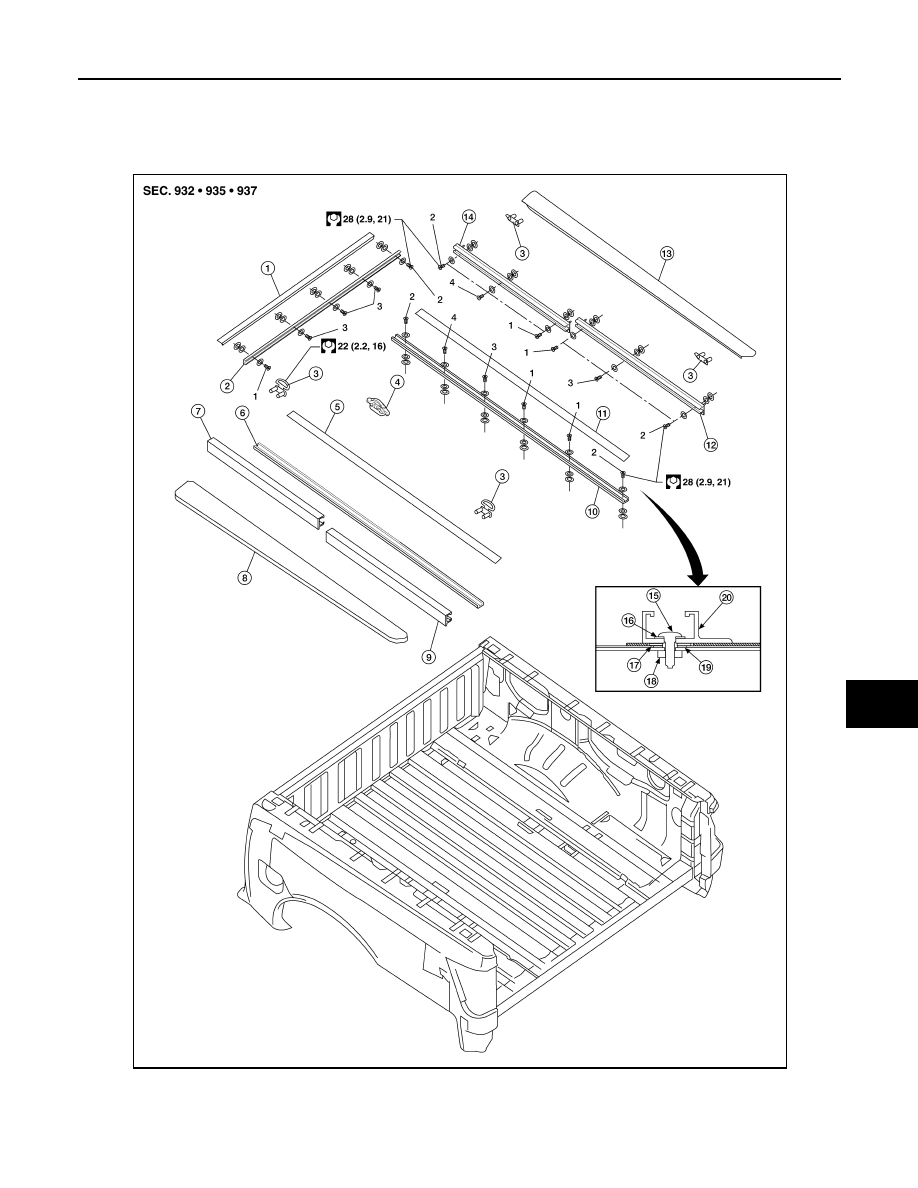

BED RAILS AND TRIM

Removal and Installation

INFOID:0000000006163345

1.

Header top trim

2.

Header tie down rail

3.

Rope hook

4.

Tie down cleat

5.

Floor rail cover LH

6.

Floor rail LH

7.

Bed side front tie down rail LH

8.

Top side rail trim LH

9.

Bed side rear tie down rail LH

AWKIA1529GB

EXT-32

< REMOVAL AND INSTALLATION >

BED RAILS AND TRIM

REMOVAL

1. Remove floor rail covers.
2. Remove tie down cleats.
3. Remove floor rails LH/RH.
4. Remove bed side front and rear tie down rails LH/RH.
5. Remove rope hooks.
6. Remove header tie down rail.
7. Release clips and remove header top trim.
8. Release clips and remove top side rail trim LH/RH.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Tighten rail bolts in numerical order.

10. Floor rail RH

11. Floor rail cover RH

12. Bed side rear tie down rail RH

13. Top side rail trim RH

14. Bed side front tie down rail RH

15. Bolt

16. Washer

17

Spacer

18. Weld nut

19. Plastic keeper

20. Rail

TAIL GATE FINISHER

EXT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

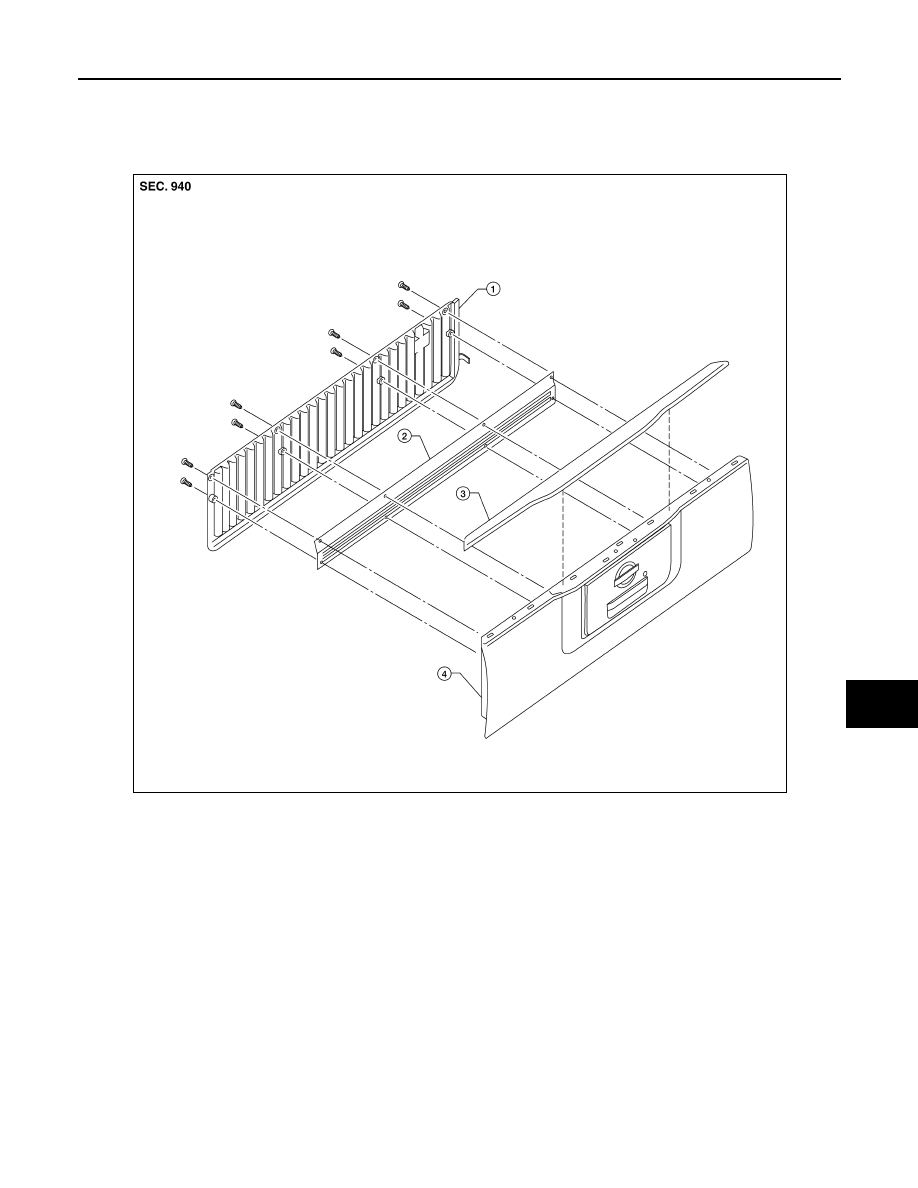

TAIL GATE FINISHER

Removal and Installation

INFOID:0000000006163346

REMOVAL

1. Release clips and remove tailgate top protector.
2. Remove screws and remove tailgate protector (if equipped) and tailgate cover plate.

INSTALLATION

Installation is in the reverse order of removal.

1.

Tailgate protector (if equipped)

2.

Tailgate cover plate

3.

Tailgate top protector

4.

Tailgate assembly

AWKIA1320ZZ
