REAR FINAL DRIVE ASSEMBLY

DLN-203

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: M226 ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

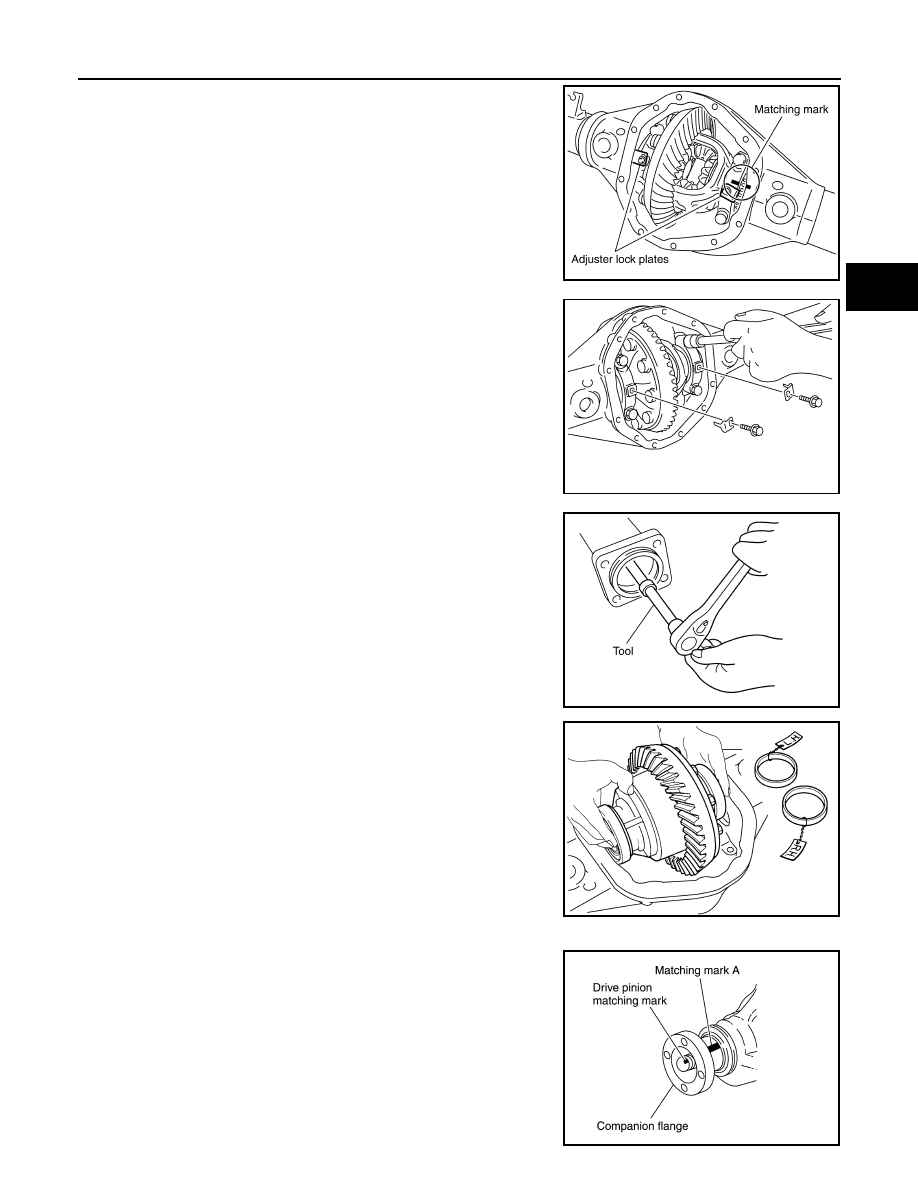

3. For proper reinstallation, paint matching mark on one side of

side bearing cap.

CAUTION:

• Side bearing caps are line-board for initial assembly. The

matching marks are used to reinstall them in their original

positions.

• For matching mark, use paint. Do not damage side bear-

ing cap.

4. Remove adjuster lock plates.
5. Remove side bearing caps.

6. Loosen side bearing adjusters using Tool.

7. Remove the differential case assembly. Label side bearing outer

races to keep them together with inner races. Do not mix them

up.

Drive Pinion Assembly

1. Put matching marks on the companion flange at location (A) and

drive pinion using paint as shown.

CAUTION:

Use paint to make the matching marks. Do not damage the

companion flange or drive pinion.

PDIA0310E

PDIA0331E

Tool number

:  —  (C - 4164)

PDIA0337E

PDIA0312E

PDIA0675E

DLN-204

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: M226 ]

REAR FINAL DRIVE ASSEMBLY

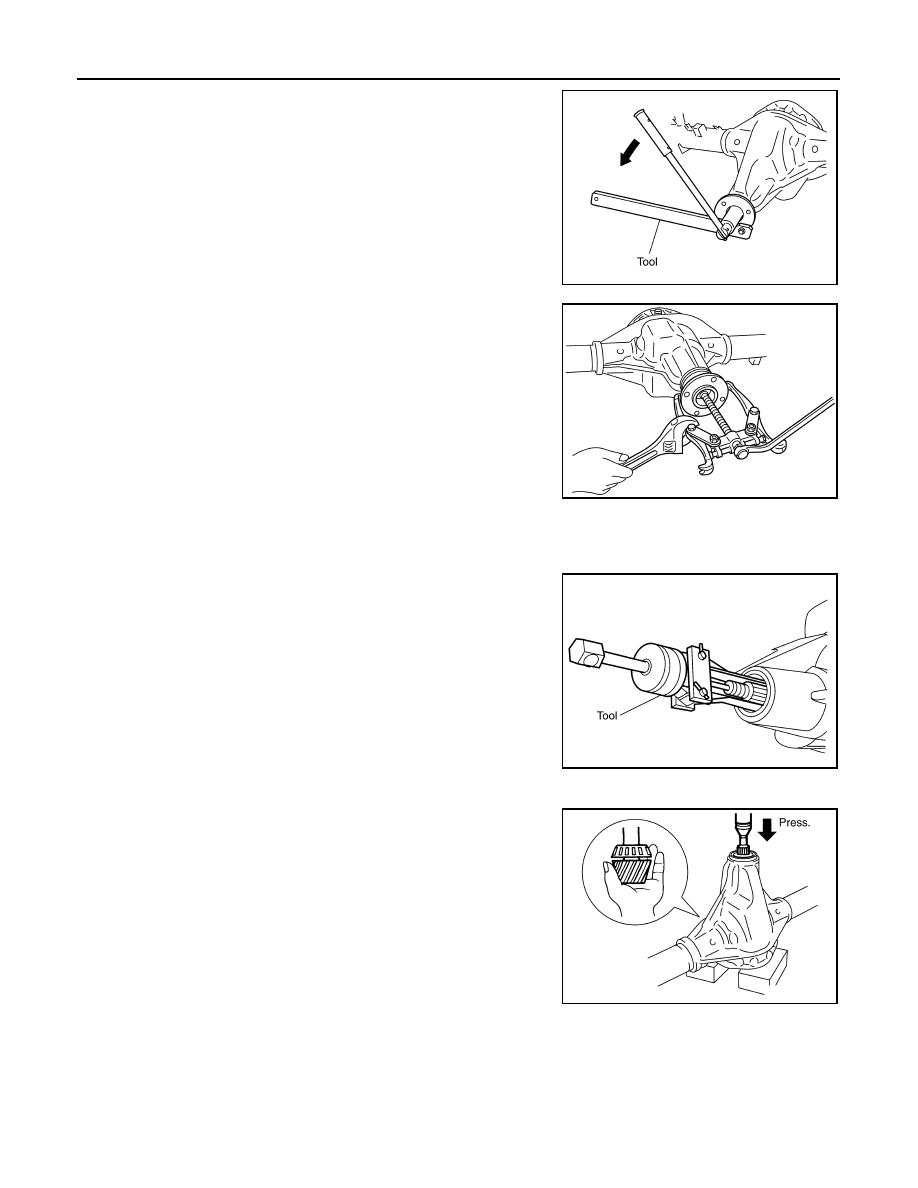

2. Remove drive pinion lock nut and washer using suitable tool.

3. Remove companion flange using a suitable tool.

4. Remove oil seal/dust shield and discard.

CAUTION:

Do not reuse the differential oil seal.

5. Remove front oil seal using Tool.

CAUTION:

Do not damage gear carrier.

6. Remove drive pinion front bearing thrust washer.
7. Remove drive pinion assembly (with rear inner bearing race and

collapsible spacer) out of gear carrier.

CAUTION:

Do not drop drive pinion assembly.

8. Remove collapsible spacer from drive pinion assembly and discard collapsible spacer.

CAUTION:

Do not reuse the collapsible spacer.

INSPECTION AFTER DISASSEMBLY

Clean the disassembled parts. Then inspect the parts for wear or damage. If wear or damage are found, follow

the measures below.

PDIA0314E

PDIA0315E

Tool number

: ST33290001 (J-34286)

SDIA2586E

PDIA0316E

REAR FINAL DRIVE ASSEMBLY

DLN-205

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: M226 ]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Drive Pinion and Drive Gear

• If the gear teeth do not mesh or line-up correctly, replace with new rear final drive assembly. Refer to

DLN-

198, "Removal and Installation"

.

• If the gears are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with new rear final

drive assembly. Refer to

DLN-198, "Removal and Installation"

.

Bearings

• If bearings are chipped (by friction), pitted, worn, rusted, scratched, or unusual noise is coming from the

bearing, replace with new rear final drive assembly. Refer to

DLN-198, "Removal and Installation"

.

Differential Case Assembly

• If the gears are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with new rear final

drive assembly. Refer to

DLN-198, "Removal and Installation"

.

• If the movement is not smooth when pushing cam ring of differential case assembly by hand. Replace with

new rear final drive assembly. Refer to

DLN-198, "Removal and Installation"

.

Companion Flange

• If any chips (about 0.1mm, 0.004 in) or other damage on the companion flange surface which contacts the

front oil seal lips are found, replace with new one. Refer to

DLN-198, "Removal and Installation"

.

ASSEMBLY

Drive Pinion Assembly

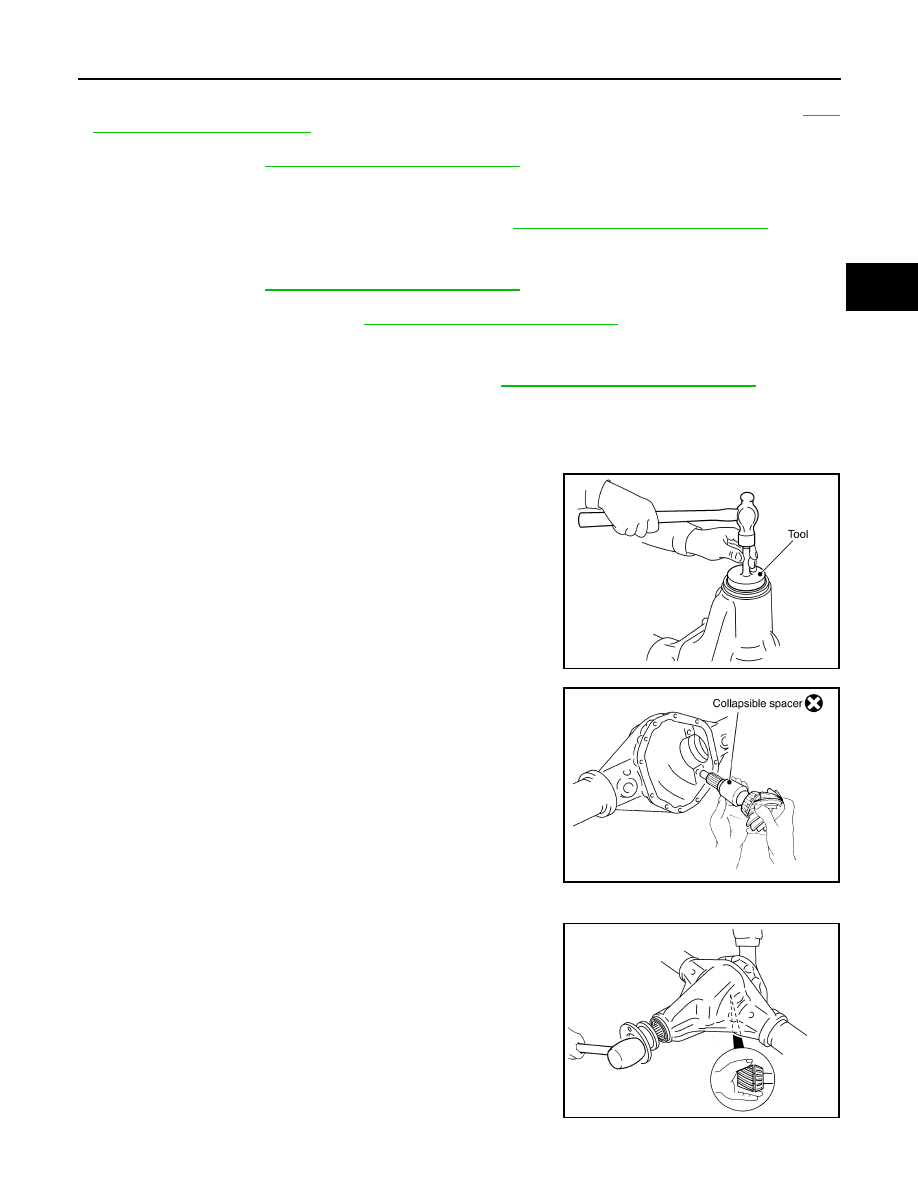

1. Install drive pinion front bearing thrust washer.
2. Apply multi-purpose grease to new front oil seal lip. Install front

oil seal into gear carrier using Tool.

CAUTION:

• Do not reuse front oil seal.

• Do not incline the new front oil seal when installing.

• Apply multi-purpose grease to the lips of the new front oil

seal.

3. Install new collapsible spacer to drive pinion. And then install

drive pinion assembly into gear carrier.

CAUTION:

• Do not reuse collapsible spacer.

• Do not damage front oil seal.

4. Install a new oil seal/dust shield.
5. Install the companion flange onto the drive pinion while aligning

the matching marks. Then tap the companion flange using suit-

able tool.

CAUTION:

Do not damage companion flange or front oil seal.

Tool number

: ST15310000 ( — )

PDIA0326E

SDIA2595E

PDIA0328E

DLN-206

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: M226 ]

REAR FINAL DRIVE ASSEMBLY

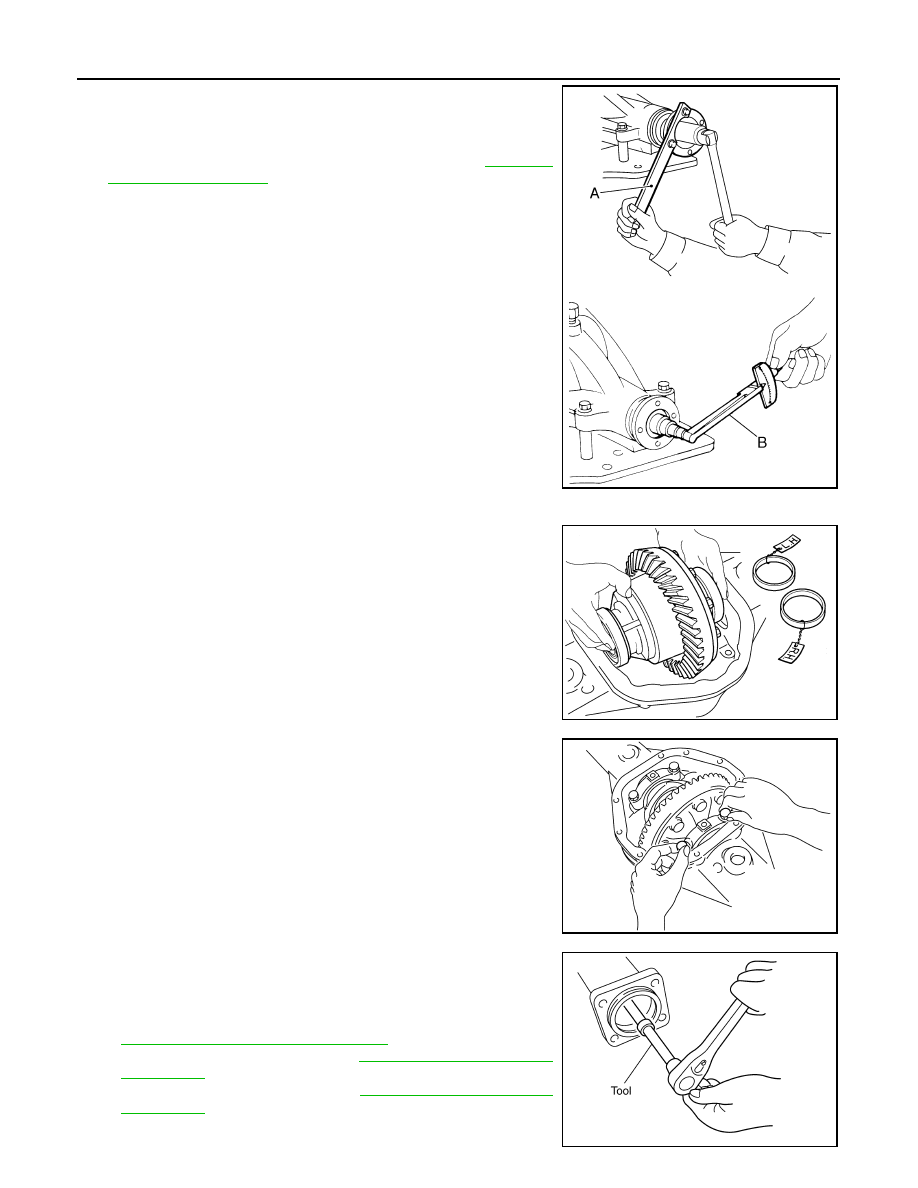

6. Apply anti-corrosive oil to the threads of the drive pinion and the

seating surface of the new drive pinion lock nut and new drive

pinion lock nut washer. Then adjust the drive pinion lock nut

tightening torque using suitable tool A, and check the drive pin-

ion bearing preload torque using Tool B. Refer to

DLN-208,

"General Specification"

.

CAUTION:

• Do not reuse drive pinion lock nut or drive pinion lock nut

washer.

• Apply anti-corrosive oil to the threads of the drive pinion

and the seating surface of the new drive pinion lock nut.

• Adjust the drive pinion lock nut tightening torque to the

lower limit first. Do not exceed the drive pinion lock nut

specified torque.

• If the drive pinion bearing preload torque exceeds the

specified value, replace collapsible spacer and tighten it

again to adjust. Do not loosen drive pinion lock nut to

adjust the drive pinion bearing preload torque.

• After adjustment, rotate drive pinion back and forth 2 to 3

times to check for unusual noise, rotation malfunction,

and other malfunctions.

Differential Assembly

1. Apply gear oil to side bearings. Install differential case assembly

with side bearing outer races into gear carrier.

2. Align paint matching mark on side bearing caps with that on

gear carrier and install side bearing caps on gear carrier.

CAUTION:

Do not tighten side bearing cap bolts at this point. This

allows further tightening of side bearing adjusters.

3. Tighten each side bearing adjusters using Tool.

• Adjusting backlash of drive gear and drive pinion. Refer to

DLN-208, "Inspection and Adjustment"

.

• Check total preload. Refer to

DLN-208, "Inspection and

Adjustment"

.

• Check tooth contact. Refer to

DLN-208, "Inspection and

Adjustment"

.

Tool number

B: ST3127S000 (J-25765-A)

WDIA0379E

PDIA0312E

PDIA0329E

Tool number

:  —  (C - 4164)

PDIA0337E
