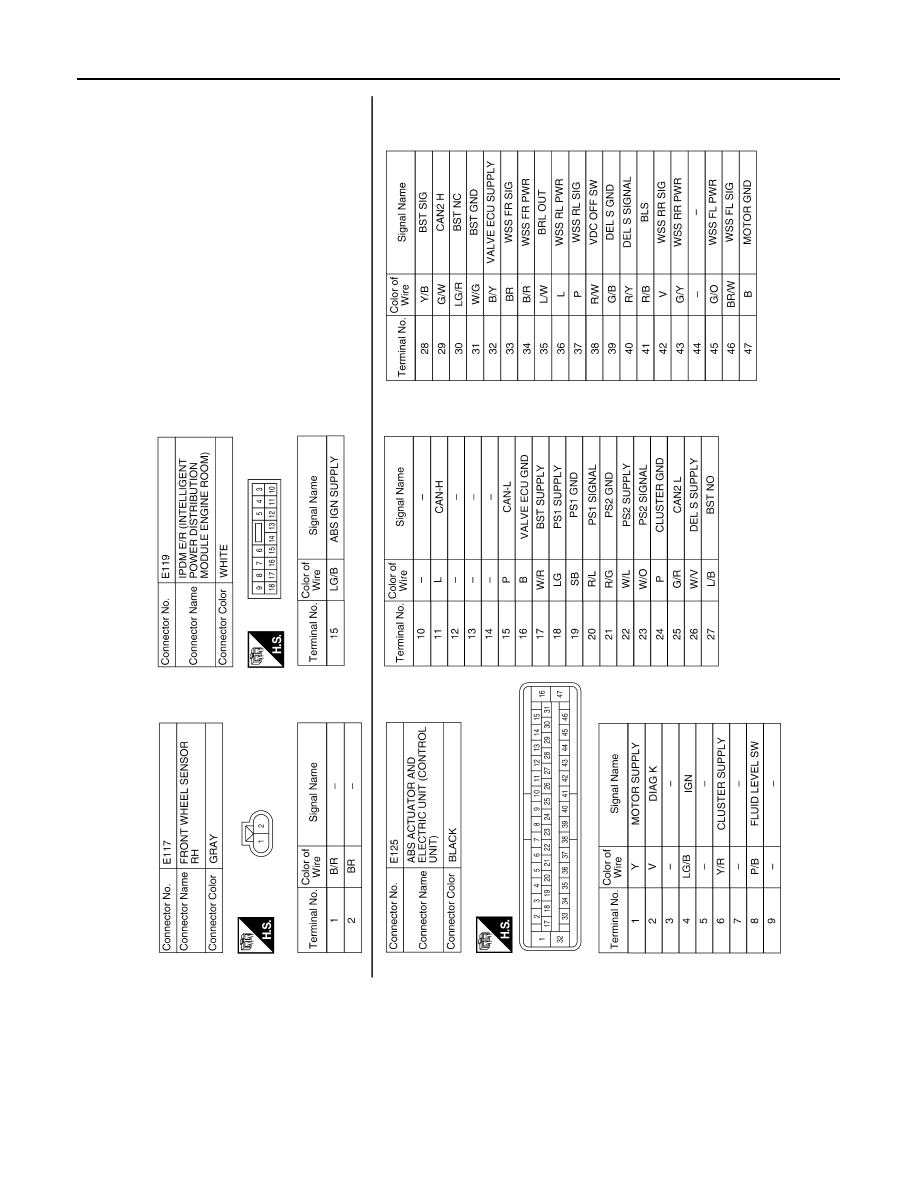

BRC-98

< WIRING DIAGRAM >

[VDC/TCS/ABS]

BRAKE CONTROL SYSTEM - VDC

ABFIA0425GB

BRAKE CONTROL SYSTEM - VDC

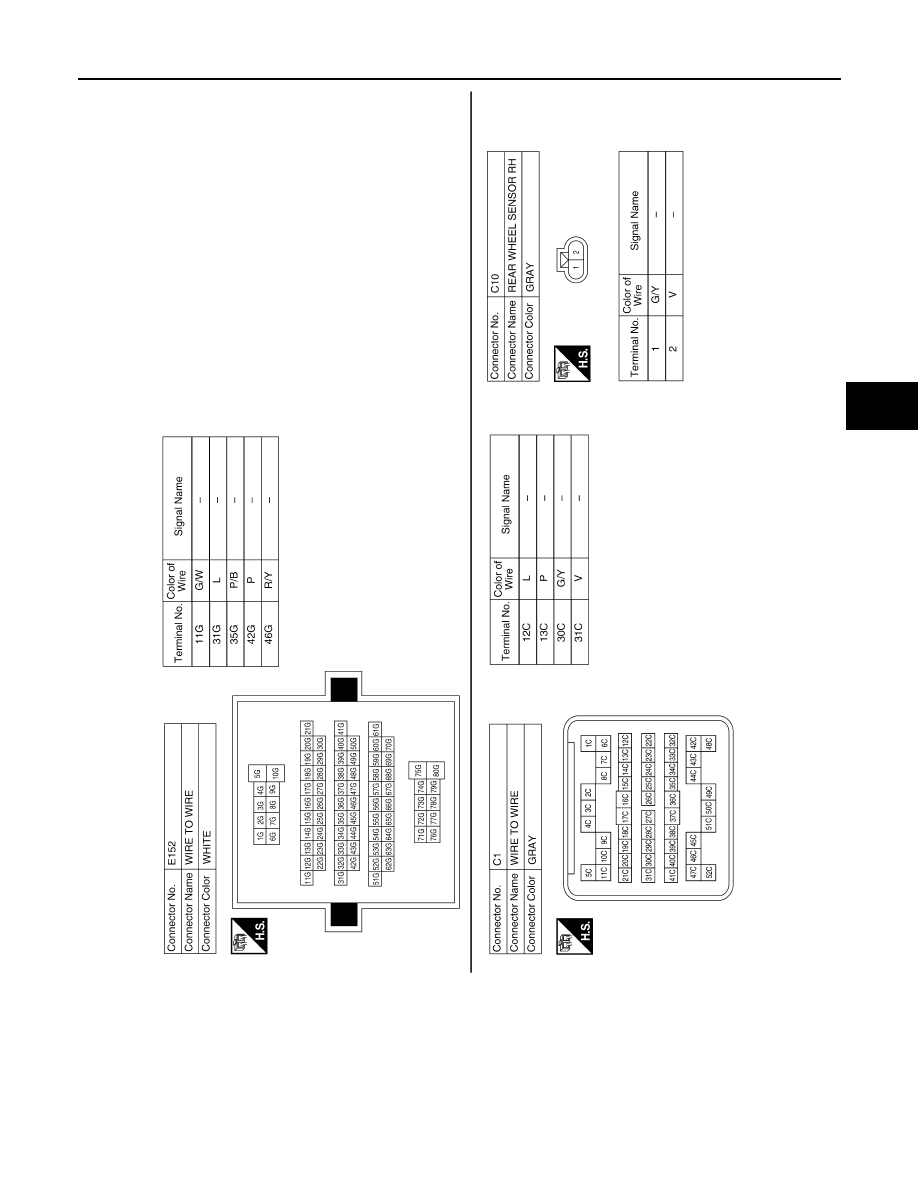

BRC-99

< WIRING DIAGRAM >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABFIA0426GB

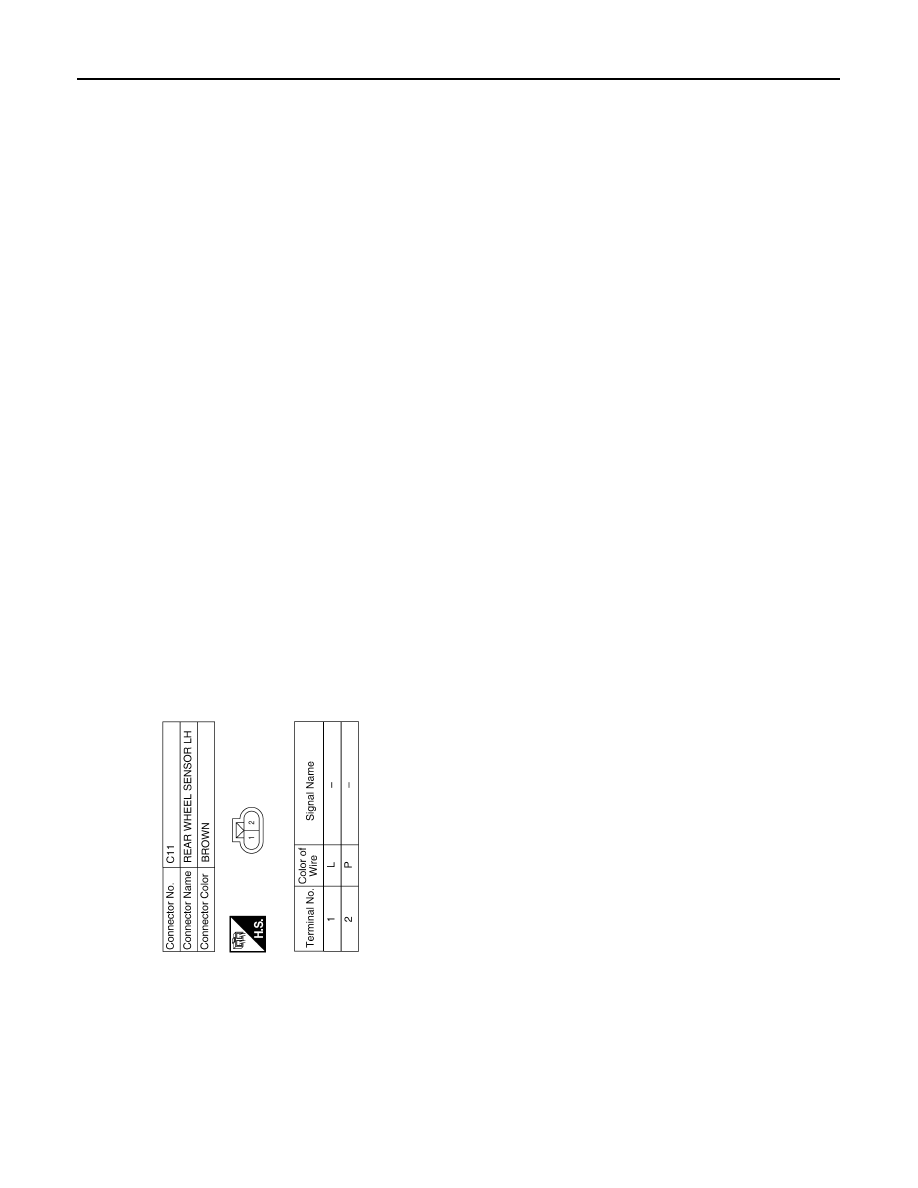

BRC-100

< WIRING DIAGRAM >

[VDC/TCS/ABS]

BRAKE CONTROL SYSTEM - VDC

ABFIA0427GB

VDC/TCS/ABS

BRC-101

< SYMPTOM DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

SYMPTOM DIAGNOSIS

VDC/TCS/ABS

Symptom Table

INFOID:0000000006165953

If ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp turn ON, perform self-diagnosis.

NOTE:
• 1: The ABS does not operate when the speed is 10 km/h (6 MPH) or less.
• 2: Under the following conditions, ABS is activated and vibration is felt when brake pedal is lightly depressed. However, this is normal.
- When shifting gears
- When driving on slippery road
- During cornering at high speed
- When passing over bumps or grooves [at approximately 50 mm (1.97 in) or more]
- When pulling away just after starting engine [at approximately 10 km/h (6 MPH) or higher]

Symptom

Check item

Reference

Excessive ABS function operation fre-
quency

Brake force distribution

BRC-102, "Diag-

nosis Procedure"

Looseness of front and rear axle

Wheel sensor and rotor system

Unexpected pedal reaction

Brake pedal stroke

BRC-103, "Diag-

nosis Procedure"

Make sure the braking force is sufficient when the ABS is not operating.

The braking distance is long

Check stopping distance when the ABS is not operating.

BRC-104, "Diag-

nosis Procedure"

ABS function does not operate (Note 1)

ABS actuator and electric unit (control unit)

BRC-105, "Diag-

nosis Procedure"

Pedal vibration or ABS operation sound
occurs (Note 2)

Brake pedal

BRC-106, "Diag-

nosis Procedure"

ABS actuator and electric unit (control unit)

Vehicle jerks during VDC/TCS/ABS con-
trol

ABS actuator and electric unit (control unit)

BRC-107, "Diag-

nosis Procedure"

TCM

ECM
