MICROPHONE

Removal and Installation

INFOID:0000000006166650

REMOVAL

1. Remove the front roof console finisher. Refer to

IP-12, "Removal

and Installation"

.

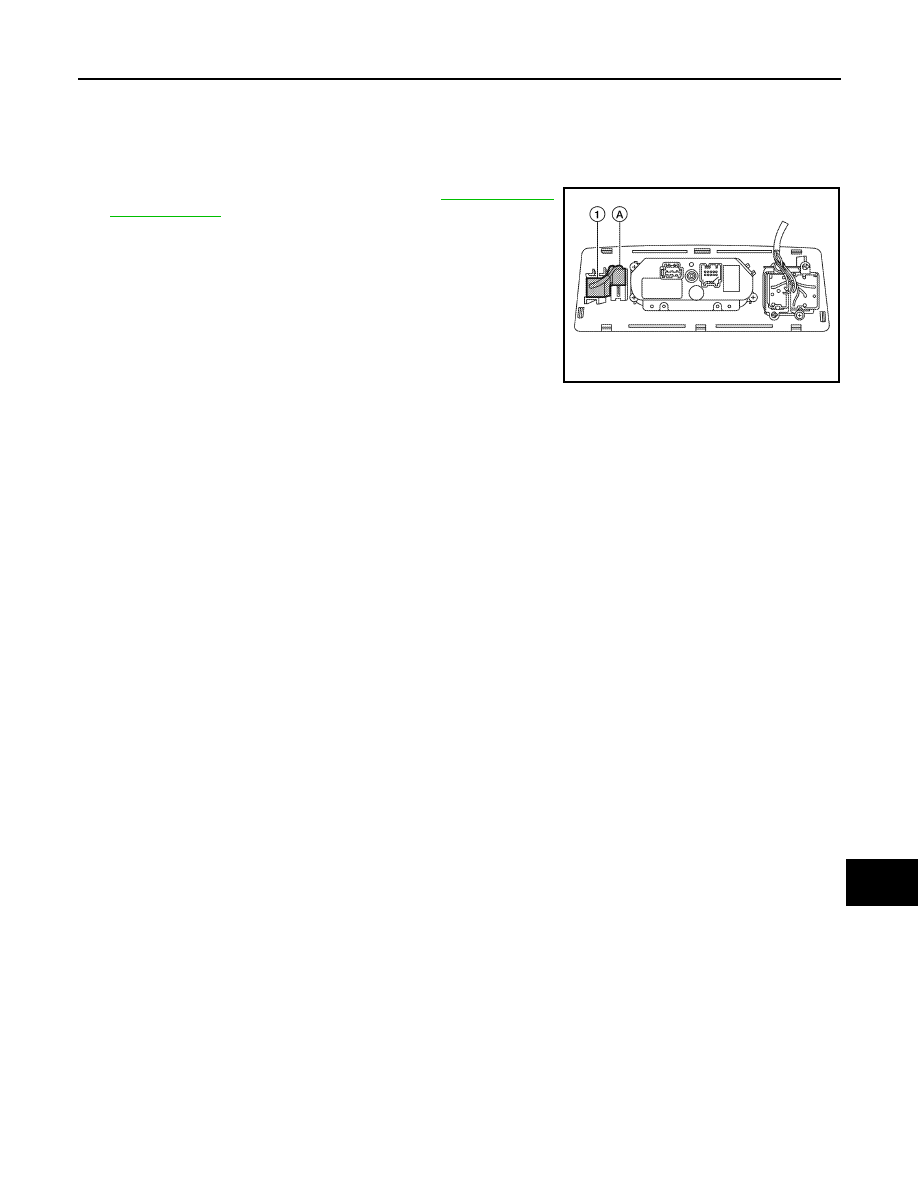

2. Disconnect the Bluetooth microphone connector (A).
3. Detach the Bluetooth microphone (1) from the front roof console

finisher and remove the Bluetooth microphone (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0275ZZ

ALNIA0274ZZ

AV-342

< REMOVAL AND INSTALLATION >

[PREMIUM WITH NAVIGATION]

TEL ANTENNA

TEL ANTENNA

Removal and Installation

INFOID:0000000006166651

REMOVAL

1. Disconnect the battery negative terminal.
2. Slide the front passenger seat fully forward.
3. Remove the Bluetooth control unit kick shield screws and remove the Bluetooth control unit kick shield.

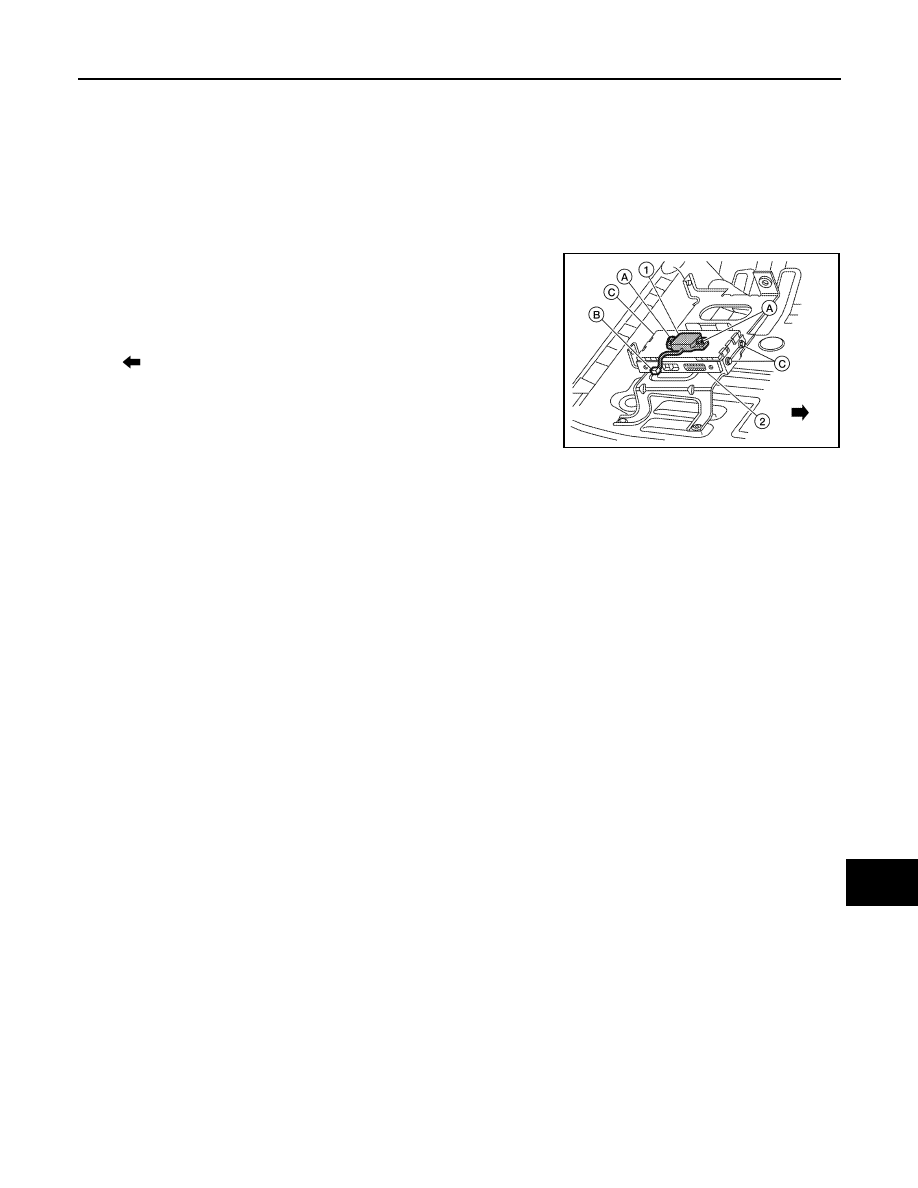

4. Remove the Bluetooth antenna screws (A), disconnect the Blue-

tooth antenna connector (B) and remove the Bluetooth antenna

(1).

• Bluetooth control unit screws (C)

• Bluetooth control unit (2)
•

:Front of vehicle

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0281ZZ

AV

BLUETOOTH CONTROL UNIT

AV-343

< REMOVAL AND INSTALLATION >

[PREMIUM WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BLUETOOTH CONTROL UNIT

Removal and Installation

INFOID:0000000006166652

REMOVAL

1. Disconnect the negative battery terminal.
2. Slide the front passenger seat fully forward.
3. Remove the Bluetooth control unit kick shield screws and remove the Bluetooth control unit kick shield.

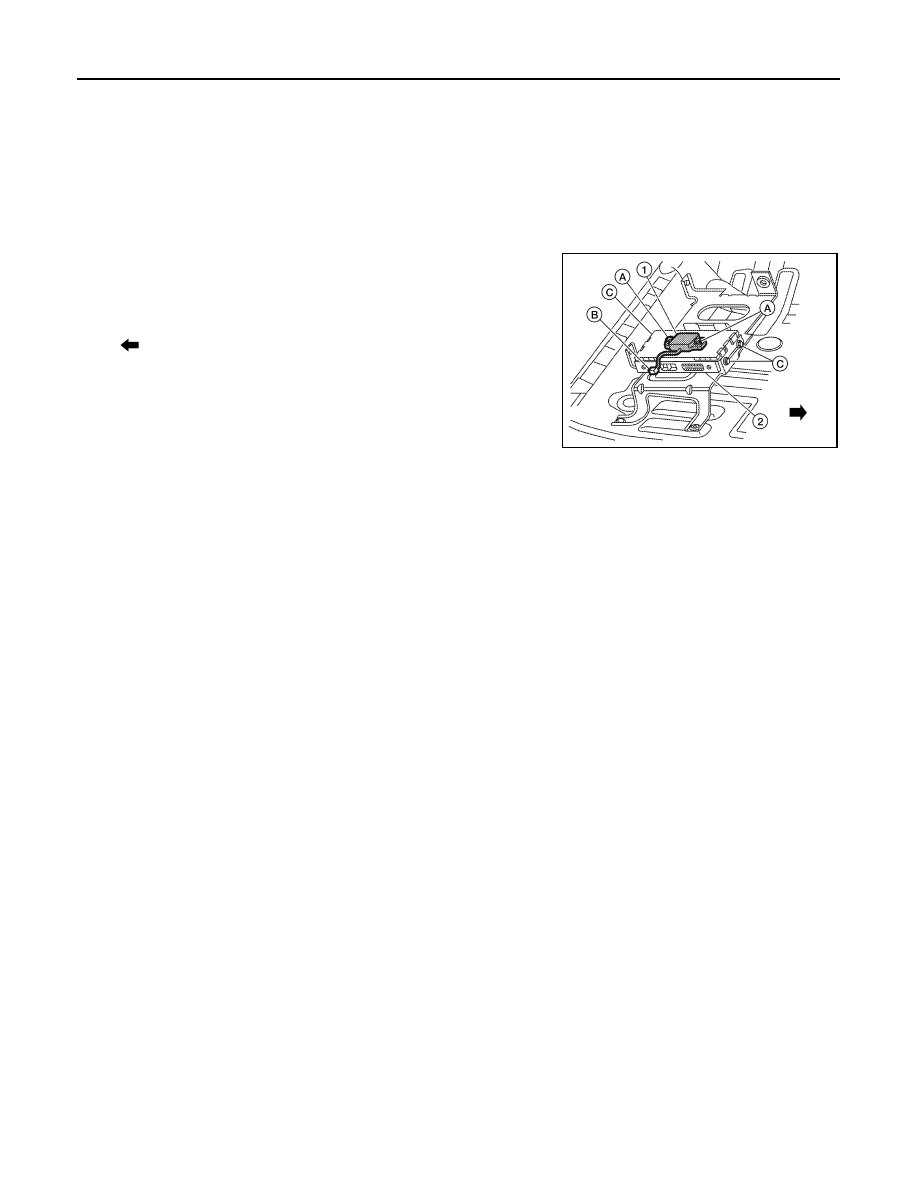

4. Remove the Bluetooth control unit screws (C), disconnect the

Bluetooth control unit connectors and remove the Bluetooth con-

trol unit (2).

• Bluetooth antenna (1)

• Bluetooth antenna screws (A)

• Bluetooth antenna connector (B)
•

:Front of vehicle

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0281ZZ

AV-344

< REMOVAL AND INSTALLATION >

[PREMIUM WITH NAVIGATION]

GPS ANTENNA

GPS ANTENNA

Removal and Installation

INFOID:0000000006166653

GPS ANTENNA

Removal

1. Remove the center console. Refer to

IP-19, "Removal and Installation"

.

2. Remove the cluster lid C. Refer to

IP-14, "Removal and Installation"

.

3. Remove the defroster grille. Refer to

IP-12, "Removal and Installation"

.

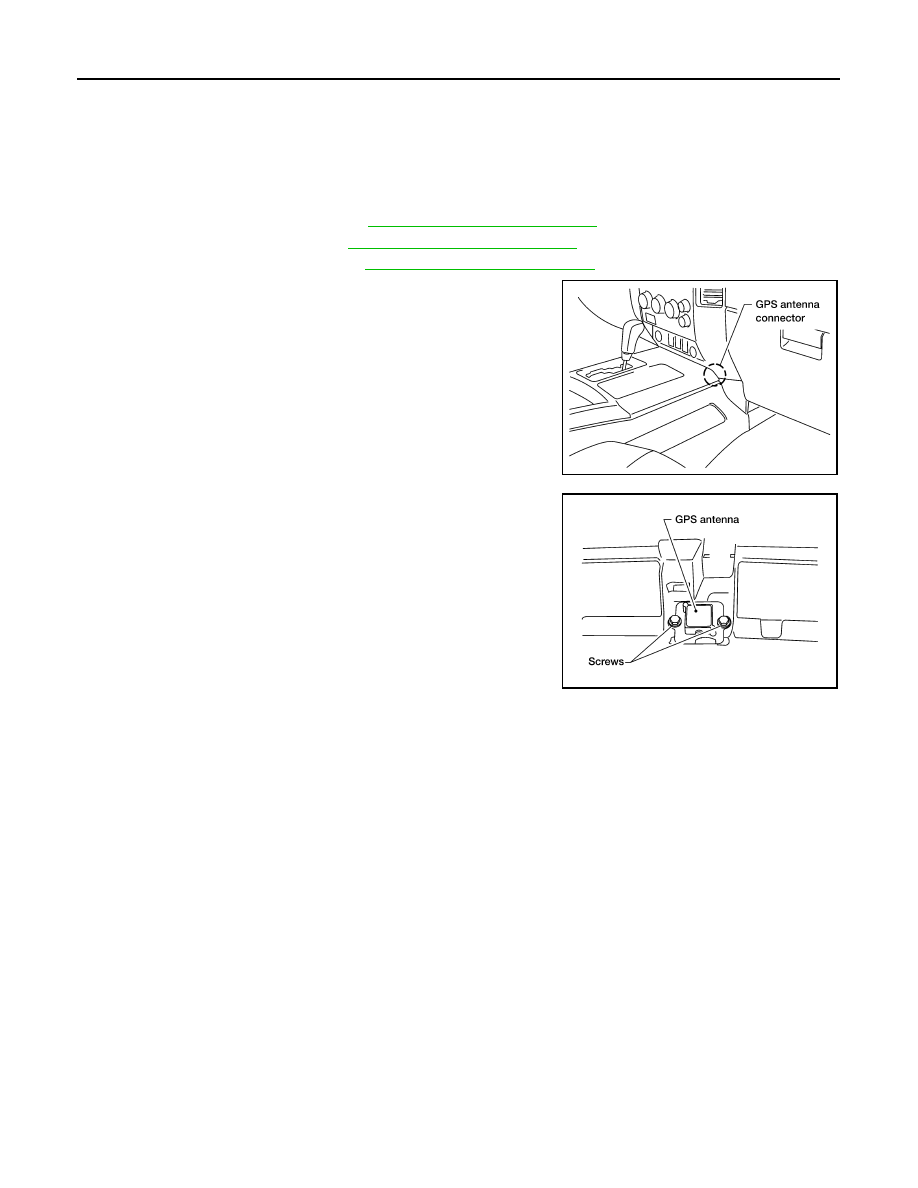

4. Disconnect the GPS antenna connector.

5. Remove the GPS antenna.

Installation

Installation is in the reverse order of removal.

WKIA1509E

WKIA1508E
