TIRE PRESSURE MONITORING SYSTEM

WT-33

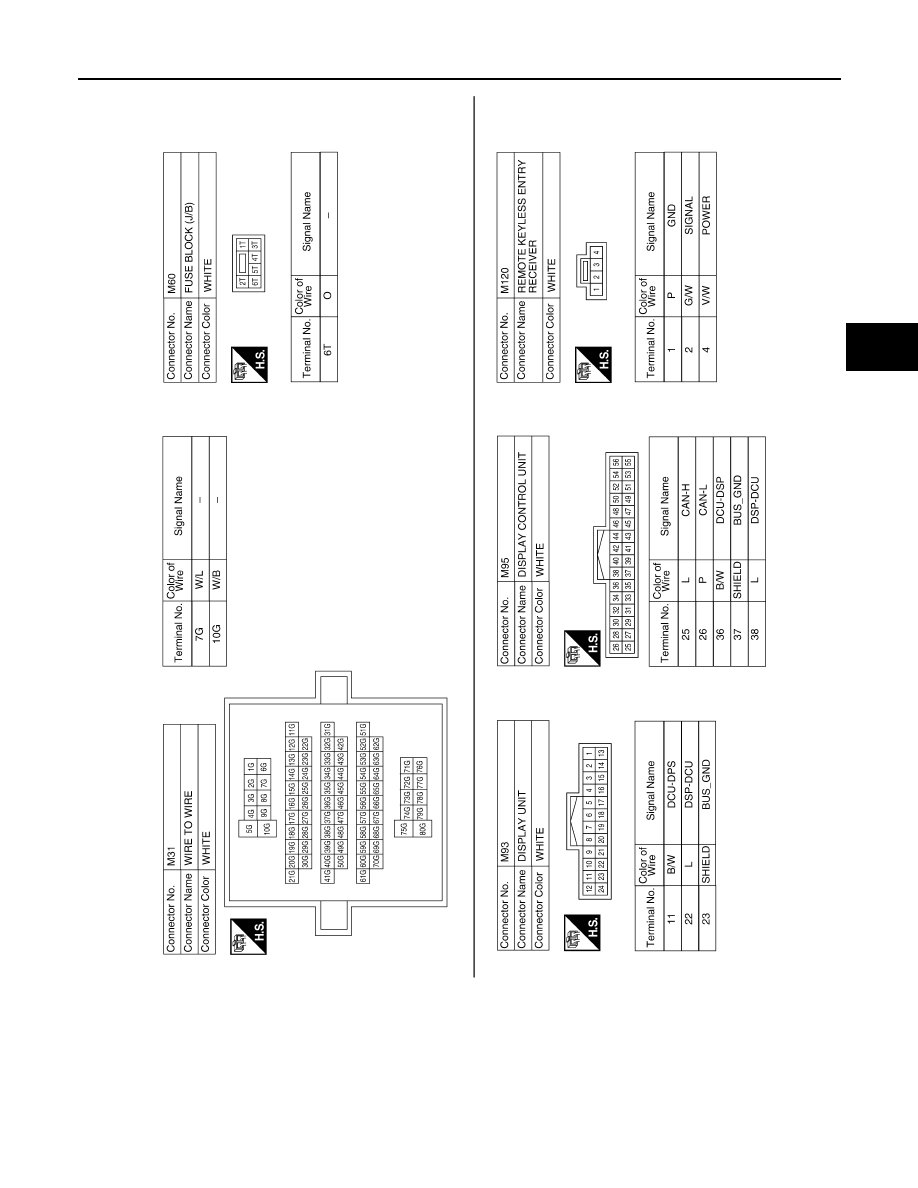

< WIRING DIAGRAM >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

ABEIA0012GB

WT-34

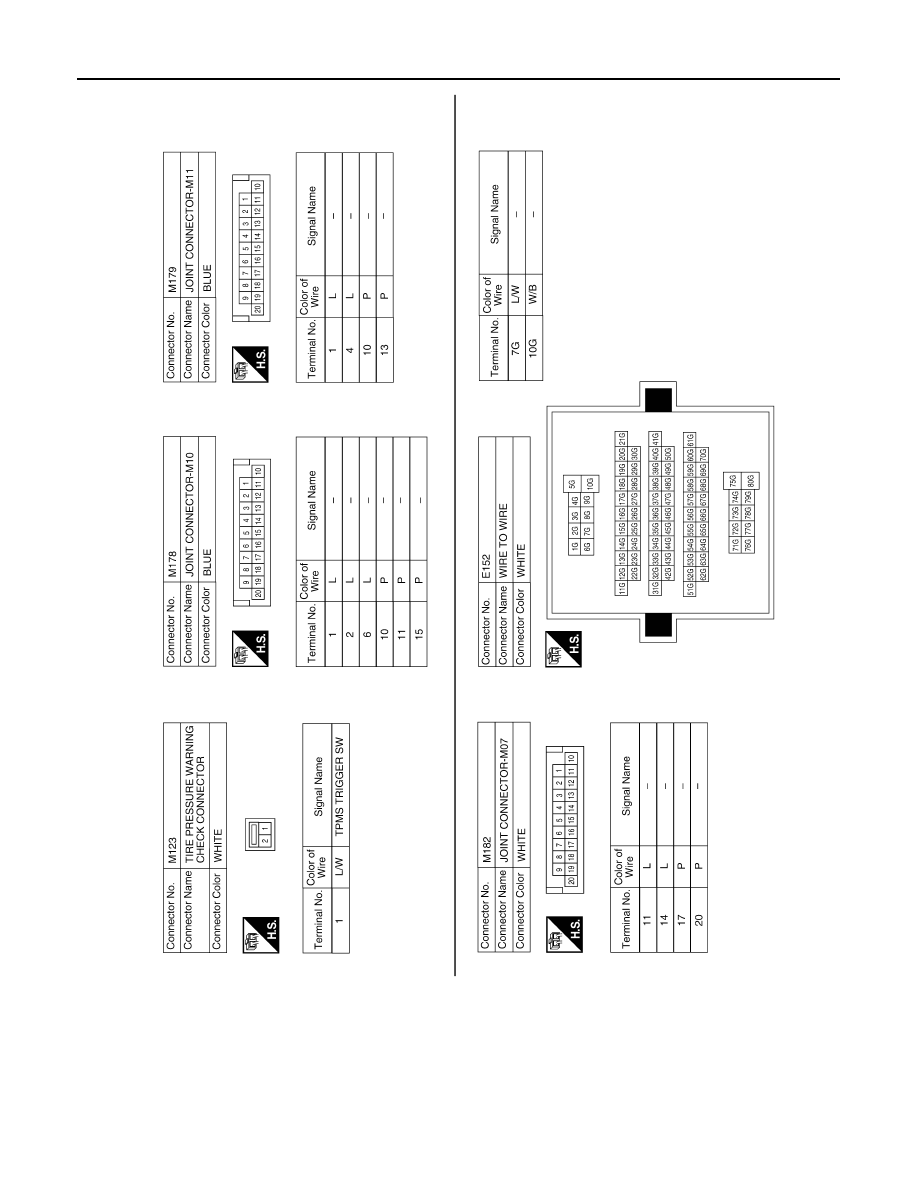

< WIRING DIAGRAM >

TIRE PRESSURE MONITORING SYSTEM

ABEIA0108GB

TPMS

WT-35

< SYMPTOM DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

SYMPTOM DIAGNOSIS

TPMS

Symptom Table

INFOID:0000000006179311

Symptom

Reference

Low tire pressure warning lamp does not come on when ignition switch is turned ON.

WT-36

Low tire pressure warning lamp stays on when ignition switch is turned ON.

WT-37

Low tire pressure warning lamp flashes when ignition switch is turned ON.

WT-38

Hazard warning lamps flash when ignition switch is turned ON.

WT-39

Tire pressure information in display unit does not exist.

WT-41

ID registration cannot be completed.

WT-41

WT-36

< SYMPTOM DIAGNOSIS >

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN ON

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN ON

Low Tire Pressure Warning Lamp Does Not Come On When Ignition Switch Is Turned
On

INFOID:0000000006179312

DIAGNOSTIC PROCEDURE

1.

SELF-DIAGNOSTIC RESULT CHECK

Using CONSULT-III, check display contents of BCM in SELF-DIAGNOSIS.
Is "CAN COMM CIRCUIT" displayed in the self-diagnosis display items?

YES

>>  Malfunction in CAN communication system.   Refer to

LAN-50, "CAN System Specification

Chart"

.

NO

>> GO TO 2

2.

CHECK COMBINATION METER

Check combination meter operation.  Refer to

MWI-28, "CONSULT-III Function (METER/M&A)"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Replace combination meter. Refer to

MWI-93, "Removal and Installation"

.

3.

CHECK LOW TIRE PRESSURE WARNING LAMP

Disconnect BCM harness connector.
Does the low tire pressure warning lamp activate?

YES

>> Replace BCM. Refer to

BCS-53, "Removal and Installation"

.

NO

>> Check combination meter operation.
