PREPARATION

PREPARATION

Commercial Service Tools

INFOID:0000000006166481

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0191E

AV-86

< REMOVAL AND INSTALLATION >

[MID AUDIO]

AUDIO UNIT

REMOVAL AND INSTALLATION

AUDIO UNIT

Removal and Installation

INFOID:0000000006166482

AUDIO UNIT

Removal

1. Disconnect the battery negative terminal.
2. Remove the cluster lid C. Refer to

IP-15, "Removal and Installation"

.

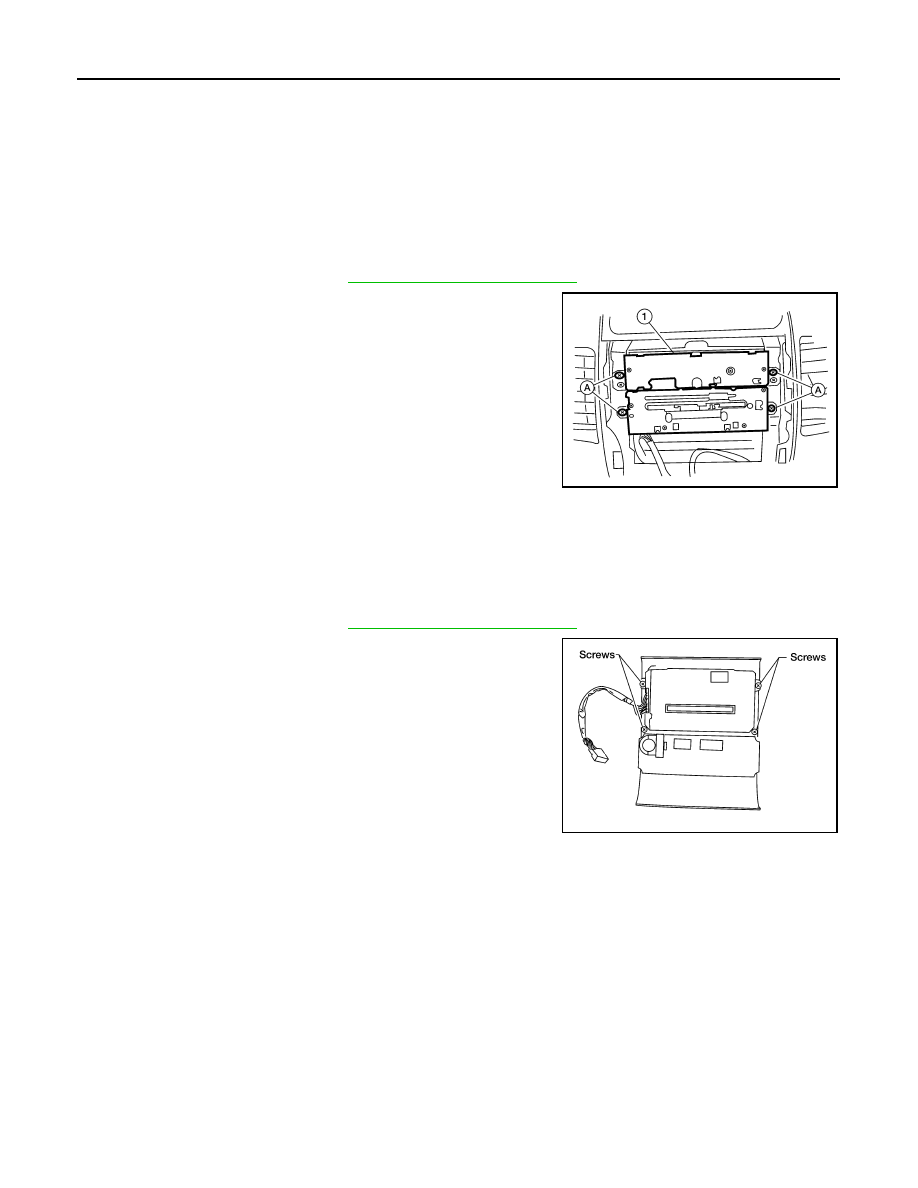

3. Remove the audio unit screws (A), using power tool.
4. Pull out the audio unit (1) and disconnect the audio unit connec-

tors.

Installation

Installation is in the reverse order of removal.

AV SWITCH

Removal

1. Disconnect battery negative terminal.
2. Remove the cluster lid C. Refer to

IP-15, "Removal and Installation"

.

3. Remove the AV switch screws.
4. Carefully remove the AV switch.

Installation

Installation is in the reverse order of removal.

ALNIA0646ZZ

WKIA1798E

AV

FRONT TWEETER

AV-87

< REMOVAL AND INSTALLATION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

 FRONT TWEETER

Removal and Installation

INFOID:0000000006166483

FRONT TWEETER

Removal

1. Remove the front tweeter grille. Refer to

IP-12, "Removal and Installation"

.

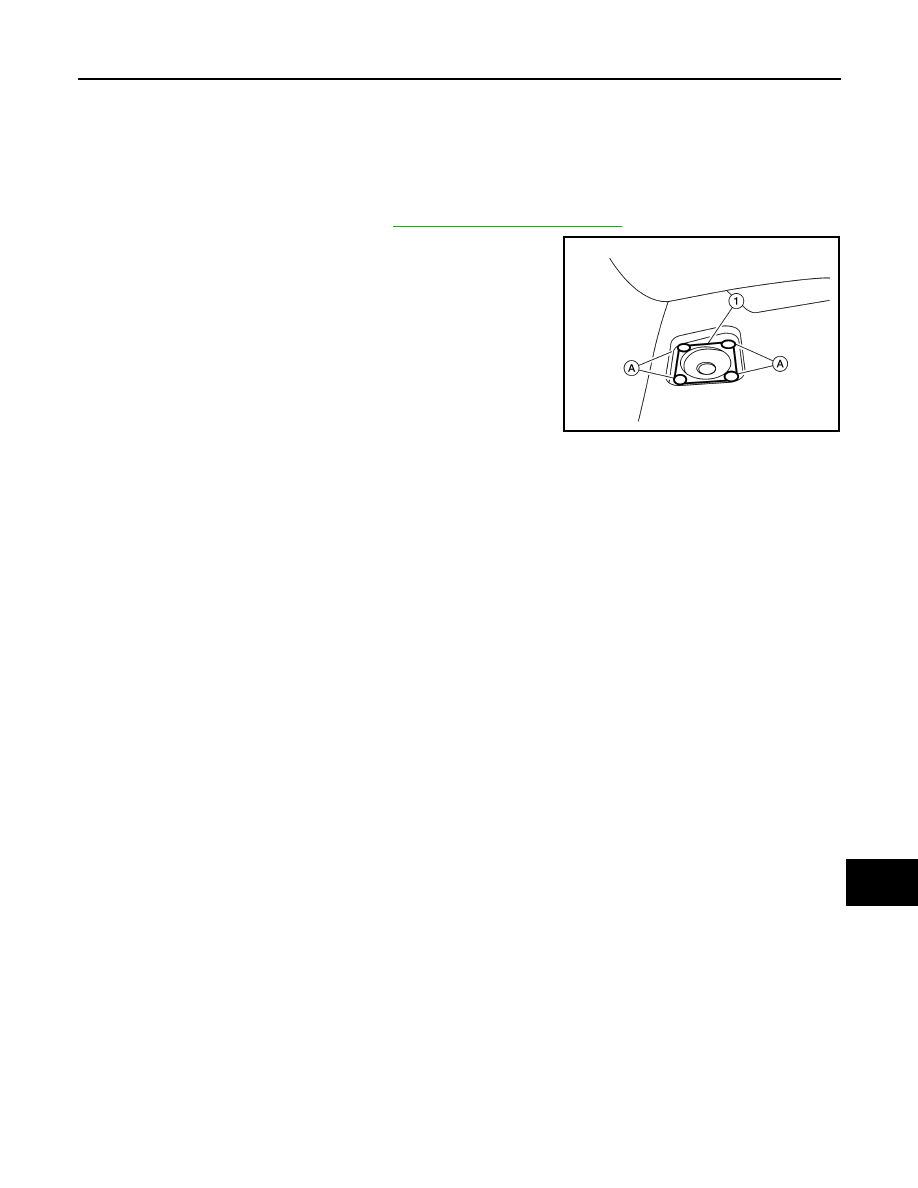

2. Remove the front tweeter clips (C103) (A).
3. Disconnect the front tweeter connector and remove the front

tweeter (1).

Installation

Installation is in the reverse order of removal.

ALNIA0642ZZ

AV-88

< REMOVAL AND INSTALLATION >

[MID AUDIO]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000006166484

FRONT DOOR SPEAKER

Removal

1. Remove the front door finisher. Refer to

INT-10, "Removal and Installation"

.

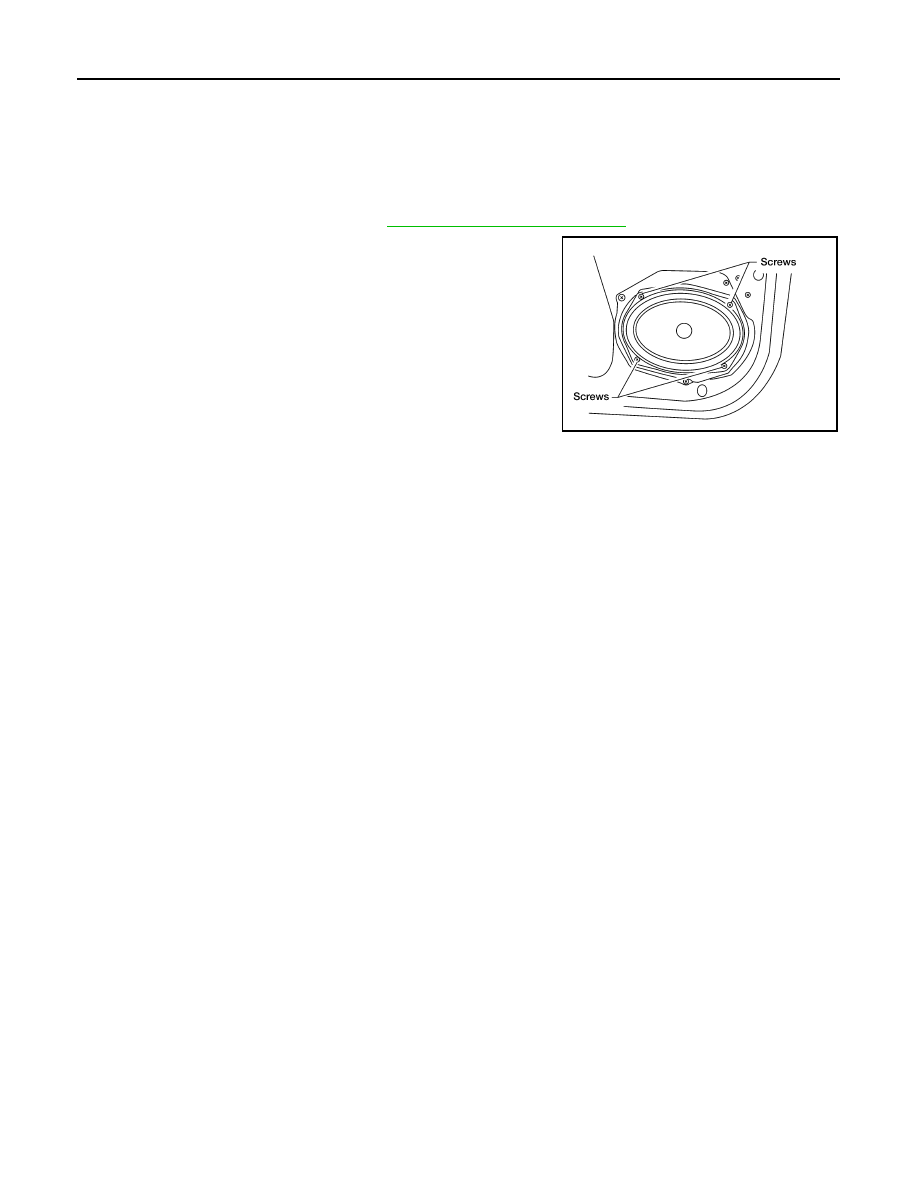

2. Remove the four front door speaker screws.
3. Disconnect the front door speaker connector and remove the

front door speaker.

Installation

Installation is in the reverse order of removal.
