Nissan Quest E52. Manual - part 789

INL-36

< WIRING DIAGRAM >

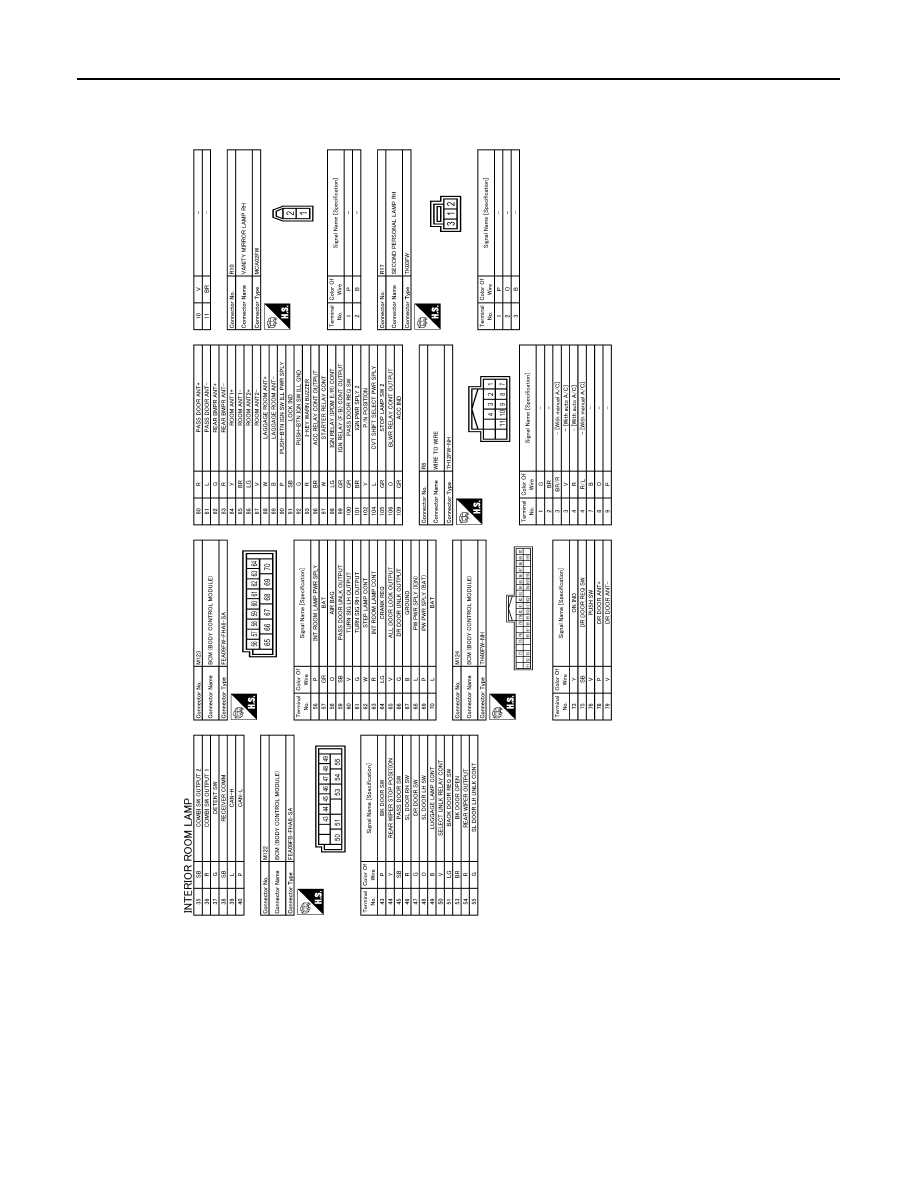

INTERIOR ROOM LAMP CONTROL SYSTEM

JRLWC7456GB

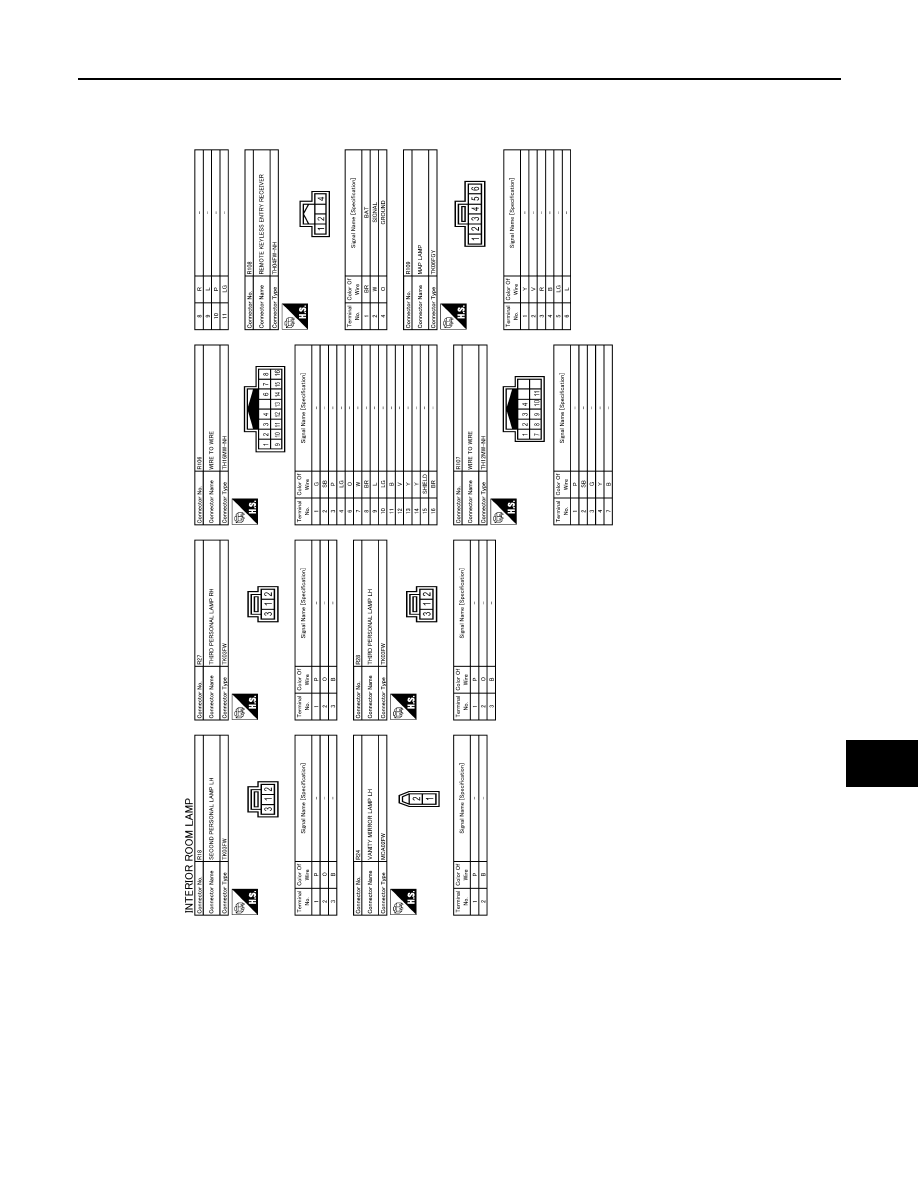

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-37

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

JRLWC7457GB

INL-38

< WIRING DIAGRAM >

ILLUMINATION

ILLUMINATION

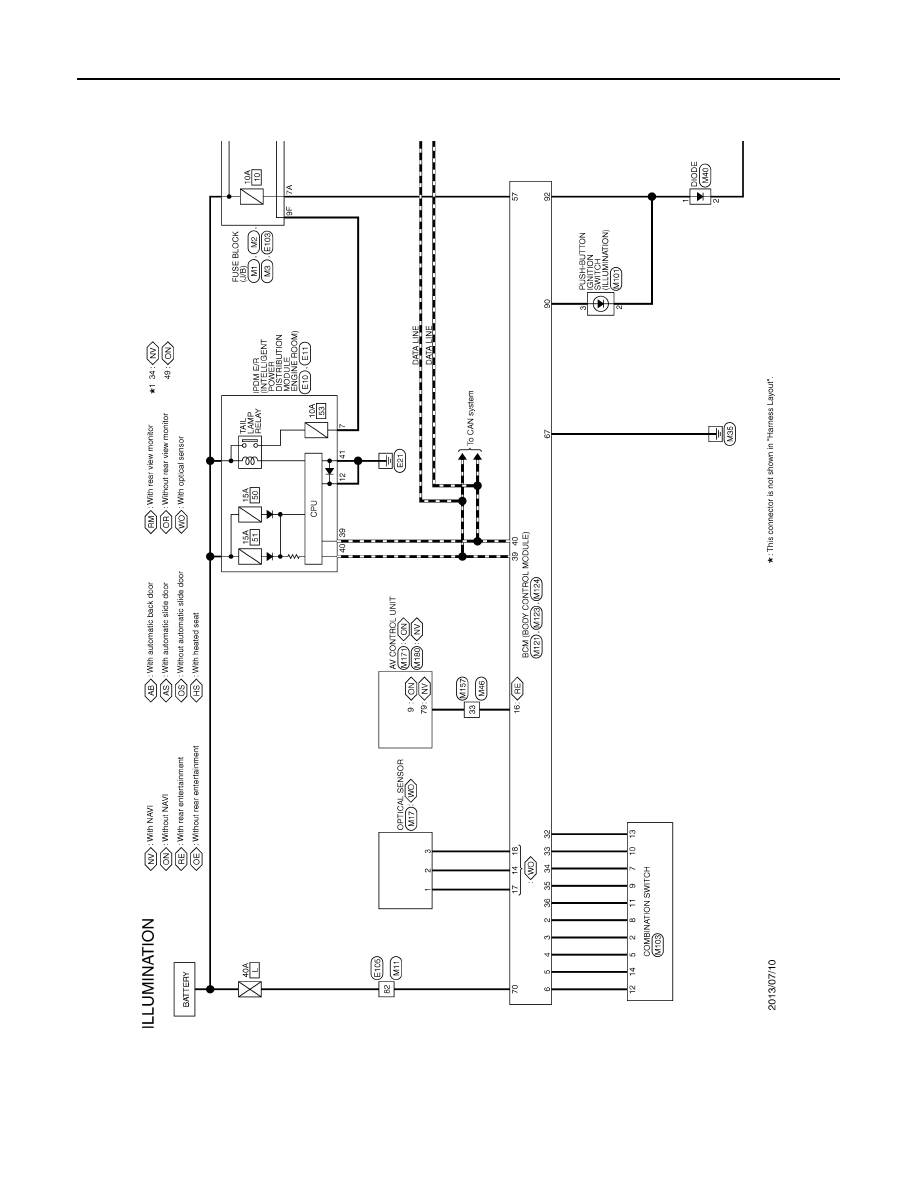

Wiring Diagram

INFOID:0000000009653479

JRLWC7458GB

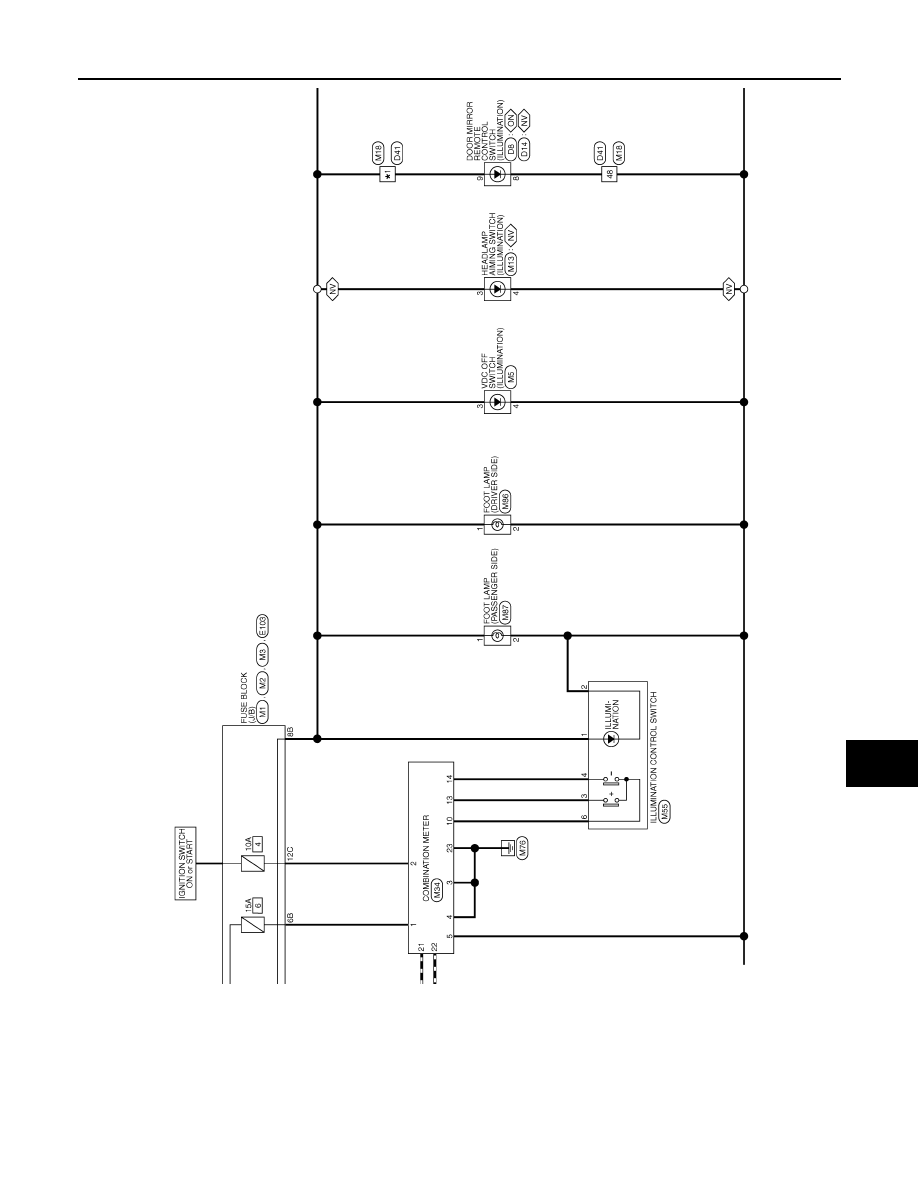

ILLUMINATION

INL-39

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

JRLWC7459GB
