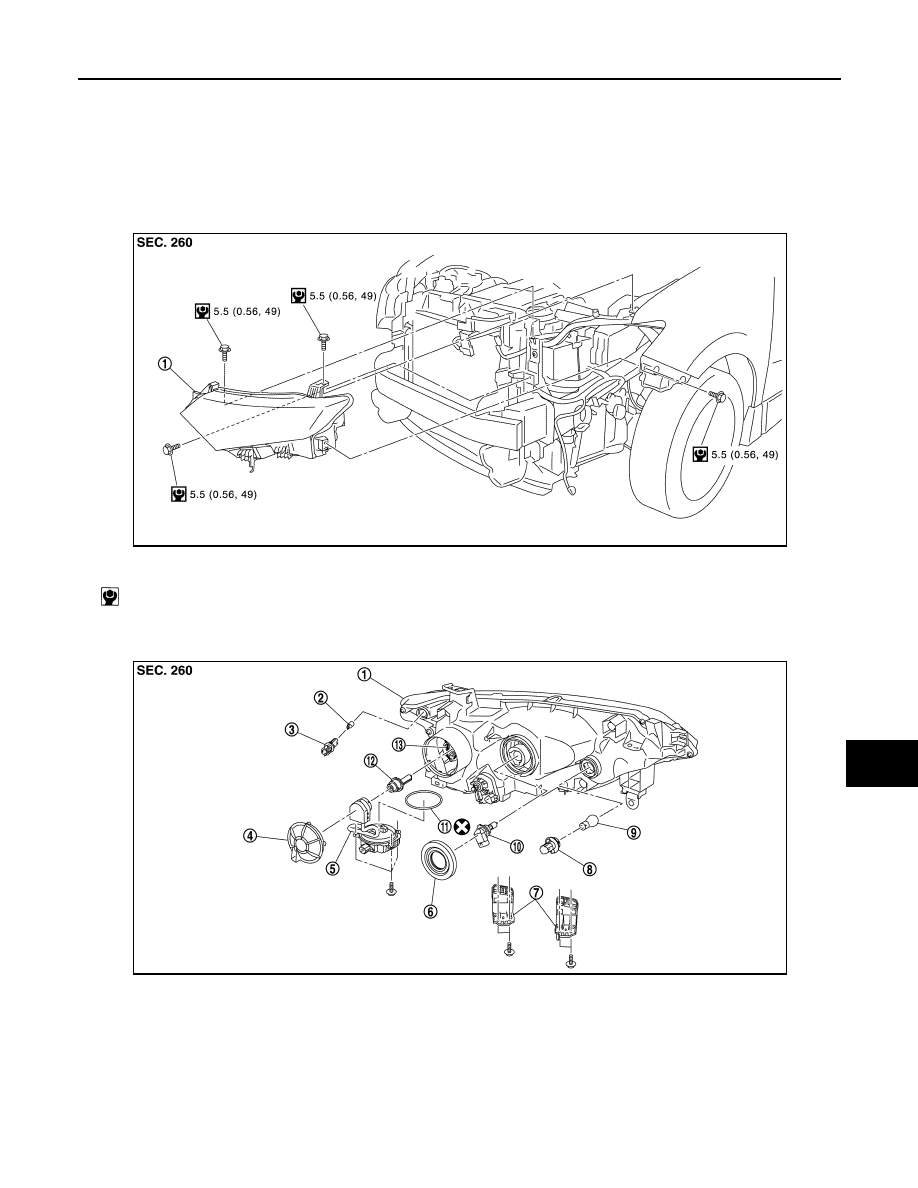

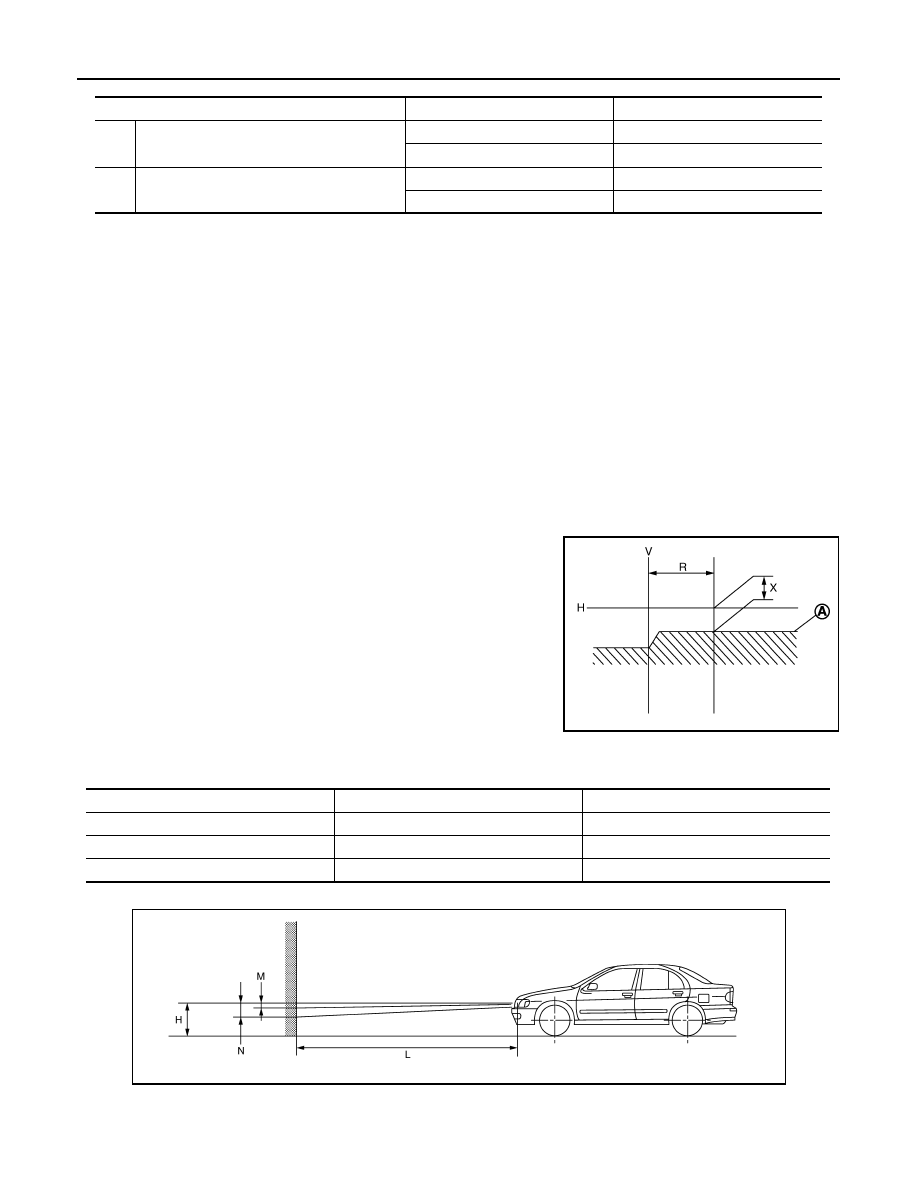

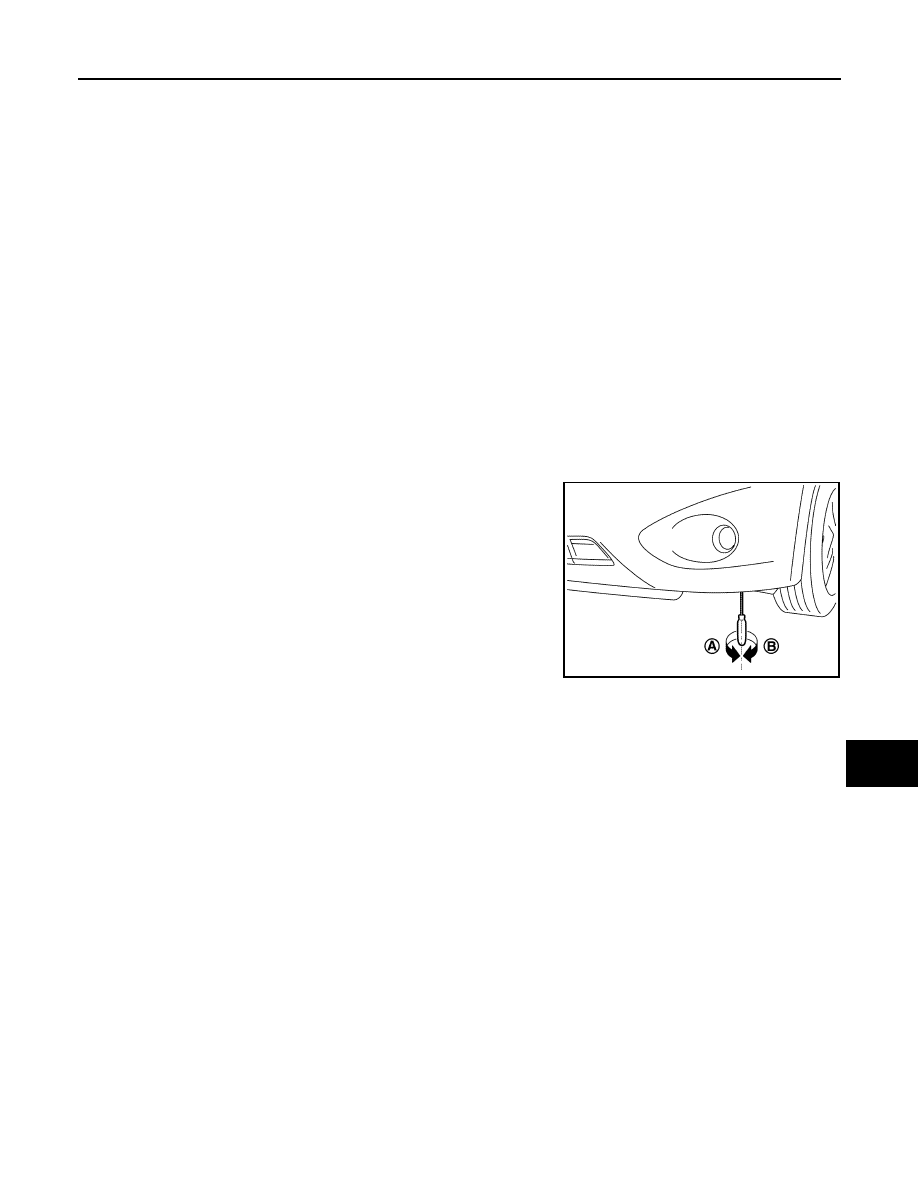

EXL-100 < PERIODIC MAINTENANCE > [XENON TYPE] HEADLAMP AIMING ADJUSTMENT Aiming Adjustment Procedure INFOID:0000000009653083 1. Place the screen. 2. Face the vehicle with the screen. Maintain 10 m (32.8 ft) between the headlamp center and the screen. 3. Start the engine. Turn the headlamp (LO) ON. CAUTION: Never cover the lens surface with a tape etc. The lens is made of resin. 4. Measure the distance (X) between the horizontal center line of headlamp (H) and the cutoff line (A) within Low beam distribution on the screen 5. Adjust the cutoff line height (X) with the aiming adjustment screw so as to enter in the adjustment range unit: mm (in) Side view Adjustment screw Screw driver rotation Facing direction A Headlamp RH HI/LO (UP/DOWN) Clockwise UP Counterclockwise DOWN B Headlamp LH HI/LO (UP/DOWN) Clockwise UP Counterclockwise DOWN Light axis measurement range (R) : 350 ± 175 mm (13.78 ± 6.89 in) JSLIA0005ZZ Horizontal center line of headlamp (H) Highest cutoff line height (M) Lowest cutoff line height (N) 700 (27.56) or less 4 (0.16) 30 (1.18) 701(27.60) – 800 (31.50) 4 (0.16) 30 (1.18) 801 (31.54) or more 17 (0.67) 44 (1.73) JSLIA0006ZZ Distance between the headlamp center and the screen (L) : 10 m (32.8 ft) |
