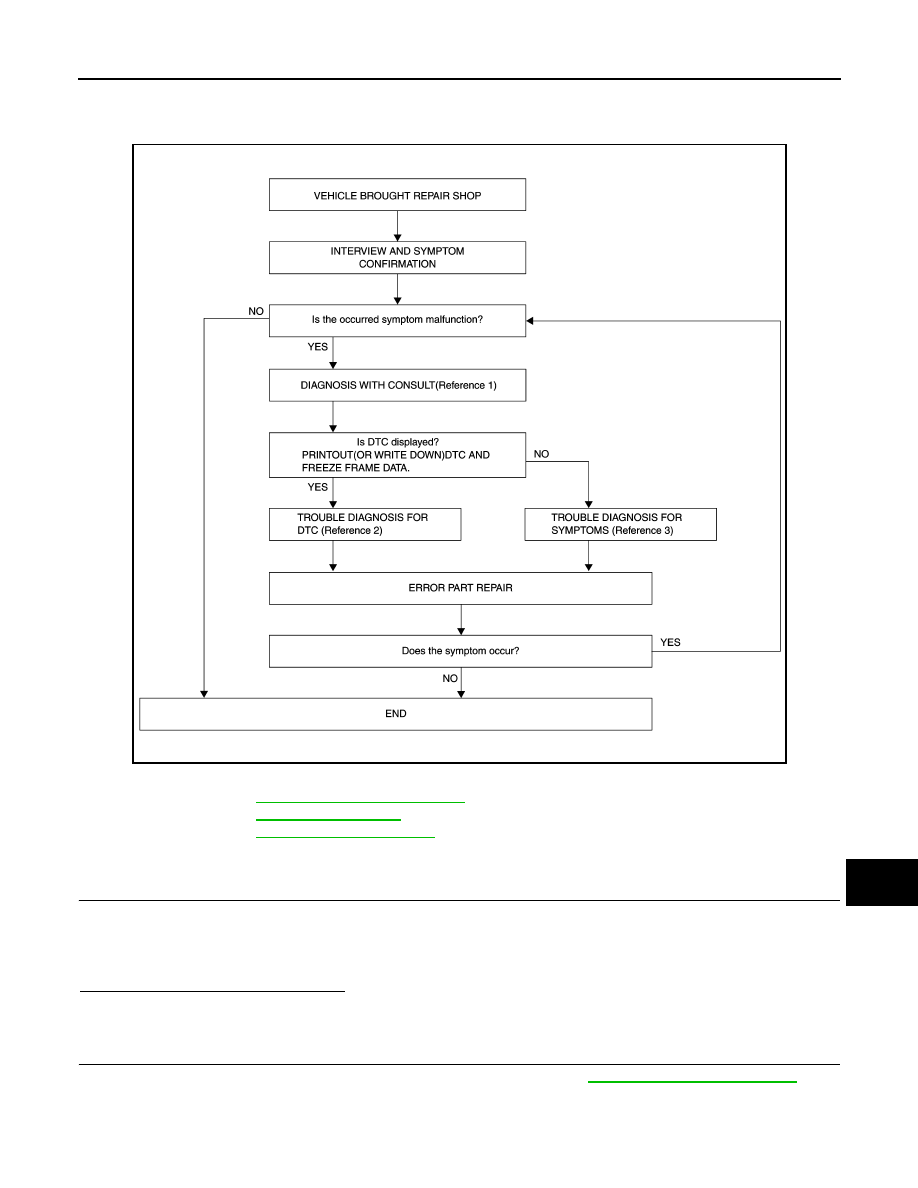

AV DIAGNOSIS AND REPAIR WORK FLOW AV-523 < BASIC INSPECTION > [BOSE AUDIO WITH NAVIGATION] C D E F G H I J K L M B A O P AROUND VIEW MONITOR SYSTEM : Work Flow INFOID:0000000009652289 OVERALL SEQUENCE • Reference 1··· Refer to • Reference 2··· Refer to . • Reference 3··· Refer to DETAILED FLOW 1. INTERVIEW AND SYMPTOM CONFIRMATION Check the malfunction symptoms by performing the following items. tion occurred). • Check the symptom. Is the occurred symptom malfunction? YES >> GO TO 2. NO >> INSPECTION END 2. DIAGNOSIS WITH CONSULT 1. Connect CONSULT and perform a self-diagnosis for “AVM”. Refer to . NOTE: 2. When DTC is detected, follow the instructions below: JSNIA4482GB |
