Nissan Quest E52. Manual - part 139

AV

COMPONENT PARTS

AV-435

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CD/DVD drive

Used disc

φ

 12 cm (4.7 in)

Playable disc

CD

CD-ROM (CD-DA)

CD-R

*1

CD-RW

*1

DVD

DVD-ROM

DVD

±

R

*1

DVD

±

RW

*1

DVD

±

R DL

*1

Playable format

Music

MP3

WMA

AAC


DVD-VIDEO

VIDEO-CD

DVD-VR

MPEG4-ASF

DivX

®

Text display function

ID3 / WMA / AAC tag

Artist name

Album title

Song title

USB

High communication standard

USB2.0

Playable format

Music

MP3

WMA

AAC


MPEG4-ASF

DivX

®

Image viewer

JPEG

Text display function

ID3 / WMA / AAC tag

Artist name

Album title

Song title

iPod

®

Action

*2

iPod Classic

®

iPod nano

®

 4th generation

iPod nano

®

 3rd generation

iPod nano

®

 2nd generation

iPod nano

®

 1st generation

iPod

®

 5th generation

iPod touch

®

 1st generation

iPod touch

®

 2nd generation

Bluetooth

®

 audio

Compliant communica-
tion type

Wireless connection

Bluetooth

®

 communication

Compliant profile

A2DP 1.2

AVRCP 1.3

AV-436

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

COMPONENT PARTS

• *1: If the reflectance of the surface of the media is low, the data may not be read.
• *2: It may not be used if it is not updated to the latest firmware or partial functions may not work if it is used.

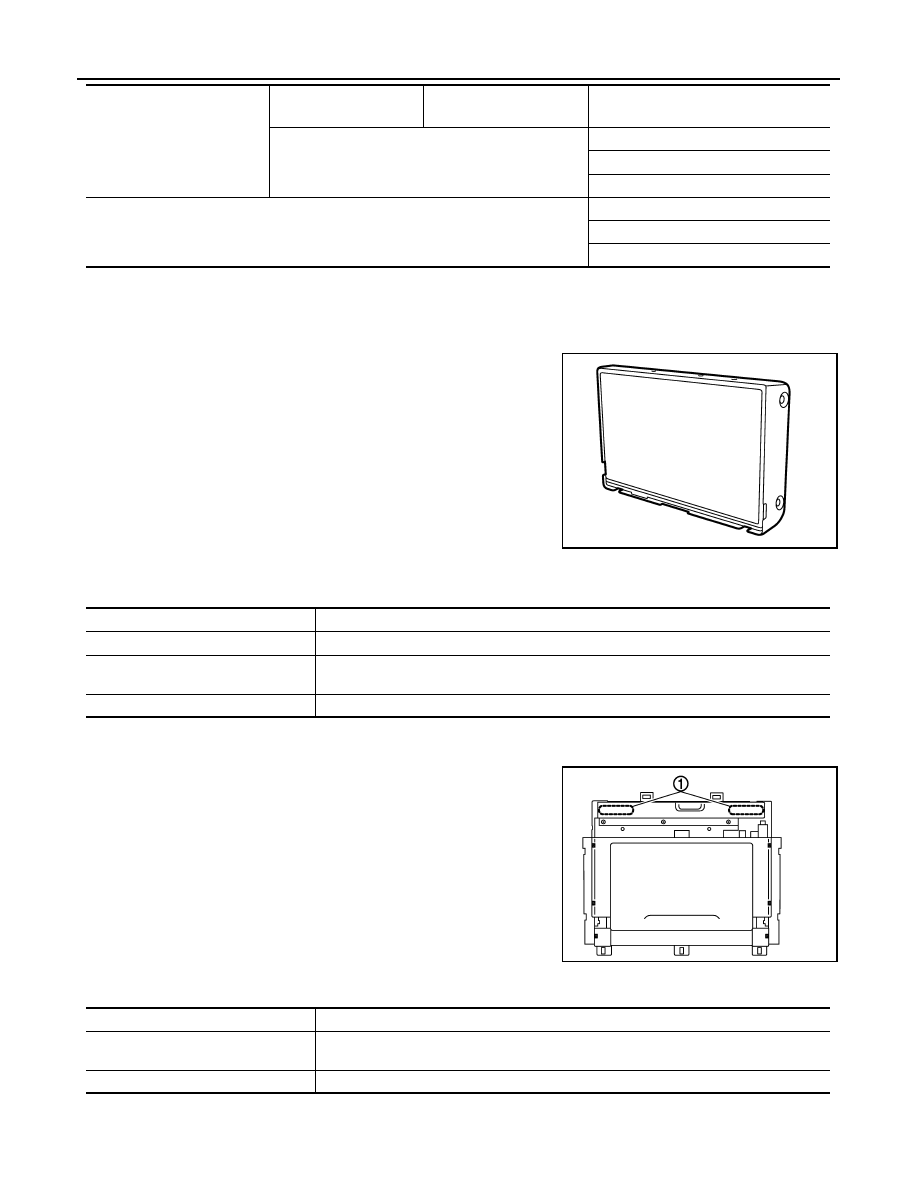

Front Display Unit

INFOID:0000000009652251

• The front display unit has a high-resolution 8-inch WVGA

*

 display

and a touch panel function.

• RGB digital image signal and composite image signal [USB (video

data), DVD and auxiliary input] are input from AV control unit.

• Camera image signal is input from rear view camera.
• This unit is connected to the AV control unit via serial communica-

tion. Images shown on the front display unit are controlled by the
AV control unit.

• Touch panel operation signal is output to the AV control unit by

serial communication.

*: WVGA (Wide VGA) is a standard of the resolution of the display. It
extended width of VGA.

Specification

Rear Display Unit

INFOID:0000000009652252

• The rear display unit has an 11-inch WVGA

*

 liquid-crystal display

and a remote-control automatic folding function.

• Composite image signal [USB (video data), DVD and auxiliary

input] and headphone sound signal are input from AV control unit.

• A remote control operation signal is received through the built-in

light-receptive spot (1).

• The display brightness is adjusted automatically, according to

ambient brightness.

*: WVGA (Wide VGA) is a standard of the resolution of the display. It
extended width of VGA.

Specification

Hands-free phone

Compliant communica-
tion type

Wireless connection

Bluetooth

®

 communication compliant

type

Compliant profile

HFP 1.0,1.5

DUN 1.1

OPP 1.1

Other functions

Speed sensitive volume function

Steering switch compliant

Voice recognition function

JPNIA1481ZZ

Manufacturer name

Johnson controls KK

Touch panel detection

4 wires analogue resistive film type

Screen size

8-inch WVGA

[174 mm

×

104.4 mm (6.9 in

×

 4.1 in)]

Number of pixels

800

×

 480 pixels

JSNIA3449ZZ

Manufacturer name

Clarion Co., Ltd.

Screen size

11-inch WVGA

[ 243.6 mm

×

137.52mm (9.6 in

×

 5.4 in) ]

Number of pixels

800

×

 480 pixels

AV

COMPONENT PARTS

AV-437

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

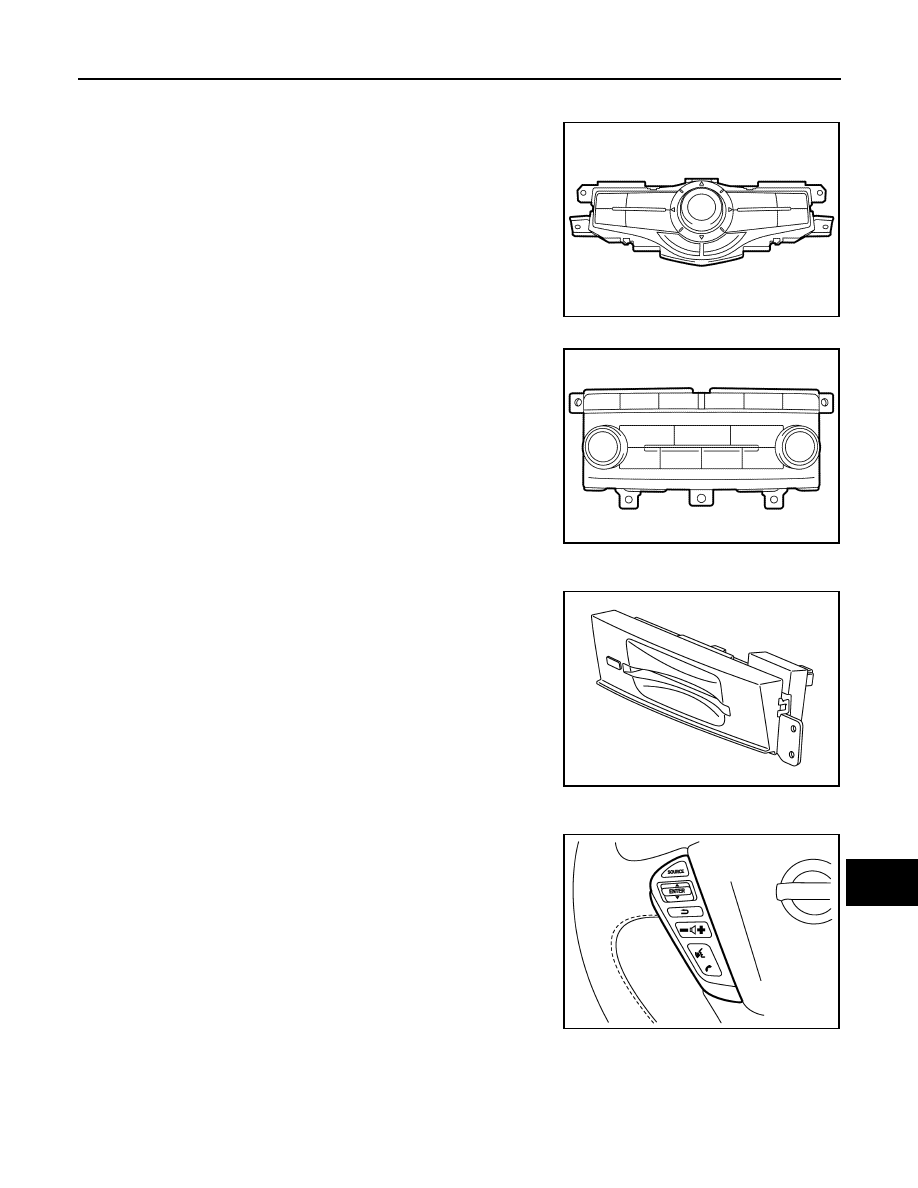

Multifunction Switch

INFOID:0000000009652253

• The multifunction switch is an integrated switch that combines the

navigation operation, audio operation, and other operations
switches. This integrated switch is located in the lower part of the
front display unit to facilitate the use in combination with the touch
panel.

• Connected with preset switch via hardwire and operation signal is

transmitted to AV control unit via AV communication.

PRESET SWITCH

• The preset switch is separated from the multifunction switch and

capable of audio operation.

• Operation signals of the multifunction switch and the preset switch

are transmitted to the AV control unit via AV communication.

Disk Eject Switch

INFOID:0000000009652254

• The disk eject switch is used for removing CD/DVD from the AV

control unit.

• When the disk eject switch is pressed, a disk eject signal is trans-

mitted to the AV control unit, and the AV control unit ejects CD/
DVD.

Steering Switch

INFOID:0000000009652255

• Operations for navigation, audio, and hands-free phone, etc. are

possible.

• This switch is connected to the AV control unit, and the switch

operation signal is transmitted to the AV control unit via voltage
multiplex communication.

JSNIA4202ZZ

JSNIA4203ZZ

JSNIA3454ZZ

JSNIA3416ZZ

AV-438

< SYSTEM DESCRIPTION >

[BOSE AUDIO WITH NAVIGATION]

COMPONENT PARTS

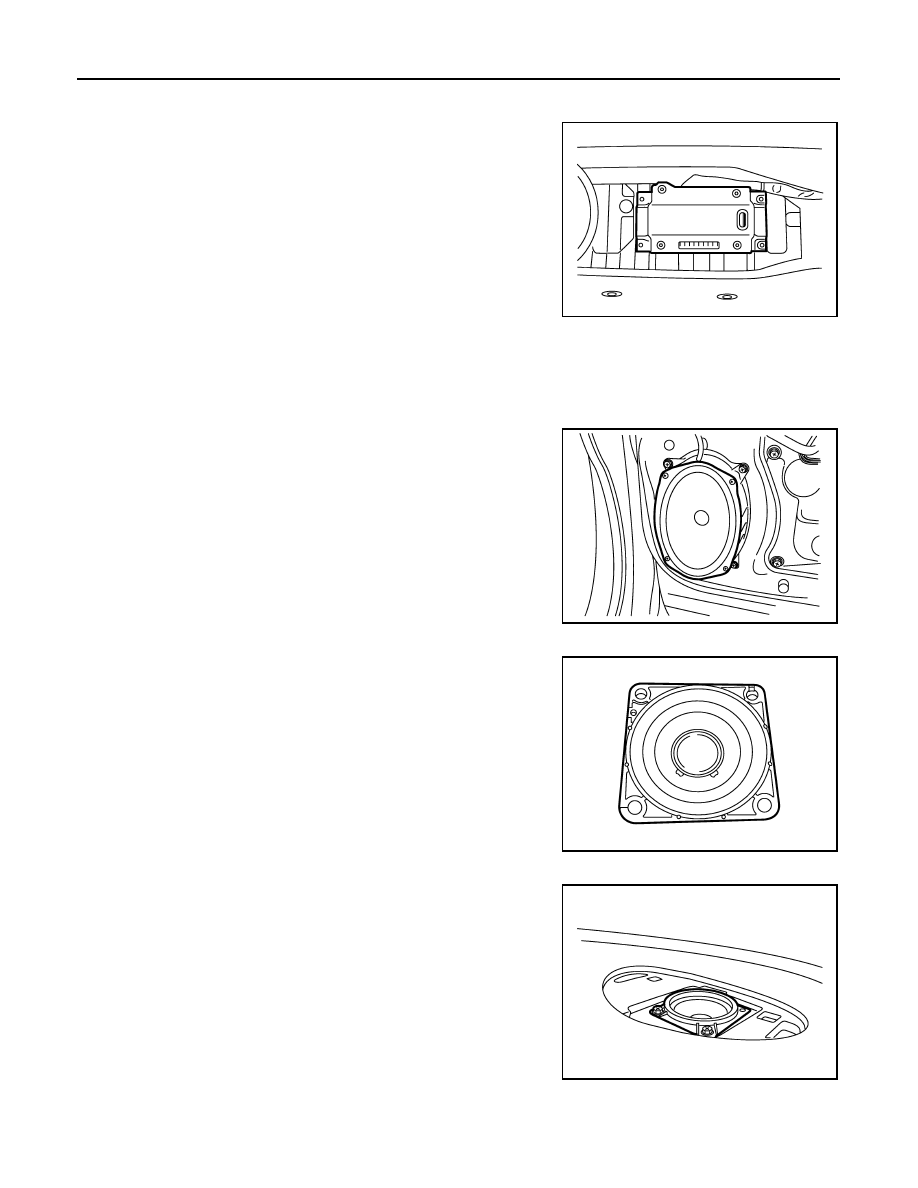

BOSE Amp.

INFOID:0000000009652256

• Installed to the luggage floor box.
• Receives sound signal from AV control unit, and outputs sound sig-

nal to each speaker and woofer.

Speaker

INFOID:0000000009652257

12 speakers system is adopted.

FRONT DOOR WOOFER

•

φ

 15.0

×

 23.0 cm (6

×

 9 in) speaker is installed to the bottom of the front door.

• Sound signal is input from the BOSE amp. to output low range

sounds.

FRONT SQUAWKER

•

φ

 6.5 cm (2 in) squawker is installed to the side of instrument

panel.

• Sound signal is input from the BOSE amp. to output high and mid

range sounds.

CENTER SQUAWKER

•

φ

 8 cm (3 in) squawker is installed to the center of instrument

panel.

• Sound signal is input from the BOSE amp. to output high and mid

range sounds.

SLIDE DOOR SQUAWKER

JSNIA3408ZZ

Rated input

: 13.6 W

Maximum
input

: 40.5 W

Impedance

: 2

Ω

JSNIA3401ZZ

Rated input

: 4.8 W

Maximum
input

: 14 W

Impedance

: 3.6

Ω

JSNIA3402ZZ

Rated input

: 7.6 W

Maximum
input

: 22.5 W

Impedance

: 3.6

Ω

JSNIA3403ZZ
