PWO-32

< SYMPTOM DIAGNOSIS >

[AC 120 V OUTLET]

AC 120 V OUTLET MAIN SWITCH INDICATOR DOES NOT TURN ON

AC 120 V OUTLET MAIN SWITCH INDICATOR DOES NOT TURN ON

Diagnosis Procedure

INFOID:0000000009651890

1.

CHECK FAIL-SAFE ACTIVATION

Check if the symptom is caused by a fail-safe operation. Refer to

PWO-17, "Fail-safe"

.

Is fail-safe operating?

YES

>> Repair the part causing fail-safe operation.

NO

>> GO TO 2.

2.

CHECK INVERTER UNIT POWER SUPPLY CIRCUIT

Check inverter unit power supply circuit. Refer to

PWO-23, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK AC 120 V OUTLET MAIN SWITCH POWER SUPPLY CIRCUIT

Check AC 120 V outlet main switch power supply circuit. Refer to

PWO-24, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the malfunctioning parts.

4.

CHECK AC 120 V OUTLET MAIN SWITCH INPUT SIGNAL CIRCUIT

Check AC 120 V outlet main switch input signal circuit. Refer to

PWO-25, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace the malfunctioning parts.

5.

CHECK AC 120 V OUTLET MAIN SWITCH INDICATOR CIRCUIT

Check AC 120 V outlet main switch indicator circuit. Refer to

PWO-29, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Refer to

GI-42, "Intermittent Incident"

.

NO

>> Repair or replace the malfunctioning parts.

PWO

NORMAL OPERATING CONDITION

PWO-33

< SYMPTOM DIAGNOSIS >

[AC 120 V OUTLET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

NORMAL OPERATING CONDITION

Description

INFOID:0000000009651891

Because of modified sine wave output, the AC 120 V outlet may not operate normally for electric appliance of
which electric power consumption is 150 W or less.
• Electric appliances requiring a large amount of electric power consumption at startup (e.g. CRT-based TV,

power tool)

• Measuring instruments for data requiring accuracy (e.g. medical equipment, measuring instrument)
• Microprocessor-controlled appliances (e.g. microprocessor-controlled blanket)
Noise may be caused in radio or TV, depending on an electric appliance.

PWO-34

< REMOVAL AND INSTALLATION >

[AC 120 V OUTLET]

INVERTER UNIT

REMOVAL AND INSTALLATION

INVERTER UNIT

Removal and Installation

INFOID:0000000009651892

REMOVAL

1.

Remove luggage side lower finisher (RH). Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2.

Disconnect inverter unit connector.

3.

Remove mounting bolt.

4.

Remove inverter unit.

INSTALLATION

Install in the reverse order of removal.

PWO

AC 120V OUTLET MAIN SW

PWO-35

< REMOVAL AND INSTALLATION >

[AC 120 V OUTLET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AC 120V OUTLET MAIN SW

Removal and Installation

INFOID:0000000009651893

REMOVAL

1.

Remove instrument lower panel center. Refer to

IP-14, "Removal and Installation"

.

2.

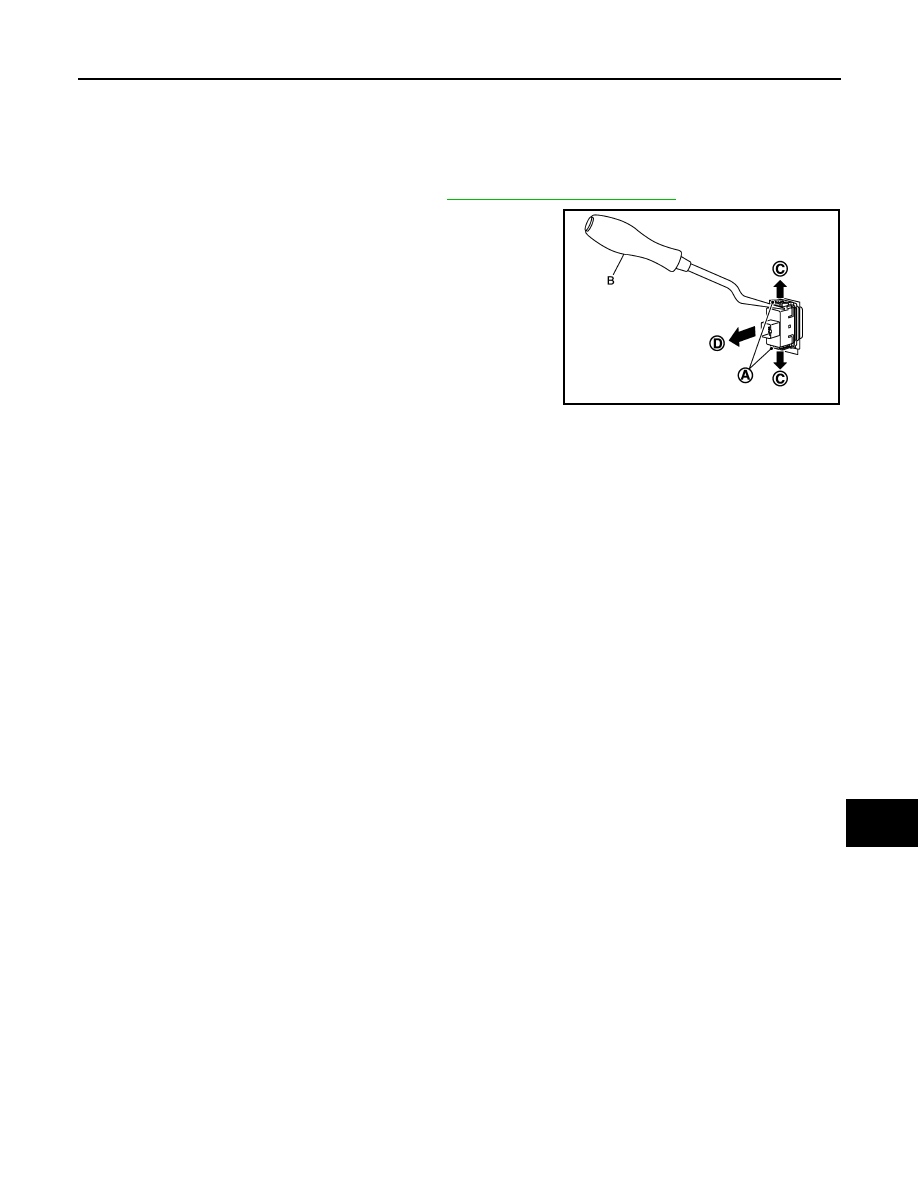

Insert remover tool (B) into pawl (A) of instrument lower panel
center and press the pawl toward direction (C) to release the
pawl.

3.

Remove AC 120 V main switch from instrument lower panel
center in direction (D).

INSTALLATION

Install in the reverse order of removal.

JSMIA0457ZZ
