POWER WINDOW RETAINED POWER OPERATION DOES NOT OPERATE

PROPERLY

POWER WINDOW RETAINED POWER OPERATION DOES NOT OPER-
ATE PROPERLY

Diagnosis Procedure

INFOID:0000000009653401

1.

CHECK FRONT DOOR SWITCH

Check front door switch.
Refer to

DLK-241, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CONFIRM THE OPERATION

Confirm the operation again.

Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> GO TO 1.

POWER WINDOW LOCK SWITCH DOES NOT FUNCTION

PWC-121

< SYMPTOM DIAGNOSIS >

[DRIVER SIDE WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW LOCK SWITCH DOES NOT FUNCTION

Diagnosis Procedure

INFOID:0000000009653402

1.

REPLACE POWER WINDOW MAIN SWITCH

Replace power window main switch.

>> Refer to

PWC-123, "Removal and Installation"

.

PWC-122

< SYMPTOM DIAGNOSIS >

[DRIVER SIDE WINDOW ANTI-PINCH]

POWER WINDOW SWITCH ILLUMINATION DOES NOT ILLUMINATE

POWER WINDOW SWITCH ILLUMINATION DOES NOT ILLUMINATE

DRIVER SIDE

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000009653403

1.

REPLACE POWER WINDOW MAIN SWITCH

Replace power window main switch.
Refer to

PWC-123, "Removal and Installation"

.

>> INSPECTION END

PASSENGER SIDE

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000009653404

1.

REPLACE FRONT POWER WINDOW SWITCH (PASSENGER SIDE)

Replace front power window switch (passenger side).
Refer to

PWC-123, "Removal and Installation"

.

>> INSPECTION END

SLIDING DOOR LH

SLIDING DOOR LH : Diagnosis Procedure

INFOID:0000000009653405

1.

REPLACE SLIDING DOOR POWER WINDOW SWITCH LH

Replace sliding door power window switch LH.
Refer to

PWC-124, "Removal and Installation"

.

>> INSPECTION END

SLIDING DOOR RH

SLIDING DOOR RH : Diagnosis Procedure

INFOID:0000000009653406

1.

REPLACE SLIDING DOOR POWER WINDOW SWITCH RH

Replace sliding door power window switch RH.
Refer to

PWC-124, "Removal and Installation"

.

>> INSPECTION END

POWER WINDOW MAIN SWITCH

PWC-123

< REMOVAL AND INSTALLATION >

[DRIVER SIDE WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

REMOVAL AND INSTALLATION

POWER WINDOW MAIN SWITCH

Removal and Installation

INFOID:0000000009653407

REMOVAL

1.

Remove the power window main switch finisher. Refer to

INT-

14, "Removal and Installation"

.

2.

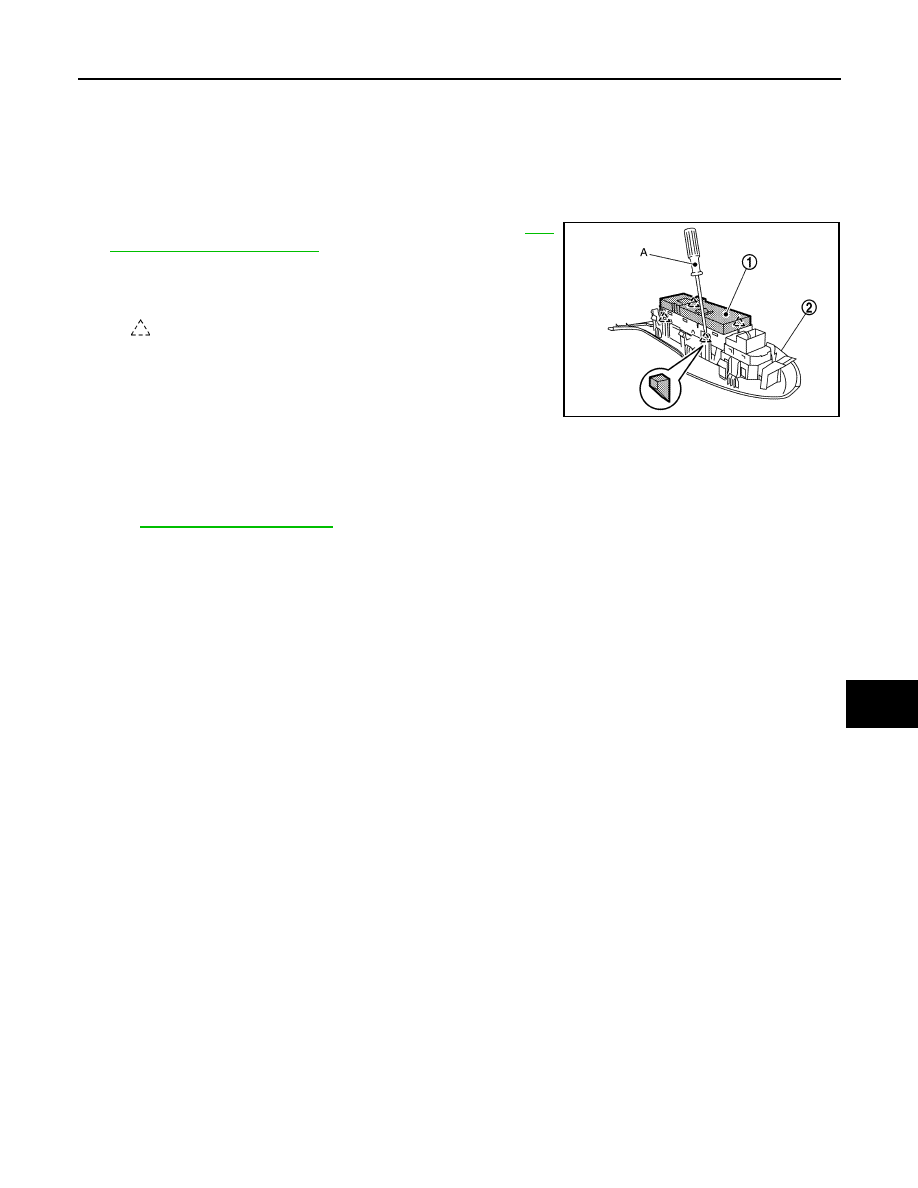

Remove power window main switch (1) from power window
main switch finisher (2) using a remover tool (A).

NOTE:
The same procedure is also performed for front power window
switch (passenger side).

INSTALLATION

Install in the reverse order of removal.
NOTE:
If power window main switch is replaced or is removed, it is necessary to perform the initialization procedure.
Refer to

PWC-94, "Work Procedure"

.

: Pawl

JMKIA8164ZZ
