TM-212

< PERIODIC MAINTENANCE >

[CVT: RE0F08B]

ROAD TEST

3.

Turn ignition switch to “START” position.

Does engine start with selector lever in one of these positions?

YES

>> 1.

Stop “Road Test”.

2.

Perform self-diagnosis. Refer to

TM-188, "Symptom Table"

.

NO

>> GO TO 3.

3.

CHECK “P” POSITION FUNCTION

1.

Shift selector lever to “P” position.

2.

Turn ignition switch OFF.

3.

Release parking brake.

4.

Push vehicle forward or backward.

Does the vehicle move when it is pushed?

YES

>> 1.

Apply parking brake.

2.

Record malfunction symptoms.

3.

GO TO 4.

NO

>> 1.

Apply parking brake.

2.

GO TO 4.

4.

CHECK “N” POSITION FUNCTION

1.

Start the engine.

2.

Shift selector lever to “N” position.

3.

Release parking brake.

Does vehicle move?

YES

>> 1.

Record malfunction symptoms.

2.

GO TO 5.

NO

>> GO TO 5.

5.

CHECK SHIFT SHOCK

1.

Apply foot brake.

2.

Shift selector lever from “N” to “R” position.

Is an excessive shock detected?

YES

>> 1.

Record malfunction symptoms.

2.

GO TO 6.

NO

>> GO TO 6.

6.

CHECK “R” POSITION FUNCTION

Release foot brake pedal for several seconds.

Does vehicle back up?

YES

>> GO TO 7.

NO

>> 1.

Record malfunction symptoms.

2.

GO TO 7.

7.

CHECK “D” POSITION FUNCTION

Shift selector lever to “D” position.

Does the vehicle move forward?

YES

>> Go to

TM-212, "Cruise Test"

.

NO

>> 1.

Stop “Road Test”.

2.

Perform self-diagnosis. Refer to

TM-188, "Symptom Table"

.

Cruise Test

INFOID:0000000009949078

CAUTION:

Always drive vehicle at a safe speed.

1.

CHECK VEHICLE SPEED WHEN SHIFTING GEARS (PART 1)

1.

Drive vehicle for approximately 10 minutes to warm engine oil and CVT fluid up to operating temperature.
CVT fluid operating temperature: 50 – 80

°

C (122 – 176

°

F)

2.

Park vehicle on level surface.

3.

Shift selector lever to “P” position.

ROAD TEST

TM-213

< PERIODIC MAINTENANCE >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

4.

Start the engine.

5.

Shift selector lever to “D” position.

6.

Accelerate vehicle at 2/8 throttle opening.

7.

Check “Vehicle Speed When Shifting Gears”. Refer to

TM-240, "Vehicle Speed When Shifting Gears"

.

With CONSULT

• Read “ACC PEDAL OPEN”, “VEHICLE SPEED” and “ENG SPEED”.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> 1.

Record malfunction symptoms.

2.

GO TO 2.

2.

CHECK VEHICLE SPEED WHEN SHIFTING GEARS (PART 2)

1.

Park vehicle on level surface.

2.

Shift selector lever to “D” position.

3.

Accelerate vehicle at 8/8 throttle opening.

4.

Check “Vehicle Speed When Shifting Gears”. Refer to

TM-240, "Vehicle Speed When Shifting Gears"

.

With CONSULT

• Read “ACC PEDAL OPEN”, “VEHICLE SPEED” and “ENG SPEED”.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> 1.

Record malfunction symptoms.

2.

GO TO 3.

3.

CHECK OVERDRIVE OFF CONDITION (PART 1)

1.

Park vehicle on level surface.

2.

Push overdrive control switch.

3.

Accelerate vehicle at 2/8 throttle opening.

4.

Check “Vehicle Speed When Shifting Gears”. Refer to

TM-240, "Vehicle Speed When Shifting Gears"

.

With CONSULT

• Read “ACC PEDAL OPEN”, “VEHICLE SPEED” and “ENG SPEED”.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> 1.

Record malfunction symptoms.

2.

GO TO 4.

4.

CHECK OVERDRIVE OFF CONDITION (PART 2)

1.

Park vehicle on level surface.

2.

Push overdrive control switch.

3.

Accelerate vehicle at 8/8 throttle opening.

4.

Check “Vehicle Speed When Shifting Gears”. Refer to

TM-240, "Vehicle Speed When Shifting Gears"

.

With CONSULT

• Read “ACC PEDAL OPEN”, “VEHICLE SPEED” and “ENG SPEED”.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> 1.

Record malfunction symptoms.

2.

GO TO 5.

5.

CHECK “L” POSITION FUNCTION (PART 1)

1.

Park vehicle on level surface.

2.

Shift selector lever to “L” position.

3.

Accelerate vehicle at 2/8 throttle opening.

4.

Check “Vehicle Speed When Shifting Gears”. Refer to

TM-240, "Vehicle Speed When Shifting Gears"

.

With CONSULT

• Read “ACC PEDAL OPEN”, “VEHICLE SPEED” and “ENG SPEED”.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> 1.

Record malfunction symptoms.

2.

GO TO 6.

TM-214

< PERIODIC MAINTENANCE >

[CVT: RE0F08B]

ROAD TEST

6.

CHECK “L” POSITION FUNCTION (PART 2)

1.

Park vehicle on level surface.

2.

Shift selector lever to “L” position.

3.

Accelerate vehicle at 8/8 throttle opening.

4.

Check “Vehicle Speed When Shifting Gears”. Refer to

TM-240, "Vehicle Speed When Shifting Gears"

.

With CONSULT

• Read “ACC PEDAL OPEN”, “VEHICLE SPEED” and “ENG SPEED”.
Is the inspection result normal?

YES

>> GO TO 7.

NO

>> 1.

Record malfunction symptoms.

2.

GO TO 7.

7.

CHECK ENGINE BRAKE FUNCTION

Check engine brake.
Does engine braking effectively reduce vehicle speed in “L” position?

YES

>> 1.

Stop vehicle.

2.

Perform “Self Diagnostic Results” in “TRANSMISSION”.

NO

>> 1.

Record malfunction symptoms.

2.

Perform self-diagnosis. Refer to

TM-188, "Symptom Table"

.

CVT POSITION

TM-215

< PERIODIC MAINTENANCE >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CVT POSITION

Inspection and Adjustment

INFOID:0000000009949079

Inspection

1.

Shift selector lever to “P” position, and turn ignition switch ON.

2.

Check that selector lever can be shifted to other than “P” position when brake pedal is depressed. Also
check that selector lever can be shifted from “P” position only when brake pedal is depressed.

3.

Shift selector lever and check for excessive effort, sticking, noise or rattle.

4.

Check that selector lever stops at each position with the feel of engagement when it is shifted through all
the positions. Check that the actual position of selector lever matches the position shown by shift position
indicator and manual lever on the transaxle.

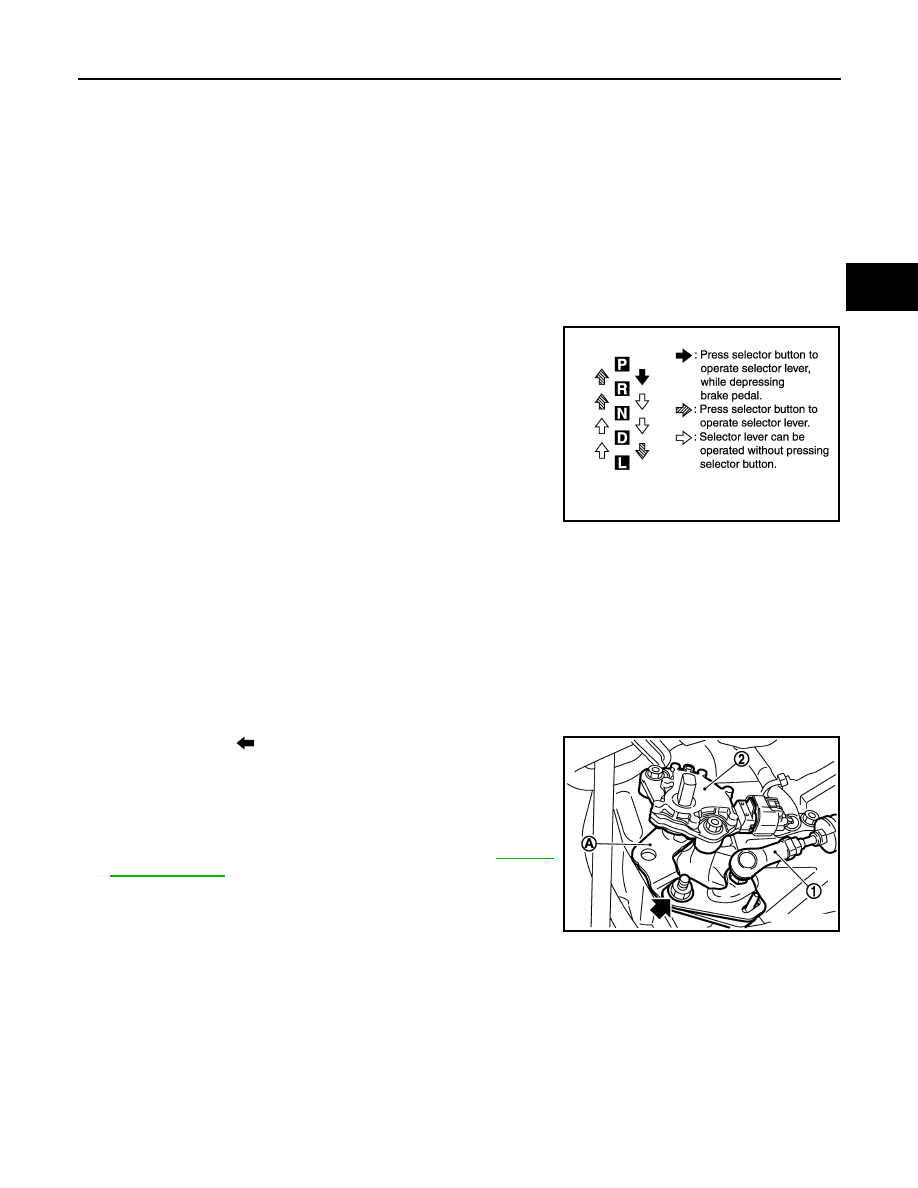

5.

The method of operating selector lever to individual positions
correctly should be as shown.

6.

When selector button is pressed in “P”, “R”, “N”, “D” or “L” posi-
tion without applying forward/backward force to selector lever,
check button operation for sticking.

7.

Check that back-up lamps illuminate only when selector lever is
placed in the “R” position.

8.

When in “R” position, check that back-up lamps do not illuminate
even when the selector lever is in the “P” position.

CAUTION:

Check the lighting without pressing shift button.

9.

Check that back-up lamps do not illuminate when selector lever is pushed toward the “R” position when in
the “P” or “N” position.

CAUTION:

Check the lighting without pressing shift button.

10. Check that the engine can only be started with selector lever in the “P” and “N” positions.

11. Check that transaxle is locked completely in “P” position.

Adjustment

1.

Shift selector lever to “P” position.

CAUTION:

Be sure to turn the wheels 1/4 turn or more and apply the park lock.

2.

Remove lock nut (

) to release control cable (1).

3.

Place manual lever (A) to “P” position.

4.

Release control cable and temporarily tighten lock nut.

5.

Tighten lock nut to the specified torque. Refer to

TM-219,

"Exploded View"

.

CAUTION:

Never apply force (Especially forward and rearward) to
manual lever when tightening lock nut.

6.

Check CVT position.

JPDIA0343GB

2

: Transmission range switch

SCIA8395J
